Chevrolet Trax: Rear compartment lamp malfunction

Diagnostic Instructions

  • Perform the Diagnostic System Check - Vehicle prior to using this diagnostic procedure.
  • Review Strategy Based Diagnosis for an overview of the diagnostic approach.
  • Diagnostic Procedure Instructions provides an overview of each diagnostic category

Diagnostic Fault Information

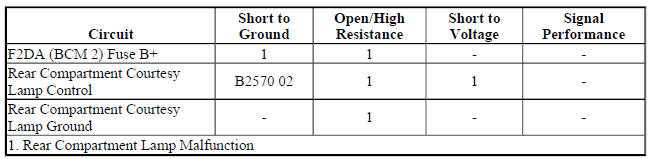

Diagnostic Fault Information

Circuit/System Description

The body control module (BCM) applies battery voltage to the rear compartment courtesy lamp through the rear compartment lamp control circuit. When the BCM receives a rear compartment lid open input from the rear compartment lid latch, the BCM applies battery voltage to the rear compartment lamp control circuit illuminating the rear compartment courtesy lamp. In the event that the rear compartment lamp were to remain illuminated for more than 10 minutes with the ignition switch in the OFF position and no doors opened, the BCM will deactivate the rear compartment lamp control circuit to prevent total battery discharge.

Reference Information

Schematic Reference

Interior Lights Schematics (Encore) , Interior Lights Schematics (Trax)

Connector End View Reference

WIRING SYSTEMS AND POWER MANAGEMENT - COMPONENT CONNECTOR END VIEWS - INDEX - ENCORE WIRING SYSTEMS AND POWER MANAGEMENT - COMPONENT CONNECTOR END VIEWS - INDEX - TRAX

Description and Operation

Interior Lighting Systems Description and Operation

Electrical Information Reference

  • Circuit Testing
  • Connector Repairs
  • Testing for Intermittent Conditions and Poor Connections
  • Wiring Repairs

Scan Tool Reference

Control Module References for scan tool information

Circuit/System Testing

  1. Ignition OFF, exterior lamps OFF, rear hatch latch latched, disconnect the harness connector at the E8S Rear Compartment Courtesy Lamp.
  2. Test for less than 5 ohms between the ground circuit terminal 2 and ground.
  • If 5 ohms or greater
  1. Ignition OFF.
  2. Test for less than 2 ohms in the ground circuit end to end.
  • If 2 ohms or greater, repair the open/high resistance in the circuit.
  • If less than 2 ohms, repair the open/high resistance in the ground connection.
  • If less than 5 ohms
  1. Connect a test lamp between the control circuit terminal 1 and ground, ignition ON.
  2. Verify the test lamp turns ON and OFF when commanding the Cargo Lamp ON and OFF with a scan tool.
  • If the test lamp is always OFF
  1. Ignition OFF, disconnect the X7 harness connector at the K9 Body Control Module.
  2. Test for infinite resistance between the control circuit and ground.
  • If less than infinite resistance, repair the short to ground on the circuit.
  • If infinite resistance
  1. Test for less than 2 ohms in the control circuit end to end.
  • If 2 ohms or greater, repair the open/high resistance in the circuit.
  • If less than 2 ohms, replace the K9 Body Control Module.
  • If the test lamp is always ON
  1. Ignition OFF, disconnect the X7 harness connector at the K9 Body Control Module, ignition ON.
  2. Test for less than 1 V between the control circuit terminal and ground.
  • If 1 V or greater, repair the short to voltage on the circuit.
  • If less than 1 V, replace the K9 Body Control Module.

If the test lamp turns ON and OFF

  1. Test or replace the E8S Rear Compartment Courtesy Lamp

Repair Instructions

Perform the Diagnostic Repair Verification after completing the repair.

  • Cargo Lamp Replacement
  • Cargo Center Courtesy Lamp Bulb Replacement
  • Control Module References for BCM replacement, programming, and setup
