Chevrolet Trax: DTC B2615

Diagnostic Instructions

  • Perform the Diagnostic System Check - Vehicle prior to using this diagnostic procedure.
  • Review Strategy Based Diagnosis for an overview of the diagnostic approach.
  • Diagnostic Procedure Instructions provides an overview of each diagnostic category.

DTC Descriptor

DTC B2615 02

Passenger Compartment Dimming 2 Circuit Short to Ground

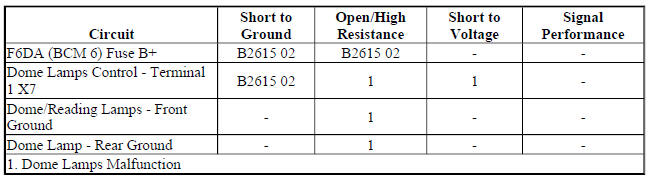

Diagnostic Fault Information

Diagnostic Fault Information

Circuit/System Description

The body control module (BCM) applies battery voltage to the dome/reading lamps through the dome/reading lamp control circuit. When any door is opened, the jam switch contacts close and the BCM receives a door-ajar input. If the BCM receives a door lock or unlock input or a rear hatch open input, the BCM will activate the dome/reading lamp control circuit, providing battery voltage to dome/reading lamps. In the event that any of these courtesy lamps were to remain illuminated for more than 10 minutes with the ignition switch in the OFF position and no doors opened, the BCM will deactivate the courtesy lamp control circuit to prevent total battery discharge.

Conditions for Running the DTC

Battery voltage must be between 9-16 V.

Conditions for Setting the DTC

The BCM detects a short to ground in the dome lamps control circuit terminal 1 X7.

Actions Taken When the DTC Sets

The BCM will disable the dome lamps control circuit.

Conditions for Clearing the DTC

  • The condition responsible for setting the DTC no longer exists.
  • A history DTC will clear once 100 consecutive malfunction-free ignition cycles have occurred.

Reference Information

Schematic Reference

  • Interior Lights Schematics (Encore) , Interior Lights Schematics (Trax)
  • Body Control System Schematics (Encore) , Body Control System Schematics (Trax)

Connector End View Reference

WIRING SYSTEMS AND POWER MANAGEMENT - COMPONENT CONNECTOR END VIEWS - INDEX - ENCORE WIRING SYSTEMS AND POWER MANAGEMENT - COMPONENT CONNECTOR END VIEWS - INDEX - TRAX

Description and Operation

Interior Lighting Systems Description and Operation

Electrical Information Reference

  • Circuit Testing
  • Connector Repairs
  • Testing for Intermittent Conditions and Poor Connections
  • Wiring Repairs

Scan Tool Reference

Control Module References for scan tool information

Circuit/System Testing

  1. Ignition OFF, disconnect the X5 harness connector at the K9 Body Control Module, ignition ON.
  2. Verify a test lamp illuminates between the B+ circuit terminal 4 and ground.
  • If the test lamp does not illuminate and the circuit fuse is good
  1. Ignition OFF.
  2. Test for less than 2 ohms in the B+ circuit end to end.
  • If 2 ohms or greater, repair the open/high resistance in the circuit.
  • If less than 2 ohms, verify the fuse is not open and there is voltage at the fuse.
  • If the test lamp does not illuminate and the circuit fuse is open
  1. Ignition OFF.
  2. Test for infinite resistance between the B+ circuit and ground.
  • If less than infinite resistance, repair the short to ground on the circuit.
  • If infinite resistance, replace the K9 Body Control Module.
  • If the test lamp illuminates
  1. Ignition OFF, connect the X5 harness connector at the K9 Body Control Module.
  2. Ignition OFF, all doors closed, all accessories OFF, disconnect the harness connector at the E37A Dome/Reading Lamps - Front and E36AH Dome Lamp. It may take up to 2 minutes for all vehicle systems to power down.
  3. Test for less than 15 ohms between the appropriate ground circuit terminal listed below and ground.
  • E37A Dome/Reading Lamps - Front terminal 6
  • E36AH Dome Lamp - terminal 2
  • If 15 ohms or greater
  1. Ignition OFF.
  2. Test for less than 2 ohms in the ground circuit end to end.
  • If 2 ohms or greater, repair the open/high resistance in the circuit.
  • If less than 2 ohms, repair the open/high resistance in the ground connection.
  • If less than 15 ohms
  1. Connect a test lamp between the appropriate control circuit terminal listed below and ground, ignition ON.
  • E37A Dome/Reading Lamps - Front terminal 2
  • E36AH Dome Lamp - terminal 3
  1. Verify the test lamp turns ON and OFF when commanding the Courtesy Lamps ON and OFF with a scan tool.
  • If the test lamp is always OFF
  1. Ignition OFF, disconnect the X7 harness connector at the K9 Body Control Module.
  2. Test for infinite resistance between the control circuit and ground.
  • If less than infinite resistance, repair the short to ground on the circuit.
  • If infinite resistance
  1. Test for less than 2 ohms in the control circuit end to end.
  • If 2 ohms or greater, repair the open/high resistance in the circuit.
  • If less than 2 ohms, replace the K9 Body Control Module.
  • If the test lamp is always ON
  1. Ignition OFF, disconnect the X7 harness connector at the K9 Body Control Module, ignition ON.
  2. Test for less than 1 V between the control circuit terminal and ground.
  • If 1 V or greater, repair the short to voltage on the circuit.
  • If less than 1 V, replace the K9 Body Control Module.
  • If the test lamp turns ON and OFF
  1. Test or replace the inoperative dome/reading lamp.

Repair Instructions

Perform the Diagnostic Repair Verification after completing the repair.

  • Dome Lamp Bulb Replacement
  • Center Reading Lamp Replacement
  • Center Reading Lamp Bulb Replacement
  • Control Module References for BCM replacement, programming, and setup
