Chevrolet Trax: Exterior Lamp Controls
.gif)

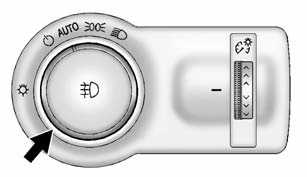

The exterior lamp control is to the left of the steering column on the instrument panel.
There are four positions:
.gif)
(Off): Briefly turn to this
position
to turn the automatic lamp control
off or on again.
AUTO (Automatic, If Equipped): Turns the headlamps on automatically at normal brightness, together with the parking lamps, taillamps, license plate lamps, sidemarker lamps, and instrument panel lights.
.gif)
(Parking Lamps): Turns on the
parking lamps including all lamps
except the headlamps.
.gif)
(Headlamps): Turns on the
headlamps together with the parking
lamps and instrument panel lights.
A warning chime sounds if the driver door is opened when the ignition switch is off and the headlamps are on.
.gif)
(Front Fog Lamps, If
Equipped): Press to turn the lamps
on or off.
See Front Fog Lamps .
When the lights are on,.gif)
will be
lit. See Lamps On Reminder
