Chevrolet Trax: DTC B2625

Diagnostic Instructions

  • Perform the Diagnostic System Check - Vehicle prior to using this diagnostic procedure.
  • Review Strategy Based Diagnosis for an overview of the diagnostic approach.
  • Diagnostic Procedure Instructions provides an overview of each diagnostic category.

DTC Descriptor

DTC B2625 02

Display Dimming Pulse Width Modulation Output Circuit Short to Ground

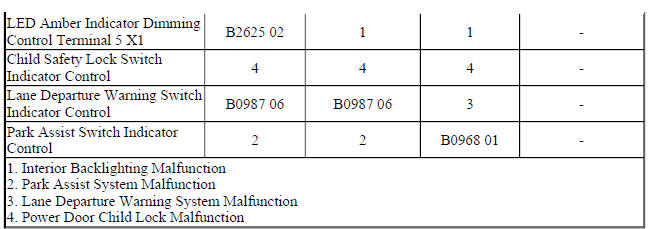

Diagnostic Fault Information

Diagnostic Fault Information

Diagnostic Fault Information

Circuit/System Description

The instrument panel dimmer switch is used to increase and decrease the brightness of the interior backlighting components. The instrument panel dimmer switch provides a voltage signal to the body control module (BCM) that will increase as the brightness of the lights are increased and decrease as the brightness of the lights are decreased. The BCM provides a low reference, signal, and B+ voltage reference circuits to the instrument panel dimmer switch. When the instrument panel dimmer switch is placed in the desired position, the dimmed voltage setting is applied from the instrument panel dimmer switch through the instrument panel dimmer switch signal circuit to the BCM. The BCM interprets the signal and applies a pulse width modulated (PWM) voltage through the LED backlight dimming control circuit illuminating the child safety lock switch , park assist switch, and lane departure warning switch amber LED's to the requested level of brightness.

Conditions for Running the DTC

  • Battery voltage must be between 9-16 V.
  • Park lamps ON

Conditions for Setting the DTC

The BCM detects a short to ground in the indicator dimming control circuit terminal 5 X1.

Actions Taken When the DTC Sets

The child safety lock, park assist switch, and lane departure warning switch amber indicators are inoperative

Conditions for Clearing the DTC

  • The condition responsible for setting the DTC no longer exists.
  • A history DTC will clear once 100 consecutive malfunction-free ignition cycles have occurred.

Reference Information

Schematic Reference

  • Interior Lights Dimming Schematics (Encore) , Interior Lights Dimming Schematics (Trax)
  • Door Lock/Indicator Schematics (Encore) , Door Lock/Indicator Schematics (Trax)
  • Object Detection Schematics (Encore) , Object Detection Schematics (Trax)

Connector End View Reference

WIRING SYSTEMS AND POWER MANAGEMENT - COMPONENT CONNECTOR END VIEWS - INDEX - ENCORE WIRING SYSTEMS AND POWER MANAGEMENT - COMPONENT CONNECTOR END VIEWS - INDEX - TRAX

Description and Operation

Interior Lighting Systems Description and Operation

Electrical Information Reference

  • Circuit Testing
  • Connector Repairs
  • Testing for Intermittent Conditions and Poor Connections
  • Wiring Repairs

Scan Tool Reference

Control Module References for scan tool information

Circuit/System Testing

  1. Ignition OFF, disconnect the appropriate harness connector listed below at the S48E Multifunction Switch - Center Console.
  • X1
  • X2
  1. Connect a test lamp between the control circuit terminal 8 and ground, ignition ON.
  2. Verify the test lamp turns ON and OFF when commanding the Child Safety Lock Indicator ON and OFF with a scan tool.
  • If the test lamp is always OFF
  1. Ignition OFF, disconnect the X1 harness connector at the K9 Body Control Module.
  2. Test for infinite resistance between the control circuit and ground.
  • If less than infinite resistance, repair the short to ground on the circuit.
  • If infinite resistance
  1. Test for less than 2 ohms in the control circuit end to end.
  • If 2 ohms or greater, repair the open/high resistance in the circuit.
  • If less than 2 ohms, replace the K9 Body Control Module
  • If the test lamp is always ON
  1. Ignition OFF, disconnect the X1 harness connector at the K9 Body Control Module, ignition ON.
  2. Test for less than 1 V between the control circuit terminal and ground.
  • If 1 V or greater, repair the short to voltage on the circuit.
  • If less than 1 V, replace the K9 Body Control Module.
  • If the test lamp turns ON and OFF
  1. Test or replace the appropriate switch at the S48E Multifunction Switch - Center Console.

Repair Instructions

Perform the Diagnostic Repair Verification after completing the repair.

  • Instrument Panel Multifunction Switch Replacement (Encore)
  • Control Module References for BCM replacement, programming, and setup
