Chevrolet Trax: DTC B3596

Diagnostic Instructions

  • Perform the Diagnostic System Check - Vehicle prior to using this diagnostic procedure.
  • Review Strategy Based Diagnosis for an overview of the diagnostic approach.
  • Diagnostic Procedure Instructions provides an overview of each diagnostic category.

DTC Descriptor

DTC B3596 00

Hazard Lamps Request Circuit Malfunction

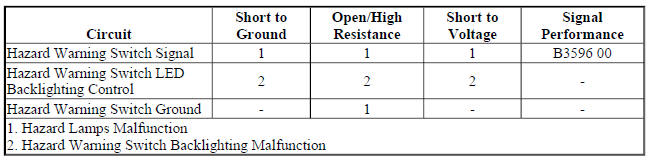

Diagnostic Fault Information

Diagnostic Fault Information

Circuit/System Description

The hazard flashers may be activated in any power mode. The hazard warning switch signal circuit is momentarily grounded when the hazard warning switch is pressed. The body control module (BCM) responds to the hazard warning switch signal input by supplying battery voltage to all four turn signal lamps in an ON and OFF duty cycle. When the hazard warning switch is activated, the BCM sends a serial data message to the instrument cluster requesting both turn signal indicators to be cycled ON and OFF.

Conditions for Running the DTC

  • Battery voltage must be between 9-16 V.
  • Hazard lamps ON.

Conditions for Setting the DTC

The hazard warning switch input is Active for longer than 60 seconds.

Actions Taken When the DTC Sets

The hazard lamps are inoperative.

Conditions for Clearing the DTC

  • The condition responsible for setting the DTC no longer exists.
  • A history DTC will clear once 100 consecutive malfunction-free ignition cycles have occurred.

Reference Information

Schematic Reference

Exterior Lights Schematics (Encore) , Exterior Lights Schematics (Trax)

Connector End View Reference

WIRING SYSTEMS AND POWER MANAGEMENT - COMPONENT CONNECTOR END VIEWS - INDEX - ENCORE WIRING SYSTEMS AND POWER MANAGEMENT - COMPONENT CONNECTOR END VIEWS - INDEX - TRAX

Description and Operation

Exterior Lighting Systems Description and Operation

Electrical Information Reference

  • Circuit Testing
  • Connector Repairs
  • Testing for Intermittent Conditions and Poor Connections
  • Wiring Repairs

Scan Tool Reference

Control Module References for scan tool information

Circuit/System Testing

  1. Ignition OFF, scan tool disconnected, all doors closed, all accessories OFF, disconnect the harness connector at the S26 Hazard Warning Switch. It may take up to 2 minutes for all vehicle systems to power down.
  2. Test for less than 5 ohms between the ground circuit terminal 7 and ground.
  • If 5 ohms or greater
  1. Ignition OFF.
  2. Test for less than 2 ohms in the ground circuit end to end.
  • If 2 ohms or greater, repair the open/high resistance in the circuit.
  • If less than 2 ohms, repair the open/high resistance in the ground connection.
  • If less than 5 ohms
  1. Ignition ON.
  2. Verify the scan tool Hazard Lamps Switch parameter is Inactive.
  • If not Inactive
  1. Ignition OFF, disconnect the X2 harness connector at the K9 Body Control Module.
  2. Test for infinite resistance between the signal circuit terminal 10 and ground.
  • If less than infinite resistance, repair the short to ground on the circuit.
  • If infinite resistance, replace the K9 Body Control Module.
  • If Inactive
  1. Install a 3 A fused jumper wire between the signal circuit terminal 10 and ground.
  2. Verify the scan tool Hazard Lamps Switch parameter is Active.
  • If not Active
  1. Ignition OFF, disconnect the X2 harness connector at the K9 Body Control Module, ignition ON.
  2. Test for less than 1 V between the signal circuit terminal 10 and ground.
  • If 1 V or greater, repair the short to voltage on the circuit.
  • If less than 1 V
  1. Test for less than 2 ohms in the signal circuit end to end.
  • If 2 ohms or greater, repair the open/high resistance in the circuit.
  • If less than 2 ohms, replace the K9 Body Control Module.
  • If Active
  1. Test or replace the S26 Hazard Warning Switch.

Repair Instructions

Perform the Diagnostic Repair Verification after completing the repair.

  • Hazard Warning and Accessory Switch Replacement (Encore)
  • Control Module References for BCM replacement, programming, and setup
