Chevrolet Trax: DTC B3881 OR B3882

Diagnostic Instructions

  • Perform the Diagnostic System Check - Vehicle prior to using this diagnostic procedure.
  • Review Strategy Based Diagnosis for an overview of the diagnostic approach.
  • Diagnostic Procedure Instructions provides an overview of each diagnostic category

DTC Descriptors

DTC B3881 01

Tail Lamp Circuit Short to Battery

DTC B3881 02

Tail Lamp Circuit Short to Ground

DTC B3881 04

Tail Lamp Circuit Open

DTC B3882 01

Right Tail Lamp Circuit Short to Battery

DTC B3882 02

Right Tail Lamp Circuit Short to Ground

DTC B3882 04

Right Tail Lamp Circuit Open

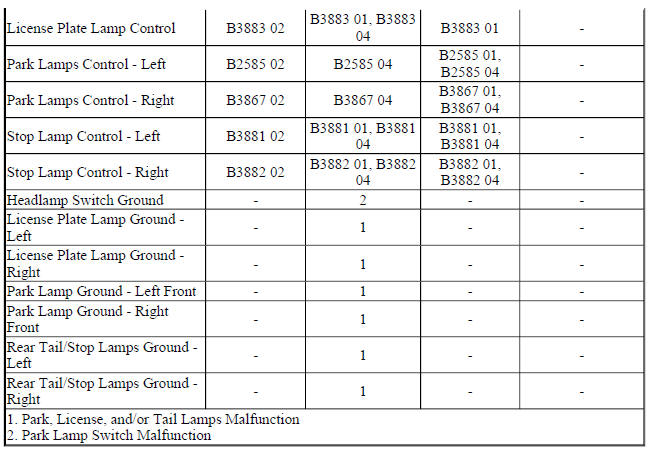

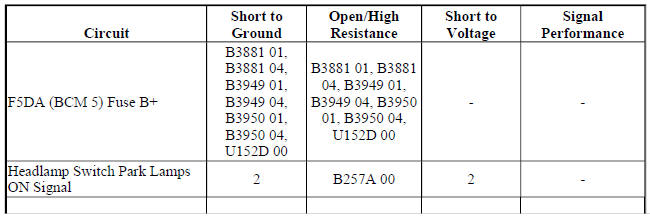

Diagnostic Fault Information

Diagnostic Fault Information

Diagnostic Fault Information

Circuit/System Description

The brake pedal position (BPP) sensor is used to sense the action of the driver application of the brake pedal.

The BPP sensor provides an analog voltage signal that will increase as the brake pedal is applied. The body control module (BCM) provides a low reference signal and a 5-volt reference voltage to the BPP sensor. When the variable signal reaches a voltage threshold indicating the brakes have been applied, the BCM will apply battery voltage to the left and right stop lamp control circuits as well as the center high mounted stop lamp (CHMSL) control circuit illuminating the left and right stop lamps and the CHMSL.

Conditions for Running the DTC

  • Battery voltage must be between 9-16 V.
  • Brakes APPLIED

Conditions for Setting the DTC

DTC B3881 01 and B3881 04

  • The BCM detects a short to voltage or an open/high resistance in the left stop lamp control circuit.
  • The BCM detects a short to ground or an open/high resistance in the F5DA (BCM 5) fuse B+ circuit.

DTC B3881 02

The BCM detects a short to ground in the left rear tail lamp control circuit.

DTC B3882 01 and B3882 04

The BCM detects a short to voltage or an open/high resistance in the right stop lamp control circuit.

DTC B3882 02

The BCM detects a short to ground in the right rear tail lamp control circuit.

Actions Taken When the DTC Sets

The appropriate stop lamp will not operate.

Conditions for Clearing the DTC

  • The condition responsible for setting the DTC no longer exists.
  • A history DTC will clear once 100 consecutive malfunction-free ignition cycles have occurred.

Diagnostic Aids

When testing at the stop lamp bulb socket, make sure all measurements and test lamp connections are in the correct terminal location and do not come in contact with each other during testing.

Reference Information

Schematic Reference

  • Exterior Lights Schematics (Encore) , Exterior Lights Schematics (Trax)
  • Body Control System Schematics (Encore) , Body Control System Schematics (Trax)

Connector End View Reference

WIRING SYSTEMS AND POWER MANAGEMENT - COMPONENT CONNECTOR END VIEWS - INDEX - ENCORE WIRING SYSTEMS AND POWER MANAGEMENT - COMPONENT CONNECTOR END VIEWS - INDEX - TRAX

Description and Operation

Exterior Lighting Systems Description and Operation

Electrical Information Reference

  • Circuit Testing
  • Connector Repairs
  • Testing for Intermittent Conditions and Poor Connections
  • Wiring Repairs

Scan Tool Reference

Control Module References for scan tool information

Circuit/System Testing

DTC B3881

  1. Ignition OFF, disconnect the X2 harness connector at the K9 Body Control Module, ignition ON.
  2. Verify a test lamp illuminates between the B+ circuit terminal 3 and ground.
  • If the test lamp does not illuminate and the circuit fuse is good
  1. Ignition OFF.
  2. Test for less than 2 ohms in the B+ circuit end to end.
  • If 2 ohms or greater, repair the open/high resistance in the circuit.
  • If less than 2 ohms, verify the fuse is not open and there is voltage at the fuse.
  • If the test lamp does not illuminate and the circuit fuse is open
  1. Ignition OFF.
  2. Test for infinite resistance between the B+ circuit and ground.
  • If less than infinite resistance, repair the short to ground on the circuit.
  • If infinite resistance, replace the K9 Body Control Module.
  • If the test lamp illuminates
  1. Ignition OFF, connect the X2 harness connector at the K9 Body Control Module.
  2. Ignition OFF, exterior lamps OFF, rear hatch latch latched, remove the E5AA Tail/Stop Lamp - Left bulb.
  3. Test for less than 5 ohms between the ground circuit at the socket terminal and ground.
  • If 5 ohms or greater
  1. Ignition OFF.
  2. Test for less than 2 ohms in the ground circuit end to end.
  • If 2 ohms or greater, repair the open/high resistance in the circuit.
  • If less than 2 ohms, repair the open/high resistance in the ground connection.
  • If less than 5 ohms
  1. Connect a test lamp between the control circuit at the socket terminal and ground, ignition ON.
  2. Verify the test lamp turns ON and OFF when commanding the Left Stop Lamp ON and OFF with a scan tool.
  • If the test lamp is always OFF
  1. Ignition OFF, disconnect the X4 harness connector at the K9 Body Control Module.
  2. Test for infinite resistance between the control circuit and ground.
  • If less than infinite resistance, repair the short to ground on the circuit.
  • If infinite resistance
  1. Test for less than 2 ohms in the control circuit end to end.
  • If 2 ohms or greater, repair the open/high resistance in the circuit.
  • If less than 2 ohms, replace the K9 Body Control Module.
  • If the test lamp is always ON
  1. Ignition OFF, disconnect the X4 harness connector at the K9 Body Control Module, ignition ON.
  2. Test for less than 1 V between the control circuit terminal and ground.
  • If 1 V or greater, repair the short to voltage on the circuit.
  • If less than 1 V, replace the K9 Body Control Module.
  • If the test lamp turns ON and OFF
  1. Test or replace the E5AA Tail/Stop Lamp - Left.
