Chevrolet Trax: DTC B3883

Diagnostic Instructions

  • Perform the Diagnostic System Check - Vehicle prior to using this diagnostic procedure.
  • Review Strategy Based Diagnosis for an overview of the diagnostic approach.
  • Diagnostic Procedure Instructions provides an overview of each diagnostic category.

DTC Descriptors

DTC B3883 01

License Plate Lamp Circuit Short to Battery

DTC B3883 02

License Plate Lamp Circuit Short to Ground

DTC B3883 04

License Plate Lamp Circuit Open

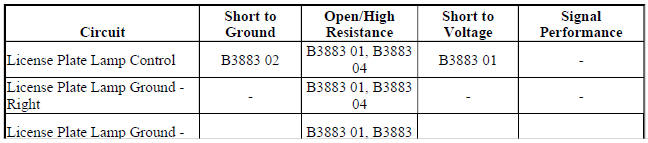

Diagnostic Fault Information

Diagnostic Fault Information

Diagnostic Fault Information

Circuit/System Description

When the headlamp switch is placed in the HEAD or PARK position, ground is applied to the park lamp switch ON signal circuit to the body control module (BCM). The BCM responds by applying voltage to the park lamps, tail lamps, and license lamps control circuits illuminating the park, tail, and license lamps.

Conditions for Running the DTC

Battery voltage must be between 9-16 V.

DTC B3883 01

Headlamp switch in OFF position.

DTC B3883 02 or B3883 04

Headlamp switch in PARK or ON positions.

Conditions for Setting the DTC

DTC B3883 01

  • The BCM detects a short to voltage in the license lamps control circuit.
  • The BCM detects an open/high resistance in the license lamps ground circuit.
  • The BCM detects a short to ground or an open/high resistance in the F5DA (BCM 1) fuse B+ circuit

DTC B3883 02

The BCM detects a short to ground in the license lamps control circuit.

DTC B3883 04

  • The BCM detects an open/high resistance in the license lamps control circuit.
  • The BCM detects an open/high resistance in the license lamps ground circuit.
  • The BCM detects a short to ground or an open/high resistance in the F5DA (BCM 1) fuse B+ circuit.

Actions Taken When the DTC Sets

DTC B3883 01

License lamps always ON

DTC B3883 02 or B3883 04

License lamps inoperative.

Conditions for Clearing the DTC

  • The condition responsible for setting the DTC no longer exists.
  • A history DTC will clear once 100 consecutive malfunction-free ignition cycles have occurred.

Reference Information

Schematic Reference

  • Exterior Lights Schematics (Encore) , Exterior Lights Schematics (Trax)
  • Body Control System Schematics (Encore) , Body Control System Schematics (Trax)

Connector End View Reference

WIRING SYSTEMS AND POWER MANAGEMENT - COMPONENT CONNECTOR END VIEWS - INDEX - ENCORE WIRING SYSTEMS AND POWER MANAGEMENT - COMPONENT CONNECTOR END VIEWS - INDEX - TRAX

Description and Operation

Exterior Lighting Systems Description and Operation

Electrical Information Reference

  • Circuit Testing
  • Connector Repairs
  • Testing for Intermittent Conditions and Poor Connections
  • Wiring Repairs

Scan Tool Reference

Control Module References for scan tool information

Circuit/System Testing

  1. Ignition OFF, exterior lamps OFF, rear hatch latch latched, remove both E7 License Plate Lamp Bulbs.
  2. Test for less than 5 ohms between each ground circuit terminal 2 and ground.
  • If 5 ohms or greater
  1. Ignition OFF.
  2. Test for less than 2 ohms in the ground circuit end to end.
  • If 2 ohms or greater, repair the open/high resistance in the circuit.
  • If less than 2 ohms, repair the open/high resistance in the ground connection.
  • If less than 5 ohms
  1. Connect a test lamp between the E7L License Plate Lamp - Left control circuit terminal 1 and ground, ignition ON.
  2. Verify the test lamp turns ON and OFF when commanding the License Plate Lamps ON and OFF with a scan tool.
  • If the test lamp is always OFF
  1. Ignition OFF, disconnect the X4 harness connector at the K9 Body Control Module.
  2. Test for infinite resistance between the control circuit and ground.
  • If less than infinite resistance, repair the short to ground on the circuit.
  • If infinite resistance
  1. Test for less than 2 ohms in the control circuit end to end.
  • If 2 ohms or greater, repair the open/high resistance in the circuit.
  • If less than 2 ohms, replace the K9 Body Control Module.
  • If the test lamp is always ON
  1. Ignition OFF, disconnect the X4 harness connector at the K9 Body Control Module, ignition ON.
  2. Test for less than 1 V between the control circuit terminal and ground.
  • If 1 V or greater, repair the short to voltage on the circuit.
  • If less than 1 V, replace the K9 Body Control Module.
  • If the test lamp turns ON and OFF
  1. Ignition OFF.
  2. Connect a test lamp between the E7R License Plate Lamp - Right control circuit terminal 1 and ground, ignition ON.
  3. Verify the test lamp turns ON and OFF when commanding the License Plate Lamps ON and OFF with a scan tool.
  • If the test lamp is always OFF
  1. Ignition OFF, disconnect the X4 harness connector at the K9 Body Control Module.
  2. Test for infinite resistance between the control circuit and ground.
  • If less than infinite resistance, repair the short to ground on the circuit.
  • If infinite resistance
  1. Test for less than 2 ohms in the control circuit end to end.
  • If 2 ohms or greater, repair the open/high resistance in the circuit.
  • If the test lamp turns ON and OFF
  1. Test or replace the appropriate E7 License Plate Lamp Bulb.

Repair Instructions

Perform the Diagnostic Repair Verification after completing the repair.

  • Rear License Plate Lamp Bulb Replacement
  • Control Module References for BCM replacement, programming, and setup
