Chevrolet Trax: DTC B3884

Diagnostic Instructions

• Perform the Diagnostic System Check - Vehicle prior to using this diagnostic procedure.
• Review Strategy Based Diagnosis for an overview of the diagnostic approach.
• Diagnostic Procedure Instructions provides an overview of each diagnostic category.

DTC Descriptor

DTC B3884 02

Center High Mounted Brake Lamp Circuit Short to Ground

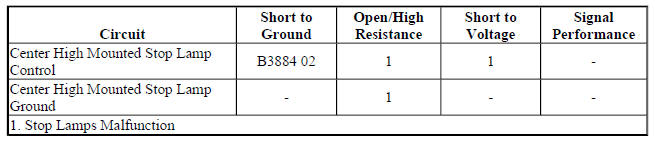

Diagnostic Fault Information

Circuit/System Description

The brake pedal position sensor is used to sense the action of the driver application of the brake pedal. The brake pedal position sensor provides an analog voltage signal that will increase as the brake pedal is applied.

The body control module (BCM) provides a low reference signal and a 5 V reference voltage to the brake pedal position sensor. When the variable signal reaches a voltage threshold indicating the brakes have been applied, the BCM will apply battery voltage to the right and left stop lamp control circuits, engine control module (ECM), and center high mounted stop lamp control circuit.

Conditions for Running the DTC

• Battery voltage must be between 9-16 V.
• Brakes APPLIED

Conditions for Setting the DTC

The BCM detects a short to ground in the center high mounted stop lamp control circuit.

Actions Taken When the DTC Sets

The BCM will not illuminate the center high mounted stop lamp.

Conditions for Clearing the DTC

• The condition responsible for setting the DTC no longer exists.
• A history DTC will clear once 100 malfunction-free ignition cycles have occurred.

Reference Information

Schematic Reference

Exterior Lights Schematics (Encore) , Exterior Lights Schematics (Trax)

Connector End View Reference

WIRING SYSTEMS AND POWER MANAGEMENT - COMPONENT CONNECTOR END VIEWS - INDEX - ENCORE WIRING SYSTEMS AND POWER MANAGEMENT - COMPONENT CONNECTOR END VIEWS - INDEX - TRAX

Description and Operation

Exterior Lighting Systems Description and Operation

Electrical Information Reference

• Circuit Testing
• Connector Repairs
• Testing for Intermittent Conditions and Poor Connections
• Wiring Repairs

Scan Tool Reference

Control Module References for scan tool information

Circuit/System Testing

1. Ignition OFF, exterior lamps OFF, trunk latch latched, disconnect the harness connector at the E6 Center High Mounted Stop Lamp.
2. Test for less than 5 ohms between the ground circuit terminal B and ground.

• If 5 ohms or greater

1. Ignition OFF.
2. Test for less than 2 ohms in the ground circuit end to end.

• If 2 ohms or greater, repair the open/high resistance in the circuit.
• If less than 2 ohms, repair the open/high resistance in the ground connection.
• If less than 5 ohms

3. Connect a test lamp between the control circuit terminal A and ground, ignition ON.
4. Verify the test lamp turns ON and OFF when commanding the Center Brake Lamp ON and OFF with a scan tool.

• If the test lamp is always OFF

1. Ignition OFF, disconnect the X4 harness connector at the K9 Body Control Module.
2. Test for infinite resistance between the control circuit and ground.

• If less than infinite resistance, repair the short to ground on the circuit.
• If infinite resistance

3. Test for less than 2 ohms in the control circuit end to end.

• If 2 ohms or greater, repair the open/high resistance in the circuit.
• If less than 2 ohms, replace the K9 Body Control Module.
• If the test lamp is always ON

1. Ignition OFF, disconnect the X4 harness connector at the K9 Body Control Module, ignition ON.
2. Test for less than 1 V between the control circuit terminal and ground.

• If 1 V or greater, repair the short to voltage on the circuit.
• If less than 1 V, replace the K9 Body Control Module.
• If the test lamp turns ON and OFF

5. Test or replace the E6 Center High Mounted Stop Lamp.
