Chevrolet Trax: DTC B3950 OR B3951

Diagnostic Instructions

  • Perform the Diagnostic System Check - Vehicle prior to using this diagnostic procedure.
  • Review Strategy Based Diagnosis for an overview of the diagnostic approach

Diagnostic Procedure Instructions provides an overview of each diagnostic category.

DTC Descriptors

DTC B3950 01

Left Rear Turn Signal Circuit Short to Battery

DTC B3950 02

Left Rear Turn Signal Circuit Short to Ground

DTC B3950 04

Left Rear Turn Signal Circuit Open

DTC B3951 01

Right Rear Turn Signal Circuit Short to Battery

DTC B3951 02

Right Rear Turn Signal Circuit Short to Ground

DTC B3951 04

Right Rear Turn Signal Circuit Open

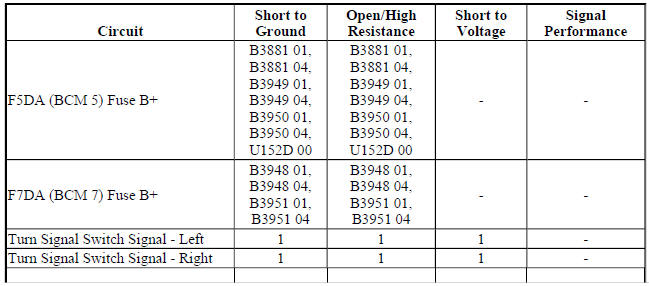

Diagnostic Fault Information

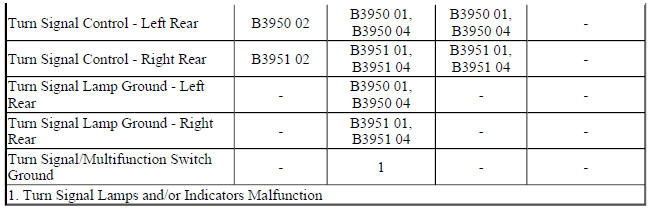

Diagnostic Fault Information

Diagnostic Fault Information

Circuit/System Description

Ground is applied at all times to the turn signal/multifunction switch. The turn signal lamps may only be activated with the ignition switch in the ON or START positions. When the turn signal/multifunction switch is placed in either the turn right or turn left position, ground is applied to the body control module (BCM) through either the right turn or left turn signal switch signal circuit. The BCM responds to the turn signal switch input by applying a pulsating voltage to the front and rear turn signal lamps through there respective control circuits.

When a turn signal request is received by the BCM, a serial data message is sent to the instrument cluster requesting the respective turn signal indicator be pulsed ON and OFF.

Conditions for Running the DTC

  • Battery voltage must be between 9-16 V.
  • Turn Signal ON.

Conditions for Setting the DTC

DTC B3950 01 and B3950 04

  • The BCM detects an open/high resistance in the left rear turn signal control circuit.
  • The BCM detects an open/high resistance in the left rear turn signal ground circuit.
  • The BCM detects a short to ground or an open/high resistance in the F5DA (BCM 5) fuse B+ circuit.

DTC B3950 02

The BCM detects a short to ground in the left rear turn signal control circuit.

DTC B3951 01 and B3951 04

  • The BCM detects an open/high resistance in the right rear turn signal control circuit.
  • The BCM detects an open/high resistance in the right rear turn signal ground circuit.
  • The BCM detects a short to ground or an open/high resistance in the F7DA (BCM 7) fuse B+ circuit.

DTC B3951 02

The BCM detects a short to ground in the right rear turn signal control circuit.

Actions Taken When the DTC Sets

DTC B3950

  • The left rear turn signal is inoperative.
  • The left turn signal indicator on the instrument cluster flashes rapidly.

DTC B3951

  • The right rear turn signal is inoperative.
  • The right turn signal indicator on the instrument cluster flashes rapidly.

Conditions for Clearing the DTC

  • The condition responsible for setting the DTC no longer exists.
  • A history DTC will clear once 100 consecutive malfunction-free ignition cycles have occurred.

Diagnostic Aids

When testing at the turn signal lamp bulb socket, make sure all measurements and test lamp connections are in the correct terminal location and do not come in contact with each other during testing.

Reference Information

Schematic Reference

  • Exterior Lights Schematics (Encore) , Exterior Lights Schematics (Trax)
  • Body Control System Schematics (Encore) , Body Control System Schematics (Trax)

Connector End View Reference

WIRING SYSTEMS AND POWER MANAGEMENT - COMPONENT CONNECTOR END VIEWS - INDEX - ENCORE WIRING SYSTEMS AND POWER MANAGEMENT - COMPONENT CONNECTOR END VIEWS - INDEX - TRAX

Description and Operation

Exterior Lighting Systems Description and Operation

Electrical Information Reference

  • Circuit Testing
  • Connector Repairs
  • Testing for Intermittent Conditions and Poor Connections
  • Wiring Repairs

Scan Tool Reference

Control Module References for scan tool information

Circuit/System Testing
