Chevrolet Trax: Specifications

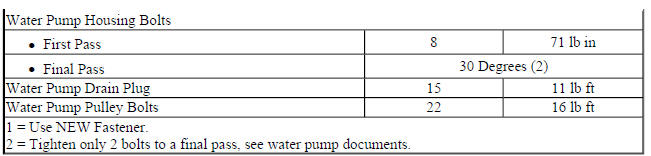

FASTENER TIGHTENING SPECIFICATIONS

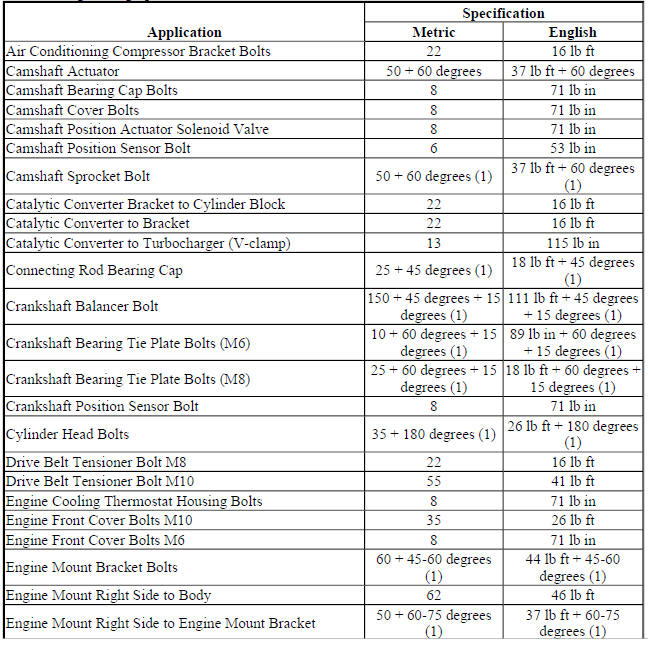

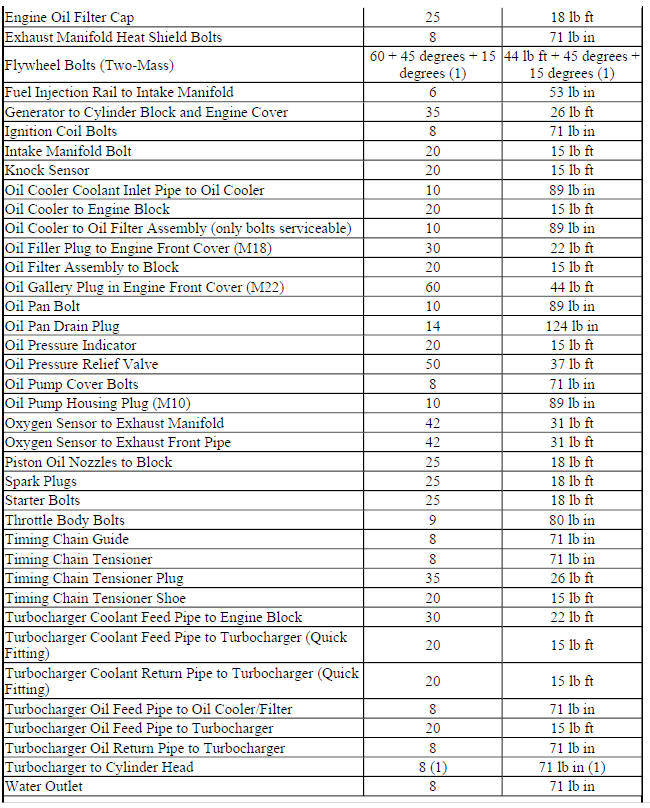

Fastener Tightening Specifications

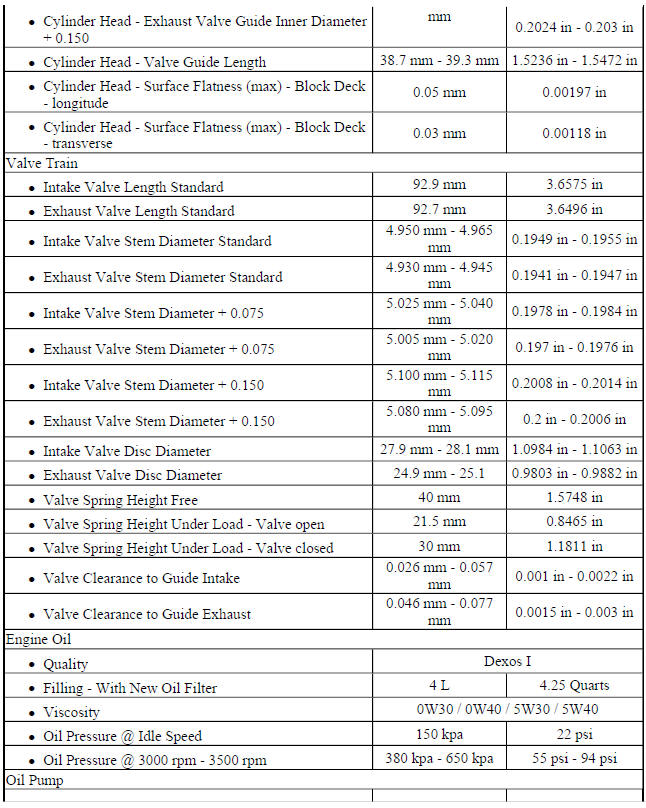

ENGINE MECHANICAL SPECIFICATIONS

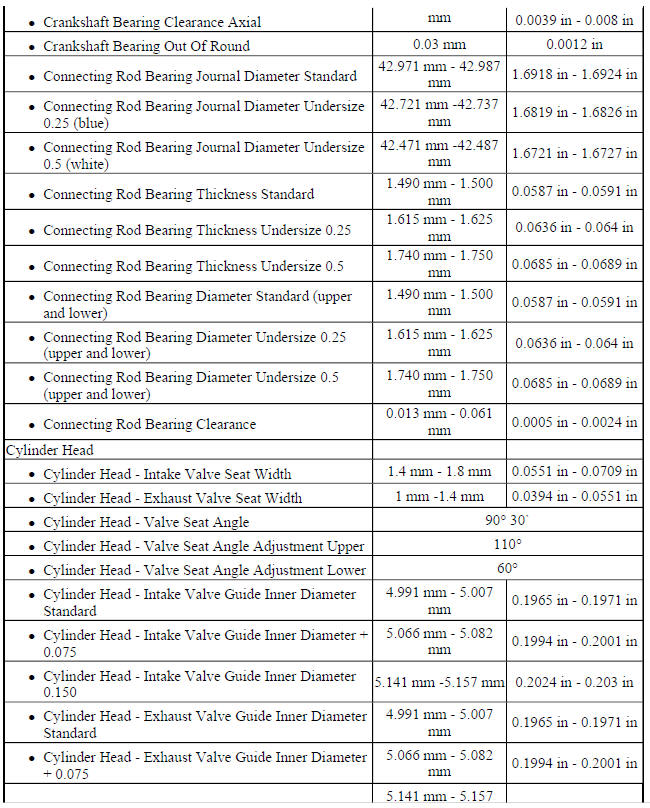

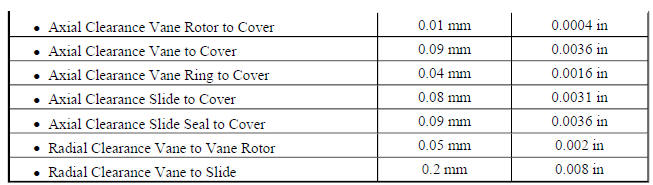

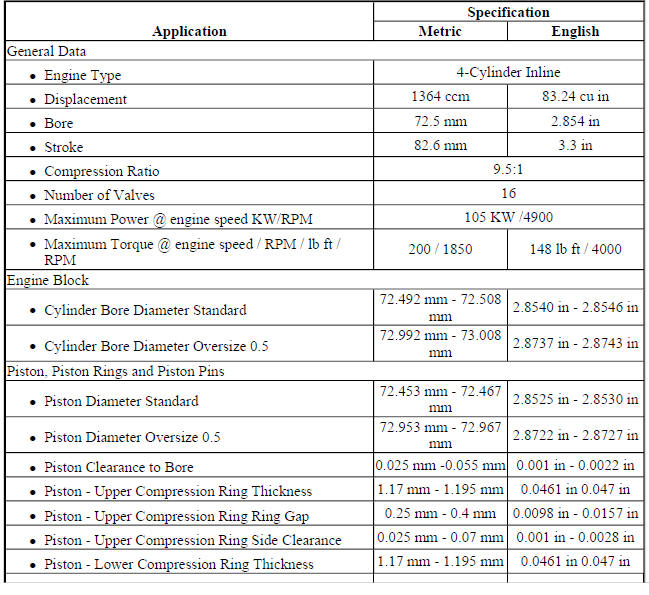

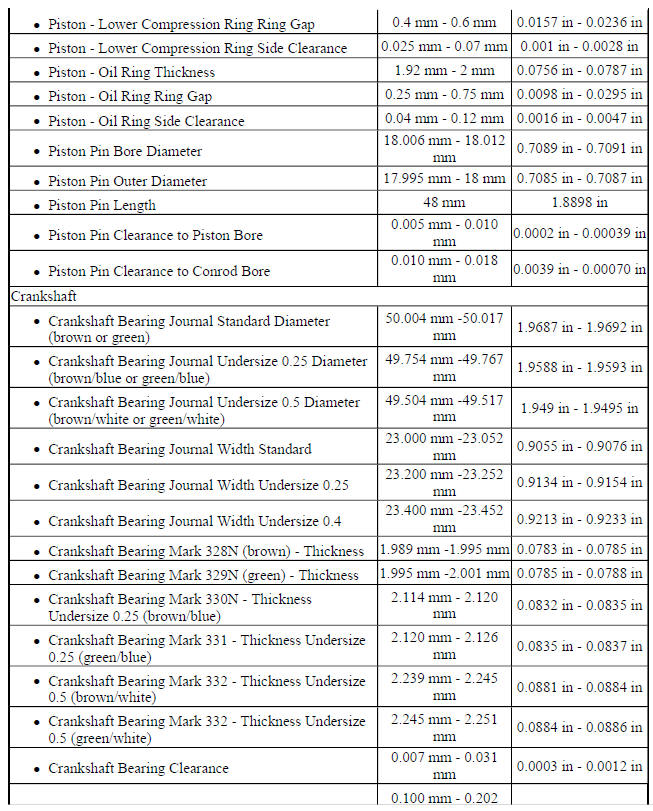

Engine Mechanical Specifications

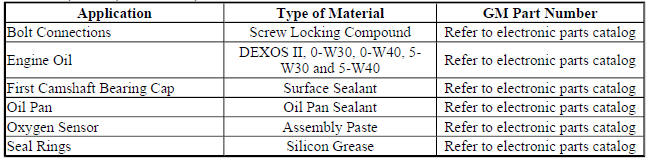

ADHESIVES, FLUIDS, LUBRICANTS, AND SEALERS

Adhesives, Fluids, Lubricants, and Sealers

COMPONENT LOCATOR

DISASSEMBLED VIEWS

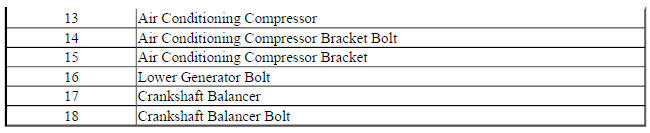

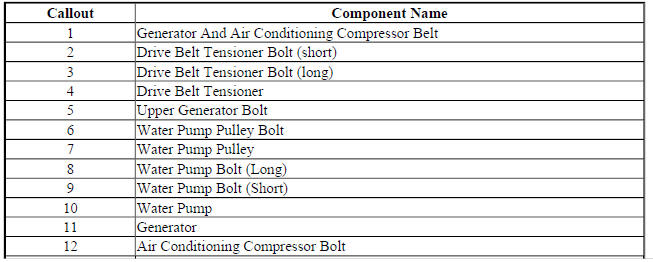

Accessory Drive Components

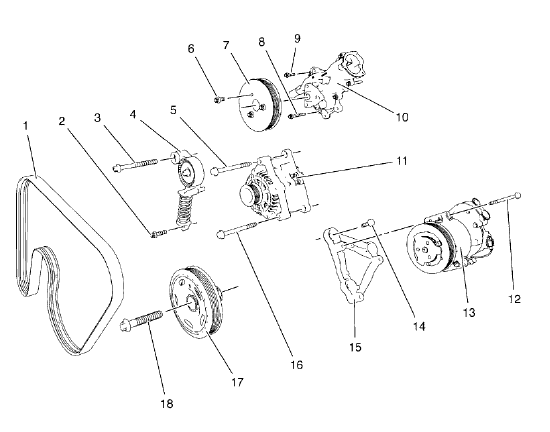

Fig. 1: Locating Accessory Drive Components

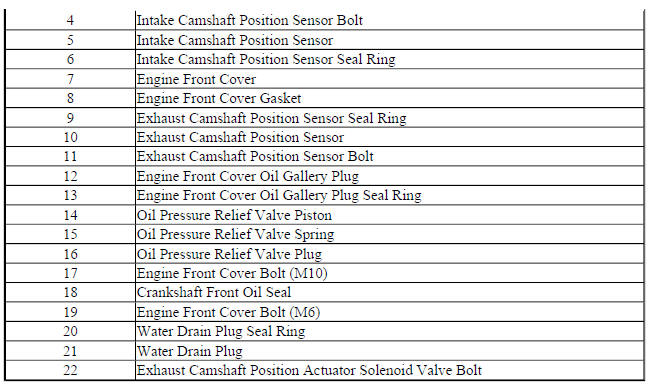

Engine Front Cover And Oil Pump Assembly (1 of 2)

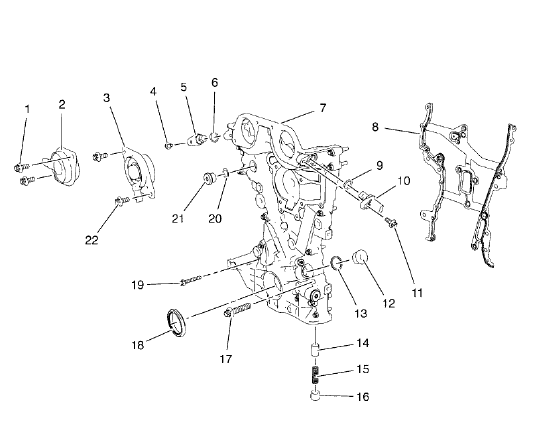

Fig. 2: Locating Engine Front Cover And Oil Pump Assembly Components (1 Of 2)

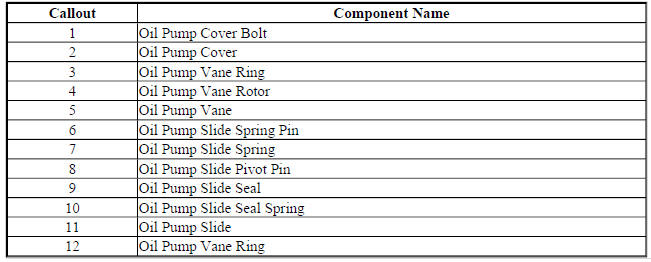

Engine Front Cover And Oil Pump Assembly (2 of 2)

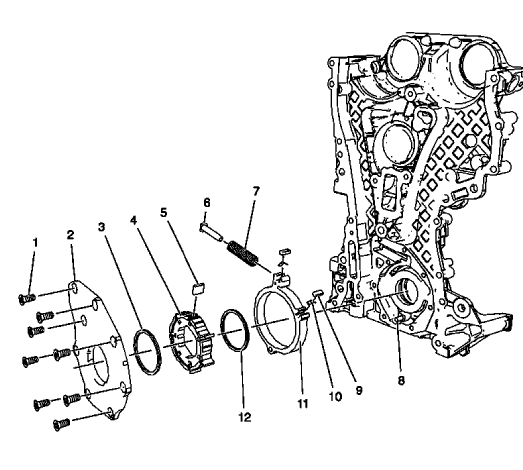

Fig. 3: Locating Engine Front Cover And Oil Pump Assembly Components (2 Of 2)

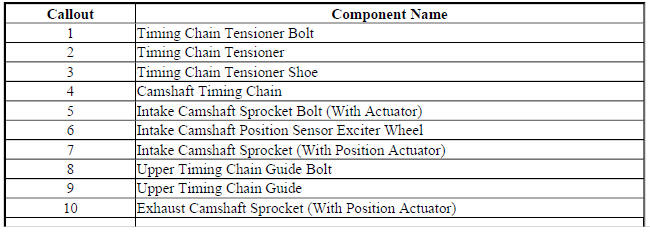

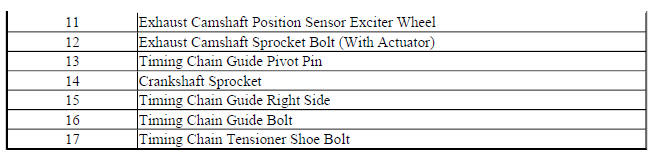

Timing Chain Components

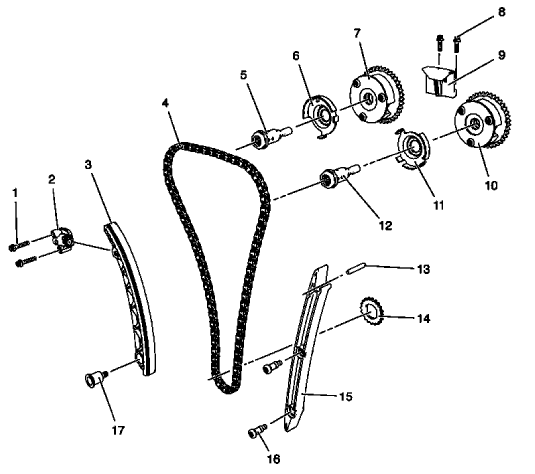

Fig. 4: Timing Chain Components

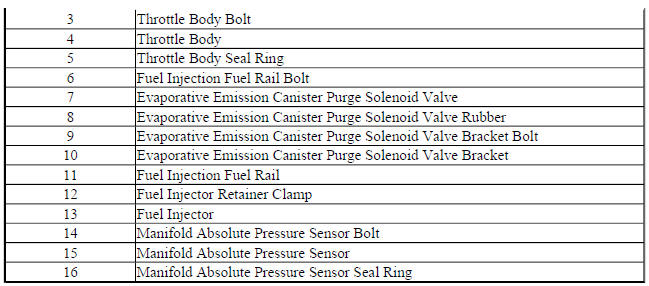

Intake Manifold Assembly- 1.4L LDD

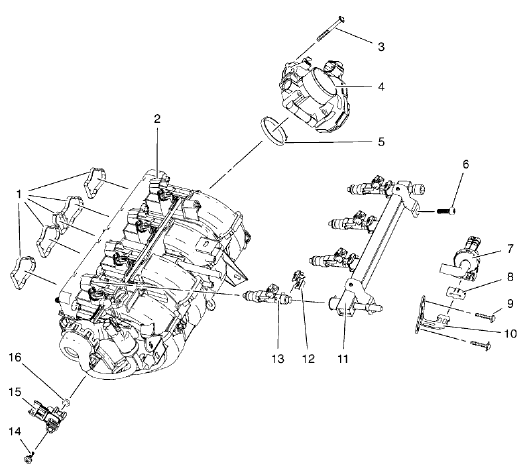

Fig. 5: Locating Intake Manifold Assembly Components - 1.4L LDD

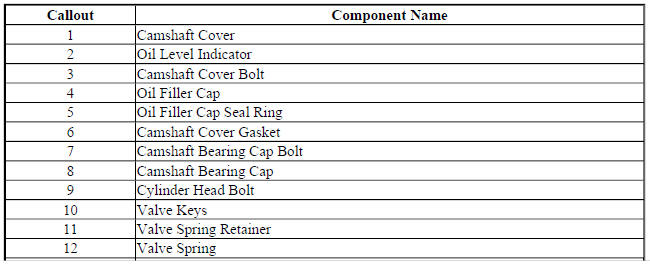

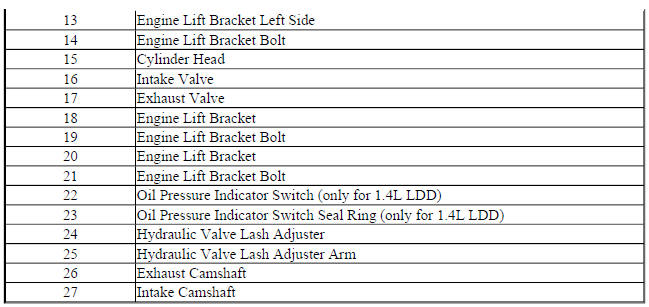

Cylinder Head Assembly

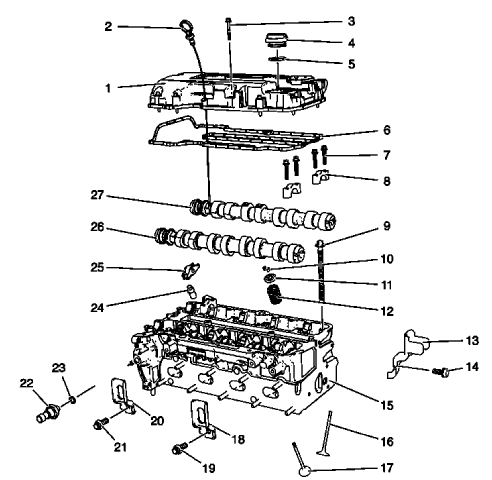

Fig. 6: Identifying Cylinder Head Assembly Components

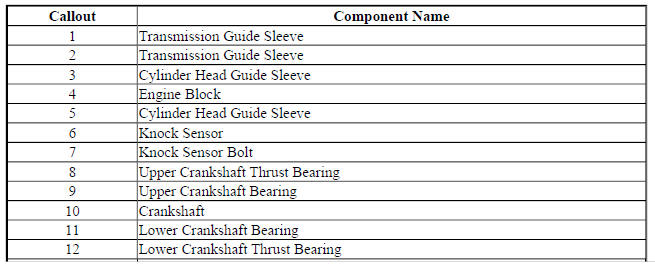

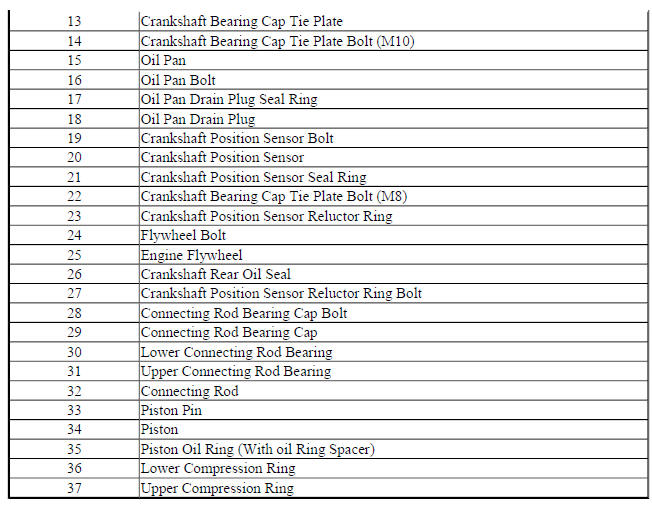

Engine Block Assembly- 1.4L LDD

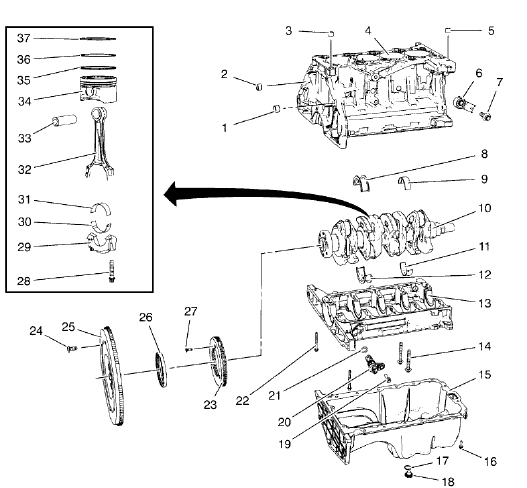

Fig. 7: Identifying Engine Block Assembly Components - 1.4L LDD

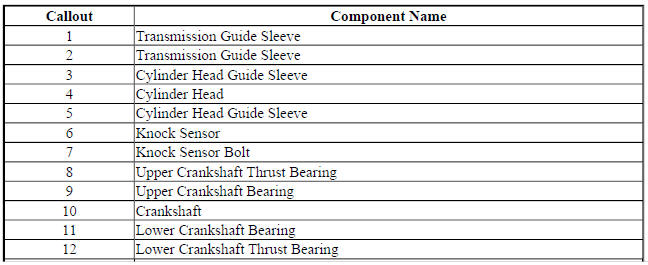

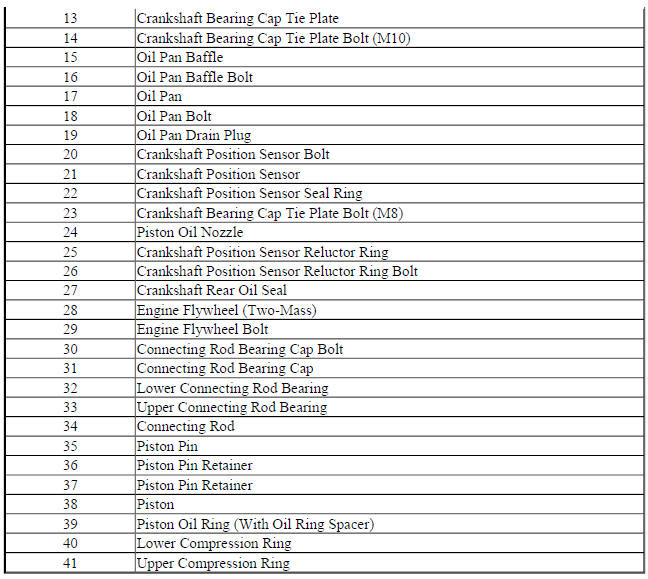

Engine Block Assembly- 1.4L LUH and LUJ

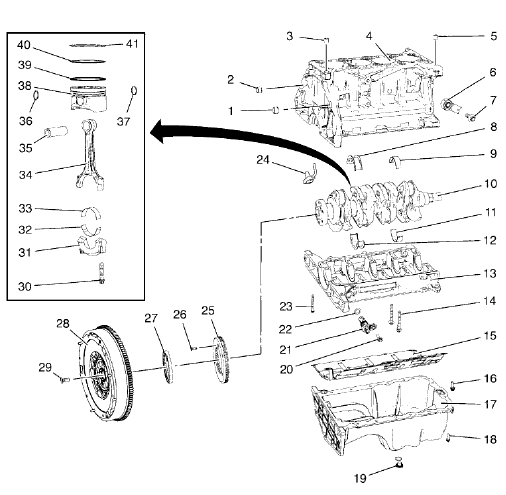

Fig. 8: Identifying Engine Block Assembly Components - 1.4L LUH and LUJ

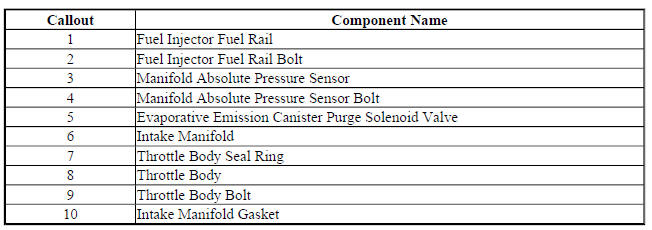

Intake Manifold Assembly- 1.4L LUH and LUJ

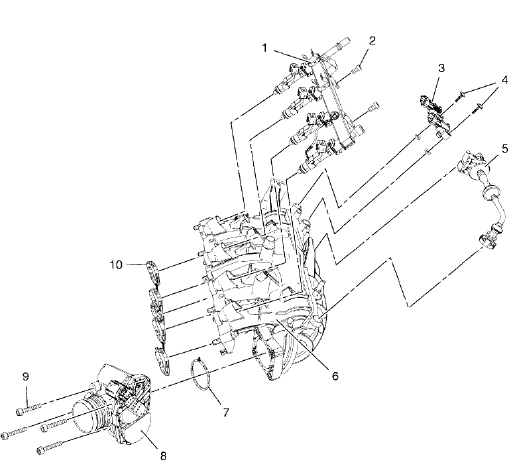

Fig. 9: Intake Manifold Assembly - 1.4L LUH and LUJ

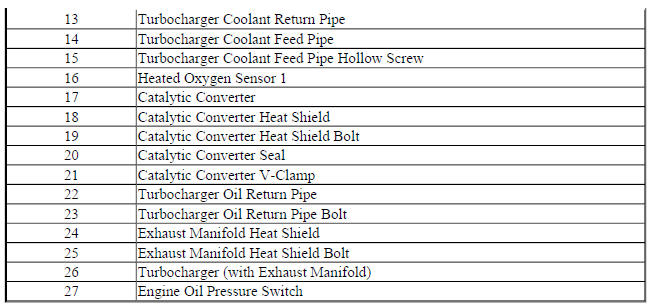

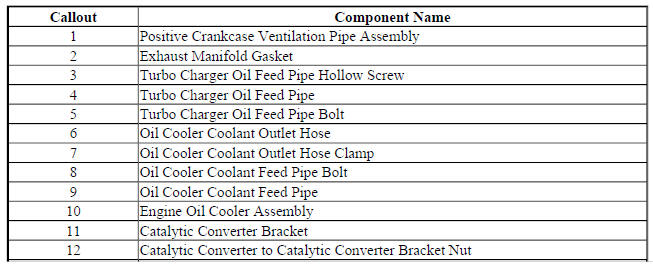

Exhaust Side- 1.4L LUH and LUJ

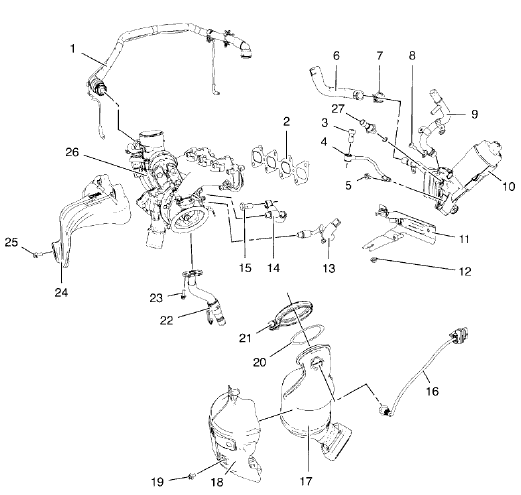

Fig. 10: Identifying Exhaust Side Components - 1.4L LUH and LUJ

ENGINE IDENTIFICATION

Engine Number

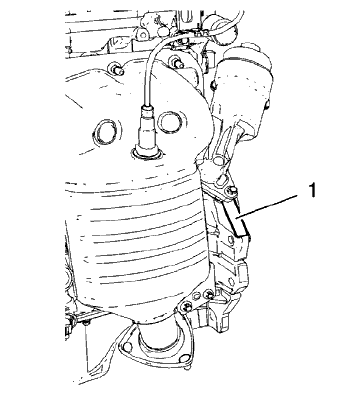

Fig. 11: Locating Engine Number

Courtesy of GENERAL MOTORS COMPANY

NOTE: The engine identification number must be stamped to the cylinder block in case of engine replacement.

The engine number is stamped to the engine block (1).
