Chevrolet Trax: Repair instructions
CLUTCH PEDAL REPLACEMENT
NOTE: The clutch pedal is part of the brake, accelerator, and
clutch pedal assembly
and cannot be serviced separately.
To replace the brake, accelerator and clutch pedal assembly, refer to Brake,
Accelerator, and Clutch Pedal
Replacement .
CLUTCH MASTER CYLINDER RESERVOIR HOSE REPLACEMENT
Removal Procedure
- Remove the battery tray. Refer to Battery Tray Replacement .

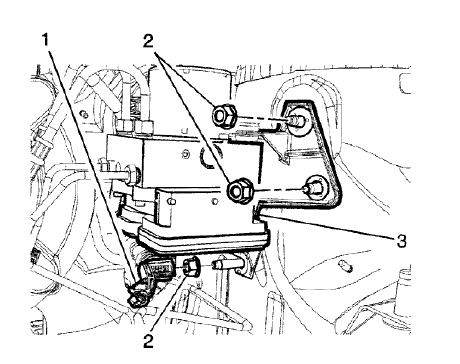

Fig. 1: BPMV Bracket Assembly
- Remove the clutch actuator cylinder pipe retainer (1).
- Remove the 3 BPMV bracket assembly nuts (2) and loosen the BPMV bracket
assembly (3) from the
vehicle.

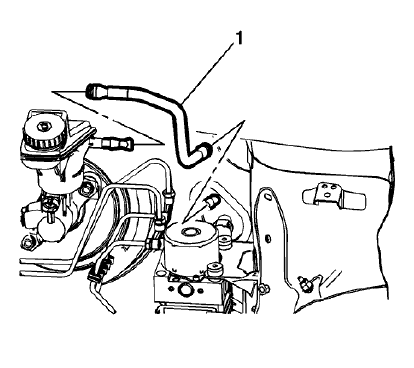

Fig. 2: Clutch Master Cylinder Reservoir Hose
NOTE: Before disconnecting the reservoir tank hose, remove the
clutch/brake
fluid from the reservoir tank.
- Remove the clutch master cylinder reservoir hose (1) from the reservoir
tank.
- Remove the clutch master cylinder reservoir hose from the clutch master
cylinder.
Installation Procedure

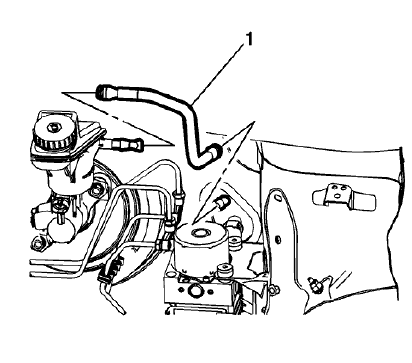

Fig. 3: Clutch Master Cylinder Reservoir Hose
- Install the clutch master cylinder reservoir hose (1) to the reservoir
tank and the master cylinder.

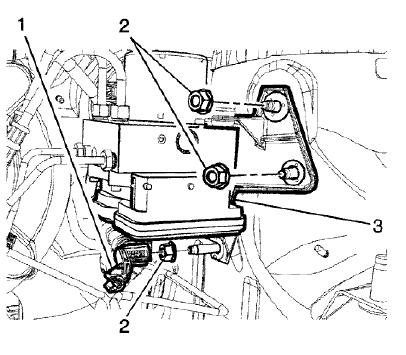

Fig. 4: BPMV Bracket Assembly
CAUTION: Refer to Fastener Caution .
- Install the 3 BPMV bracket assembly nuts (2) to the vehicle and tighten
to 17 (12 lb ft).
- Install the clutch actuator cylinder pipe retainer (1).
- Bleed the hydraulic clutch system. Refer to Hydraulic Clutch System
Bleeding.
- Install the battery tray. Refer to Battery Tray Replacement .
- Fill the reservoir with GM approved brake fluid from a clean, sealed
brake fluid container up to the MAX
level.
