Chevrolet Trax: Clutch actuator cylinder front pipe replacement

Chevrolet Trax (2013-2022) Workshop Manual / Transmission / Clutch / Repair instructions / Clutch actuator cylinder front pipe replacement

Removal Procedure

  1. Remove the battery tray. Refer to Battery Tray Replacement .

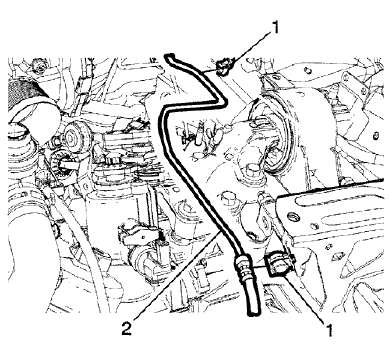

Fig. 15: Clutch Actuator Cylinder Front Pipe
Fig. 15: Clutch Actuator Cylinder Front Pipe

  1. Unclip the clutch actuator cylinder front pipe from the 2 retainers (1).

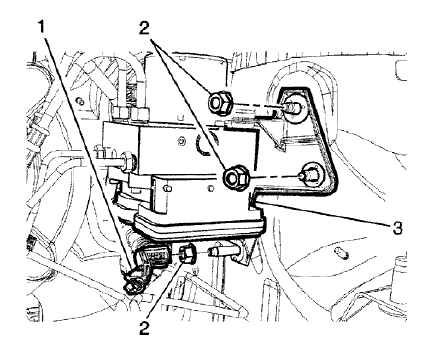

Fig. 16: BPMV Bracket Assembly
Fig. 16: BPMV Bracket Assembly

  1. Remove the clutch actuator cylinder pipe retainer (1).
  2. Remove the 3 BPMV bracket assembly nets (2) and loosen the BPMV bracket assembly (3) from the vehicle.

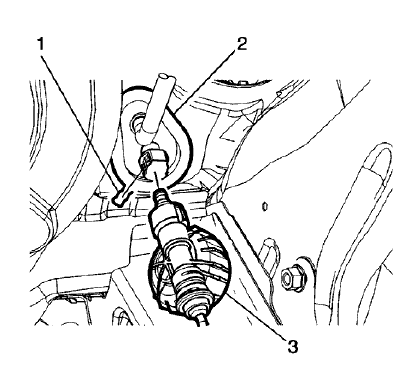

Fig. 17: Clutch Actuator Cylinder Front Pipe
Fig. 17: Clutch Actuator Cylinder Front Pipe

NOTE: Before disconnecting the clutch actuator cylinder front pipe, remove the clutch/brake fluid from the reservoir tank.

  1. Remove the retaining clip (1).
  2. Disconnect clutch actuator cylinder front pipe (3) from the clutch master cylinder (2).

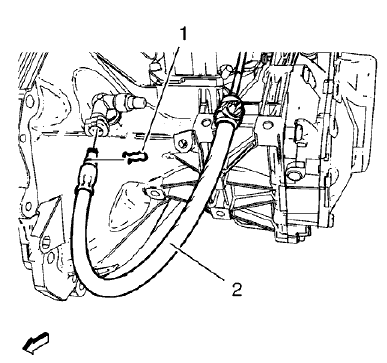

Fig. 18: Clutch Actuator Cylinder Front Pipe Retainer
Fig. 18: Clutch Actuator Cylinder Front Pipe Retainer

  1. Remove the retaining clip (1).
  2. Disconnect the clutch actuator cylinder front pipe (2) from the clutch actuator cylinder pipe elbow.
  3. Remove the clutch actuator cylinder front pipe from the vehicle.

Installation Procedure

  1. Install the clutch actuator cylinder front pipe in the vehicle.

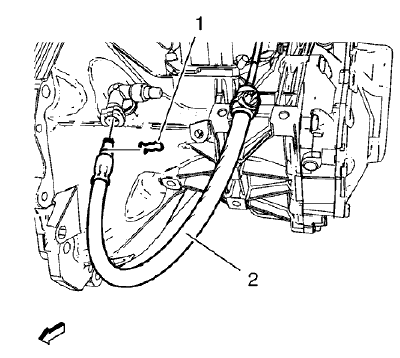

Fig. 19: Clutch Actuator Cylinder Front Pipe Retainer
Fig. 19: Clutch Actuator Cylinder Front Pipe Retainer

  1. Connect the clutch actuator cylinder front pipe (2) to the clutch actuator cylinder pipe elbow.
  2. Install the retaining clip (1).

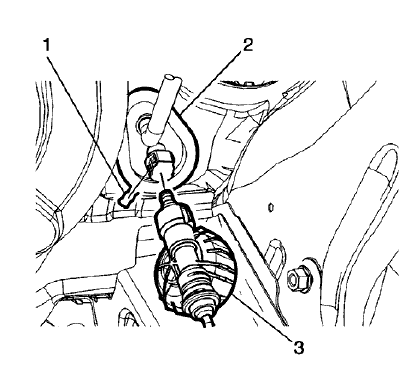

Fig. 20: Clutch Actuator Cylinder Front Pipe
Fig. 20: Clutch Actuator Cylinder Front Pipe

  1. Connect clutch actuator cylinder front pipe (3) to the clutch master cylinder (2).
  2. Install the retaining clip (1).

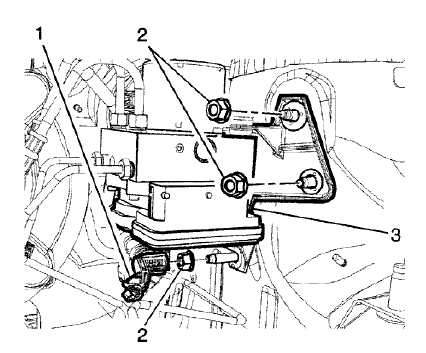

Fig. 21: BPMV Bracket Assembly
Fig. 21: BPMV Bracket Assembly

CAUTION: Refer to Fastener Caution .

  1. Install the 3 BPMV bracket assembly nuts (2) to the vehicle and tighten to 17 (12 lb ft).
  2. Install the clutch actuator cylinder pipe retainer (1).

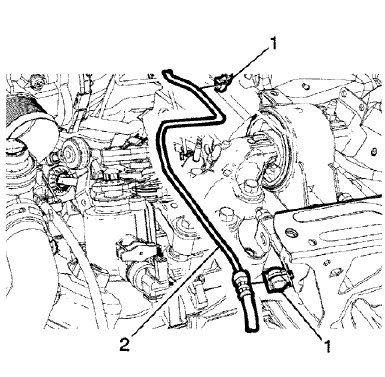

Fig. 22: Clutch Actuator Cylinder Front Pipe
Fig. 22: Clutch Actuator Cylinder Front Pipe

  1. Clip the clutch actuator cylinder front pipe into the 2 retainers (1).
  2. Bleed the hydraulic clutch system. Refer to Hydraulic Clutch System Bleeding.
  3. Install the battery tray. Refer to Battery Tray Replacement .
  4. Fill the reservoir with GM approved brake fluid from a clean, sealed brake fluid container up to the MAX level.
