Chevrolet Trax: Hydraulic clutch system bleeding

WARNING: Refer to Brake Fluid Irritant Warning .

CAUTION: Brake fluid must not come in contact with mineral oils and greases. The smallest amount of such could lead to malfunction or breakdown of the clutch.

CAUTION: Refer to Brake Fluid Effects on Paint and Electrical Components Caution .

NOTE: The hydraulic clutch actuation must only be bled from "below", i.e. from the bleeder valve.

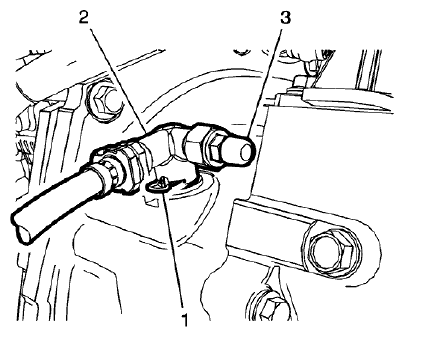

Fig. 35: valve cap
Fig. 35: valve cap

NOTE: The following operational stages must be undertaken to fill the pressure line between the master cylinder and the clutch actuator cylinder. When bleeding, ensure that the brake fluid reservoir is always full and does not run dry.

  1. Bleed pressure line between the clutch master cylinder and the clutch actuator cylinder using the following procedure:

  1. Remove the valve cap (3) from the bleeder valve.
  2. Fill brake fluid reservoir up to "MAX" marking.
  3. Press and hold clutch pedal.
  4. Open bleeder valve until air or air/brake fluid mixture emerges.

NOTE: Do not close the bleeder valve too fast.

  1. Close the bleeder valve.
  2. Release the clutch pedal slowly.
  3. Wait approximately 5 seconds.
  4. Repeat this bleeding process 4 times.
  5. Tighten bleeder valve .
  6. Push valve cap on to bleeder valve to protect the bleeder valve.
  1. Check shifting for ease of movement with vehicle stationary, with engine running and with clutch disengaged.
  2. Ensure that the fluid reservoir is at the correct level.
  3. Road test the vehicle to ensure proper operation.

Undertake road test using varying RPM ranges and frequent gear changes, bring vehicle to operating temperature during this process. Ensure the brake and clutch system is operating correctly.

CLUTCH PEDAL POSITION SENSOR REPLACEMENT

Removal Procedure

  1. Remove the instrument panel knee bolster. Refer to Instrument Panel Knee Bolster Replacement (Encore) , Instrument Panel Knee Bolster Replacement (Trax) .

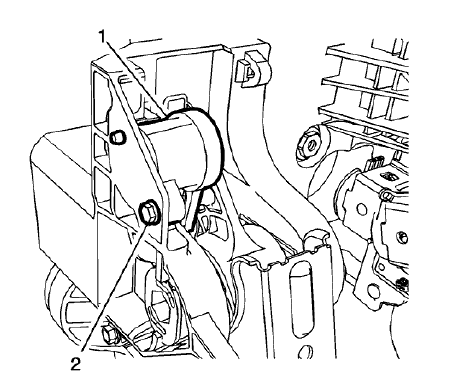

Fig. 36: Clutch Pedal Position Sensor And Bolt
Fig. 36: Clutch Pedal Position Sensor And Bolt

  1. Remove the clutch pedal position sensor bolt (2).
  2. Remove the clutch pedal position sensor (1).
  3. Disconnect the clutch pedal position sensor wiring harness connector.

Installation Procedure

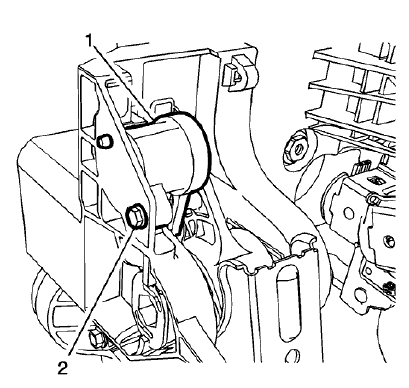

Fig. 37: Clutch Pedal Position Sensor And Bolt
Fig. 37: Clutch Pedal Position Sensor And Bolt

  1. Connect the clutch pedal position sensor wiring harness connector.
  2. Install the clutch pedal position sensor (1).

CAUTION: Refer to Fastener Caution .

  1. Install the clutch pedal position sensor bolt (2) and tighten to 3 (27 lb in).
  2. Install the instrument panel knee bolster. Refer to Instrument Panel Knee Bolster Replacement (Encore) , Instrument Panel Knee Bolster Replacement (Trax) .
  3. Learn clutch pedal position sensor.

CLUTCH PRESSURE AND DRIVEN PLATE REPLACEMENT (1.4L)

Special Tools

  • DT-6263 Remover/Installer Kit
  • DT-6263-28 Clutch Center Guide
  • EN-652 Flywheel Holder

For equivalent regional tools, refer to Special Tools.

Removal Procedure

NOTE:

  • To prevent damage to the spring fangs of pressure plate use DT-6263 remover/installer to remove and install clutch pressure plate.
  • Note the different lengths of the brackets for attaching DT-6263 remover/installer to lower engine block.
  1. Remove the transmission. Refer to Transmission Replacement

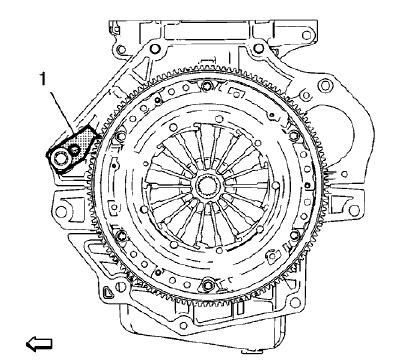

Fig. 38: Flywheel Holder Tool
Fig. 38: Flywheel Holder Tool

  1. Install the EN-652 holder (1) to the engine block.

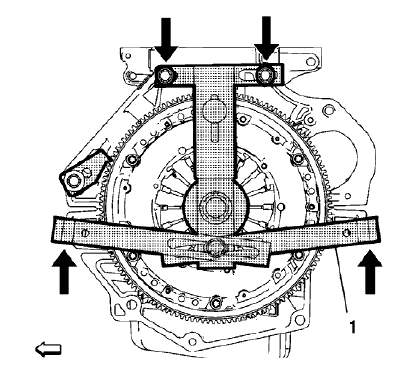

Fig. 39: Special Engine Block Brace Tool
Fig. 39: Special Engine Block Brace Tool

  1. Attach the DT-6263 remover/installer (1) in conjunction with the DT-6263-1 brace to the engine block.
  2. Install the 4 bolts (arrows) to the engine block, but do not tighten yet.

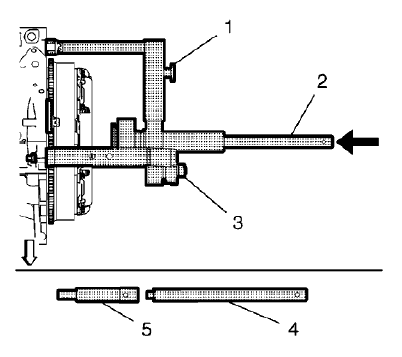

Fig. 40: Special Tools
Fig. 40: Special Tools

  1. Attach the DT-6263-28 guide to the DT-6263-30 drift (4).
  2. Fasten the DT-6263 remover/installer.
  1. Align the DT-6263-30 centering drift (2) in conjunction with the clutch center guide through the DT-6263 remover/installer into the clutch driven plate and crankshaft center (arrow).
  2. Tighten the knurled wheel (1).
  3. Tighten the bolt (3).
  4. Tighten the 4 bolts installing the DT-6263 remover/installer to the engine block.

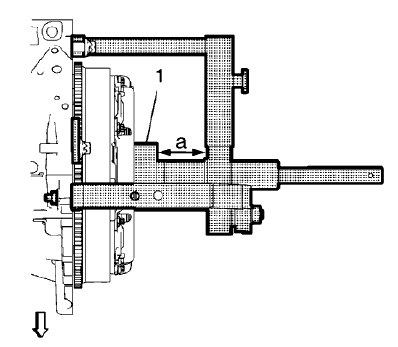

Fig. 41: Clutch Removal/Installation Tool
Fig. 41: Clutch Removal/Installation Tool

  1. Preload the clutch springs, using the DT-6263 remover/installer.
  1. Turn the threaded rod (1) until it rests against the spring tangs of the clutch pressure plate.
  2. Measure the distance a.

NOTE: Do NOT turn further than necessary to gain free movement of the clutch disc.

  1. Turn the threaded rod clockwise until the distance a is extended by approximate 8 mm (0.31 in).
  2. Check for free movement of the clutch disc.

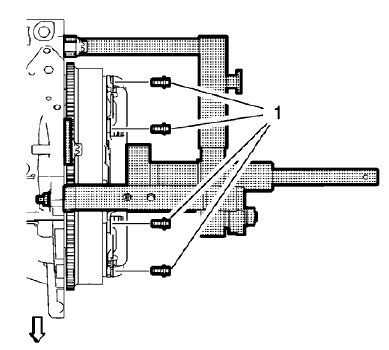

Fig. 42: Clutch Pressure Plate Bolts
Fig. 42: Clutch Pressure Plate Bolts

NOTE: Ascertain if bolt was assembled with thread lock agent.

  1. Remove and DISCARD the 6 clutch pressure plate bolts (1).

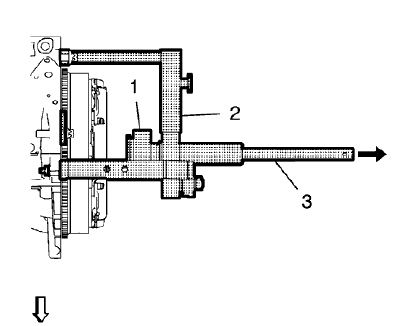

Fig. 43: Special Remover/Installer Tools
Fig. 43: Special Remover/Installer Tools

  1. Release the DT-6263 remover/installer (2).
  1. Turn the threaded rod (1) of the DT-6263 remover/installer counterclockwise to the stop.
  2. Remove the DT-6263-30 centering drift (3) in conjunction with the clutch center guide (arrow).

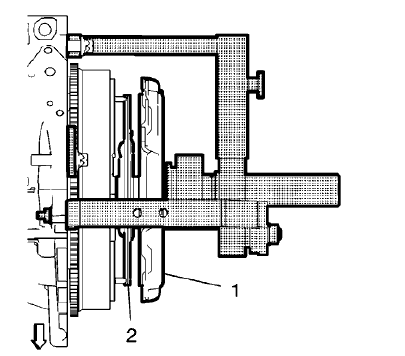

Fig. 44: Clutch Pressure Plate And Driven Plate
Fig. 44: Clutch Pressure Plate And Driven Plate

  1. Remove the clutch pressure plate (1) and the driven plate (2).

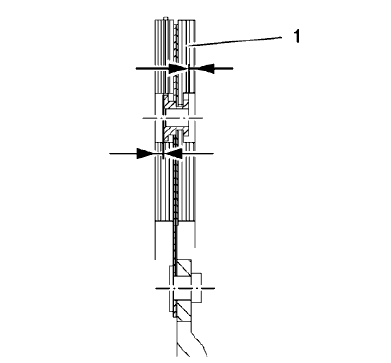

Fig. 45: Clutch Pressure Plate And Driven Plate Inspection Points
Fig. 45: Clutch Pressure Plate And Driven Plate Inspection Points

NOTE: Clutch pressure plate and driven plate contaminated by foreign bodies (oil, cleaning agent etc.) have to be replaced. Check clutch driven plate for damage and friction rust in the hub profile and replace if necessary. Do not clean clutch pressure plate and driven plate with a high pressure cleaner or component washing machine.

  1. Inspect the clutch pressure plate and the driven plate (1) and replace, if necessary.

Inspect for:

  • Excessive wear
  • Burned friction surface
  • Oil on friction surface
  • Damaged spline hub
  • Damaged springs

NOTE: The clutch driven plate has to be replaced if the lining projection is less than 0.5 mm (0.020 in) (arrows).

  1. Inspect the projection of lining at the clutch lining rivets.
  2. Slide the clutch pressure plate onto the transmission input shaft and check for easy movement.

Installation Procedure

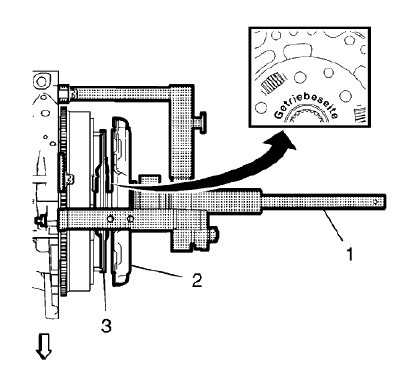

Fig. 46: Clutch Drive Plate
Fig. 46: Clutch Drive Plate

NOTE: The clutch drive plate must be installed so that the German lettering "Getriebe-seite" (means Gearbox-side) on the plate is orientated towards the transmission.

  1. Install the clutch driven plate (3) and the clutch pressure plate (2).

Center the clutch driven plate, using the DT-6263-30 centering drift (1) in conjunction with the clutch center guide.

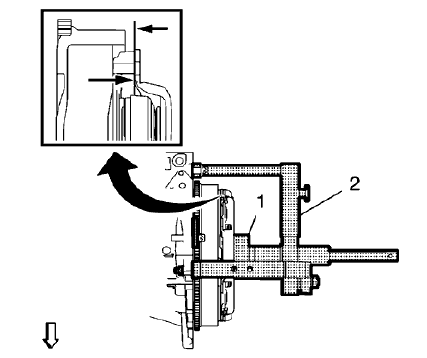

Fig. 47: Preload The Clutch Springs Using Special Tools
Fig. 47: Preload The Clutch Springs Using Special Tools

NOTE: Do NOT turn further than necessary.

  1. Preload the clutch springs, using the DT-6263 remover/installer (2).

Turn the threaded rod (1) clockwise until the pressure plate contacts the flywheel (arrows).

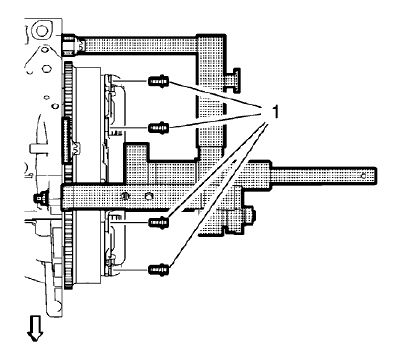

Fig. 48: Clutch Pressure Plate Bolts
Fig. 48: Clutch Pressure Plate Bolts

CAUTION: Refer to Fastener Caution .

NOTE: In the case that the clutch pressure plate bolts where assembled with thread lock agent: Service may offer bolts that are not microencapsulated.

If this is the case apply thread lock agent to the bolt. If fastener is microencapsulated, install NEW clutch pressure plate bolts. DO NOT reuse the old bolt.

  1. Install the 6 NEW clutch pressure plate bolts (1). For the correct bolts refer to the electronic parts catalog.
  2. Tighten the clutch pressure plate bolts to 28 (21 lb ft).

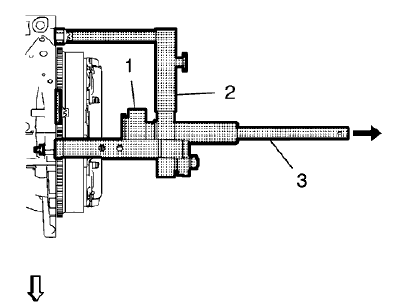

Fig. 49: Special Remover/Installer Tools
Fig. 49: Special Remover/Installer Tools

  1. Remove the DT-6263 remover/installer (2) from the engine block.
  1. Turn the threaded rod (1) of the DT-6263 remover/installer counterclockwise to the stop.
  2. Remove the DT-6263-30 centering drift (3) in conjunction with the clutch center guide (arrow).
  3. Remove the 4 bolts installing the DT-6263 remover/installer to the engine block.

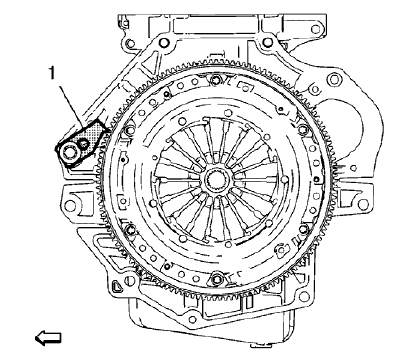

Fig. 50: Flywheel Holder Tool
Fig. 50: Flywheel Holder Tool

  1. Remove the EN-652 holder (1) from the engine block.
  2. Install the transmission. Refer to Transmission Replacement .
