Chevrolet Trax: Rear side door replacement

Chevrolet Trax (2013-2022) Workshop Manual / Accessories & Equipment / Bolted Exterior Body Panels and Closures / Bolted Exterior Body Panels and Closures - Repair instructions / Rear side door replacement

Fig. 9: View Rear Side Door
Fig. 9: View Rear Side Door

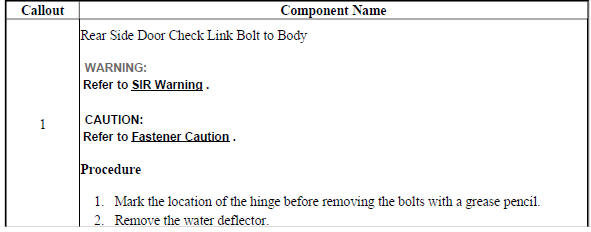

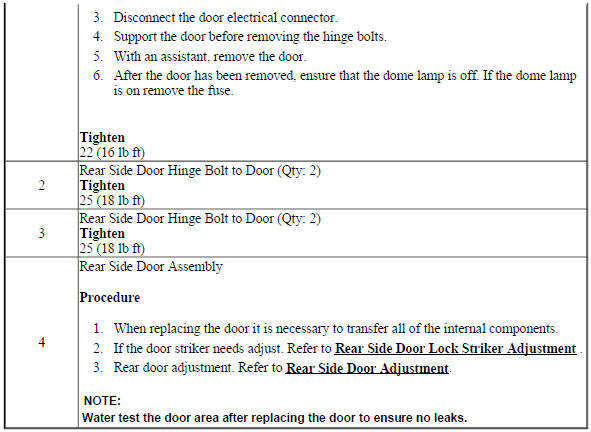

Rear Side Door Replacement

Rear Side Door Replacement

Rear Side Door Replacement

FRONT FENDER REPLACEMENT

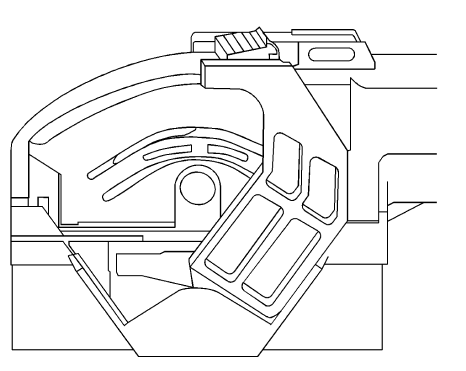

Fig. 10: Front Fender
Fig. 10: Front Fender

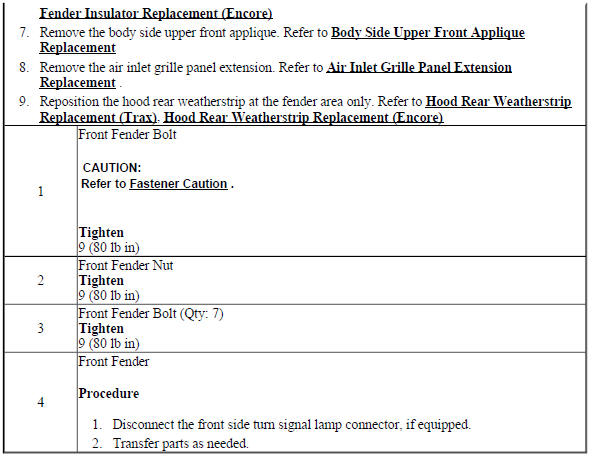

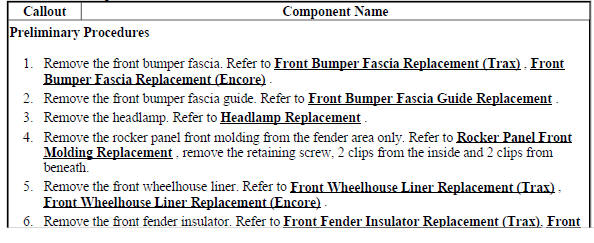

Front Fender Replacement

Front Fender Replacement

Front Fender Replacement

LIFTGATE ADJUSTMENT (TRAX)

Fig. 11: Liftgate Adjustment Points
Fig. 11: Liftgate Adjustment Points

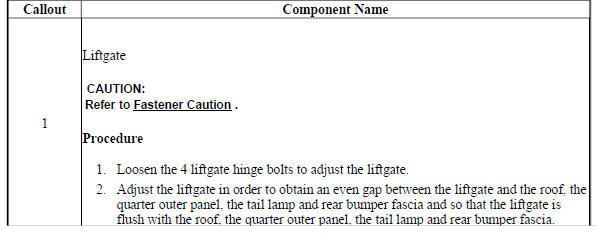

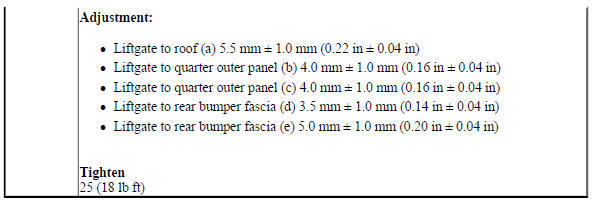

Liftgate Adjustment (Trax)

Liftgate Adjustment (Trax)

Liftgate Adjustment (Trax)

LIFTGATE ADJUSTMENT (ENCORE)

Fig. 12: Liftgate Adjustment Points
Fig. 12: Liftgate Adjustment Points

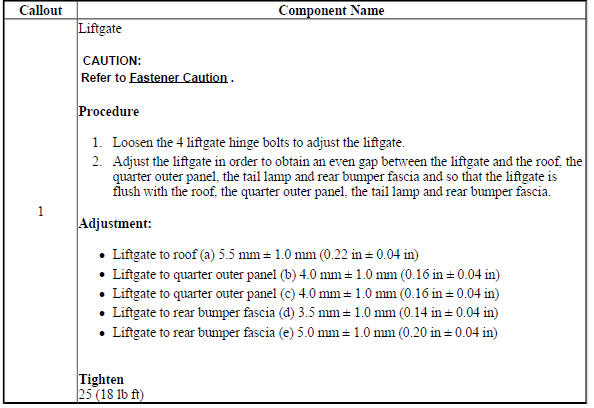

Liftgate Adjustment (Encore)

Liftgate Adjustment (Encore)

LIFTGATE REPLACEMENT

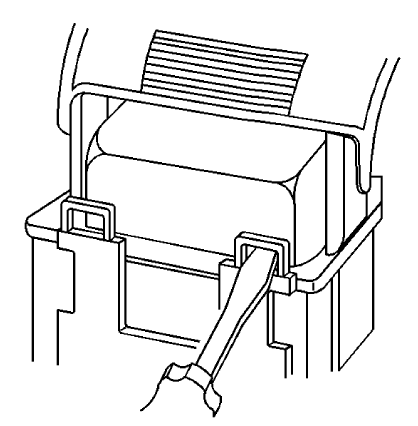

Fig. 13: Liftgate
Fig. 13: Liftgate

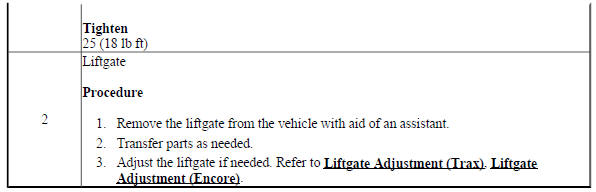

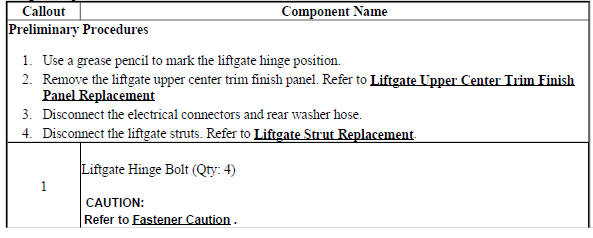

Liftgate Replacement

Liftgate Replacement

Liftgate Replacement

HOOD PRIMARY LATCH RELEASE CABLE HANDLE REPLACEMENT

Fig. 14: Hood Primary Latch Release Cable Handle
Fig. 14: Hood Primary Latch Release Cable Handle

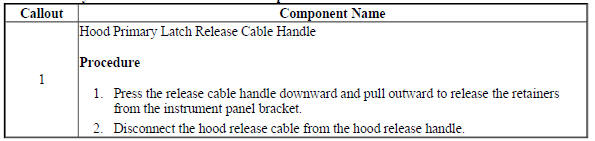

Hood Primary Latch Release Cable Handle Replacement

Hood Primary Latch Release Cable Handle Replacement
