Chevrolet Trax: Front side door upper hinge and lower hinge replacement
![Fig. 15: View Of Front Side Door Hinge](images/manuals/4484/index645.jpg)
Fig. 15: View Of Front Side Door Hinge
Front Side Door Upper Hinge and Lower Hinge Replacement

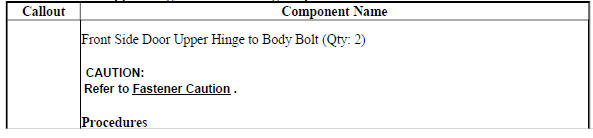

![Front Side Door Upper Hinge and Lower Hinge Replacement](images/manuals/4484/index646(1).jpg)

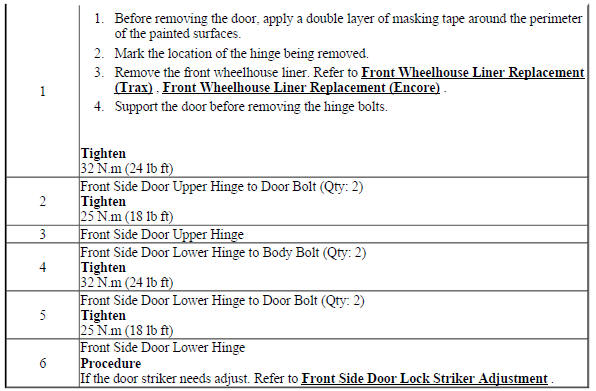

![Front Side Door Upper Hinge and Lower Hinge Replacement](images/manuals/4484/index647(1).jpg)
HOOD HINGE REPLACEMENT
![Fig. 16: Hood Hinge](images/manuals/4484/index648.jpg)
Fig. 16: Hood Hinge
Hood Hinge Replacement
![Hood Hinge Replacement](images/manuals/4484/index649(1).jpg)
![Hood Hinge Replacement](images/manuals/4484/index650(1).jpg)
LIFTGATE HINGE REPLACEMENT
![Fig. 17: Liftgate Hinge](images/manuals/4484/index651(1).gif)
Fig. 17: Liftgate Hinge

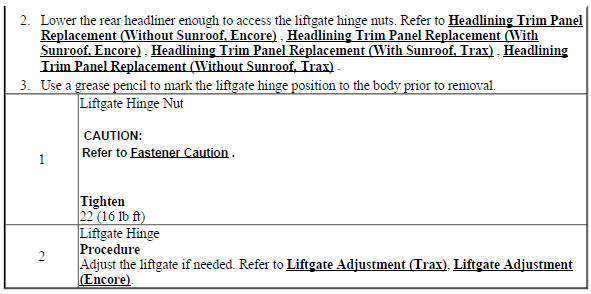

Liftgate Hinge Replacement
![Liftgate Hinge Replacement](images/manuals/4484/index652(1).jpg)
![Liftgate Hinge Replacement](images/manuals/4484/index653.jpg)
REAR SIDE DOOR UPPER HINGE AND LOWER HINGE REPLACEMENT
![Fig. 18: Rear Side Door Upper Hinge And Lower Hinge](images/manuals/4484/index654(1).jpg)
Fig. 18: Rear Side Door Upper Hinge And Lower Hinge

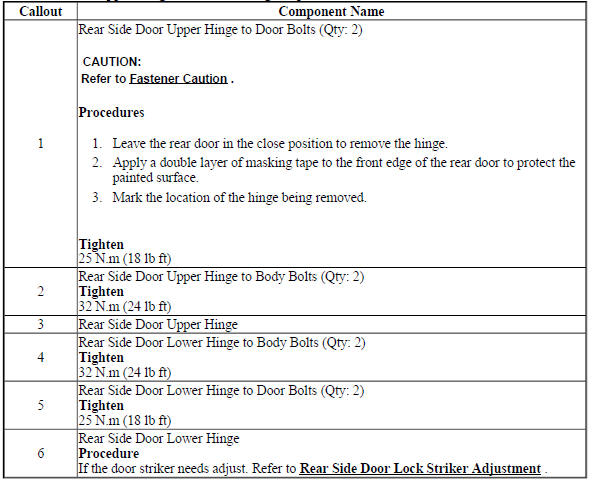

Rear Side Door Upper Hinge and Lower Hinge Replacement
![Rear Side Door Upper Hinge and Lower Hinge Replacement](images/manuals/4484/index655.jpg)
HOOD ADJUSTMENT (TRAX)
![Fig. 19: Hood Adjustment Points](images/manuals/4484/index656(1).jpg)
Fig. 19: Hood Adjustment Points

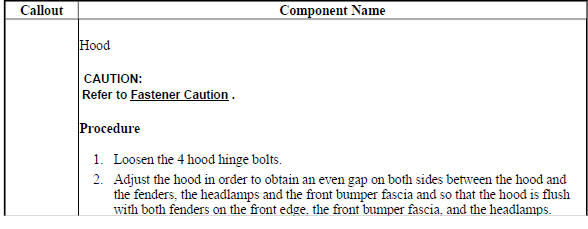

Hood Adjustment (Trax)

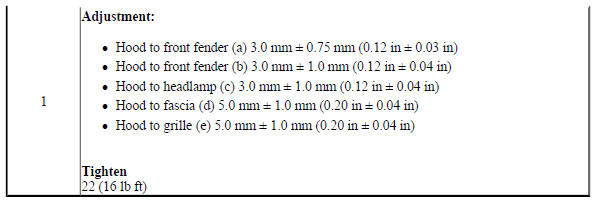

![Hood Adjustment (Trax)](images/manuals/4484/index657(1).jpg)
![Hood Adjustment (Trax)](images/manuals/4484/index658.jpg)
HOOD ADJUSTMENT (ENCORE)
![Fig. 20: Hood Adjustment Points](images/manuals/4484/index659(1).jpg)
Fig. 20: Hood Adjustment Points
Hood Adjustment (Encore)

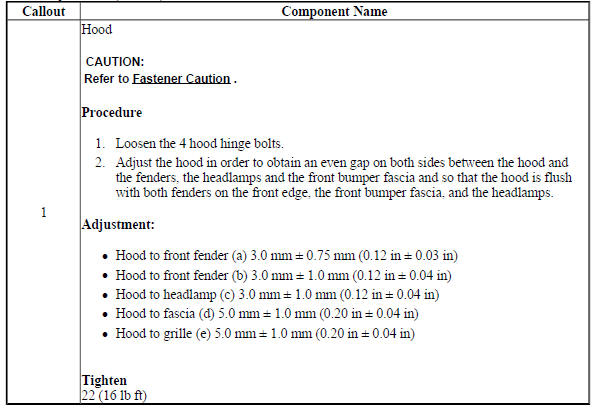

![Hood Adjustment (Encore)](images/manuals/4484/index660(1).jpg)
HOOD REPLACEMENT (TRAX)
![Fig. 21: Hood](images/manuals/4484/index661.jpg)
Fig. 21: Hood

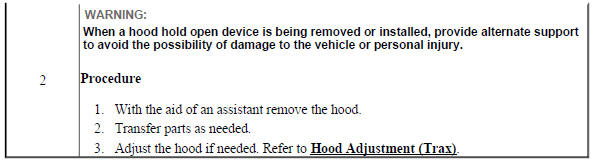

Hood Replacement (Trax)

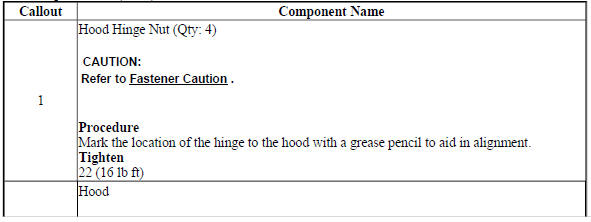

![Hood Replacement (Trax)](images/manuals/4484/index662(1).jpg)
![Hood Replacement (Trax)](images/manuals/4484/index663(1).jpg)
HOOD REPLACEMENT (ENCORE)
![Fig. 22: Hood](images/manuals/4484/index664.jpg)
Fig. 22: Hood
Hood Replacement (Encore)

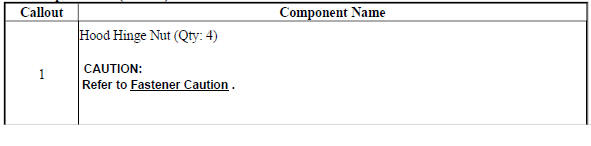

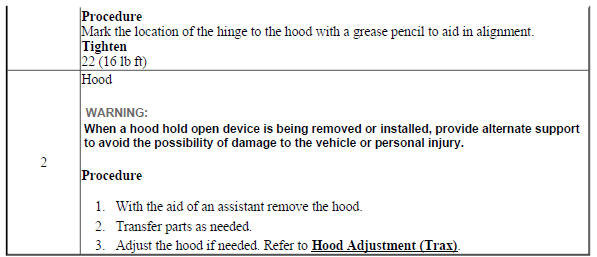

![Hood Replacement (Encore)](images/manuals/4484/index665(1).jpg)
![Hood Replacement (Encore)](images/manuals/4484/index666(1).jpg)
FRONT FENDER INSULATOR REPLACEMENT (TRAX)
![Fig. 23: Front Fender Insulator](images/manuals/4484/index667.jpg)
Fig. 23: Front Fender Insulator
Front Fender Insulator Replacement (Trax)
![Front Fender Insulator Replacement (Trax)](images/manuals/4484/index668.jpg)

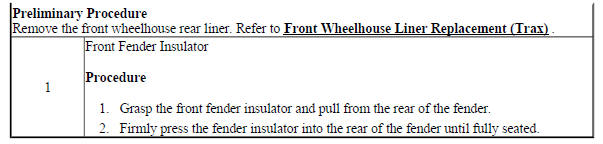

![Front Fender Insulator Replacement (Trax)](images/manuals/4484/index669.jpg)
FRONT FENDER INSULATOR REPLACEMENT (ENCORE)
![Fig. 24: Front Fender Insulator](images/manuals/4484/index670.jpg)
Fig. 24: Front Fender Insulator

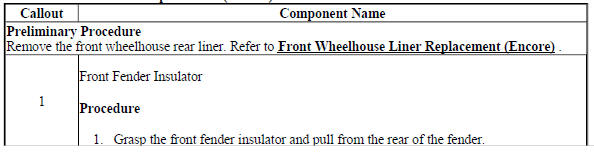

Front Fender Insulator Replacement (Encore)
![Front Fender Insulator Replacement (Encore)](images/manuals/4484/index671.jpg)
![Front Fender Insulator Replacement (Encore)](images/manuals/4484/index672.jpg)
