Chevrolet Trax: Instrument panel upper trim panel replacement (encore)
Removal Procedure
- Remove the instrument panel assembly. Refer to Instrument Panel Assembly
Replacement (Encore).
- Remove the windshield defroster outlet duct. Refer to Windshield
Defroster Outlet Duct
Replacement .
- Remove the airbag instrument panel module. Refer to Airbag Instrument
Panel Module Replacement .
.gif)

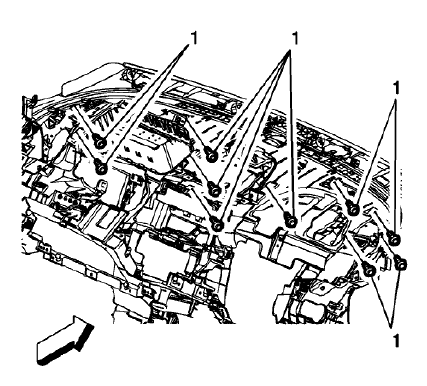

Fig. 16: Instrument Panel Bolts
CAUTION: Refer to HVAC Duct Heat Stake Caution .
- Remove the instrument panel bolts (1).
.gif)

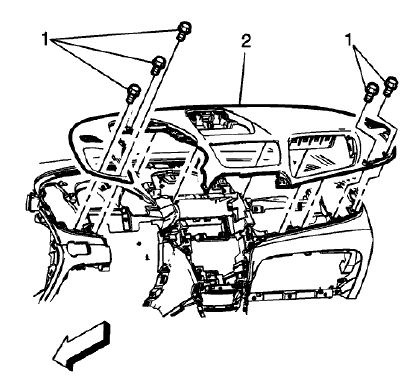

Fig. 17: Instrument Panel And Bolts
- Remove the instrument panel bolts (1).
- Use a flat bladed plastic trim tool to aid in the removal of the upper
trim panel from the instrument panel
assembly.
Installation Procedure
.gif)

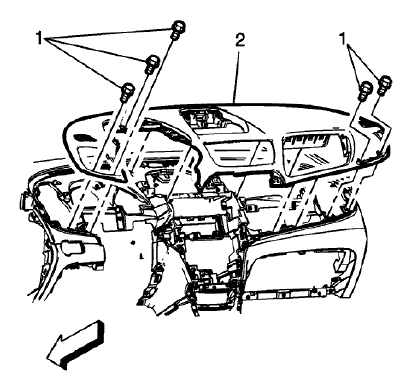

Fig. 18: Instrument Panel And Bolts
CAUTION: Refer to Fastener Caution .
- Install the instrument panel bolts (1).
.gif)

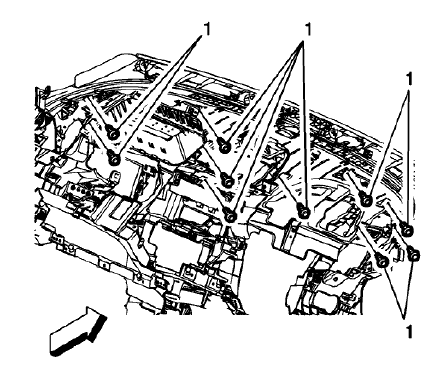

Fig. 19: Instrument Panel Bolts
CAUTION: Refer to HVAC Duct Heat Stake Caution .
- Install the instrument panel bolts (1).
- Install the airbag instrument panel module. Refer to Airbag Instrument
Panel Module Replacement .
- Install the windshield defroster outlet duct. Refer to Windshield
Defroster Outlet Duct Replacement .
- Install the instrument panel. Refer to Instrument Panel Assembly
Replacement (Encore).
Instrument panel upper trim panel cover replacement (UAG)
.gif)

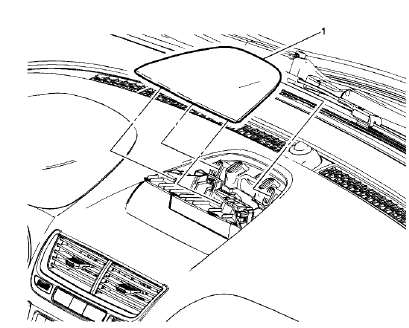

Fig. 20: Instrument Panel Upper Trim Panel Cover
Instrument Panel Upper Trim Panel Cover Replacement (UAG)
.jpg)
INSTRUMENT PANEL UPPER TRIM PANEL COVER REPLACEMENT (UDN)
.gif)

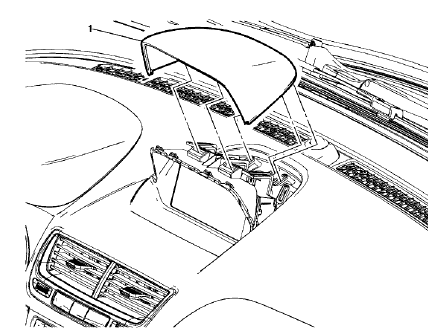

Fig. 21: Instrument Panel Upper Trim Panel Cover
Instrument Panel Upper Trim Panel Cover Replacement (UDN)
.jpg)
