Chevrolet Trax: DTC B252C: Child security lock switch circuit

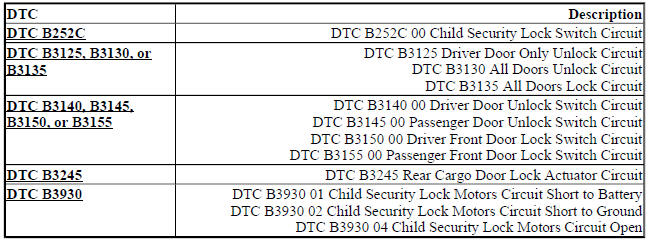

DIAGNOSTIC CODE INDEX

Diagnostic Instructions

• Perform the Diagnostic System Check - Vehicle prior to using this diagnostic procedure.
• Review Strategy Based Diagnosis for an overview of the diagnostic approach.
• Diagnostic Procedure Instructions provides an overview of each diagnostic category.

DTC Descriptor

DTC B252C 00

Child Security Lock Switch Circuit

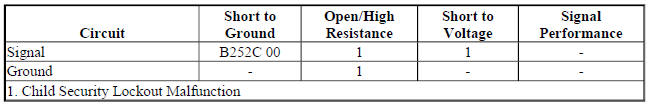

Diagnostic Fault Information

Circuit/System Description

The Body Control Module monitors the voltage level in the child security door lockout switch signal circuit, when the switch is in the open position the voltage in the signal circuit will be equal to the B+ voltage level.

When the child security door lockout switch is pressed, voltage within the signal circuit drops and the Body Control Module will detect the voltage drop and will energize the Door Lock relay to disable the interior rear door handles.

Conditions for Running the DTC

The system voltage is 9-16 V.

Conditions for Setting the DTC

The Body Control Module has detected a short to ground on the child security lockout switch signal circuit for greater than 60 seconds.

Action Taken When the DTC Sets

• The interior rear door handles will always be disabled or will not lockout depending upon the latch states when the fault occurred
• The Body Control Module will ignore the input from the lockout switch.

Conditions for Clearing the DTC

• The DTC will be current for as long as the fault is present.
• When the fault is no longer present, the DTC will be a history DTC.
• A history DTC will clear after 50 ignition cycles.

Reference Information

Schematic Reference

Door Lock/Indicator Schematics (Encore), Door Lock/Indicator Schematics (Trax)

Connector End View Reference

WIRING SYSTEMS AND POWER MANAGEMENT - COMPONENT CONNECTOR END VIEWS - INDEX - ENCORE WIRING SYSTEMS AND POWER MANAGEMENT - COMPONENT CONNECTOR END VIEWS - INDEX - TRAX

Description and Operation

Power Door Locks Description and Operation

Electrical Information Reference

• Circuit Testing
• Connector Repairs
• Testing for Intermittent Conditions and Poor Connections
• Wiring Repairs

Scan Tool Reference

Control Module References for scan tool information

Circuit/System Verification

1. Ignition ON.
2. Verify the scan tool Left Rear Child Security Lock Switch and Right Rear Child Security Lock Switch parameters change between Inactive and Active when pressing and depressing the child security lockout switch.

• If the parameters do not change

Refer to Circuit/System Testing.

• If the parameters change

3. All OK.

Circuit/System Testing

1. Ignition OFF and all vehicle systems OFF, disconnect the harness connector at the S48E Multifunction Switch-Center Console. It may take up to 2 minutes for all vehicle systems to power down.
2. Test for less than 10 ohms between the ground circuit terminal 9 and ground.

• If 10 ohms or greater

1. Ignition OFF.
2. Test for less than 2 ohms in the ground circuit end to end.

• If 2 ohms or greater, repair the open/high resistance in the circuit.
• If less than 2 ohms, repair the open/high resistance in the ground connection.
• If less than 10 ohms

3. Ignition ON.
4. Test for greater than 10 V between the signal circuit terminal 3 and ground.

• If 10 V or less

1. Ignition OFF, disconnect the harness connector at the K9 Body Control Module.
2. Test for infinite resistance between the signal circuit and ground.

• If less than infinite resistance, repair the short to ground on the circuit

3. Test for less than 2 ohms in the signal circuit end to end.

• If 2 ohms or greater, repair the open/high resistance in the circuit.
• If less than 2 ohms, replace the K9 Body Control Module.
• If greater than 10 V

5. Test or replace the S48E Multifunction Switch-Center Console.

Component Testing

1. Ignition OFF, disconnect the harness connector at the S48E Multifunction Switch-Center Console.
2. Test for infinite resistance between the signal terminal 3 and the ground terminal 9 with the switch in the open position.

• If less than infinite resistance

Replace the S48E Multifunction Switch-Center Console.

• If infinite resistance

3. Test for less than 3 ohms between the signal terminal 3 and the ground terminal 9 with the switch in the closed position.

• If 3 ohms or greater

Replace the S48E Multifunction Switch-Center Console.

• If less than 3 ohms

4. All OK

Repair Instructions

Perform the Diagnostic Repair Verification after completing the repair.

• Instrument Panel Multifunction Switch Replacement (Encore)
• Control Module References for the Body Control Module replacement, programming and setup
