Chevrolet Trax: DTC B3125, B3130, OR B3135: Driver door only unlock/all doors lock/unlock
Diagnostic Instructions
- Perform the Diagnostic System Check - Vehicle prior to using this
diagnostic procedure.
- Review Strategy Based Diagnosis for an overview of the diagnostic
approach.
- Diagnostic Procedure Instructions provides an overview of each
diagnostic category.
DTC Descriptors
DTC B3125
Driver Door Only Unlock Circuit
DTC B3130
All Doors Unlock Circuit
DTC B3135
All Doors Lock Circuit
For symptom byte information refer to: Symptom Byte List

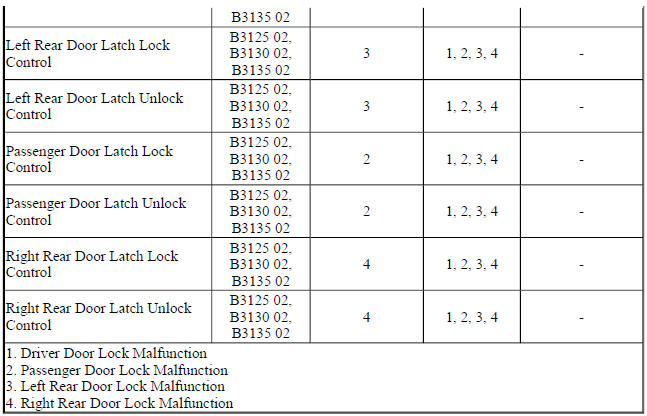

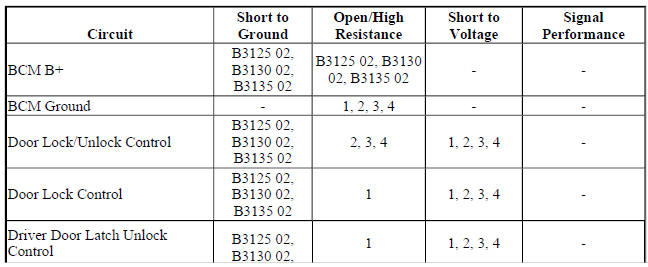

Diagnostic Fault Information
![Diagnostic Fault Information](images/manuals/4484/index812(3).jpg)
![Diagnostic Fault Information](images/manuals/4484/index813(2).jpg)
Circuit/System Description
The body control module (BCM) controls the driver and passenger door latches.
When the BCM receives a
driver door unlock, passenger door unlock or all door lock command, it will
provide voltage to the appropriate
door lock circuits and ground to the opposite door lock circuits causing the
actuator to perform the lock or
unlock function.
Conditions for Running the DTC
When the output is actively being requested by the BCM.
Conditions for Setting the DTC
B3125 02, B3130 02 and B3135 02
- A short to ground or an open/high resistance in the BCM B+ circuit.
- The BCM detects a short to ground on a door latch control circuit.
Action Taken When the DTC Sets
The power door locks will be inoperative
Conditions for Clearing the DTC
- The DTC will be current for as long as the fault is present.
- When the fault is no longer present, the DTC will be a history DTC.
- A history DTC will clear after 50 ignition cycles.
Reference Information
Schematic Reference
- Door Lock/Indicator Schematics (Encore), Door Lock/Indicator
Schematics (Trax)
- Body Control System Schematics (Encore) , Body Control System
Schematics (Trax)
Connector End View Reference
WIRING SYSTEMS AND POWER MANAGEMENT - COMPONENT CONNECTOR END VIEWS -
INDEX - ENCORE WIRING SYSTEMS AND POWER MANAGEMENT - COMPONENT
CONNECTOR END VIEWS - INDEX - TRAX
Description and Operation
Power Door Locks Description and Operation
Electrical Information Reference
- Circuit Testing
- Connector Repairs
- Testing for Intermittent Conditions and Poor Connections
- Wiring Repairs
Scan Tool Reference
Control Module References for scan tool information
Circuit/System Verification
- Ignition ON.
- Verify all vehicle doors LOCK and UNLOCK when commanding the All Doors
Lock/Unlock with a scan
tool.
- If only the driver door LOCK or UNLOCK functions do not work
Refer to Power Door Locks Malfunction.
- If one or more, but not all, passenger door LOCK or UNLOCK functions
do not work Refer to Power Door Locks Malfunction.
- If all door LOCK and UNLOCK functions do not work
Refer to Circuit/System Testing
- If the LOCK and UNLOCK function for all doors works
- All OK.
Circuit/System Testing
- Ignition OFF, disconnect the X2 harness connector at the K9 Body Control
Module, ignition ON.
- Verify a test lamp illuminates between the B+ circuit terminal 4 and
ground.
If the test lamp does not illuminate and the circuit fuse is good
- Ignition OFF.
- Test for less than 2 ohms in the B+ circuit end to end.
- If 2 ohms or greater, repair the open/high resistance in the circuit.
- If less than 2 ohms, verify the fuse is not open and there is voltage at
the fuse.
- If the test lamp does not illuminate and the circuit fuse is open
- Ignition OFF.
- Test for infinite resistance between the B+ circuit and ground.
- If less than infinite resistance, repair the short to ground on the
circuit.
- If infinite resistance
- Disconnect the harness connector at each of the A23 Door Latch
Assemblies.
- Test for infinite resistance between each control circuit and ground.
- If less than infinite resistance, repair the short to ground on the
circuit.
- If infinite resistance, replace the appropriate A23 Door Latch Assembly.
- If the test lamp illuminates
- Ignition OFF, connect the X2 harness connector at the K9 Body Control
Module. Disconnect the harness
connector at the A23D Door Latch Assembly-Driver, ignition ON.
NOTE:
Leaving the DMM connected between a control circuit and ground for
greater than 20 seconds will cause the K9 Body Control Module to
interpret the test as a system fault and will cause the voltage on the
control circuit to drop to 0 V. If the voltage drops to 0 V, operate the door
locks using the door lock switch to restore the voltage for testing.
- Test for greater than 5 V between the control circuit terminal 2 and
ground.
- Ignition OFF, disconnect the X6 harness connector at the K9 Body Control
Module.
- Test for infinite resistance between the control circuit terminal listed
below and ground:
- Control circuit terminal 1 X6
- Control circuit terminal 2 X6
- Control circuit terminal 4 X6
- If less than infinite resistance, repair the short to ground on the
circuit.
- If infinite resistance, replace the K9 Body Control Module.
- If greater than 5 V
- Verify that a test lamp does not illuminate between the control circuit
terminal 2 and ground
- If the test lamp illuminates
- Ignition OFF, disconnect the X6 harness connector at the K9 Body Control
Module
- Test for less than 1 V between the control circuit terminal listed below
and ground:
- Control circuit terminal 1 X6
- Control circuit terminal 2 X6
- Control circuit terminal 4 X6
- If greater than 1 V, repair the short to voltage on the circuit.
- If less than 1 V, replace the K9 Body Control Module.
- If the test lamp does not illuminate
- Replace the K9 Body Control Module.
Component Testing
- Ignition OFF, disconnect the harness connector at the appropriate A23
Door Latch Assembly.
- Install a 25 A fused jumper wire between one of the control terminals
and 12 V. Momentarily install a
jumper wire between the other control terminal and ground. Reverse the
jumper wires at least two times,
the A23 Door Latch Assembly should perform the LOCK and UNLOCK function.
- If the actuator does not perform the LOCK and UNLOCK function
Replace the A23 Door Latch Assembly.
- If the actuator performs the LOCK and UNLOCK function
- All OK
Repair Instructions
Perform the Diagnostic Repair Verification after completing the repair.
- Front Side Door Latch Replacement
- Rear Side Door Latch Replacement
- Control Module References for BCM replacement, programming and setup
