Chevrolet Trax: Front wheel drive intermediate shaft replacement (LUV WITH MH8 OR MH5)

Chevrolet Trax (2013-2022) Workshop Manual / Drivline & Axle / Wheel Drive Shafts / Repair instructions / Front wheel drive intermediate shaft replacement (LUV WITH MH8 OR MH5)

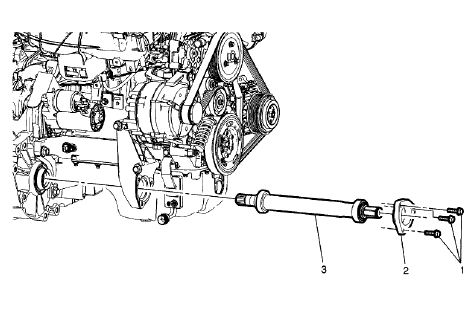

Fig. 1: Front Wheel Drive Intermediate Shaft
Fig. 1: Front Wheel Drive Intermediate Shaft

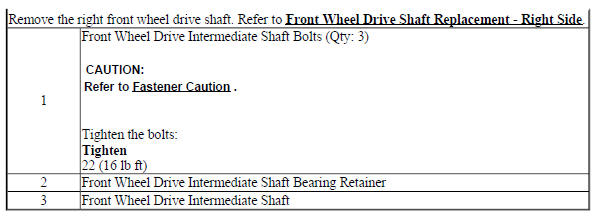

Front Wheel Drive Intermediate Shaft Replacement (LUV with MH8 or MH5)

Front Wheel Drive Intermediate Shaft Replacement (LUV with MH8 or MH5)

Front Wheel Drive Intermediate Shaft Replacement (LUV with MH8 or MH5)

FRONT WHEEL DRIVE INTERMEDIATE SHAFT BRACKET REPLACEMENT (LUV WITH MH8 OR MH5)

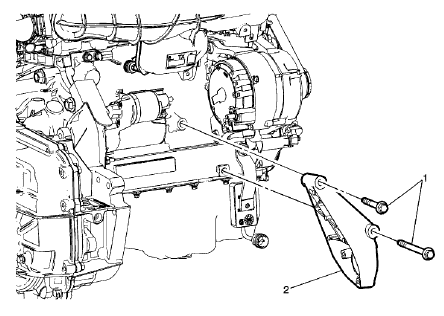

Fig. 2: Front Wheel Drive Intermediate Shaft Bracket
Fig. 2: Front Wheel Drive Intermediate Shaft Bracket

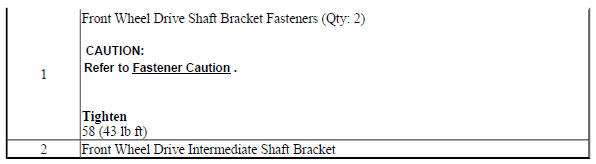

Front Wheel Drive Intermediate Shaft Bracket Replacement (LUV with MH8 or MH5)

Front Wheel Drive Intermediate Shaft Bracket Replacement (LUV with MH8 or MH5)

Front Wheel Drive Intermediate Shaft Bracket Replacement (LUV with MH8 or MH5)

FRONT WHEEL DRIVE INTERMEDIATE SHAFT BEARING REPLACEMENT (LUV WITH MH8 OR MH5)

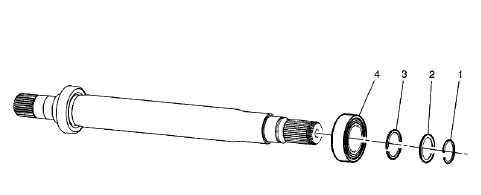

Fig. 3: Front Wheel Drive Intermediate Shaft Bearing
Fig. 3: Front Wheel Drive Intermediate Shaft Bearing

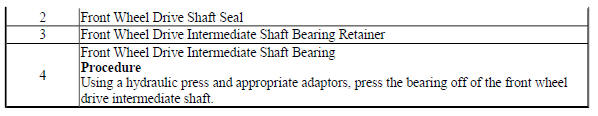

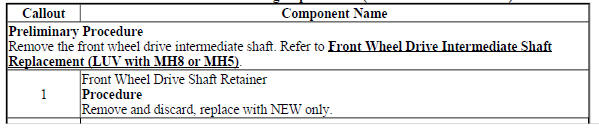

Front Wheel Drive Intermediate Shaft Bearing Replacement (LUV with MH8 or MH5)

Front Wheel Drive Intermediate Shaft Bearing Replacement (LUV with MH8 or MH5)

Front Wheel Drive Intermediate Shaft Bearing Replacement (LUV with MH8 or MH5)

FRONT WHEEL DRIVE SHAFT REPLACEMENT - LEFT SIDE

Special Tools

  • J 45859 Hub Spindle Remover
  • DT 6332 Seal Tool

Fro regional special tools, refer to Special Tools.

Removal Procedure

  1. Raise and support the vehicle. Refer to Lifting and Jacking the Vehicle .
  2. Remove the tire and wheel assembly. Refer to Tire and Wheel Removal and Installation .
  3. Remove the front compartment front center insulator, if equipped. Refer to Front Compartment Front Center Insulator Replacement .

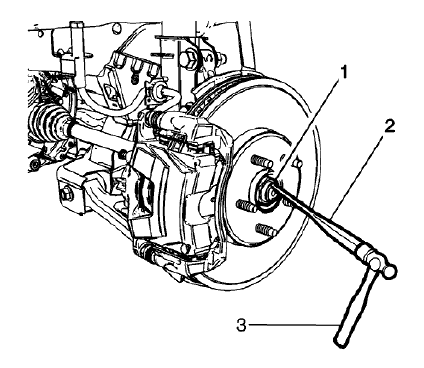

Fig. 4: Removing Stake From Wheel Drive Shaft Nut
Fig. 4: Removing Stake From Wheel Drive Shaft Nut

  1. Using a suitable tool (2) and a hammer (3), remove the stake from the wheel drive shaft nut (1).

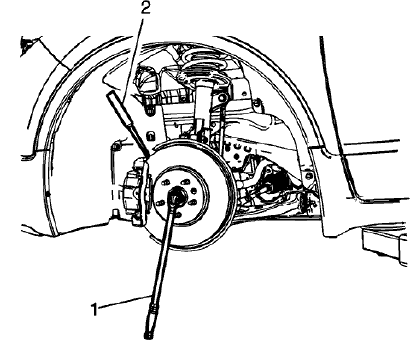

Fig. 5: Inserting Drift Or Punch In Brake Rotor Cooling Vanes
Fig. 5: Inserting Drift Or Punch In Brake Rotor Cooling Vanes

  1. Insert a drift or punch (2) in the cooling vanes of the brake rotor.
  2. Using a breaker bar and the proper size socket (1), loosen the wheel drive shaft nut.

Fig. 6: Wheel Drive Shaft Nut
Fig. 6: Wheel Drive Shaft Nut

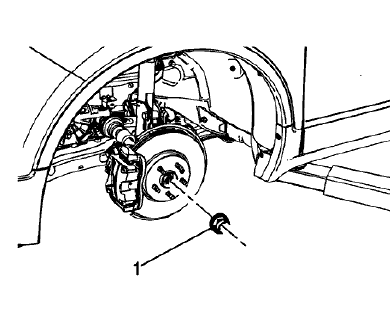

  1. Remove and discard the wheel drive shaft nut (1). Replace with NEW only.
  2. Remove the and relocate the front brake caliper assembly. Refer to Front Brake Caliper Replacement

Fig. 7: Wheel Drive Shaft Removal Tool
Fig. 7: Wheel Drive Shaft Removal Tool

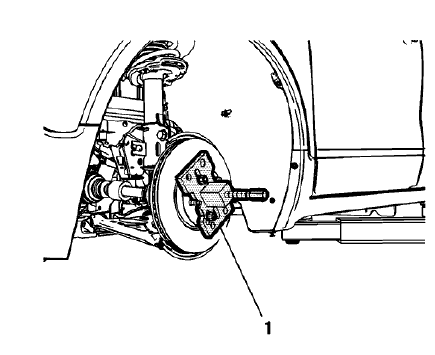

  1. Using the J-45859 remover (1), separate the wheel drive shaft from the front wheel bearing/hub assembly.
  2. Remove the stabilizer shaft link from the front strut. Refer to Stabilizer Shaft Link Replacement .
  3. Remove the outer tie rod end from the steering knuckle. Refer to Steering Linkage Outer Tie Rod Replacement .
  4. Remove the lower control arm bolt from the steering knuckle. Refer to Lower Control Arm Replacement .

Fig. 8: Positioning Screw Driver Against Tripot Housing
Fig. 8: Positioning Screw Driver Against Tripot Housing

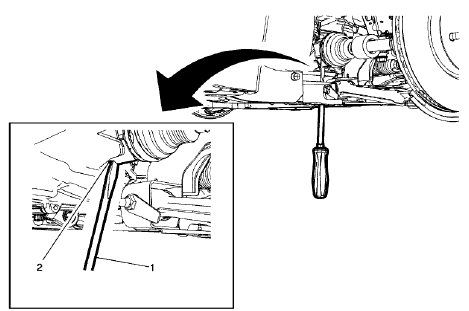

  1. Position a long screw driver (1) against the tripot housing (2).
  2. Using the long screw driver (1), remove the wheel driver shaft from the transmission.

Fig. 9: Wheel Drive Shaft
Fig. 9: Wheel Drive Shaft

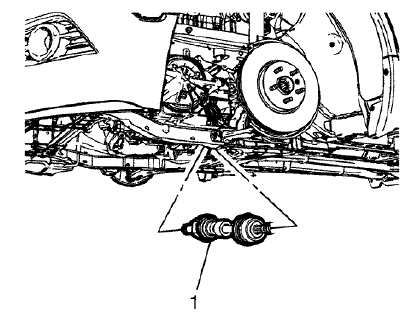

  1. Remove the wheel drive shaft (1) from the vehicle.

Fig. 10: Wheel Drive Shaft And Washer
Fig. 10: Wheel Drive Shaft And Washer

NOTE: If there is no washer on the wheel drive shaft, install a NEW washer.

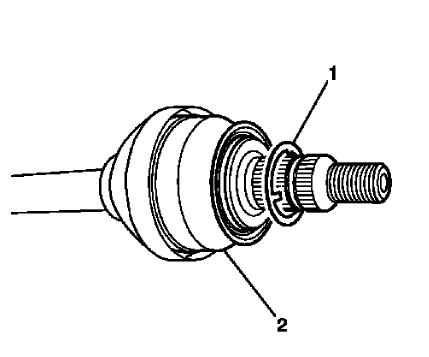

  1. Remove and discard the washer (1) from the wheel drive shaft (2). Do not re-use the washer, replace with NEW only.

Installation Procedure

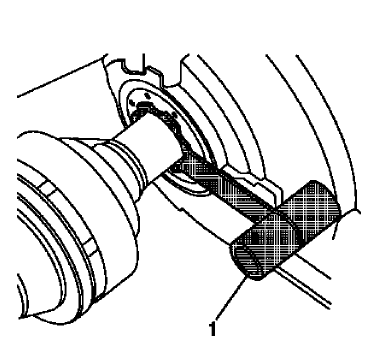

Fig. 11: Protector Tool
Fig. 11: Protector Tool

  1. Position the DT 6332 tool (1) in the transmission.
  2. Install the wheel drive shaft until the wheel drive shaft splines are past the axle seal.
  3. Remove the DT 6332 tool (1) from the wheel drive shaft.

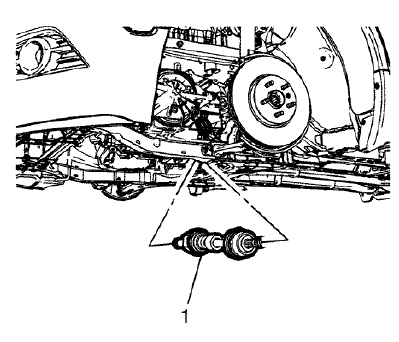

Fig. 12: Wheel Drive Shaft
Fig. 12: Wheel Drive Shaft

  1. Install the wheel drive shaft (1) until it is fully seated in the transmission.
  2. Install the wheel drive shaft to the front wheel hub/bearing.
  3. Install the lower control arm ball joint bolt to the steering knuckle. Refer to Lower Control Arm Replacement .
  4. Install the stabilizer shaft link to the front strut. Refer to Stabilizer Shaft Link Replacement .
  5. Install the outer tie rod to the steering knuckle. Refer to Steering Linkage Outer Tie Rod Replacement .
  6. Install the front brake caliper assembly. Refer to Front Brake Caliper Replacement

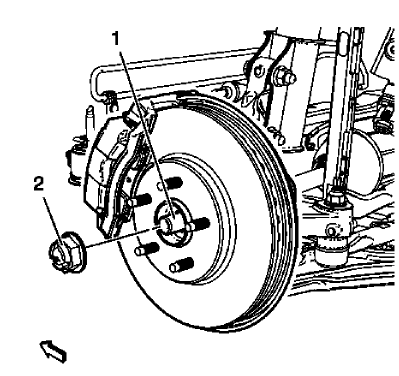

Fig. 13: Wheel Drive Shaft And Nut
Fig. 13: Wheel Drive Shaft And Nut

  1. Install the NEW wheel drive shaft nut (2) to the wheel drive shaft spindle (1).

Fig. 14: Inserting Drift Or Punch In Brake Rotor Cooling Vanes
Fig. 14: Inserting Drift Or Punch In Brake Rotor Cooling Vanes

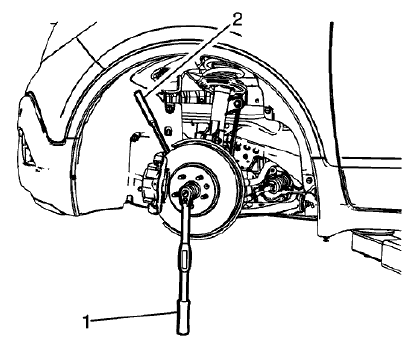

  1. Insert a drift or punch (2) in the cooling fins of the brake rotor.

CAUTION: Refer to Fastener Caution .

  1. Using the proper size socket and torque wrench (1), tighten the NEW wheel drive shaft nut to:
  • First Pass 50 (37 lb ft)
  • Final Pass plus 60 degrees

Fig. 15: Splitting Center Of Wheel Drive Shaft Nut
Fig. 15: Splitting Center Of Wheel Drive Shaft Nut

NOTE: Evenly split the center of the wheel drive shaft nut (3) and ensure that it is fully staked. Each side of the stake should be in contact and approximately 45 degrees to each side of the slot in the wheel drive shaft.

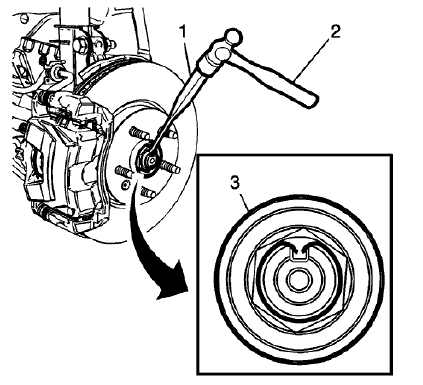

  1. Using the punch (1) and the hammer (2), stake the wheel drive shaft nut (3) collar into the slot on the wheel drive shaft.

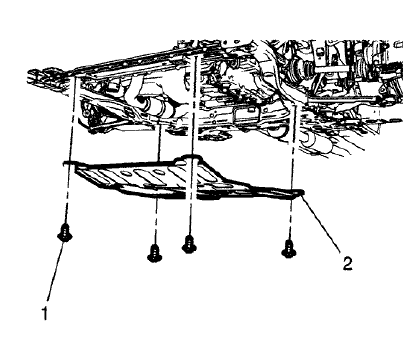

Fig. 16: Front Suspension Skid Plate And Bolts
Fig. 16: Front Suspension Skid Plate And Bolts

  1. Install the front suspension skid plate (2).
  2. Install the front compartment front center insulator, if equipped. Refer to Front Compartment Front Center Insulator Replacement .
  3. Install the tire and wheel assembly. Refer to Tire and Wheel Removal and Installation .
  4. Remove the support and lower the vehicle.
