Chevrolet Trax: Front fog lamp replacement (trax)

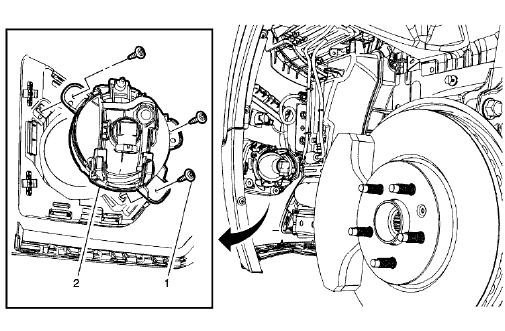

![Fig. 33: Front Fog Lamp](images/manuals/4484/index719(2).gif)
Fig. 33: Front Fog Lamp

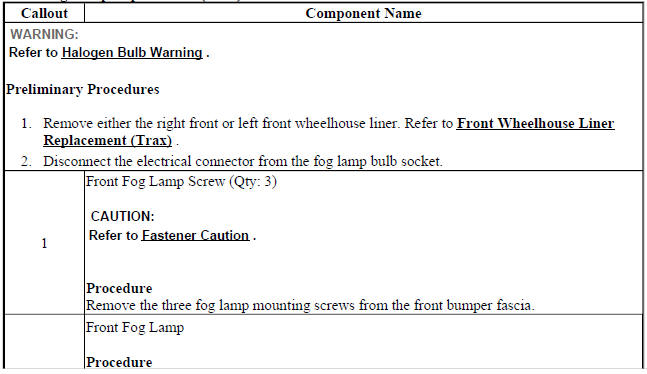

Front Fog Lamp Replacement (Trax)
![Front Fog Lamp Replacement (Trax)](images/manuals/4484/index720(2).jpg)
![Front Fog Lamp Replacement (Trax)](images/manuals/4484/index721(2).jpg)
FRONT FOG LAMP REPLACEMENT (ENCORE)
![Fig. 34: Front Fog Lamp](images/manuals/4484/index722(2).gif)

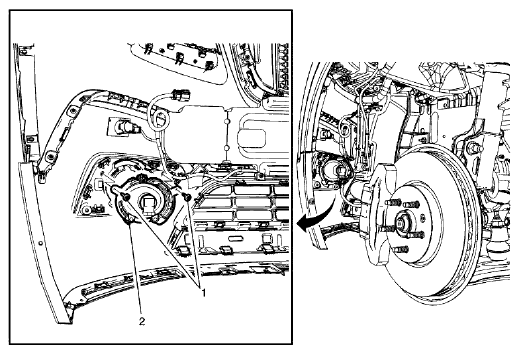

Fig. 34: Front Fog Lamp

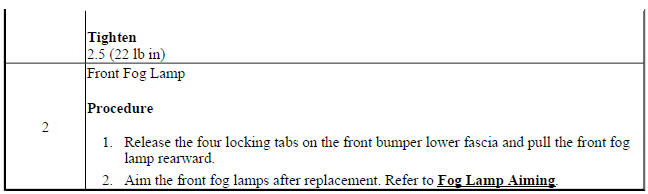

Front Fog Lamp Replacement (Encore)

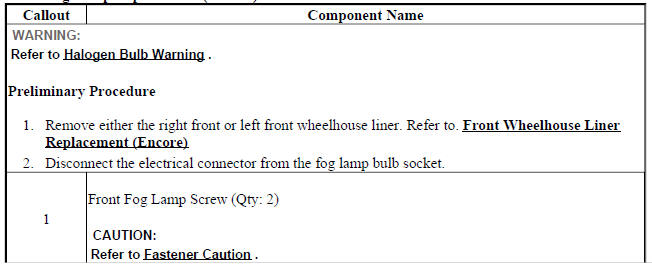

![Front Fog Lamp Replacement (Encore)](images/manuals/4484/index723(2).jpg)
![Front Fog Lamp Replacement (Encore)](images/manuals/4484/index724(2).jpg)
FRONT FOG LAMP BULB REPLACEMENT (TRAX)
![Fig. 35: Front Fog Lamp Bulb](images/manuals/4484/index725(2).gif)

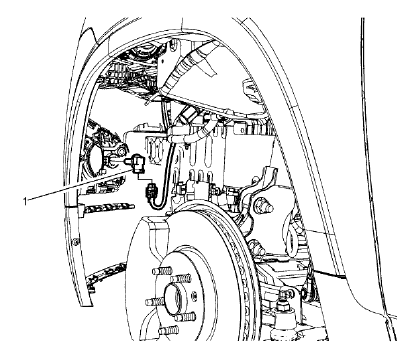

Fig. 35: Front Fog Lamp Bulb
Front Fog Lamp Bulb Replacement (Trax)

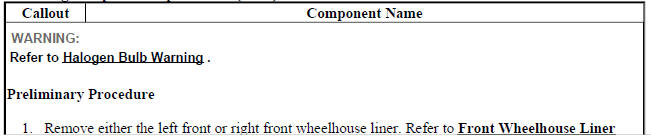

![Front Fog Lamp Bulb Replacement (Trax)](images/manuals/4484/index726(2).jpg)
![Front Fog Lamp Bulb Replacement (Trax)](images/manuals/4484/index727(2).jpg)
FRONT FOG LAMP BULB REPLACEMENT (ENCORE)

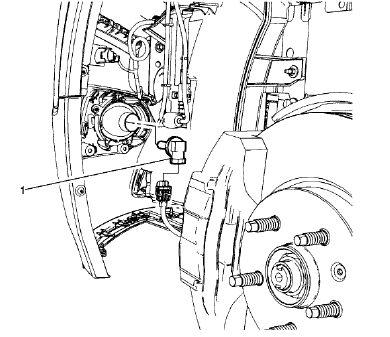

![Fig. 36: Front Fog Lamp Bulb](images/manuals/4484/index728(2).gif)
Fig. 36: Front Fog Lamp Bulb
Front Fog Lamp Bulb Replacement (Encore)

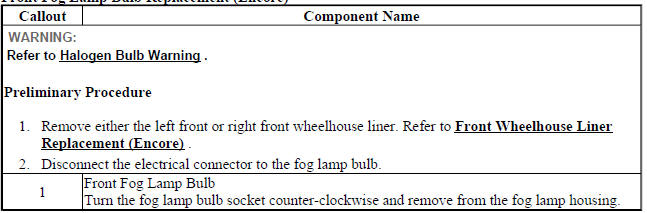

![Front Fog Lamp Bulb Replacement (Encore)](images/manuals/4484/index729(2).jpg)
FRONT FOG LAMP COVER REPLACEMENT (TRAX EXCEPT T3U)

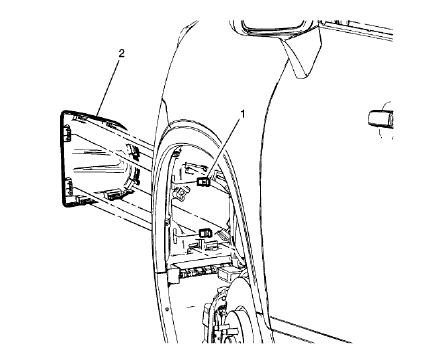

![Fig. 37: Front Fog Lamp Cover (Trax Except T3U)](images/manuals/4484/index730(2).gif)
Fig. 37: Front Fog Lamp Cover (Trax Except T3U)
Front Fog Lamp Cover Replacement (Trax Except T3U)
![Front Fog Lamp Cover Replacement (Trax Except T3U)](images/manuals/4484/index731(2).jpg)
FRONT FOG LAMP COVER REPLACEMENT (TRAX WITH T3U)

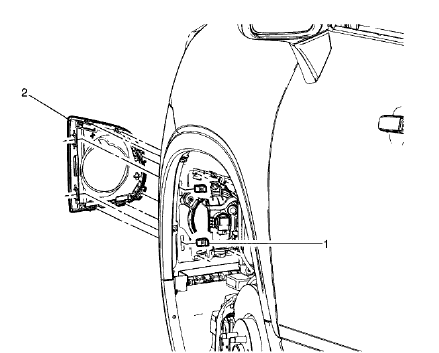

![Fig. 38: Front Fog Lamp Cover (Trax With T3U)](images/manuals/4484/index732(2).gif)
Fig. 38: Front Fog Lamp Cover (Trax With T3U)

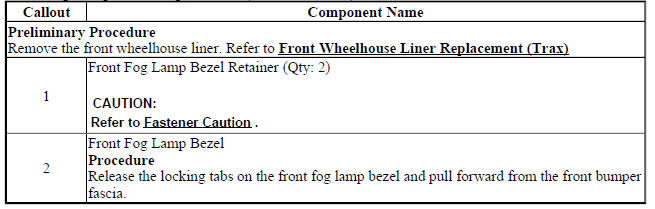

Front Fog Lamp Cover Replacement (Trax With T3U)
![Front Fog Lamp Cover Replacement (Trax With T3U)](images/manuals/4484/index733(2).jpg)
FRONT FOG LAMP COVER REPLACEMENT (ENCORE)

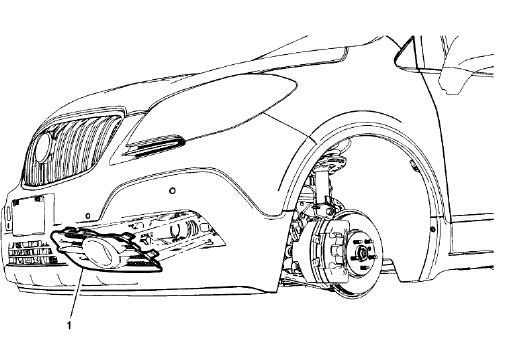

![Fig. 39: Front Fog Lamp Cover](images/manuals/4484/index734.gif)
Fig. 39: Front Fog Lamp Cover

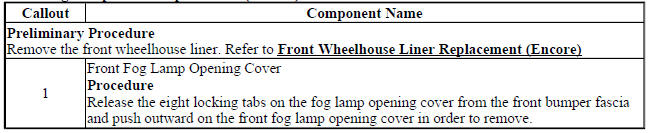

Front Fog Lamp Cover Replacement (Encore)
![Front Fog Lamp Cover Replacement (Encore)](images/manuals/4484/index735(2).jpg)
FRONT FOG LAMP OPENING COVER REPLACEMENT (ENCORE)
![Fig. 40: Front Fog Lamp Opening Cover](images/manuals/4484/index736(2).gif)

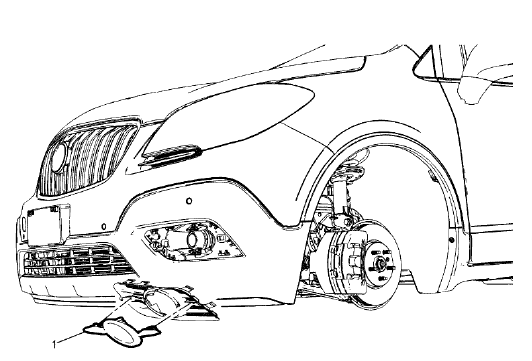

Fig. 40: Front Fog Lamp Opening Cover

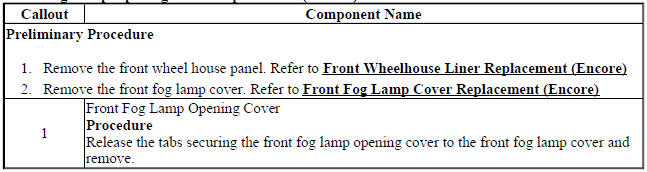

Front Fog Lamp Opening Cover Replacement (Encore)
![Front Fog Lamp Opening Cover Replacement (Encore)](images/manuals/4484/index737(2).jpg)
