Chevrolet Trax: DTC P2122, P2123, P2127, P2128, OR P2138

Diagnostic Instructions

  • Perform the Diagnostic System Check - Vehicle prior to using this diagnostic procedure.
  • Review Strategy Based Diagnosis for an overview of the diagnostic approach.
  • Diagnostic Procedure Instructions provides an overview of each diagnostic category.

DTC Descriptors

DTC P2122

Accelerator Pedal Position (APP) Sensor 1 Circuit Low Voltage

DTC P2123

Accelerator Pedal Position (APP) Sensor 1 Circuit High Voltage

DTC P2127

Accelerator Pedal Position (APP) Sensor 2 Circuit Low Voltage

DTC P2128

Accelerator Pedal Position (APP) Sensor 2 Circuit High Voltage

DTC P2138

Accelerator Pedal Position (APP) Sensors 1-2 Not Plausible

Diagnostic Fault Information

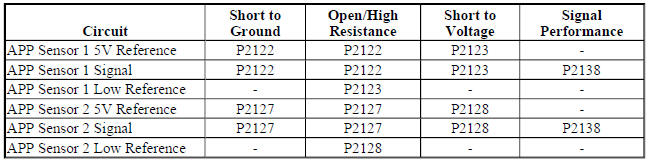

Diagnostic Fault Information

Typical Scan Tool Data

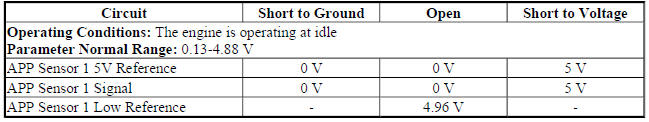

APP Sensor 1

APP Sensor 1

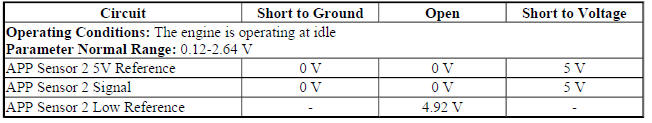

APP Sensor 2

APP Sensor 2

Circuit/System Description

The throttle actuator control (TAC) system uses two accelerator pedal position (APP) sensors to monitor the accelerator pedal position. The APP sensors 1 and 2 are located within the pedal assembly. Each sensor has a 5 V reference circuit, a low reference circuit, and a signal circuit.

Two processors are also used to monitor the TAC motor system data. Both processors are located within the ECM. Each signal circuit provides both processors with a signal voltage proportional to pedal movement. The processors share and monitor data to verify that the indicated APP sensor calculation is correct.

Conditions for Running the DTC

P2122 and P2123

  • DTC P06A3 is not set.
  • The ignition is ON.
  • The DTCs run continuously when the above conditions are met.

P2127 and P2128

  • DTC P0697 is not set.
  • The ignition is ON.
  • The DTCs run continuously when the above conditions are met.

P2138

  • DTCs P0697, or P06A3 is not set.
  • The ignition is ON.
  • The DTC runs continuously when the above conditions are met.

Conditions for Setting the DTC

P2122

The ECM detects that APP sensor 1 voltage is less than 0.61 V for greater than 0.5 s.

P2123

The ECM detects that APP sensor 1 voltage is greater than 4.59 V for greater than 0.5 s.

P2127

The ECM detects that APP sensor 2 voltage is less than 0.10 V for greater than 0.5 s.

P2128

The ECM detects that APP sensor 2 voltage is greater than 2.5 V for greater than 0.5 s.

P2138

The ECM detects that the difference between APP sensor 1 and APP sensor 2 exceeds a predetermined value for greater than 2 s.

Action Taken When the DTC Sets

  • DTCs P2122, P2123, P2127, P2128 and P2138 are Type A DTCs.
  • The ECM commands the TAC motor system to operate in reduced engine power mode.

Conditions for Clearing the DTC

DTCs P2122, P2123, P2127, P2128, and P2138 are Type A DTCs.

Reference Information

Schematic Reference

Engine Controls Schematics (Encore) , Engine Controls Schematics (Trax)

Connector End View Reference

WIRING SYSTEMS AND POWER MANAGEMENT - COMPONENT CONNECTOR END VIEWS - INDEX - ENCORE WIRING SYSTEMS AND POWER MANAGEMENT - COMPONENT CONNECTOR END VIEWS - INDEX - TRAX

Description and Operation

Throttle Actuator Control (TAC) System Description

Electrical Information Reference

  • Circuit Testing
  • Connector Repairs
  • Testing for Intermittent Conditions and Poor Connections
  • Wiring Repairs

DTC Type Reference

Powertrain Diagnostic Trouble Code (DTC) Type Definitions (LUV) , Powertrain Diagnostic Trouble Code (DTC) Type Definitions (2H0)

Scan Tool Reference

Control Module References

Circuit/System Verification

  1. Ignition ON.
  2. Verify that DTC P0697, or P06A3 is not set.
  • If any of the DTCs are set

Refer to DTC P0641, P0651, P0697, or P06A3 (ECM).

  • If none of the DTCs are set
  1. Verify the scan tool APP Sensor 1 Circuit Status and the APP Sensor 2 Circuit Status parameters display OK.
  • If Malfunction is displayed

Refer to Circuit/System Testing

  • If OK is displayed
  1. Verify the scan tool APP Sensor 1 and 2 Agree/Disagree parameter displays Agree while performing the tests listed below:
  • Rapidly depress the accelerator pedal from the rest position to the wide open throttle position (WOT) and release pedal. Repeat the procedure several times.
  • Slowly depress the accelerator pedal to WOT and then slowly return the pedal to closed throttle.

    Repeat the procedure several times.

  • If Disagree

Refer to Circuit/System Testing

  • If Agree
  1. Verify that DTC P2122, P2123, P2127, P2128, or P2138 is not set.
  • If any of the DTCs are set

Refer to Circuit/System Testing

  • If none of the DTCs are set
  1. Operate the vehicle within the Conditions for Running the DTC. You may also operate the vehicle within the conditions that you observed from the Freeze Frame/Failure Records data.
  2. Verify DTC P2122, P2123, P2127, P2128, or P2138 is not set.
  • If any of the DTCs are sets

Refer to Circuit/System Testing

  • If none of the DTCs are set
  1. All OK.

Circuit/System Testing

  1. Ignition OFF and all vehicle systems OFF, disconnect the harness connector at the B107 Accelerator Pedal Position Sensor. It may take up to 2 minutes for all vehicle systems to power down.
  2. Test for less than 5 ohms between each low reference circuit terminal listed below and ground.
  • Low reference circuit terminal 3
  • Low reference circuit terminal 4
  • If 5 ohms or greater
  1. Ignition OFF, disconnect the harness connector at the K20 Engine Control Module.
  2. Test for less than 2 ohms in the low reference circuit end to end.
  • If 2 ohms or greater, repair the open/high resistance in the circuit.
  • If less than 2 ohms, replace the K20 Engine Control Module.
  • If less than 5 ohms
  1. Ignition ON.
  2. Test for 4.8-5.2 V between each 5 V reference circuit terminal listed below and ground.
  • 5 V reference circuit terminal 1
  • 5 V reference circuit terminal 6
  • If less than 4.8 V
  1. Ignition OFF, disconnect the harness connector at the K20 Engine Control Module.
  2. Test for infinite resistance between the 5 V reference circuit and ground.
  • If less than infinite resistance, repair the short to ground on the circuit.
  • If infinite resistance
  1. Test for less than 2 ohms in the 5 V reference circuit end to end.
  • If 2 ohms or greater, repair the open/high resistance in the circuit.
  • If less than 2 ohms, replace the K20 Engine Control Module.
  • If greater than 5.2 V
  1. Ignition OFF, disconnect the harness connector at the K20 Engine Control Module, ignition ON.
  2. Test for less than 1 V between the 5 V reference circuit and ground.
  • If 1 V or greater, repair the short to voltage on the circuit.
  • If less than 1 V, replace the K20 Engine Control Module.
  • If between 4.8-5.2 V
  1. Verify each APP sensor voltage parameter is less than 0.2 V.
  • If 0.2 V or greater
  1. Ignition OFF, disconnect the harness connector at the K20 Engine Control Module, ignition ON.
  2. Test for less than 1 V between the signal circuit terminal listed below and ground.
  • APP sensor 1 signal circuit terminal 5
  • APP sensor 2 signal circuit terminal 2
  • If 1 V or greater, repair the short to voltage on the circuit.
  • If less than 1 V, replace the K20 Engine Control Module.
  • If less than 0.2 V
  1. Install a 3 A fused jumper wire between each signal circuit terminal listed below and the 5 V reference circuit terminal 1.
  • APP sensor 1 signal circuit terminal 5
  • APP sensor 2 signal circuit terminal 2
  1. Verify the scan tool APP sensor 1 and 2 voltage parameter is greater than 4.8 V.
  • If 4.8 V or less
  1. Ignition OFF, disconnect the harness connector at the K20 Engine Control Module.
  2. Test for infinite resistance between the signal circuit terminal and ground.
  • If less than infinite resistance, repair the short to ground on the circuit.
  • If infinite resistance
  1. Test for less than 2 ohms in the signal circuit end to end.
  • If 2 ohms or greater, repair the open/high resistance in the circuit.
  • If less than 2 ohms, replace the K20 Engine Control Module.
  • If greater than 4.8 V
  1. Test or replace the B107 Accelerator Pedal Position Sensor.

Repair Instructions

Perform the Diagnostic Repair Verification after completing the repair.

  • Accelerator Pedal Position Sensor Replacement
  • Control Module References for ECM replacement, programming, and setup.
