Chevrolet Trax: DTC P00EA-P00EC

Diagnostic Instructions

  • Perform the Diagnostic System Check - Vehicle prior to using this diagnostic procedure.
  • Review Strategy Based Diagnosis for an overview of the diagnostic approach.
  • Diagnostic Procedure Instructions provides an overview of each diagnostic category.

DTC Descriptors

DTC P00EA

Intake Air Temperature (IAT) Sensor 3 Circuit Low Voltage

DTC P00EB

Intake Air Temperature (IAT) Sensor 3 Circuit High Voltage

DTC P00EC

Intake Air Temperature (IAT) Sensor 3 Circuit Erratic

Diagnostic Fault Information

IAT Sensor 3

Diagnostic Fault Information

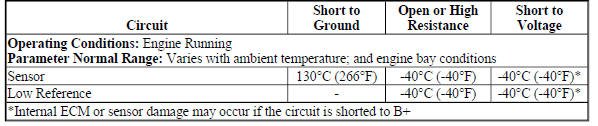

Typical Scan Tool Data

IAT Sensor 3

Typical Scan Tool Data

Circuit/System Description

The intake air temperature (IAT) sensor 3 is a variable resistor that changes an engine control module (ECM) supplied 5 V signal. The signal varies with inlet air temperature and is displayed by the scan tool as ºC (ºF).

The IAT sensor 3 is integrated with the B111B Turbocharger Boost/Intake Air Temperature Sensor in the sensor bore, which is located before the throttle body. The ECM supplies a ground for the IAT sensor 3 low reference circuit.

The IAT sensor 1 and IAT sensor 2 are part of the B75C Multifunction Intake Air Sensor. The IAT sensor 1 produces an analog signal on pin-8 of the sensor. The IAT sensor 2 produces a frequency modulated signal on pin-1 of the sensor.

Conditions for Running the DTCs

P00EA, P00EB, and P00EC

  • The ignition is ON, or the engine is running.
  • The DTCs run continuously when the above conditions are met.

Conditions for Setting the DTC

NOTE: The scan tool display range is between -40 and +150ºC (-40 and +302ºF).

P00EA

The ECM detects that the IAT sensor 3 signal is warmer than 149ºC (300ºF) for at least 5 s.

P00EB

The ECM detects that the IAT sensor 3 signal is colder than -60ºC (-76ºF) for at least 5 s.

P00EC

The ECM detects that the IAT sensor 3 signal is intermittent or has abruptly changed for at least 5s.

Action Taken When the DTCs Set

  • DTCs P00EA, P00EB, and P00EC are Type B DTCs.
  • The ECM commands the cooling fans ON.

Conditions for Clearing the DTCs

DTCs P00EA, P00EB, and P00EC are Type B DTCs.

Reference Information

Schematic Reference

Engine Controls Schematics (Encore) , Engine Controls Schematics (Trax)

Connector End View Reference

WIRING SYSTEMS AND POWER MANAGEMENT - COMPONENT CONNECTOR END VIEWS - INDEX - ENCORE WIRING SYSTEMS AND POWER MANAGEMENT - COMPONENT CONNECTOR END VIEWS - INDEX - TRAX

Electrical Information Reference

  • Circuit Testing
  • Connector Repairs
  • Testing for Intermittent Conditions and Poor Connections
  • Wiring Repairs

Powertrain Component Views

Powertrain Component Views

DTC Type Reference

Powertrain Diagnostic Trouble Code (DTC) Type Definitions (LUV) , Powertrain Diagnostic Trouble Code (DTC) Type Definitions (2H0)

Scan Tool Reference

Control Module References for scan tool information

Circuit/System Verification

  1. Ignition ON.
  2. Verify that DTC DTC P0641, P0651, P0697, or P06A3 is not set.

If any of the DTCs are set

Refer to DTC P0641, P0651, P0697, or P06A3 (ECM) for further diagnosis.

If none of the DTCs are set

NOTE: To minimize the effects of residual engine heat and sensor internal heating elements, perform Steps 3 and 4 of this verification procedure only if the ignition has been OFF for 8 hours or more.

  1. Ignition ON.
  2. Verify the following scan tool parameters are within 25ºC (45ºF) of each other.
  • Start-Up IAT Sensor 1
  • IAT Sensor 2
  • IAT Sensor 3

If not within 25ºC (45ºF)

Refer to Circuit/System Testing.

If within 25ºC (45ºF)

  1. Engine idling, verify the IAT Sensor 3 scan tool parameter is between: -38 and +128ºC (-36 and +262ºF).

If not between: -38 and +128ºC (-36 and +262ºF)

Refer to Circuit System Testing.

If between: -38 and +128ºC (-36 and +262ºF)

  1. Operate the vehicle within the Conditions for Running the DTC. You may also operate the vehicle within the conditions that you observed from the Freeze Frame/Failure Records data.
  2. Verify the DTC does not set.

If the DTC sets

Refer to Circuit/System Testing.

If the DTC does not set

  1. All OK

Circuit/System Testing

NOTE: You must perform the Circuit/System Verification before proceeding with Circuit/System Testing.

  1. Ignition OFF, and all vehicle systems OFF, it may take up to 2 min. for all vehicle systems to power down. Disconnect the harness connector at the B111B Turbocharger Boost/Intake Air Temperature sensor.
  2. Test for less than 2 ohms between the low reference circuit terminal 1 and ground.

If 2 ohms or greater

  1. Ignition OFF, disconnect the harness connector at the K20 Engine Control Module.
  2.  Test for less than 2 ohms in the low reference circuit end to end.
  • If 2 ohms or greater, repair the open or high resistance in the circuit.
  • If less than 2 ohms replace the K20 Engine Control Module.

If less than 2 ohms

  1. Ignition ON, test for 4.8-5.2 V between the signal circuit terminal 2 and ground.

If less than 4.8 V

  1. Ignition OFF, disconnect the harness connector at the K20 Engine Control Module.
  2. Test for infinite resistance between the signal circuit and ground.
  • If less than infinite resistance, repair the short to ground on the circuit.
  • If infinite resistance
  1. Test for less than 2 ohms in the signal circuit end to end.
  • If 2 ohms or greater, repair the open/high resistance in the circuit.
  • If less than 2 ohms, replace the K20 Engine Control Module.

If greater than 5.2 V

NOTE: If the signal circuit is shorted to a voltage the engine control module or the sensor may be damaged.

  1. Ignition OFF, disconnect the harness connector at the K20 Engine Control Module.
  2. Ignition ON, test for less than 1 V between the signal circuit and ground.
  • If 1 V or greater, repair the short to voltage on the circuit.
  • If less than 1 V, replace the K20 Engine Control Module.

If between 4.8-5.2 V

  1. Ignition ON, verify the scan tool IAT Sensor 3 parameter is colder than -39ºC (-38ºF).

If warmer than -39ºC (-38ºF).

  1. Ignition OFF, disconnect the harness connector at the K20 Engine Control Module.
  2. Test for infinite resistance between the signal circuit terminal 2 and ground.
  • If less than infinite resistance, repair the short to ground on the circuit.
  • If infinite resistance
  1. Test for less than 2 ohms in the signal circuit end to end.
  • If 2 ohms or greater, repair the open/high resistance in the circuit.
  • If less than 2 ohms, replace the K20 Engine Control Module.

If colder than -39ºC (-38ºF).

  1. Ignition OFF, install a 3 A fused jumper wire between the signal circuit terminal 2 and the low reference circuit terminal 1.
  2. Verify the scan tool IAT Sensor 3 parameter is warmer than 128ºC (262ºF).

If colder than 128ºC (262ºF).

  1. Ignition OFF, remove the jumper wire, disconnect the harness connector at the K20 ECM, ignition ON.
  2.  Test for less than 1 V between the signal circuit and ground.
  • If 1 V or greater, repair the short to voltage on the circuit.
  • If less than 1 V
  1. Ignition OFF.
  2. Test for less than 2 ohms in the signal circuit end to end.
  • If 2 ohms or greater, repair the open/high resistance in the circuit.
  • If less than 2 ohms, replace the K20 ECM.

If warmer than 128ºC (262ºF).

  1. Test or replace the B111B Turbocharger Boost/Intake Air Temperature sensor.

Component Testing

Turbocharger Boost/Intake Air Temperature sensor

  1. Ignition OFF, disconnect the harness connector at the B111B Turbocharger Boost/Intake Air Temperature sensor.

NOTE: A thermometer can be used to test the sensor off the vehicle.

  1. Test the IAT sensor 3 by varying the sensor temperature while monitoring the sensor resistance. Compare the readings with the Temperature Versus Resistance - Intake Air Temperature Sensor (Bosch Sensor) , Temperature Versus Resistance - Intake Air Temperature Sensor (Delco Sensor) table for the appropriate sensor. The resistance values should be in range of the table values.

If not within the specified range.

Replace the B111B Turbocharger Boost/Intake Air Temperature sensor.

If within the specified range.

  1. All OK

Repair Instructions

Perform the Diagnostic Repair Verification after completing the repair.

  • Intake Air Pressure and Temperature Sensor Replacement for turbocharger boost/intake air temperature replacement
  • Control Module References for Engine Control Module replacement, programming, and setup.
