Chevrolet Trax: DTC P0096 OR P0111

Diagnostic Instructions

  • Perform the Diagnostic System Check - Vehicle prior to using this diagnostic procedure.
  • Review Strategy Based Diagnosis for an overview of the diagnostic approach.
  • Diagnostic Procedure Instructions provides an overview of each diagnostic category.

DTC Descriptors

DTC P0096

Intake Air Temperature (IAT) Sensor 2 Performance

DTC P0111

Intake Air Temperature (IAT) Sensor 1 Performance

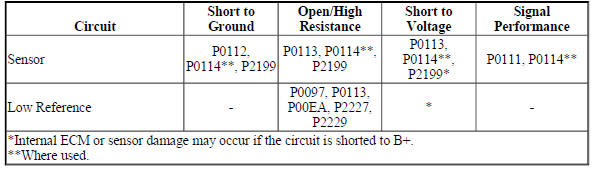

Diagnostic Fault Information

IAT Sensor 1

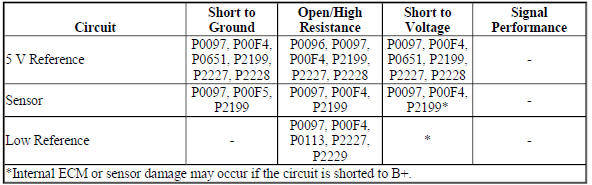

IAT Sensor 1

IAT Sensor 2

IAT Sensor 2

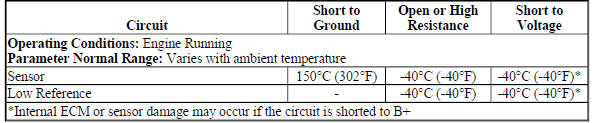

Typical Scan Tool Data

IAT Sensor 1

IAT Sensor 1

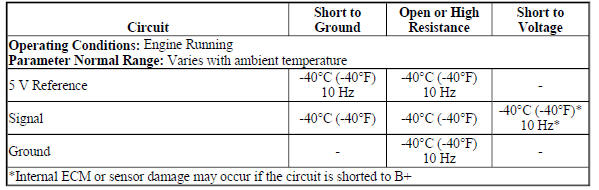

IAT Sensor 2

IAT Sensor 2

Circuit/System Description

The sensors listed below are integrated within the multifunction intake air sensor:

  • IAT sensor 1
  • IAT sensor 2
  • Humidity sensor
  • MAF sensor
  • BARO pressure sensor

The intake air temperature (IAT) sensor 1 is a variable resistor that changes the voltage on the engine control module (ECM) supplied 5 V signal circuit. The signal varies with inlet air temperature in the sensor bore and is displayed by the scan tool as ºC (ºF). The IAT sensor 2 and the humidity sensor share the same circuit. The IAT sensor 2 signal is displayed by the scan tool as Hz (Hertz) and ºC (ºF).

The IAT sensor 1 produces an analog signal on pin-8 of the sensor. The IAT sensor 2 produces a frequency modulated signal on pin-1 of the sensor.

The sensors listed below share an ECM supplied 5 V reference circuit:

  • IAT sensor 2
  • Humidity sensor
  • Barometric pressure (BARO) sensor

The sensors listed below share an ECM supplied low reference circuit:

  • IAT sensor 1
  • IAT sensor 2
  • Humidity sensor
  • Barometric pressure (BARO) sensor

IAT Sensor 1 - Temperature, Resistance, Voltage Table

IAT Sensor 1 - Temperature, Resistance, Voltage Table

IAT Sensor 2 - Temperature, Frequency Table

IAT Sensor 2 - Temperature, Frequency Table

Conditions for Running the DTCs

P0096 and P0111

  • DTCs P0097, P0098, P0111, P0112, P0113, P0117, P0118, P00EA, P00EB, or P1682 are not set.
  • The ignition has been OFF at least 8 hours.
  • Ignition voltage is at least 11 V.
  • These DTCs run once per ignition cycle when the enabling conditions are met.

Conditions for Setting the DTCs

P0096

  • The ECM determines the absolute difference between IAT sensor 1 start-up temperature and the IAT sensor 2 start-up temperature is greater than 25ºC (45ºF).

AND

  • The ECM determines the absolute difference between IAT sensor 2 start-up temperature and the IAT sensor 3 start-up temperature is greater than 25ºC (45ºF).

AND

  • The ECM determines the absolute difference between IAT sensor 1 start-up temperature and the IAT sensor 3 start-up temperature is less than or equal to 25ºC (45ºF).
  • This DTC runs once per ignition cycle when the enabling conditions are met.

NOTE: P0111 Can fail under any of the following 3 sets of conditions.

P0111 - Condition 1

  • The ECM determines the absolute difference between IAT sensor 1 start-up temperature and the IAT sensor 2 start-up temperature is greater than 25ºC (45ºF).

AND

  • The ECM determines the absolute difference between IAT sensor 1 start-up temperature and the IAT sensor 3 start-up temperature is greater than 25ºC (45ºF).

AND

  • The ECM determines the absolute difference between IAT sensor 2 start-up temperature and the IAT sensor 3 start-up temperature is less than or equal to 25ºC (45ºF).

P0111 - Condition 2

  • The ECM determines the IAT sensor 2 start-up temperature is between the IAT sensor 1 and IAT sensor 3 start-up temperatures.

AND

  • The ECM determines the absolute difference between IAT sensor 1 start-up temperature and the IAT sensor 3 start-up temperature is greater than 25ºC (45ºF).

AND

  • The ECM determines the absolute difference between IAT sensor 2 and the IAT sensor 1 start-up temperatures is greater than absolute difference between IAT sensor 2 and the IAT sensor 3 start-up temperatures.

P0111 - Condition 3

  • The ECM determines the IAT sensor 3 start-up temperature is between the IAT sensor 1 and IAT sensor 2 start-up temperatures

AND

  • The ECM determines the absolute difference between IAT sensor 1 start-up temperature and the IAT sensor 2 start-up temperature is greater than 25ºC (45ºF).

AND

  • The ECM determines the absolute difference between IAT sensor 3 and the IAT sensor 1 start-up temperatures is greater than absolute difference between IAT sensor 3 and the IAT sensor 2 start-up temperatures.

DTC P0111 runs once an ignition cycle when the any one, of the above 3 enabling sets of conditions is met.

Action Taken When the DTCs Set

DTCs P0096 and P0111 are Type B DTCs.

Conditions for Clearing the DTCs

DTCs P0096 and P0111 are Type B DTCs.

Diagnostic Aids

  • With the ignition ON, when the engine is OFF and is cold; properly functioning IAT sensors 1 and 2 will gradually increase the scan tool IAT Sensor 1 and 2 parameters. This is due to the heat that is generated by the multifunction intake air sensor internal heating elements.
  • The Humidity sensor and the IAT sensor 2 signals are sent to the ECM on the same circuit. If the IAT Sensor 2 parameter displays the values: 10 Hz; -40ºC (-40ºF), and there are also Humidity Sensor DTCs, check for a circuit problem.

Reference Information

Schematic Reference

Engine Controls Schematics (Encore) , Engine Controls Schematics (Trax)

Connector End View Reference

WIRING SYSTEMS AND POWER MANAGEMENT - COMPONENT CONNECTOR END VIEWS - INDEX - ENCORE WIRING SYSTEMS AND POWER MANAGEMENT - COMPONENT CONNECTOR END VIEWS - INDEX - TRAX

Electrical Information Reference

  • Circuit Testing
  • Connector Repairs
  • Testing for Intermittent Conditions and Poor Connections
  • Wiring Repairs

DTC Type Reference

Powertrain Diagnostic Trouble Code (DTC) Type Definitions (LUV) , Powertrain Diagnostic Trouble Code (DTC) Type Definitions (2H0)

Scan Tool Reference

Control Module References for scan tool information

Special Tools

EL-38522-A Variable Signal Generator

For equivalent regional tools, refer to Special Tools (Diagnostic Tools)

Circuit/System Verification

  1. Ignition ON.
  2. Verify that DTC DTC P0641, P0651, P0697, or P06A3 is not set.
  • If any of the DTCs are set

Refer to DTC P0641, P0651, P0697, or P06A3 (ECM) for further diagnosis.

  • If none of the DTCs are set

NOTE: To minimize the effects of residual engine heat and sensor internal heating elements, perform Steps 3 and 4 of this verification procedure only if the ignition has been OFF for 8 hours or more.

  1. Ignition ON.
  2. Verify the following scan tool parameters are within 25ºC (45ºF) of each other.
  • Start-Up IAT Sensor 1
  • IAT Sensor 2
  • IAT Sensor 3; where equipped
  • If not within 25ºC (45ºF)

Refer to Circuit/System Testing.

  • If within 25ºC (45ºF)
  1. Engine idling, verify the following scan tool parameters are between: -38 and +149ºC (-36 and +300ºF).
  • IAT Sensor 1
  • IAT Sensor 2
  • IAT Sensor 3; where equipped
  • If not between: -38 and +149ºC (-36 and +300ºF)

Refer to Circuit System Testing.

  • If between: -38 and +149ºC (-36 and +300ºF)
  1. Operate the vehicle within the conditions for running the DTC. You may also operate the vehicle within the conditions that you observed from the freeze frame/failure records data.
  2. Verify the DTC does not set.
  • If the DTC sets

Refer to Circuit/System Testing.

  • If the DTC does not set
  1. All OK

Circuit/System Testing

NOTE: You must perform the Circuit/System Verification before proceeding with Circuit/System Testing.

  1. Check the integrity of the entire air induction system and verify that none of the following conditions exist:
  • A loose or disconnected charge air cooler hose or pipe; where equipped
  • A blocked or obstructed charge air cooler, including: after-market grill covers; where equipped
  • Any snow or ice build-up at the charge air cooler in cold climates; where equipped
  • Any mud or dirt build-up at the charge air cooler; where equipped
  • A restricted or collapsed air intake duct
  • An intake manifold leak
  • A MAP sensor seal that is leaking, missing, or damaged
  • A misaligned or damaged air intake duct
  • Any water intrusion in the induction system
  • An Intake Manifold Resonator with a leaking seal, or a cracked or broken housing
  • If a condition exists

Repair or replace component as appropriate.

  • If no condition exists
  1. Ignition OFF, and all vehicle systems OFF, it may take up to 2 min. for all vehicle systems to power down. Disconnect the harness connector at the B75C Multifunction Intake Air sensor.
  2. Test for less than 2 ohms between the low reference circuit terminal 7 and ground.
  • If 2 ohms or greater
  1. Ignition OFF, disconnect the harness connector at the K20 Engine Control Module.
  2. Test for less than 2 ohms in the low reference circuit end to end.
  • If 2 ohms or greater, repair the open or high resistance in the circuit.
  • If less than 2 ohms replace the K20 Engine Control Module.
  1. Test for less than 2 ohms in the signal circuit end to end.
  • If 2 ohms or greater, repair the open/high resistance in the circuit.
  • If less than 2 ohms, replace the K20 Engine Control Module.

If greater than 5.2 V

NOTE: If the 5 V reference circuit is shorted to a voltage the engine control module or the sensor may be damaged.

  1. Ignition OFF, disconnect the harness connector at the K20 Engine Control Module.
  2.  Ignition ON, test for less than 1 V between the 5 V reference circuit and ground.
  • If 1 V or greater, repair the short to voltage on the circuit.
  • If less than 1 V, replace the K20 Engine Control Module.

If between 4.8-5.2 V

  1. Ignition ON, test for 4.8-5.2 V between the signal circuit terminal 8 and ground.
  • If less than 4.8 V
  1. Ignition OFF, disconnect the harness connector at the K20 Engine Control Module.
  2. Test for infinite resistance between the signal circuit and ground.
  • If less than infinite resistance, repair the short to ground on the circuit.
  • If infinite resistance
  1. Test for less than 2 ohms in the signal circuit end to end.
  • If 2 ohms or greater, repair the open/high resistance in the circuit.
  • If less than 2 ohms, replace the K20 Engine Control Module.

If greater than 5.2 V

NOTE: If the signal circuit is shorted to a voltage the engine control module or the sensor may be damaged.

  1. Ignition OFF, disconnect the harness connector at the K20 Engine Control Module.
  2.  Ignition ON, test for less than 1 V between the signal circuit and ground.
  • If 1 V or greater, repair the short to voltage on the circuit.
  • If less than 1 V, replace the K20 Engine Control Module.

If between 4.8-5.2 V

  1. Ignition ON, verify the scan tool IAT Sensor 1 parameter is colder than -39ºC (-38ºF).

If warmer than -39ºC (-38ºF).

  1. Ignition OFF, disconnect the harness connector at the K20 Engine Control Module.
  2. Test for infinite resistance between the signal circuit terminal 8 and ground.
  • If less than infinite resistance, repair the short to ground on the circuit.
  • If infinite resistance
  1. Test for less than 2 ohms in the signal circuit end to end.
  • If 2 ohms or greater, repair the open/high resistance in the circuit.
  • If less than 2 ohms, replace the K20 Engine Control Module.

If colder than -39ºC (-38ºF).

  1. Ignition OFF, install a 3 A fused jumper wire between the signal circuit terminal 8 and the low reference circuit terminal 7.
  2. Verify the scan tool IAT Sensor 3 parameter is warmer than 150ºC (302ºF).

If colder than 150ºC (302ºF).

  1. Ignition OFF, remove the jumper wire, disconnect the harness connector at the K20 Engine Control Module, ignition ON.
  2.  Test for less than 1 V between the signal circuit and ground.
  • If 1 V or greater, repair the short to voltage on the circuit.
  • If less than 1 V
  1. Ignition OFF.
  2. Test for less than 2 ohms in the signal circuit end to end.
  • If 2 ohms or greater, repair the open/high resistance in the circuit.
  • If less than 2 ohms, replace the K20 Engine Control Module.

If warmer than 150ºC (302ºF).

  1. Ignition ON, test for 4.8-5.2 V between the signal terminal 1 and ground.

If less than 4.8 V

  1. Ignition OFF, disconnect the harness connector at the K20 Engine Control Module.
  2. Test for infinite resistance between the signal circuit and ground.
  • If less than infinite resistance, repair the short to ground on the circuit.
  • If infinite resistance
  1. Test for less than 2 ohms in the signal circuit end to end.
  • If 2 ohms or greater, repair the open/high resistance in the circuit.
  • If less than 2 ohms, replace the K20 Engine Control Module.

If greater than 5.2 V

NOTE: If the signal circuit is shorted to a voltage the engine control module or the sensor may be damaged.

  1. Ignition OFF, disconnect the harness connector at the K20 Engine Control Module.
  2. Ignition ON, test for less than 1 V between the signal circuit and ground.
  • If 1 V or greater, repair the short to voltage on the circuit.
  • If less than 1 V, replace the K20 Engine Control Module.

If between 4.8-5.2 V

  1. Determine if EL-38522-A Variable Signal Generator or equivalent is available.
  • EL-38522-A, Variable Signal Generator; or equivalent is not available
  1. Replace the K20 Engine Control Module.
  2. Operate the vehicle within the Conditions for Running the DTC. You may also operate the vehicle within the conditions that you observed from the freeze frame/failure records data.
  3. Verify the DTC does not set.
  • If the DTC sets

Test or replace the B75C Multifunction Intake Air sensor.

  • If no DTCs set
  1. Circuits, ECM, and the sensors test OK, refer to step 18.

EL-38522-A, Variable Signal Generator; or equivalent is available

  1. Ignition OFF, connect the leads of the EL-38522-A Variable Signal Generator as follows:
  • Red lead to the signal circuit terminal 1 at the harness connector
  • Black leads to ground
  • Battery voltage supply lead to B+
  1. Set the EL-38522-A Variable Signal Generator to the following specifications.
  • Signal switch to 5 V
  • Duty Cycle switch to 50 % (Normal)
  • Frequency switch to 30 Hz
  1. Ignition ON, verify the scan tool IAT Sensor 2 parameter is between 28-32 Hz.

If not between 28-32 Hz

Replace the K20 Engine Control Module.

If between 28-32 Hz

  1. Ignition OFF and all vehicle systems OFF, disconnect the B111B Turbocharger Boost/Intake Air Temperature sensor. It may take up to 2 min for all vehicle systems to power down.
  2. Test for less than 2 ohms between the low reference circuit terminal 1 and ground.

If 2 ohms or greater

  1. Ignition OFF, disconnect the harness connector at the K20 Engine Control Module.
  2. Test for less than 2 ohms in the low reference circuit end to end.
  • If 2 ohms or greater, repair the open or high resistance in the circuit.
  • If less than 2 ohms replace the K20 Engine Control Module.

If less than 2 ohms

  1. Ignition ON, test for 4.8-5.2 V between the signal circuit terminal 2 and ground.

If less than 4.8 V

  1. Ignition OFF, disconnect the harness connector at the K20 Engine Control Module.
  2. Test for infinite resistance between the signal circuit and ground.
  • If less than infinite resistance, repair the short to ground on the circuit.
  • If infinite resistance
  1. Test for less than 2 ohms in the signal circuit end to end.
  • If 2 ohms or greater, repair the open/high resistance in the circuit.
  • If less than 2 ohms, replace the K20 Engine Control Module.

If greater than 5.2 V

NOTE: If the signal circuit is shorted to a voltage the engine control module or the sensor may be damaged.

  1. Ignition OFF, disconnect the harness connector at the K20 Engine Control Module.
  2. Ignition ON, test for less than 1 V between the signal circuit and ground.
  • If 1 V or greater, repair the short to voltage on the circuit.
  • If less than 1 V, replace the K20 Engine Control Module.

If between 4.8-5.2 V

  1. Test or replace the appropriate temperature sensor.
  2. All OK.

Component Testing

Multifunction Intake Air Sensor

  1. Ignition OFF, disconnect the harness connector at the B75C Multifunction Intake Air sensor.

NOTE: A thermometer can be used to test the sensor off the vehicle.

  1. Test the IAT sensor 1 by varying the sensor temperature while monitoring the sensor resistance. Compare the readings with the Temperature Versus Resistance - Intake Air Temperature Sensor (Bosch Sensor) , Temperature Versus Resistance - Intake Air Temperature Sensor (Delco Sensor) table for Bosch Sensors. The resistance values should be in range of the table values.
  • If not within the specified range.

Replace the B75C Multifunction Intake Air sensor.

  • If within the specified range.

All OK

Multifunction Intake Air Sensor

  1. Test the IAT Sensor 2 by varying the sensor temperature while monitoring the air temperature with a thermometer. Compare the readings with the scan tool IAT Sensor 2 parameter. The values should be within 5%.

If not within 5%

Replace the B75C Multifunction Intake Air sensor.

If within 5%

  1. All OK.

Turbocharger Boost/Intake Air Temperature sensor

  1. Ignition OFF, disconnect the harness connector at the B111B Turbocharger Boost/Intake Air Temperature sensor.

NOTE: A thermometer can be used to test the sensor off the vehicle.

  1. Test the IAT sensor 3 by varying the sensor temperature while monitoring the sensor resistance. Compare the readings with the Temperature Versus Resistance - Intake Air Temperature Sensor (Bosch Sensor) , Temperature Versus Resistance - Intake Air Temperature Sensor (Delco Sensor) table for the appropriate sensor. The resistance values should be in range of the table values.

If not within the specified range.

Replace the B111B Turbocharger Boost/Intake Air Temperature sensor.

If within the specified range.

  1. All OK

Repair Instructions

Perform the Diagnostic Repair Verification after completing the repair.

  • Intake Air Pressure and Temperature Sensor Replacement for turbocharger boost/intake air temperature sensor replacement
  • Mass Airflow Sensor Replacement for multifunction intake air sensor replacement
  • Control Module References for Engine Control Module replacement, programming, and setup.

    READ NEXT:

     DTC P0097, P0098, OR P0099

    Diagnostic Instructions Perform the Diagnostic System Check - Vehicle prior to using this diagnostic procedure. Review Strategy Based Diagnosis for an overview of the diagnostic approach. Diag

     DTC P00EA-P00EC

    Diagnostic Instructions Perform the Diagnostic System Check - Vehicle prior to using this diagnostic procedure. Review Strategy Based Diagnosis for an overview of the diagnostic approach. Diag

     DTC P00F4-P00F6

    Diagnostic Instructions Perform the Diagnostic System Check - Vehicle prior to using this diagnostic procedure. Review Strategy Based Diagnosis for an overview of the diagnostic approach. Diag

    SEE MORE:

     Maintenance overview

    ANTIFREEZE/COOLANT The main function of the Engine Cooling System is to carry heat away from the engine and maintain the desired operating temperature. This is accomplished by circulating antifreeze/coolant through the engine, where heat is generated, and carrying it to the radiator to be cooled.

     DTC B2476 OR B2482: Cellular phone select service switch

    Diagnostic Instructions Perform the Diagnostic System Check - Vehicle prior to using this diagnostic procedure. Review Strategy Based Diagnosis for an overview of the diagnostic approach. Diagnostic Procedure Instructions provides an overview of each diagnostic category. DTC Descriptors D

    © 2019-2024 Copyright www.chevtrax.com
