Chevrolet Trax: DTC B2585 OR B3867

Diagnostic Instructions

  • Perform the Diagnostic System Check - Vehicle prior to using this diagnostic procedure.
  • Review Strategy Based Diagnosis for an overview of the diagnostic approach.
  • Diagnostic Procedure Instructions provides an overview of each diagnostic category.

DTC Descriptors

DTC B2585 01

Left Park Lamps Control Circuit Short to Battery

DTC B2585 02

Left Park Lamps Control Circuit Short to Ground

DTC B2585 04

Left Park Lamps Control Circuit Open

DTC B3867 01

Right Park Lamps Control Circuit Short to Battery

DTC B3867 02

Right Park Lamps Control Circuit Short to Ground

DTC B3867 04

Right Park Lamps Control Circuit Open

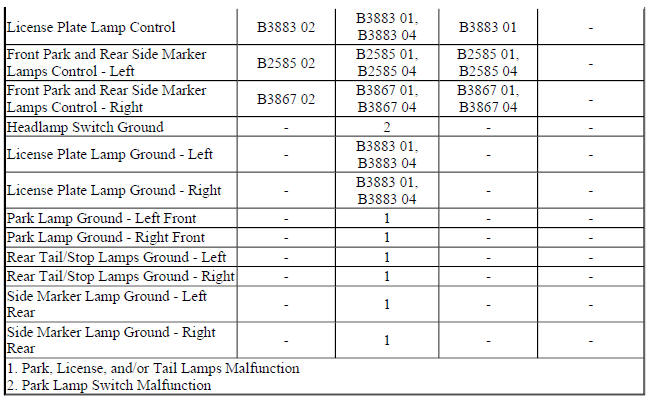

Diagnostic Fault Information

Diagnostic Fault Information

Diagnostic Fault Information

Circuit/System Description

When the headlamp switch is placed in the HEAD or PARK position, ground is applied to the park lamp switch ON signal circuit to the body control module (BCM). The BCM responds by applying voltage to the park lamps, tail lamps, and license lamps control circuits illuminating the park, tail, and license lamps.

Conditions for Running the DTC

  • Battery voltage must be between 9-16 V.
  • Park lamps ON.

Conditions for Setting the DTC

DTC B2585 01 and B2585 04

The BCM detects a short to voltage or an open/high resistance in the left front park lamps control circuit.

DTC B2585 02

The BCM detects a short to ground in the left front park lamps control circuit.

DTC B3867 01 and B3867 04

The BCM detects a short to voltage or an open/high resistance in the right front park lamps control circuit.

DTC B3867 02

The BCM detects a short to ground in the right front park lamps control circuit.

Actions Taken When the DTC Sets

DTC B2585 01

The left park lamps are always ON.

DTC B2585 02 and B2585 04

The left park lamps are always OFF.

DTC B3867 01

The right park lamps are always ON.

DTC B3867 02 and B3867 04

The right park lamps are always OFF.

Conditions for Clearing the DTC

  • The condition responsible for setting the DTC no longer exists.
  • A history DTC will clear once 100 consecutive malfunction-free ignition cycles have occurred.

Diagnostic Aids

When testing at the park lamp bulb socket, make sure all measurements and test lamp connections are in the correct terminal location and do not come in contact with each other during testing.

Reference Information

Schematic Reference

Exterior Lights Schematics (Encore) , Exterior Lights Schematics (Trax)

Connector End View Reference

WIRING SYSTEMS AND POWER MANAGEMENT - COMPONENT CONNECTOR END VIEWS - INDEX - ENCORE WIRING SYSTEMS AND POWER MANAGEMENT - COMPONENT CONNECTOR END VIEWS - INDEX - TRAX

Description and Operation

Exterior Lighting Systems Description and Operation

Electrical Information Reference

  • Circuit Testing
  • Connector Repairs
  • Testing for Intermittent Conditions and Poor Connections
  • Wiring Repairs

Scan Tool Reference

Control Module References for scan tool information

Circuit/System Testing

DTC B2585

  1. Ignition OFF, exterior lamps OFF, rear hatch latch latched, remove the appropriate left front park lamp bulb or left rear side marker lamp bulb.
  2. Test for less than 10 ohms between the appropriate ground circuit terminal listed below and ground.
  • E4J Park Lamp - Left Front socket terminal
  • E2LR Side Marker Lamp - Left Rear socket terminal
  • If 10 ohms or greater
  1. Ignition OFF.
  2. Test for less than 2 ohms in the ground circuit end to end.
  • If 2 ohms or greater, repair the open/high resistance in the circuit.
  • If less than 2 ohms, repair the open/high resistance in the ground connection.
  • If less than 10 ohms
  1. Connect a test lamp between the appropriate control circuit terminal listed below and ground, ignition ON.
  • E4J Park Lamp - Left Front socket terminal
  • E2LR Side Marker Lamp - Left Rear socket terminal
  1. Verify the test lamp turns ON and OFF when commanding the Left Park Lamps ON and OFF with a scan tool.
  • If the test lamp is always OFF
  1. Ignition OFF, disconnect the X4 harness connector at the K9 Body Control Module.
  2. Test for infinite resistance between the control circuit and ground.
  • If less than infinite resistance, repair the short to ground on the circuit.
  • If infinite resistance
  1. Test for less than 2 ohms in the control circuit end to end.
  • If 2 ohms or greater, repair the open/high resistance in the circuit.
  • If less than 2 ohms, replace the K9 Body Control Module.
  • If the test lamp is always ON
  1. Ignition OFF, disconnect the X4 harness connector at the K9 Body Control Module, ignition ON.
  2. Test for less than 1 V between the control circuit terminal and ground.
  • If 1 V or greater, repair the short to voltage on the circuit.
  • If less than 1 V, replace the K9 Body Control Module.
  • If the test lamp turns ON and OFF
  1. Test or replace the appropriate left park/marker lamp.

DTC B3867

  1. Ignition OFF, exterior lamps OFF, rear hatch latch latched, remove the appropriate right front park lamp bulb or right rear side marker lamp bulb.
  2. Test for less than 5 ohms between the appropriate ground circuit terminal listed below and ground.
  • E4K Park Lamp - Right Front socket terminal
  • E2RR Side Marker Lamp - Right Rear socket terminal
  • If 5 ohms or greater
  1. Ignition OFF.
  2. Test for less than 2 ohms in the ground circuit end to end.
  • If 2 ohms or greater, repair the open/high resistance in the circuit.
  • If less than 2 ohms, repair the open/high resistance in the ground connection.
  • If less than 5 ohms
  1. Connect a test lamp between the appropriate control circuit terminal listed below and ground, ignition ON.
  • E4K Park Lamp - Right Front socket terminal
  • E2RR Side Marker Lamp - Right Rear socket terminal
  1. Verify the test lamp turns ON and OFF when commanding the Right Park Lamps ON and OFF with a scan tool.
  • If the test lamp is always OFF
  1. Ignition OFF, disconnect the X4 harness connector at the K9 Body Control Module.
  2. Test for infinite resistance between the control circuit and ground.
  • If less than infinite resistance, repair the short to ground on the circuit.
  • If infinite resistance
  1. Test for less than 2 ohms in the control circuit end to end.
  • If 2 ohms or greater, repair the open/high resistance in the circuit.
  • If less than 2 ohms, replace the K9 Body Control Module.
  • If the test lamp is always ON
  1. Ignition OFF, disconnect the X4 harness connector at the K9 Body Control Module, ignition ON.
  2. Test for less than 1 V between the control circuit terminal and ground.
  • If 1 V or greater, repair the short to voltage on the circuit.
  • If less than 1 V, replace the K9 Body Control Module.
  • If the test lamp turns ON and OFF
  1. Test or replace the appropriate right park/marker lamp.

Repair Instructions

Perform the Diagnostic Repair Verification after completing the repair.

  • Parking and Turn Signal Lamp Bulb Replacement (Left Hand) , Parking and Turn Signal Lamp Bulb Replacement (Right Hand)
  • Rear Turn Signal Lamp Bulb Replacement (Trax) , Rear Turn Signal Lamp Bulb Replacement (Encore)
  • Control Module References for BCM replacement, programming, and setup
