Chevrolet Trax: Dome lamps malfunction

Diagnostic Instructions

  • Perform the Diagnostic System Check - Vehicle prior to using this diagnostic procedure.
  • Review Strategy Based Diagnosis for an overview of the diagnostic approach.
  • Diagnostic Procedure Instructions provides an overview of each diagnostic category.

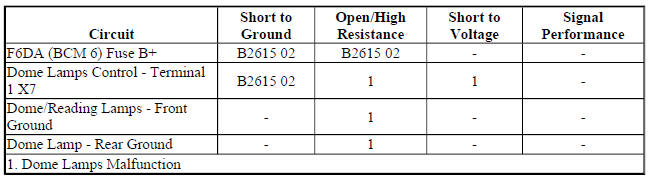

Diagnostic Fault Information

Diagnostic Fault Information

Circuit/System Description

When any door is opened, the door ajar switch contacts close and the body control module (BCM) receives a door-open input. The BCM illuminates the dome lamp when any door is opened or a door lock/unlock request is activated with the key fob. After all doors have been closed, the dome lamp will remain illuminated approximately 3 seconds after the last door closes. In the event that the dome lamp were to remain illuminated for more than 10 minutes with the ignition switch in the OFF position and no doors opened, the BCM will deactivate the dome lamp control circuit to prevent total battery discharge.

Reference Information

Schematic Reference

Interior Lights Schematics (Encore) , Interior Lights Schematics (Trax)

Connector End View Reference

WIRING SYSTEMS AND POWER MANAGEMENT - COMPONENT CONNECTOR END VIEWS - INDEX - ENCORE WIRING SYSTEMS AND POWER MANAGEMENT - COMPONENT CONNECTOR END VIEWS - INDEX - TRAX

Description and Operation

Interior Lighting Systems Description and Operation

Electrical Information Reference

  • Circuit Testing
  • Connector Repairs
  • Testing for Intermittent Conditions and Poor Connections
  • Wiring Repairs

Scan Tool Reference

  • Control Module References for scan tool information
  • Circuit/System Verification
  1. Ignition ON.
  2. Verify the scan tool Door Ajar Sw. parameter changes between Active and Inactive while opening and closing each vehicle door.
  • If the parameter does not change

Refer to Door Ajar Indicator Malfunction .

  • If the parameter changes
  1. Verify the dome lamps turn ON and OFF while commanding the Courtesy Lamps ON and OFF with a scan tool.
  • If the dome lamps do not turn ON and OFF

Refer to Circuit/System Testing.

  • If the dome lamps turn ON and OFF
  1. All OK.

Circuit/System Testing

  1. Ignition OFF, all doors closed, all accessories OFF, disconnect the harness connector at the E37A Dome/Reading Lamps - Front and E36AH Dome Lamp. It may take up to 2 minutes for all vehicle systems to power down.
  2.  Test for less than 15 ohms between the appropriate ground circuit terminal listed below and ground.
  • E37A Dome/Reading Lamps - Front terminal 6
  • E36AH Dome Lamp - terminal 2
  • If 15 ohms or greater
  1. Ignition OFF.
  2. Test for less than 2 ohms in the ground circuit end to end.
  • If 2 ohms or greater, repair the open/high resistance in the circuit.
  • If less than 2 ohms, repair the open/high resistance in the ground connection.
  • If less than 15 ohms
  1. Connect a test lamp between the appropriate control circuit terminal listed below and ground, ignition ON.
  • E37A Dome/Reading Lamps - Front terminal 2
  • E36AH Dome Lamp - terminal 3
  1. Verify the test lamp turns ON and OFF when commanding the Courtesy Lamps ON and OFF with a scan tool.
  • If the test lamp is always OFF
  1. Ignition OFF, disconnect the X7 harness connector at the K9 Body Control Module.
  2. Test for infinite resistance between the control circuit and ground.
  • If less than infinite resistance, repair the short to ground on the circuit.
  • If infinite resistance
  1. Test for less than 2 ohms in the control circuit end to end.
  • If 2 ohms or greater, repair the open/high resistance in the circuit.
  • If less than 2 ohms, replace the K9 Body Control Module.
  • If the test lamp is always ON
  1. Ignition OFF, disconnect the X7 harness connector at the K9 Body Control Module, ignition ON.
  2. Test for less than 1 V between the control circuit terminal and ground.
  • If 1 V or greater, repair the short to voltage on the circuit.
  • If less than 1 V, replace the K9 Body Control Module.
  • If the test lamp turns ON and OFF
  1. Test or replace the inoperative dome/reading lamp.

Repair Instructions

Perform the Diagnostic Repair Verification after completing the repair.

  • Dome Lamp Bulb Replacement
  • Center Reading Lamp Replacement
  • Center Reading Lamp Bulb Replacement
  • Control Module References for BCM replacement, programming, and setup
