Chevrolet Trax: Front fog lamps malfunction
Diagnostic Instructions
- Perform the Diagnostic System Check - Vehicle prior to using this
diagnostic procedure.
- Review Strategy Based Diagnosis for an overview of the diagnostic
approach.
- Diagnostic Procedure Instructions provides an overview of each
diagnostic category.

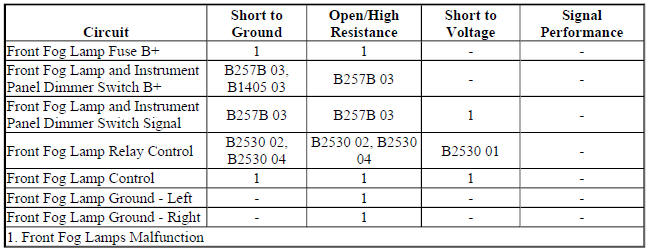

Diagnostic Fault Information
Circuit/System Description
The front fog lamp switch is an input to the body control module (BCM) and is
contained in the headlamp
switch assembly. The BCM supplies voltage to the front fog lamp switch via the
front fog lamp and instrument
panel dimmer switch B+ circuit. When the front fog lamp switch is pressed,
voltage from the B+ circuit is
pulled down through the front fog lamp switch resistor. The front fog lamp
resistor is part of the resistor ladder
that also provides the dimming signals for the instrument panel dimmer switches.
The BCM receives the
voltage signal through the front fog lamp and instrument panel dimmer switch
signal circuit.
The front fog lamp relay is supplied with battery voltage at all times. The
front fog lamp switch signal circuit is
grounded momentarily by pressing the front fog lamp switch. The body control
module (BCM) energizes the
front fog lamp relay by applying ground to the front fog lamp relay control
circuit. When the front fog lamp
relay is energized, the relay switch contacts close and battery voltage is
applied through the front fog lamp fuse
to the front fog lamp control circuit which illuminates the front fog lamps.
Reference Information
Schematic Reference
Fog Lights Schematics (Encore) , Fog Lights Schematics (Trax)
Connector End View Reference
WIRING SYSTEMS AND POWER MANAGEMENT - COMPONENT CONNECTOR END VIEWS -
INDEX - ENCORE WIRING SYSTEMS AND POWER MANAGEMENT - COMPONENT
CONNECTOR END VIEWS - INDEX - TRAX
Description and Operation
Exterior Lighting Systems Description and Operation
Electrical Information Reference
- Circuit Testing
- Connector Repairs
- Testing for Intermittent Conditions and Poor Connections
- Wiring Repairs
Scan Tool Reference
Control Module References for scan tool information
Circuit/System Verification
- Ignition ON, headlamps ON.
- Verify the scan tool Front Fog Lamps Switch parameter changes between
Active and Inactive while
commanding the front fog lamps ON and OFF with the front fog lamp switch.
- If the parameter does not change
Refer to Front Fog Lamp Switch Malfunction
- Verify the front fog lamps turn ON and OFF when commanding the Front Fog
Lamps ON and OFF with
a scan tool.
- If the front fog lamps do not turn ON and OFF
Refer to Front Fog Lamps Malfunction
- If the front fog lamps turn ON and OFF
- Verify the front fog lamp indicator on the instrument cluster turns ON
and OFF while commanding the
front fog lamps ON and OFF with the front fog lamp switch.
- If the front fog lamp indicator does not turn ON and OFF
Refer to Front Fog Lamp Indicator Malfunction
- If the front fog lamp indicator turns ON and OFF
- All OK.
Circuit/System Testing
Front Fog Lamp Switch Malfunction
- Ignition OFF and all vehicle systems OFF, disconnect the harness
connector at the S30 Headlamp Switch,
ignition ON.
- Test for B+ between the B+ circuit terminal 1 and ground.
- Ignition OFF, disconnect the X3 harness connector at the K9 Body Control
Module.
- Test for infinite resistance between the B+ circuit and ground.
- If less than infinite resistance, repair the short to ground on the
circuit.
- If infinite resistance
- Test for less than 2 ohms in the B+ circuit end to end.
- If 2 ohms or greater, repair the open/high resistance in the circuit.
- If less than 2 ohms, replace the K9 Body Control Module.
- If B+
- Verify a test lamp does not illuminate between the B+ circuit terminal 1
and the signal circuit terminal 12.
- If the test lamp illuminates
- Ignition OFF, disconnect the X1 harness connector at the K9 Body Control
Module.
- Test for infinite resistance between the signal circuit and ground.
- If less than infinite resistance, repair the short to ground on the
circuit.
- If infinite resistance, replace the K9 Body Control Module.
- If the test lamp does not illuminate
- Test for B+ between the B+ circuit terminal 1 and the signal circuit
terminal 12.
- Ignition OFF, disconnect the X1 harness connector at the K9 Body Control
Module, ignition ON.
- Test for less than 1 V between the signal circuit terminal 12 and ground.
- If 1 V or greater, repair the short to voltage on the circuit.
- If less than 1 V
- Test for less than 2 ohms in the signal circuit end to end.
- If 2 ohms or greater, repair the open/high resistance in the circuit.
- If less than 2 ohms, replace the K9 Body Control Module.
- If B+
- Test or replace the S30 Headlamp Switch.
Front Fog Lamps Malfunction
- Ignition OFF, disconnect the X5 harness connector at the K9 Body Control
Module, ignition ON.
- Verify a test lamp illuminates between the control circuit terminal 13
and ground.
- If the test lamp does not illuminate
- Ignition OFF, disconnect the X2 harness connector at the X50A Fuse Block
- Underhood.
- Test for infinite resistance between the control circuit terminal and
ground.
- If less than infinite resistance, repair the short to ground on the
circuit.
- If infinite resistance
- Test for less than 2 ohms in the control circuit end to end.
- If 2 ohms or greater, repair the open/high resistance in the circuit.
- If less than 2 ohms, replace the X50A Fuse Block - Underhood.
- If the test lamp illuminates
- Ignition OFF, connect a 3 A fused jumper between the control circuit
terminal 13 and ground.
- Remove the front fog lamp fuse at the X50A Fuse Block - Underhood,
ignition ON.
- Verify a test lamp illuminates between the front fog lamp fuse B+ switch
control terminal and ground.
- If the test lamp does not illuminate
- Ignition OFF, disconnect the X2 harness connector at the X50A Fuse Block
- Underhood, ignition
ON.
- Test for less than 1 V between the control circuit terminal 13 and
ground.
- If 1 V or greater, repair the short to voltage on the circuit.
- If less than 1 V, replace the X50A Fuse Block - Underhood.
- If the test lamp illuminates
- Ignition OFF, connect the X5 harness connector at the K9 Body Control
Module.
- Install the front fog lamp fuse at the X50A Fuse Block - Underhood.
- Ignition OFF, exterior lamps OFF, disconnect the harness connector at
the appropriate E29 Fog Lamp.
- Test for less than 5 ohms between the ground circuit terminal A and
ground.
- Ignition OFF.
- Test for less than 2 ohms in the ground circuit end to end.
- If 2 ohms or greater, repair the open/high resistance in the circuit.
- If less than 2 ohms, repair the open/high resistance in the ground
connection.
- If less than 5 ohms
- Connect a test lamp between the control circuit terminal B and ground,
ignition ON.
- Verify the test lamp turns ON and OFF when commanding the Front Fog
Lamps ON and OFF with a scan
tool.
- If the test lamp is always OFF
- Ignition OFF, disconnect the X1 harness connector at the X50A Fuse Block
- Underhood.
- Test for infinite resistance between the control circuit and ground.
- If less than infinite resistance, repair the short to ground on the
circuit.
- If infinite resistance
- Test for less than 2 ohms in the control circuit end to end.
- If 2 ohms or greater, repair the open/high resistance in the circuit.
- If less than 2 ohms, replace the K9 Body Control Module.
- If the test lamp is always ON
- Ignition OFF, disconnect the X1 harness connector at the X50A Fuse Block
- Underhood, ignition
ON.
- Test for less than 1 V between the control circuit terminal and ground.
- If 1 V or greater, repair the short to voltage on the circuit.
- If less than 1 V, replace the K9 Body Control Module.
- If the test lamp turns ON and OFF
- Test or replace the appropriate E29 Fog Lamp.
Front Fog Lamp Indicator Malfunction
- Ignition ON.
- Verify the front fog lamp indicator turns ON and OFF when commanding the
Instrument Cluster All
Indicators Test ON and OFF with a scan tool.
- If the front fog lamp indicator is always OFF or remains ON
Replace the P16 Instrument Cluster
- If the front fog lamp indicator turns ON and OFF
- Replace the K9 Body Control Module.
Repair Instructions
Perform the Diagnostic Repair Verification after completing the repair.
- Headlamp Switch Replacement (Encore) , Headlamp Switch Replacement (Trax)
- Front Fog Lamp Bulb Replacement (Trax) , Front Fog Lamp Bulb
Replacement (Encore)
- Front Compartment Fuse Block Replacement
- Control Module References for BCM or Instrument Cluster replacement,
programming, and setup
