Chevrolet Trax: Headlamps malfunction

Diagnostic Instructions

• Perform the Diagnostic System Check - Vehicle prior to using this diagnostic procedure.
• Review Strategy Based Diagnosis for an overview of the diagnostic approach.
• Diagnostic Procedure Instructions provides an overview of each diagnostic category.

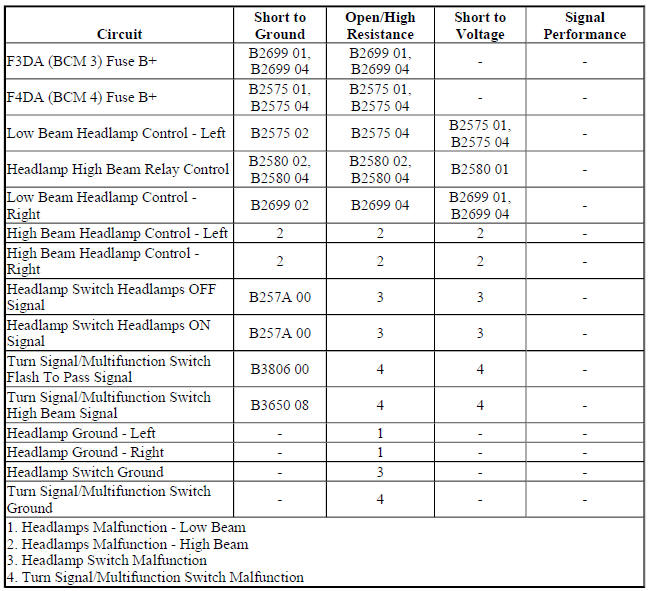

Diagnostic Fault Information

Circuit/System Description

The body control module (BCM) monitors three signal circuits from the headlamp switch. When the headlamp switch is in the AUTO position, all three signal circuits are open. When placed in the AUTO position, the BCM monitors inputs from the ambient light sensor to determine if headlamps are required or if daytime running lamps will be activated based on outside lighting conditions. When the headlamp switch is placed in the OFF position, the headlamp switch headlamps OFF signal circuit is grounded, indicating to the BCM that the exterior lamps should be turned OFF. With the headlamp switch in the PARK position, the headlamp switch park lamps ON signal circuit is grounded, indicating that the park lamps have been requested. When the headlamp switch is placed in the HEADLAMP position, both the headlamp switch park lamps ON signal circuit and the headlamp switch headlamps ON signal circuit are grounded. The BCM responds to the inputs by illuminating the park lamps and headlamps. When the low beam headlamps are requested, the BCM applies B+ to both low beam headlamp control circuits illuminating the low beam headlamps.

The high beam and flash to pass functions are contained within the turn signal/multifunction switch. The BCM provides the turn signal/multifunction switch with two signal circuits, the high beam signal circuit and the flash to pass signal circuit. When the low beam headlamps are ON and the turn signal/multifunction switch is placed in the high beam position, ground is applied to the BCM through the high beam signal circuit. The BCM responds to the high beam request by applying ground to the high beam relay control circuit which energizes the high beam relay. With the high beam relay energized, the switch contacts close allowing battery voltage to flow through the high beam fuses to the high beam control circuits illuminating the high beam headlamps.

When the turn signal/multifunction switch is momentarily placed in the flash to pass position, ground is applied to the BCM through the flash to pass signal circuit. The BCM responds by applying ground to the high beam relay control circuit which energizes the high beam relay illuminating the high beams for a brief moment or until the flash to pass switch is released.

Reference Information

Schematic Reference

• Headlights/Daytime Running Lights (DRL) Schematics (Encore) , Headlights/Daytime Running Lights (DRL) Schematics (Trax)
• Body Control System Schematics (Encore) , Body Control System Schematics (Trax)

Connector End View Reference

WIRING SYSTEMS AND POWER MANAGEMENT - COMPONENT CONNECTOR END VIEWS - INDEX - ENCORE WIRING SYSTEMS AND POWER MANAGEMENT - COMPONENT CONNECTOR END VIEWS - INDEX - TRAX

Description and Operation

Exterior Lighting Systems Description and Operation

Electrical Information Reference

• Circuit Testing
• Connector Repairs
• Testing for Intermittent Conditions and Poor Connections
• Wiring Repairs

Scan Tool Reference

Control Module References for scan tool information

Circuit/System Verification

1. Ignition ON.
2. Verify the scan tool Headlamps On Switch parameter changes between Active and Inactive while commanding the headlamp ON and OFF with the headlamp switch.

• If the parameter does not change

Refer to Headlamp Switch Malfunction

• If the parameter changes

3. Verify the scan tool Automatic Headlamps Disable Switch parameter changes between Active and Inactive while commanding the automatic lamp control ON and OFF with the headlamp switch.

• If the parameter does not change

Refer to Headlamp Switch Malfunction.

• If the parameter changes

4. Verify the scan tool Headlamps Flash Switch parameter changes between Active and Inactive while commanding the flash to pass ON and OFF with the turn signal/multifunction switch.

• If the parameter does not change

Refer to Turn Signal/Multifunction Switch Malfunction.

• If the parameter changes

5. Verify the scan tool High Beam Select Switch parameter changes between Active and Inactive while commanding the high beams ON and OFF with the turn signal/multifunction switch.

• If the parameter does not change

Refer to Turn Signal/Multifunction Switch Malfunction.

• If the parameter changes

6. Verify the left low beam/daytime running lamp turn ON and OFF when commanding the Left Low Beam/Daytime Running Lamp ON and OFF with a scan tool.

• If the left low beam/daytime running lamp does not turn ON and OFF

Refer to Headlamps Malfunction - Low Beam.

• If the left low beam/daytime running lamp turns ON and OFF

7. Verify the right low beam/daytime running lamp turn ON and OFF when commanding the Right Low Beam/Daytime Running Lamp ON and OFF with a scan tool.

• If the right low beam/daytime running lamp does not turn ON and OFF

Refer to Headlamps Malfunction - Low Beam.

• If the right low beam/daytime running lamp turns ON and OFF

8. Verify the high beams turn ON and OFF when commanding the High Beams ON and OFF with a scan tool.

• If the high beams do not turn ON and OFF

Refer to Headlamps Malfunction - High Beam.

• If the high beams turn ON and OFF

9. Verify the high beam indicator on the instrument cluster turns ON and OFF while commanding the All Indicators Test ON and OFF with a scan tool.

• If the high beam indicator does not turn ON and OFF

Refer to High Beam Indicator Malfunction.

• If the high beam indicator turns ON and OFF

10. All OK.

Circuit/System Testing

Headlamp Switch Malfunction

1. Ignition OFF, scan tool disconnected, all doors closed, all accessories OFF, disconnect the harness connector at the S30 Headlamp Switch. It may take up to 2 minutes for all vehicle systems to power down.
2. Test for less than 15 ohms between the ground circuit terminal 6 and ground.

• If 15 ohms or greater

1. Ignition OFF.
2. Test for less than 2 ohms in the ground circuit end to end.

• If 2 ohms or greater, repair the open/high resistance in the circuit.
• If less than 2 ohms, repair the open/high resistance in the ground connection.
• If less than 15 ohms

3. Ignition ON.
4. Verify the scan tool Automatic Headlamps Disable Switch parameter is Inactive.

• If not Inactive

1. Ignition OFF, disconnect the X1 harness connector at the K9 Body Control Module.
2. Test for infinite resistance between the signal circuit terminal 5 and ground.

• If less than infinite resistance, repair the short to ground on the circuit.
• If infinite resistance, replace the K9 Body Control Module.
• If Inactive

5. Install a 3 A fused jumper wire between the signal circuit terminal 5 and the ground circuit terminal 6.
6. Verify the scan tool Automatic Headlamps Disable Switch parameter is Active.

• If not Active

1. Ignition OFF, disconnect the X1 harness connector at the K9 Body Control Module, ignition ON.
2. Test for less than 1 V between the signal circuit terminal 5 and ground.

• If 1 V or greater, repair the short to voltage on the circuit.
• If less than 1 V

3. Test for less than 2 ohms in the signal circuit end to end.

• If 2 ohms or greater, repair the open/high resistance in the circuit.
• If less than 2 ohms, replace the K9 Body Control Module.
• If Active

7. Verify the scan tool Park Lamps Switch parameter is Inactive.

• If not Inactive

1. Ignition OFF, disconnect the X1 harness connector at the K9 Body Control Module.
2. Test for infinite resistance between the signal circuit terminal 3 and ground.

• If less than infinite resistance, repair the short to ground on the circuit.
• If infinite resistance, replace the K9 Body Control Module.
• If Inactive

8. Install a 3 A fused jumper wire between the signal circuit terminal 3 and the ground circuit terminal 6.
9. Verify the scan tool Park Lamps Switch parameter is Active.

• If not Active

1. Ignition OFF, disconnect the X1 harness connector at the K9 Body Control Module, ignition ON.
2. Test for less than 1 V between the signal circuit terminal 3 and ground.

• If 1 V or greater, repair the short to voltage on the circuit.
• If less than 1 V

3. Test for less than 2 ohms in the signal circuit end to end.

• If 2 ohms or greater, repair the open/high resistance in the circuit.
• If less than 2 ohms, replace the K9 Body Control Module.
• If Active

10. Verify the scan tool Headlamps On Switch parameter is Inactive.

• If not Inactive

1. Ignition OFF, disconnect the X1 harness connector at the K9 Body Control Module.
2. Test for infinite resistance between the signal circuit terminal 4 and ground.

• If less than infinite resistance, repair the short to ground on the circuit.
• If infinite resistance, replace the K9 Body Control Module.
• If Inactive

11. Install a 3 A fused jumper wire between the signal circuit terminal 4 and the ground circuit terminal 6.
12. Verify the scan tool Headlamps On Switch parameter is Active.

• If not Active

1. Ignition OFF, disconnect the X1 harness connector at the K9 Body Control Module, ignition ON.
2. Test for less than 1 V between the signal circuit terminal 4 and ground.

• If 1 V or greater, repair the short to voltage on the circuit.
• If less than 1 V

3. Test for less than 2 ohms in the signal circuit end to end.

• If 2 ohms or greater, repair the open/high resistance in the circuit.
• If less than 2 ohms, replace the K9 Body Control Module.
• If Active

13. Test or replace the S30 Headlamp Switch.

Turn Signal/Multifunction Switch Malfunction

1. Ignition OFF, scan tool disconnected, all doors closed, all accessories OFF, disconnect the harness connector at the S78 Turn Signal/Multifunction Switch. It may take up to 2 minutes for all vehicle systems to power down.
2. Test for less than 15 ohms between the ground circuit terminal 3 and ground.

• If 15 ohms or greater

1. Ignition OFF.
2. Test for less than 2 ohms in the ground circuit end to end.

• If 2 ohms or greater, repair the open/high resistance in the circuit.
• If less than 2 ohms, repair the open/high resistance in the ground connection.
• If less than 15 ohms

3. Ignition ON.
4. Verify the scan tool High Beam Select Switch parameter is Inactive.

• If not Inactive

1. Ignition OFF, disconnect the X3 harness connector at the K9 Body Control Module.
2. Test for infinite resistance between the signal circuit terminal 2 and ground.

• If less than infinite resistance, repair the short to ground on the circuit.
• If infinite resistance, replace the K9 Body Control Module.
• If Inactive

5. Install a 3 A fused jumper wire between the signal circuit terminal 2 and the ground circuit terminal 3.
6. Verify the scan tool High Beam Select Switch parameter is Active.

• If not Active

1. Ignition OFF, disconnect the X3 harness connector at the K9 Body Control Module, ignition ON.
2. Test for less than 1 V between the signal circuit terminal 2 and ground.

• If 1 V or greater, repair the short to voltage on the circuit.
• If less than 1 V

3. Test for less than 2 ohms in the signal circuit end to end.

• If 2 ohms or greater, repair the open/high resistance in the circuit.
• If less than 2 ohms, replace the K9 Body Control Module.
• If Active

7. Verify the scan tool Headlamps Flash Switch parameter is Inactive.

• If not Inactive

1. Ignition OFF, disconnect the X3 harness connector at the K9 Body Control Module.
2. Test for infinite resistance between the signal circuit terminal 4 and ground.

• If less than infinite resistance, repair the short to ground on the circuit.
• If infinite resistance, replace the K9 Body Control Module.
• If Inactive

8. Install a 3 A fused jumper wire between the signal circuit terminal 4 and the ground circuit terminal 3.
9. Verify the scan tool Headlamps Flash Switch parameter is Active.

• If not Active

1. Ignition OFF, disconnect the X3 harness connector at the K9 Body Control Module, ignition ON.
2. Test for less than 1 V between the signal circuit terminal 4 and ground.

• If 1 V or greater, repair the short to voltage on the circuit.
• If less than 1 V

3. Test for less than 2 ohms in the signal circuit end to end.

• If 2 ohms or greater, repair the open/high resistance in the circuit.
• If less than 2 ohms, replace the K9 Body Control Module.
• If Active

10. Test or replace the S78 Turn Signal/Multifunction Switch.

Headlamps Malfunction - Low Beam

1. Ignition OFF, exterior lamps OFF, remove the appropriate E4 Headlamp - Low Beam bulb.
2. Test for less than 10 ohms between the ground circuit at the socket terminal and ground.

• If 10 ohms or greater

1. Ignition OFF.
2. Test for less than 2 ohms in the ground circuit end to end.

• If 2 ohms or greater, repair the open/high resistance in the circuit.
• If less than 2 ohms, repair the open/high resistance in the ground connection.
• If less than 10 ohms

3. Connect a test lamp between the control circuit at the socket terminal and ground, ignition ON.
4. Verify the test lamp turns ON and OFF when commanding the appropriate Low Beam/Daytime Running Lamp ON and OFF with a scan tool.

• If the test lamp is always OFF

1. Ignition OFF, disconnect the X4 harness connector at the K9 Body Control Module.
2. Test for infinite resistance between the control circuit and ground.

• If less than infinite resistance, repair the short to ground on the circuit.
• If infinite resistance

3. Test for less than 2 ohms in the control circuit end to end.

• If 2 ohms or greater, repair the open/high resistance in the circuit.
• If less than 2 ohms, replace the K9 Body Control Module.
• If the test lamp is always ON

1. Ignition OFF, disconnect the X4 harness connector at the K9 Body Control Module, ignition ON.
2. Test for less than 1 V between the control circuit terminal and ground.

• If 1 V or greater, repair the short to voltage on the circuit.
• If less than 1 V, replace the K9 Body Control Module.
• If the test lamp turns ON and OFF

5. Test or replace the appropriate E4 Headlamp - Low Beam.

Headlamps Malfunction - High Beam

1. Ignition OFF, disconnect the X5 harness connector at the K9 Body Control Module, ignition ON.
2. Verify a test lamp illuminates between the control circuit terminal 18 and ground.

• If the test lamp does not illuminate

1. Ignition OFF, disconnect the X2 harness connector at the X50A Fuse Block - Underhood.
2. Test for infinite resistance between the control circuit terminal and ground.

• If less than infinite resistance, repair the short to ground on the circuit.
• If infinite resistance

3. Test for less than 2 ohms in the control circuit end to end.

• If 2 ohms or greater, repair the open/high resistance in the circuit.
• If less than 2 ohms, replace the X50A Fuse Block - Underhood.
• If the test lamp illuminates

3. Ignition OFF, connect a 3 A fused jumper between the control circuit terminal 18 and ground.
4. Remove the F31UA fuse at the X50A Fuse Block - Underhood.
5. Verify a test lamp illuminates between the F31UA fuse B+ switch control terminal and ground.

• If the test lamp does not illuminate

1. Ignition OFF, disconnect the X2 harness connector at the X50A Fuse Block - Underhood, ignition ON.
2. Test for less than 1 V between the control circuit terminal 18 and ground.

• If 1 V or greater, repair the short to voltage on the circuit.
• If less than 1 V, replace the X50A Fuse Block - Underhood.
• If the test lamp illuminates

6. Ignition OFF, connect the X5 harness connector at the K9 Body Control Module.
7. Install the F31UA fuse at the X50A Fuse Block - Underhood.
8. Remove the appropriate E4 Headlamp - High Beam bulb.
9. Test for less than 10 ohms between the ground circuit at the socket terminal and ground.

• If 10 ohms or greater

1. Ignition OFF.
2. Test for less than 2 ohms in the ground circuit end to end.

• If 2 ohms or greater, repair the open/high resistance in the circuit.
• If less than 2 ohms, repair the open/high resistance in the ground connection.
• If less than 10 ohms

10. Connect a test lamp between the control circuit at the socket terminal and ground, ignition ON.
11. Verify the test lamp turns ON and OFF when commanding the High Beams ON and OFF with a scan tool.

• If the test lamp is always OFF

1. Ignition OFF, disconnect the X1 harness connector at the X50A Fuse Block - Underhood.
2. Test for infinite resistance between the control circuit and ground.

• If less than infinite resistance, repair the short to ground on the circuit.
• If infinite resistance

3. Test for less than 2 ohms in the control circuit end to end.

• If 2 ohms or greater, repair the open/high resistance in the circuit.
• If less than 2 ohms, replace the K9 Body Control Module.
• If the test lamp is always ON

1. Ignition OFF, disconnect the X1 harness connector at the X50A Fuse Block - Underhood, ignition ON.
2. Test for less than 1 V between the control circuit terminal and ground.

• If 1 V or greater, repair the short to voltage on the circuit.
• If less than 1 V, replace the K9 Body Control Module.
• If the test lamp turns ON and OFF

12. Test or replace the appropriate E4 Headlamp - High Beam.

High Beam Indicator Malfunction

1. Ignition ON.
2. Verify the high beam indicator turns ON and OFF when commanding the Instrument Cluster All Indicators Test ON and OFF with a scan tool.

• If the high beam indicator is always OFF or remains ON

Replace the P16 Instrument Cluster.

• If the high beam indicator turns ON and OFF

3. Replace the K9 Body Control Module.

Repair Instructions

Perform the Diagnostic Repair Verification after completing the repair

• Headlamp Switch Replacement (Encore) , Headlamp Switch Replacement (Trax)
• Relay Replacement (Within an Electrical Center) , Relay Replacement (Attached to Wire Harness)
• Turn Signal Switch Replacement (Trax) , Turn Signal Switch Replacement (Encore)
• Headlamp Bulb Replacement - Left Side (Trax High Beam) , Headlamp Bulb Replacement - Left Side (Trax Low Beam)
• Headlamp Bulb Replacement - Right Side (High Beam) , Headlamp Bulb Replacement - Right Side (Low Beam)
• Front Compartment Fuse Block Replacement
• Control Module References for BCM or Instrument Cluster replacement, programming, and setup

READ NEXT:
