Chevrolet Trax: Center reading lamp replacement

Chevrolet Trax (2013-2022) Workshop Manual / Accessories & Equipment / Lighting / Lighting - Repair instructions / Center reading lamp replacement

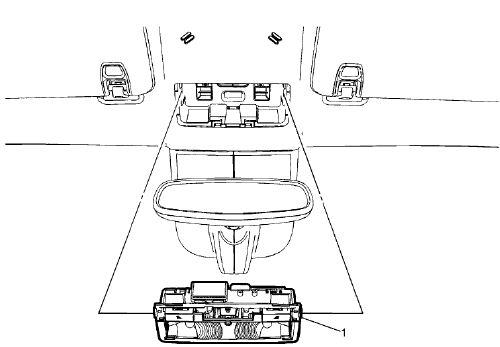

Fig. 10: Center Reading Lamp
Fig. 10: Center Reading Lamp

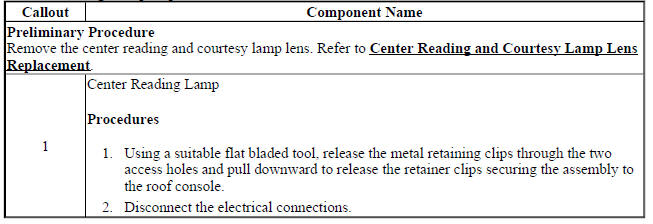

Center Reading Lamp Replacement

Center Reading Lamp Replacement

CENTER READING LAMP BULB REPLACEMENT

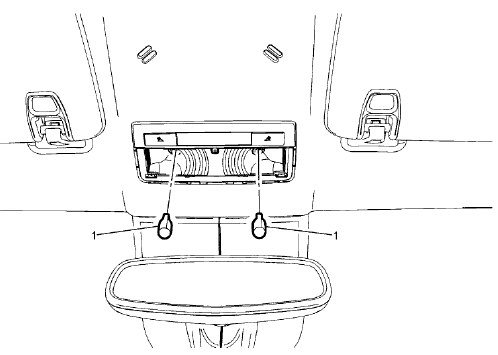

Fig. 11: Center Reading Lamp Bulb
Fig. 11: Center Reading Lamp Bulb

Center Reading Lamp Bulb Replacement

Center Reading Lamp Bulb Replacement

CENTER READING AND COURTESY LAMP LENS REPLACEMENT

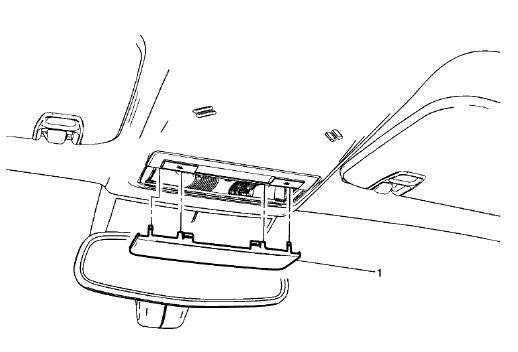

Fig. 12: Center Reading And Courtesy Lamp Lens
Fig. 12: Center Reading And Courtesy Lamp Lens

Center Reading and Courtesy Lamp Lens Replacement

Center Reading and Courtesy Lamp Lens Replacement

INSTRUMENT PANEL FLOOD LAMP REPLACEMENT - LEFT SIDE (ENCORE)

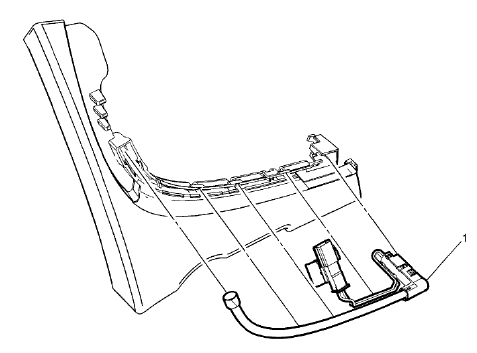

Fig. 13: Instrument Panel Flood Lamp - Left Side
Fig. 13: Instrument Panel Flood Lamp - Left Side

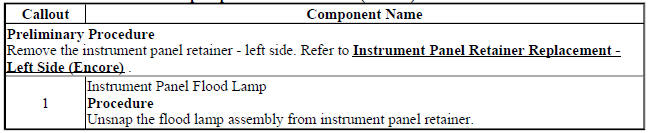

Instrument Panel Flood Lamp Replacement - Left Side (Encore)

Instrument Panel Flood Lamp Replacement - Left Side (Encore)

INSTRUMENT PANEL FLOOD LAMP REPLACEMENT - RIGHT SIDE (ENCORE)

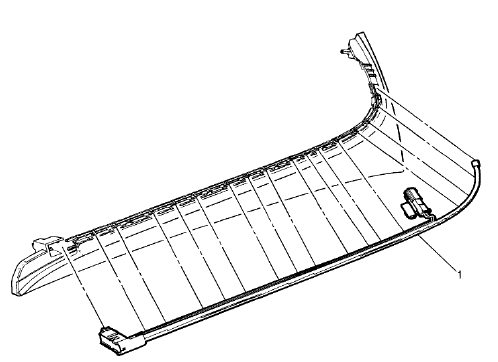

Fig. 14: Instrument Panel Flood Lamp - Right Side
Fig. 14: Instrument Panel Flood Lamp - Right Side

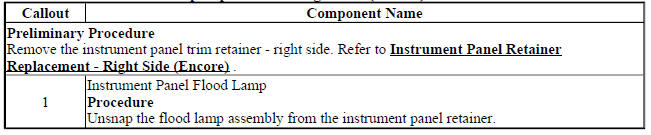

Instrument Panel Flood Lamp Replacement - Right Side (Encore)

Instrument Panel Flood Lamp Replacement - Right Side (Encore)
