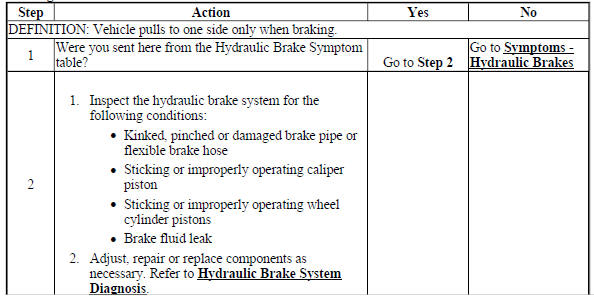

Chevrolet Trax: Braking action uneven - pulls to one side

Test Description

The number below refer to the step number on the diagnostic table:

5

Suspension components that are not operating properly may cause a disturbance to the vehicle during application of the brake system.

6

Steering components that are not operating correctly may cause a disturbance to the vehicle during application of the brake system.

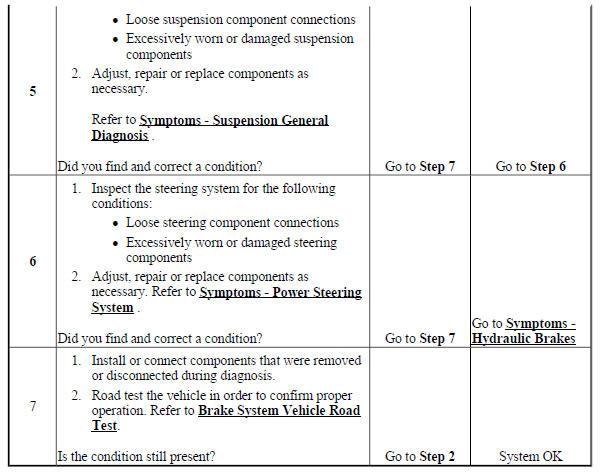

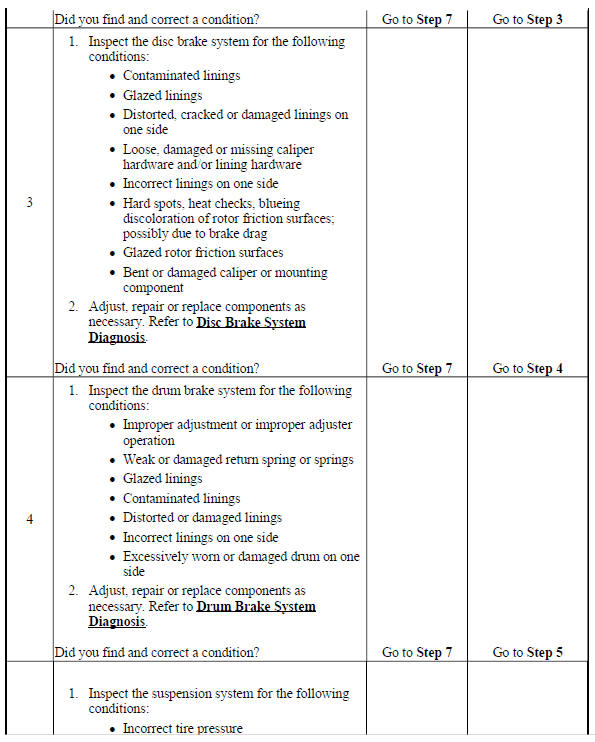

Braking Action Uneven - Pulls to One Side

Braking Action Uneven - Pulls to One Side

Braking action uneven - pulls to one side

Braking action uneven - pulls to one side

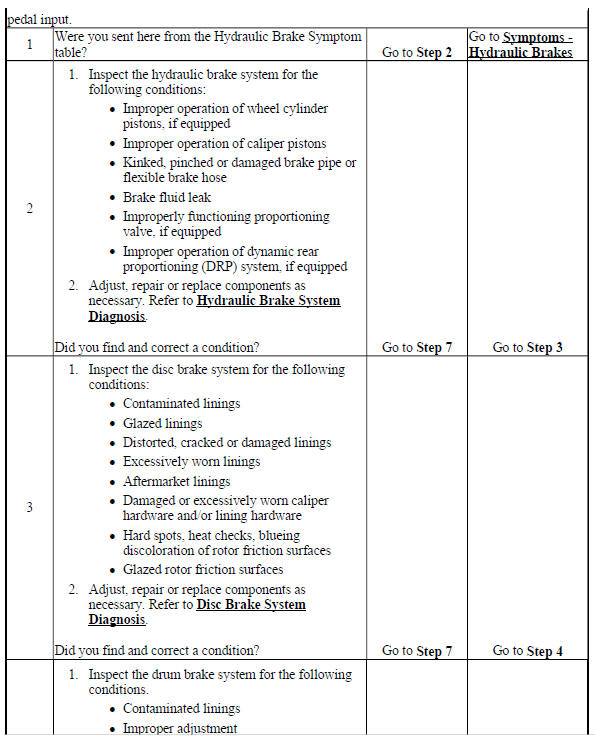

BRAKING ACTION UNEVEN - FRONT TO REAR

Test Description

The number below refers to the step number on the diagnostic table:

5

Suspension components that are not operating properly may cause a disturbance to the vehicle during application of the brake system.

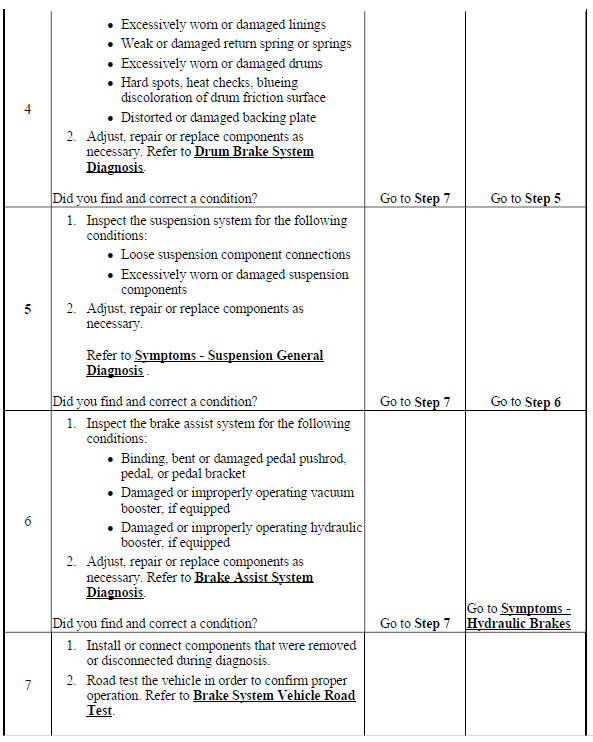

Braking Action Uneven - Front to Rear

Braking Action Uneven - Front to Rear

Braking Action Uneven - Front to Rear

Braking Action Uneven - Front to Rear

Braking Action Uneven - Front to Rear

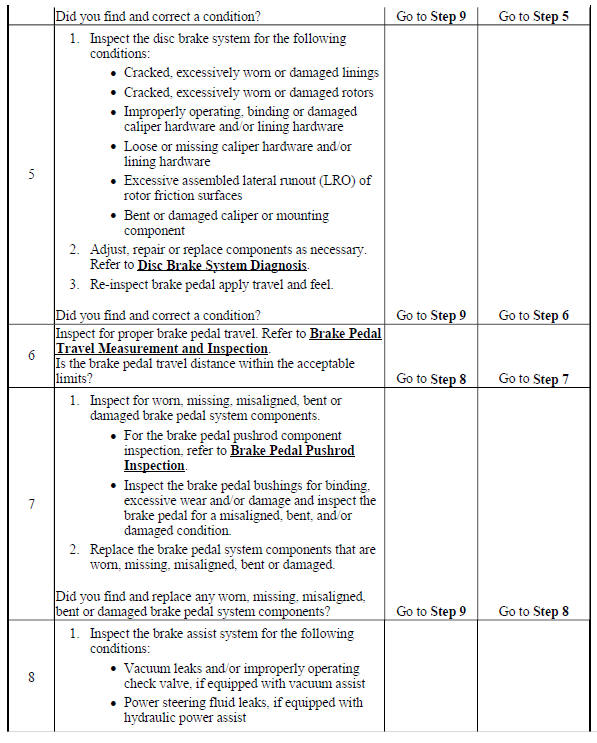

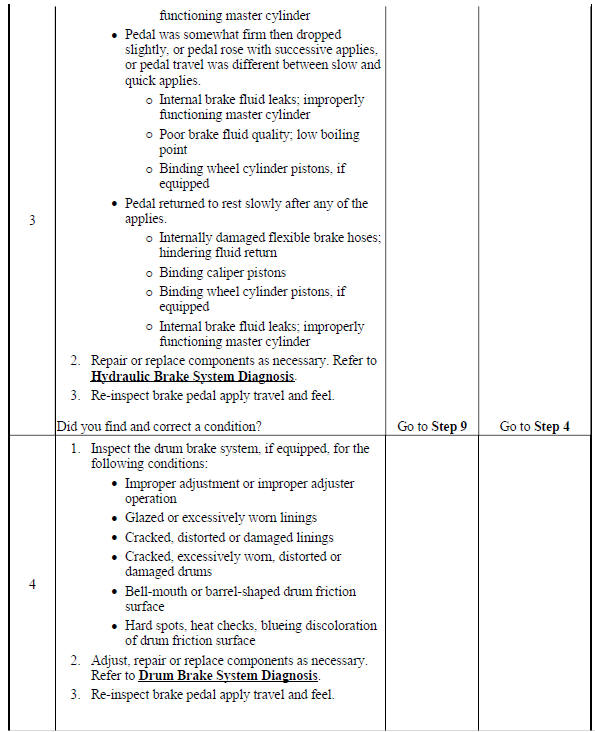

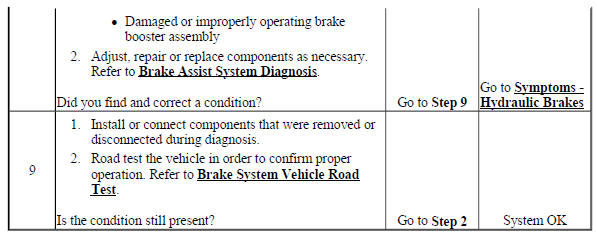

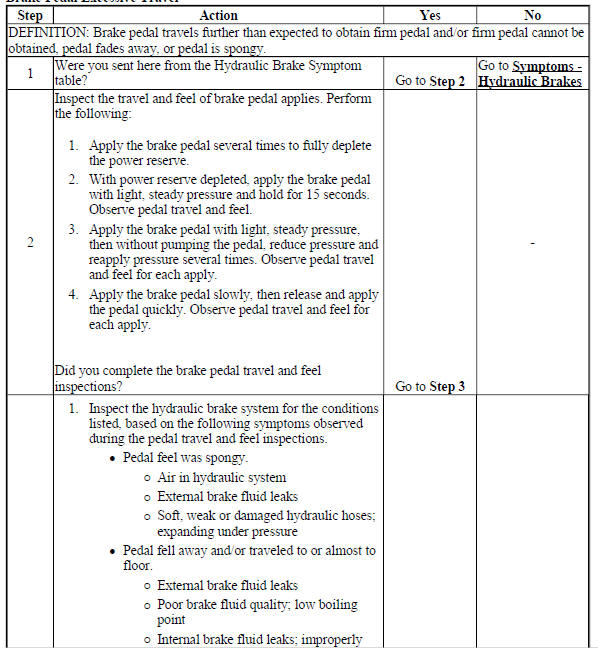

BRAKE PEDAL EXCESSIVE TRAVEL

Brake Pedal Excessive Travel

Brake Pedal Excessive Travel

Brake Pedal Excessive Travel

Brake Pedal Excessive Travel

Brake Pedal Excessive Travel

BRAKE PEDAL EXCESSIVE EFFORT

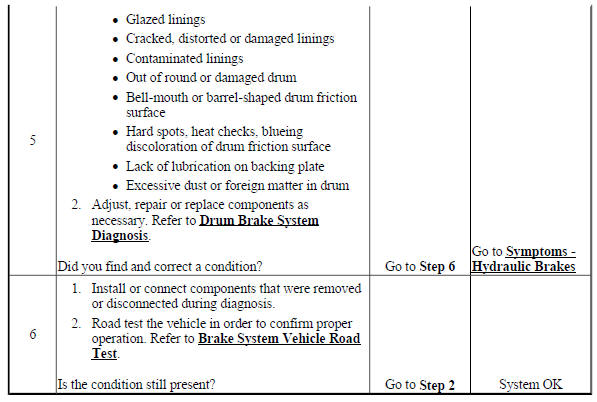

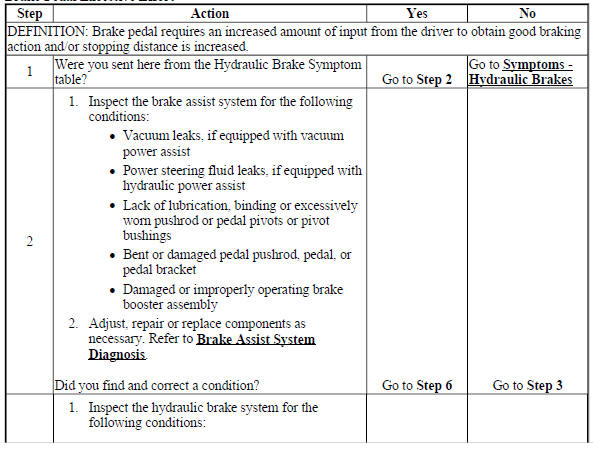

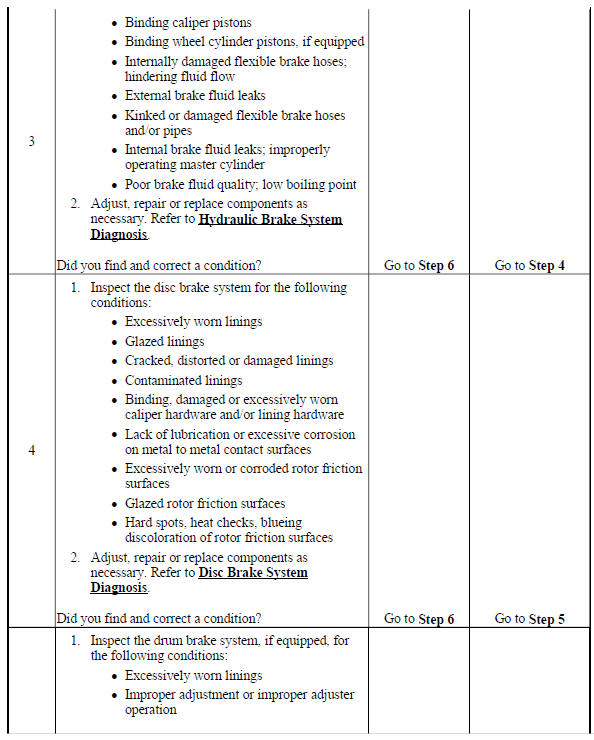

Brake Pedal Excessive Effort

Brake Pedal Excessive Effort

Brake Pedal Excessive Effort

Brake Pedal Excessive Effort

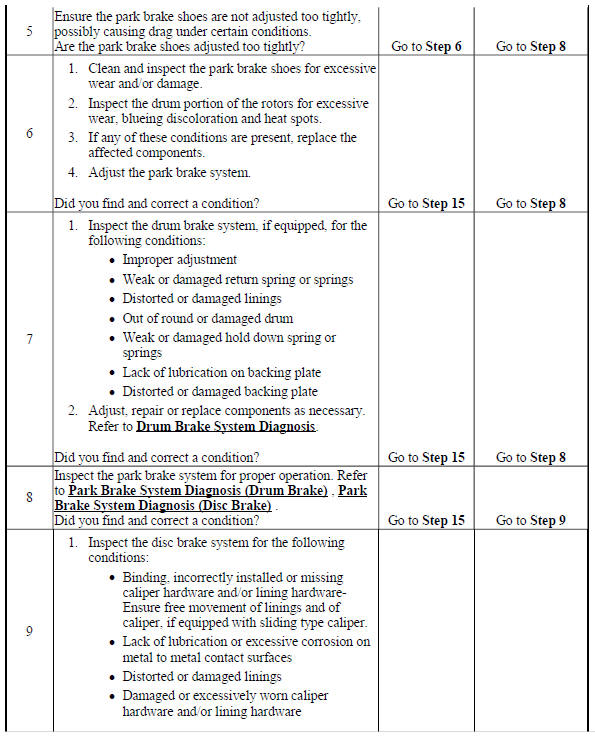

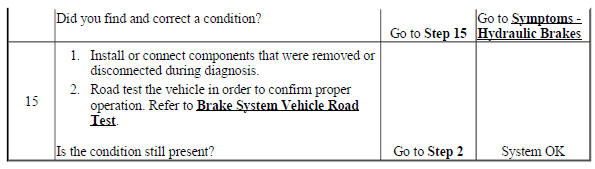

BRAKES DRAG

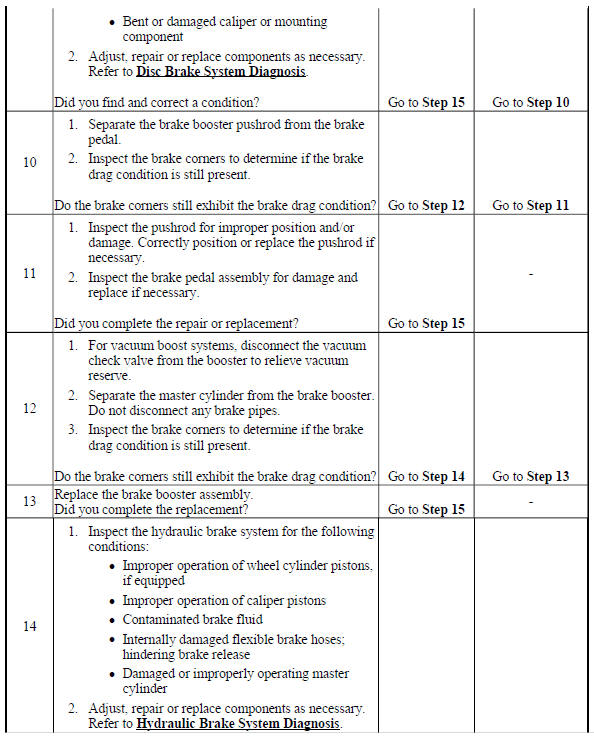

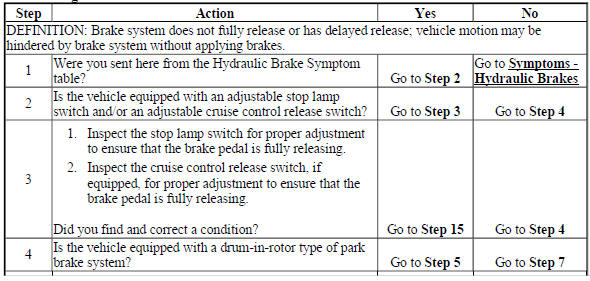

Brakes Drag

Brakes Drag

Brakes Drag

Brakes Drag

Brakes Drag

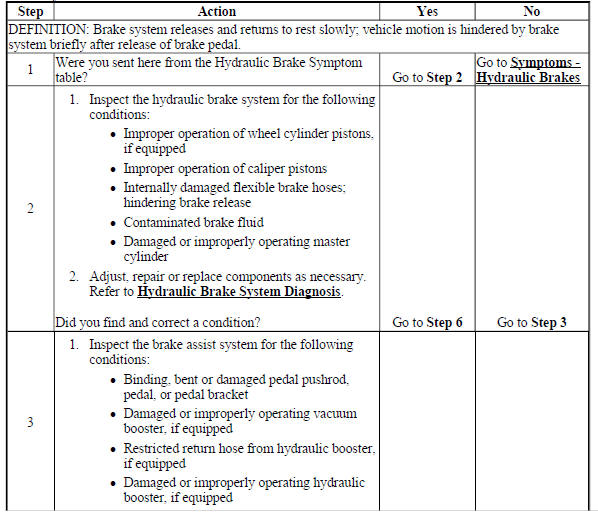

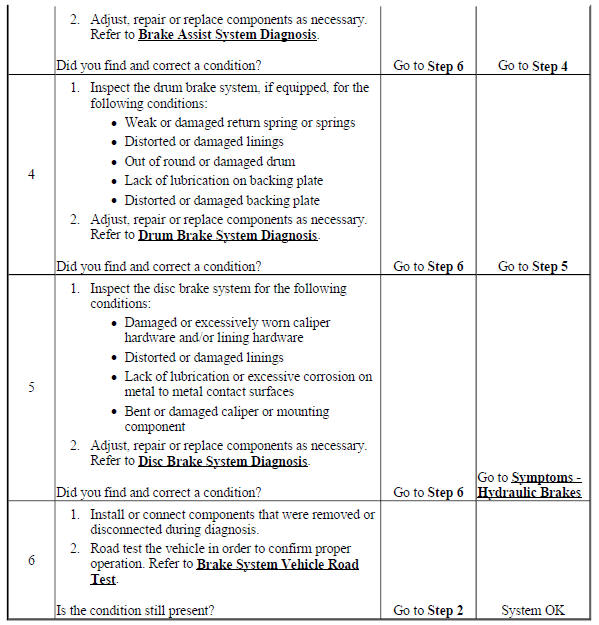

BRAKE SYSTEM SLOW RELEASE

Brake System Slow Release

Brake System Slow Release

Brake System Slow Release

BRAKE FLUID LOSS

Brake Fluid Loss

Brake Fluid Loss

Brake Fluid Loss

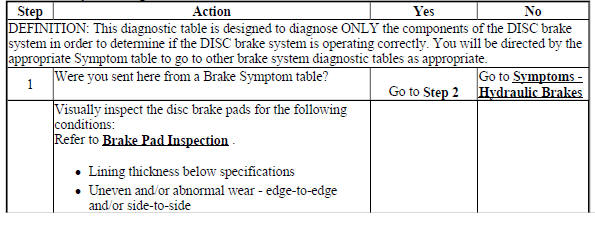

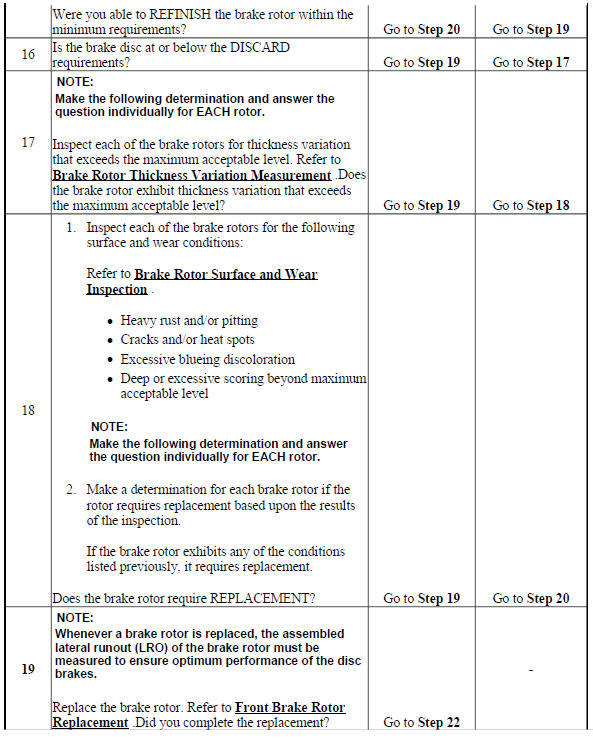

DISC BRAKE SYSTEM DIAGNOSIS

Test Description

The numbers below refer to the step numbers on the diagnostic table:

9

Lubricant leaks from non-brake system components may come in contact with and contaminate brake system components.

10

Lubricant leaks from non-brake system components may come in contact with and contaminate brake system components.

12

Disc brake rotor shields/backing plates that come in contact with disc brake rotors may cause brake system noise.

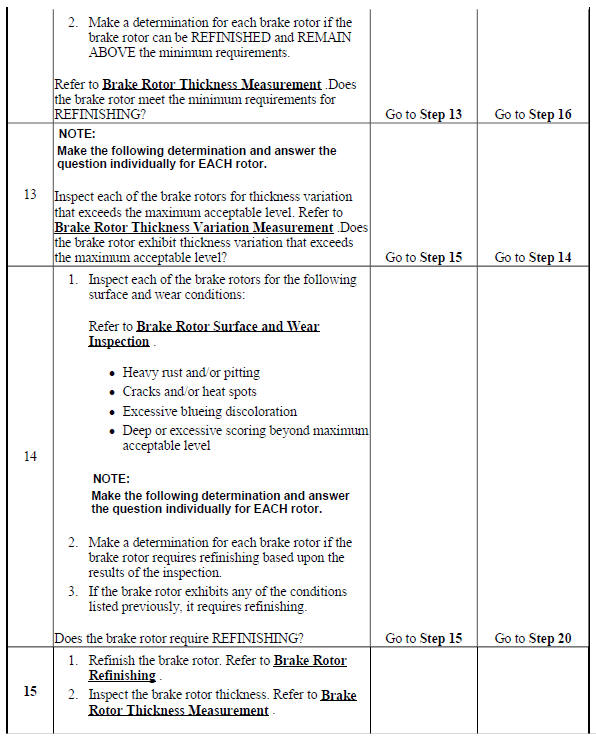

15

Disc brake rotor thickness variation that exceeds the maximum acceptable level can cause brake pulsation.

19

Disc brake rotor thickness variation that exceeds the maximum acceptable level can cause brake pulsation.

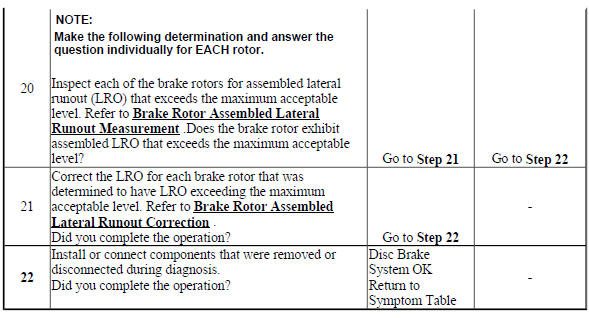

22

Disc brake rotor assembled lateral runout (LRO) that exceeds the maximum acceptable level can lead to thickness variation.

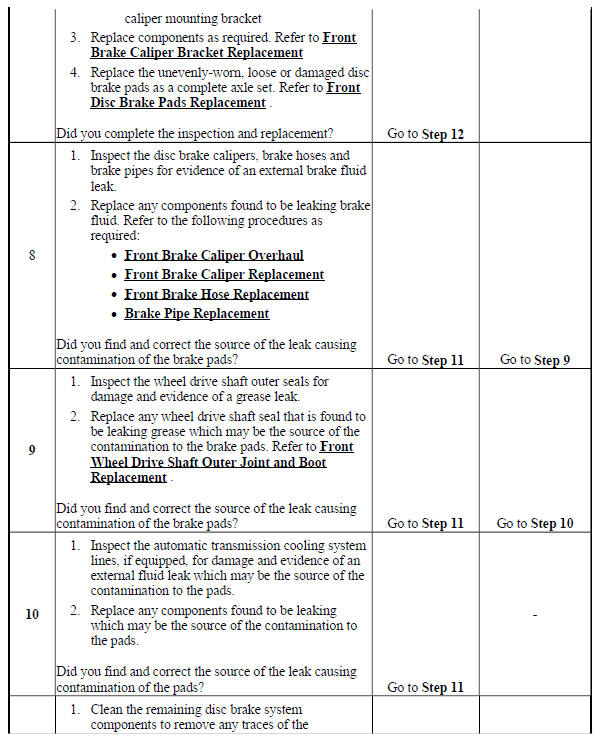

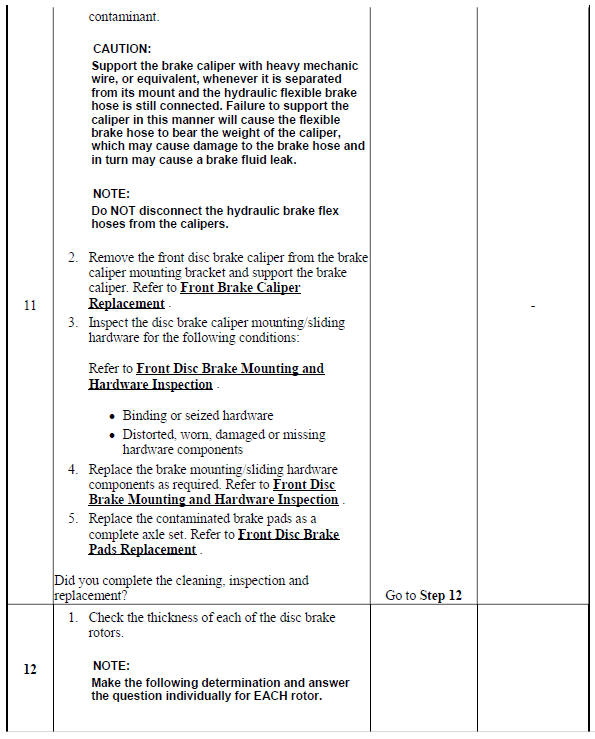

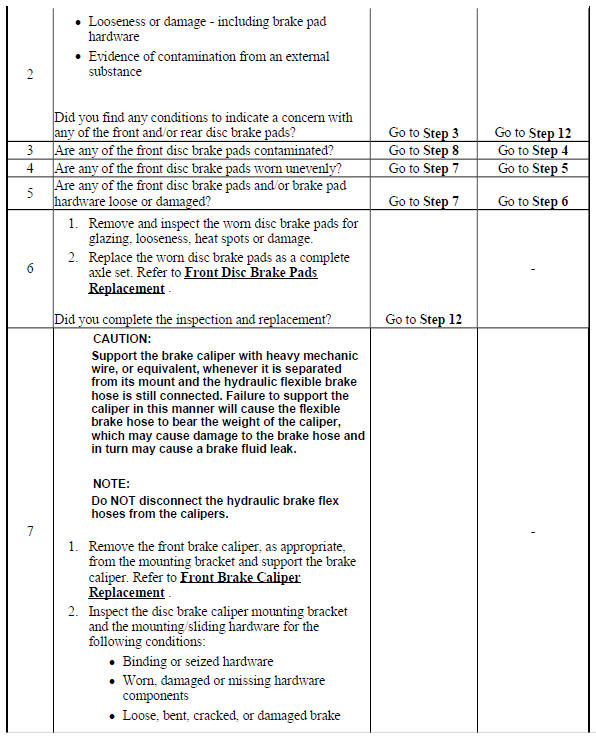

Disc Brake System Diagnosis

Disc Brake System Diagnosis

Disc Brake System Diagnosis

Disc Brake System Diagnosis

Disc Brake System Diagnosis

Disc Brake System Diagnosis

Disc Brake System Diagnosis

Disc Brake System Diagnosis

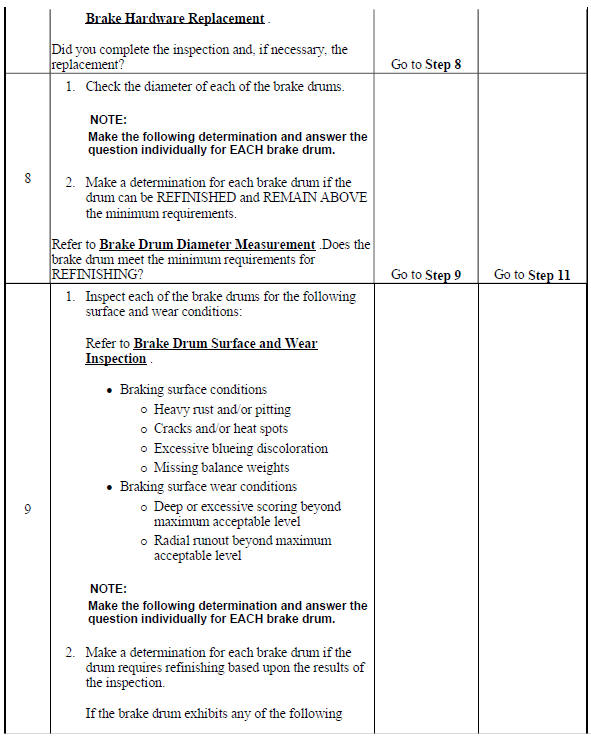

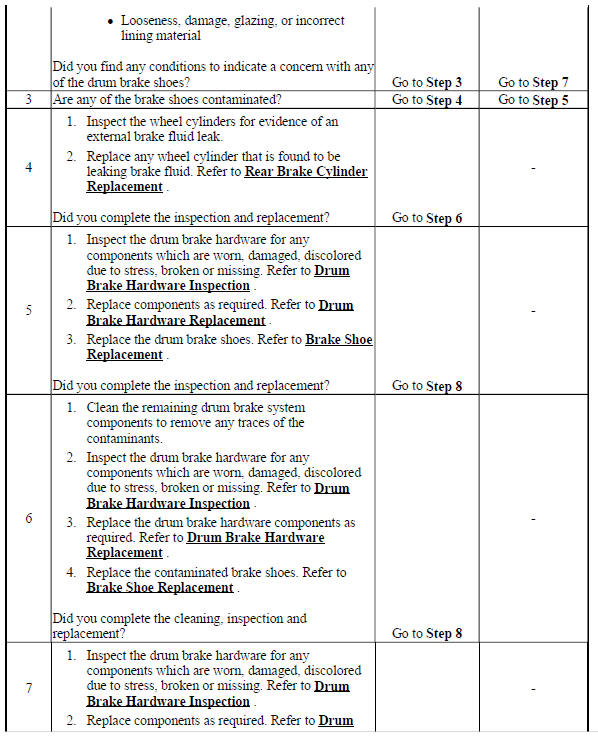

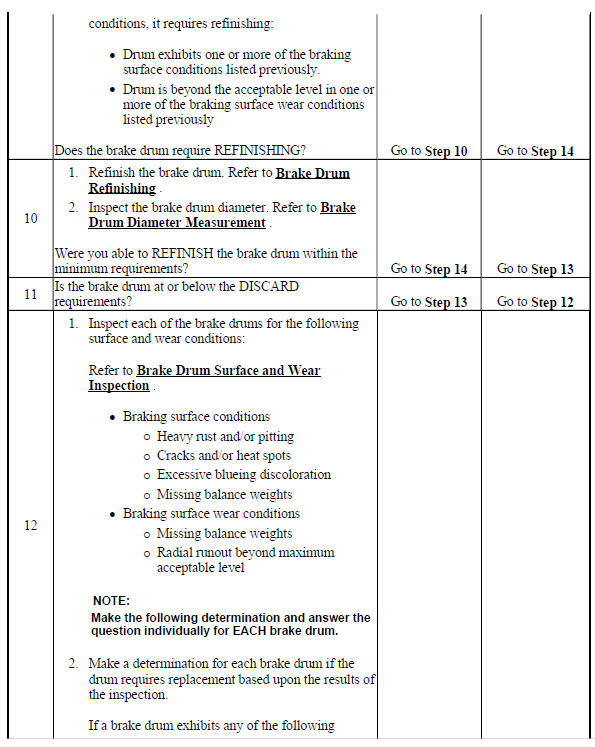

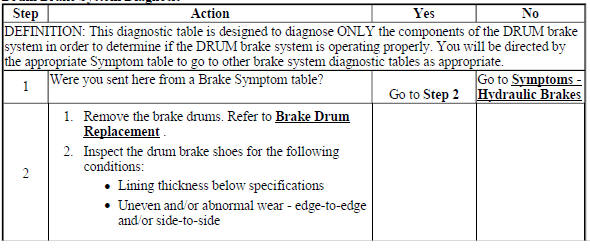

DRUM BRAKE SYSTEM DIAGNOSIS

Test Description

The number below refers to the step number on the diagnostic table:

18

Drum brake backing plates that come in contact with brake drums may cause brake system noise.

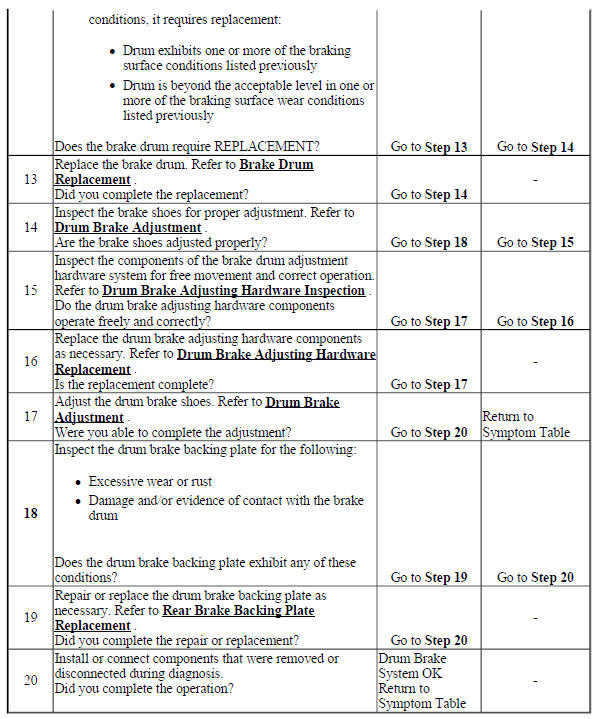

Drum Brake System Diagnosis

Drum Brake System Diagnosis

Drum Brake System Diagnosis

Drum Brake System Diagnosis

Drum Brake System Diagnosis

Drum Brake System Diagnosis

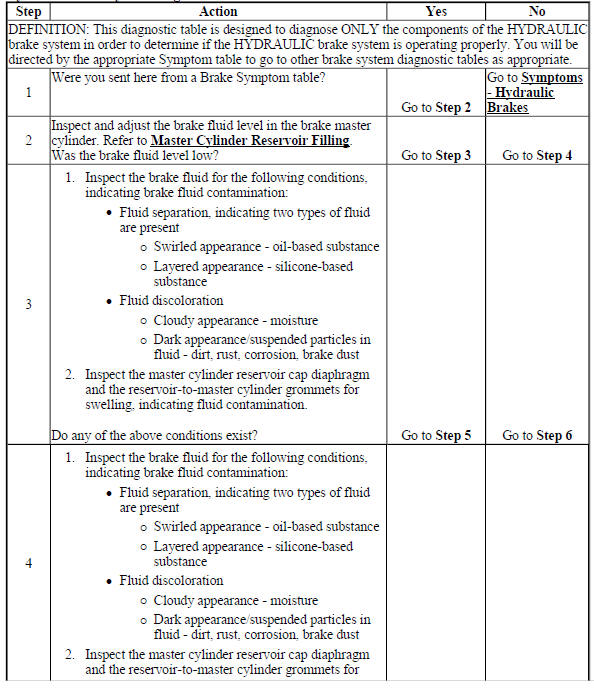

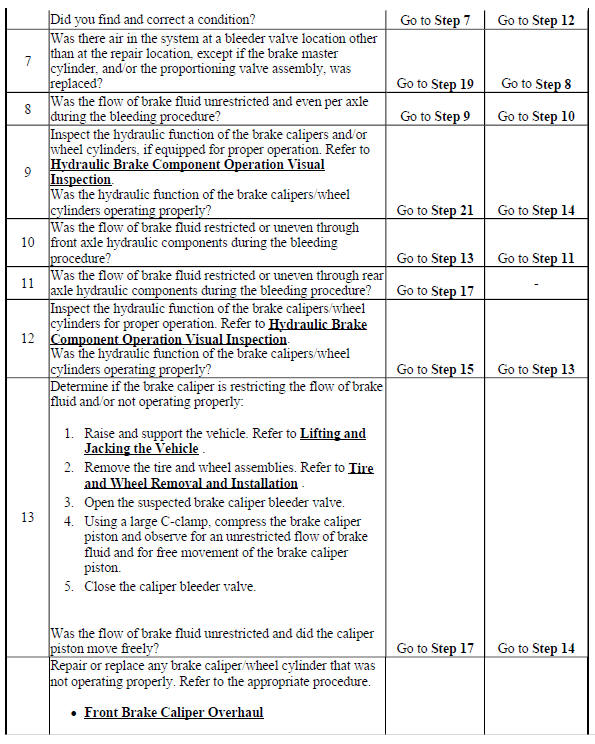

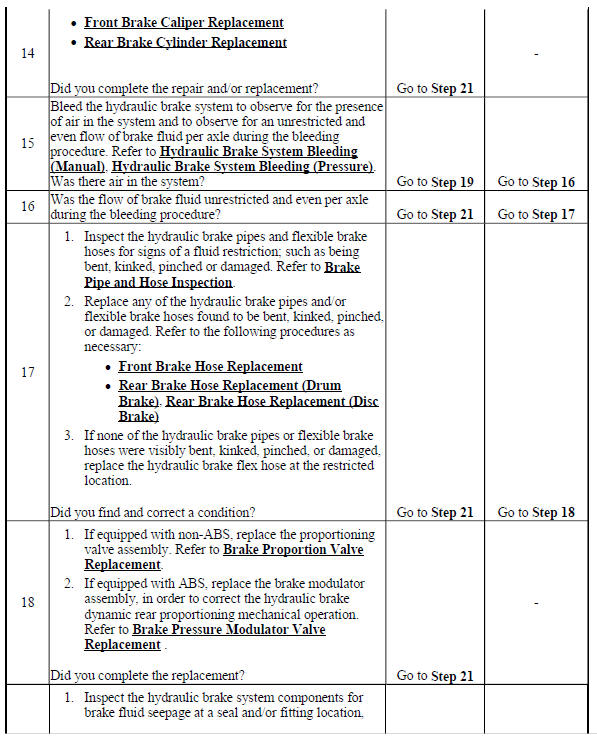

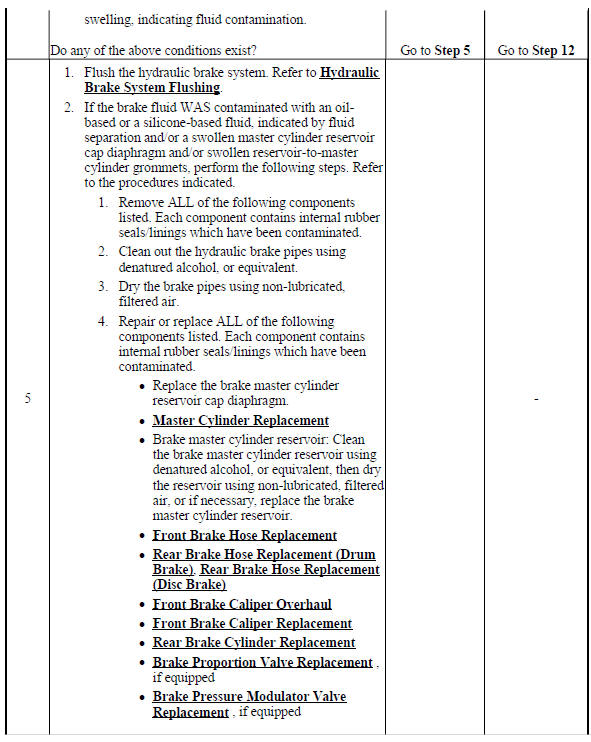

HYDRAULIC BRAKE SYSTEM DIAGNOSIS

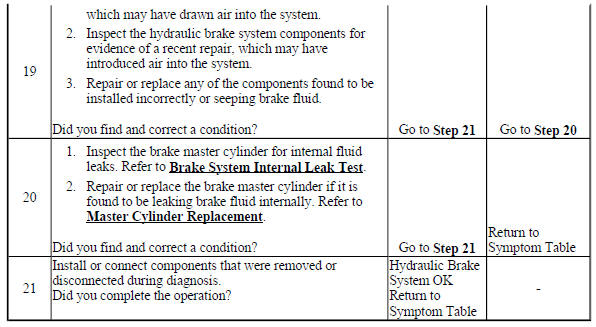

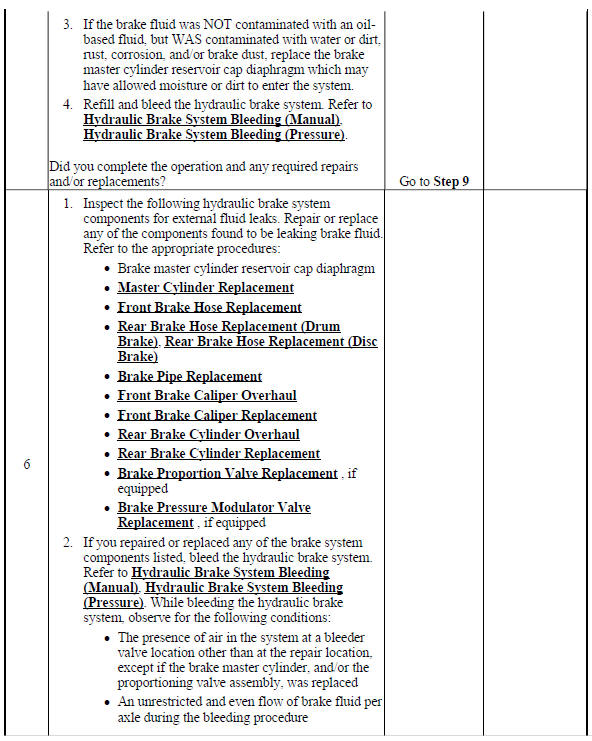

Hydraulic Brake System Diagnosis

Hydraulic Brake System Diagnosis

Hydraulic Brake System Diagnosis

Hydraulic Brake System Diagnosis

Hydraulic Brake System Diagnosis

Hydraulic Brake System Diagnosis

Hydraulic Brake System Diagnosis

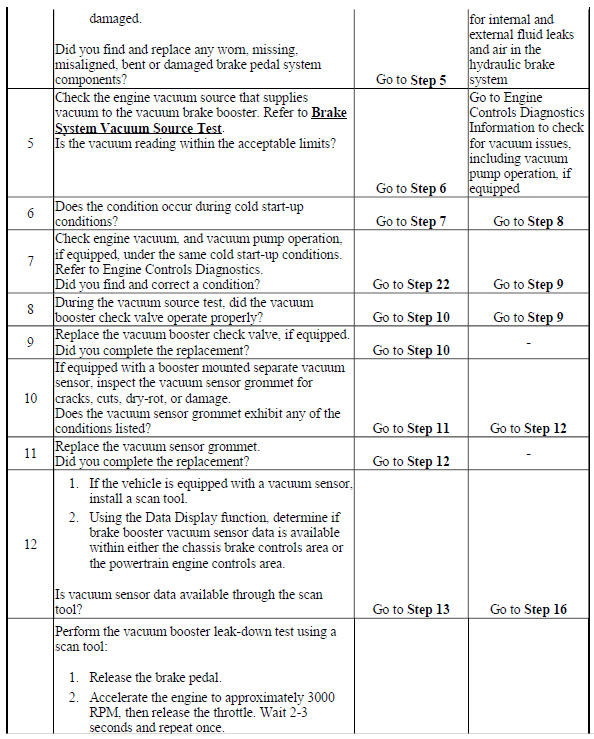

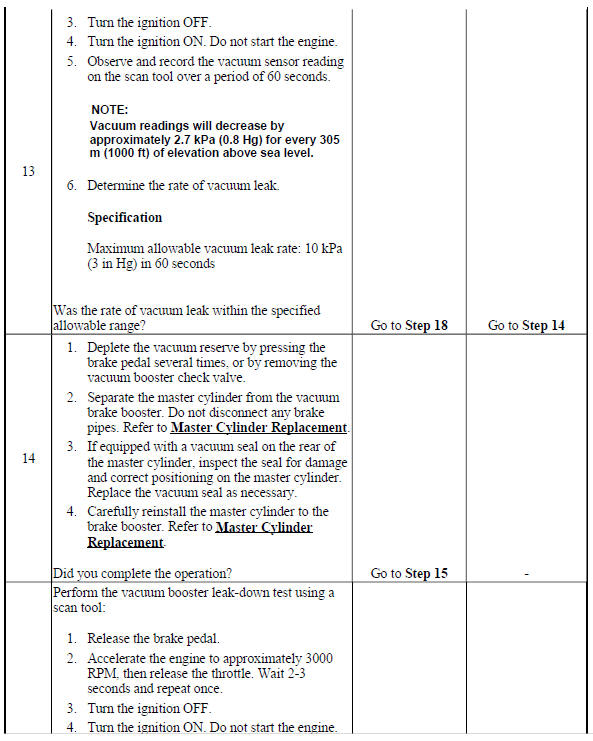

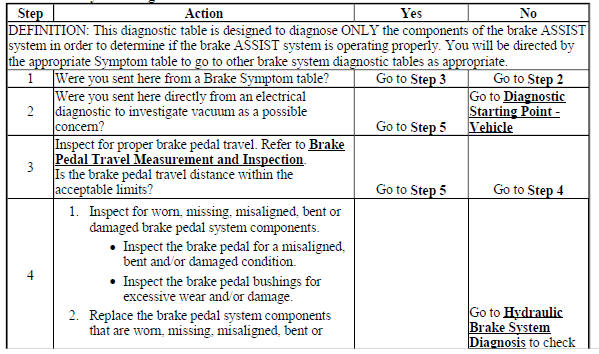

BRAKE ASSIST SYSTEM DIAGNOSIS

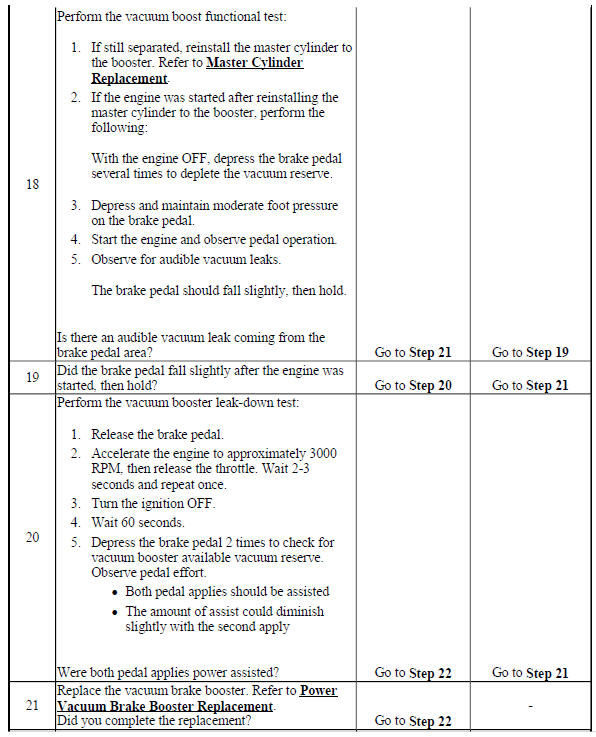

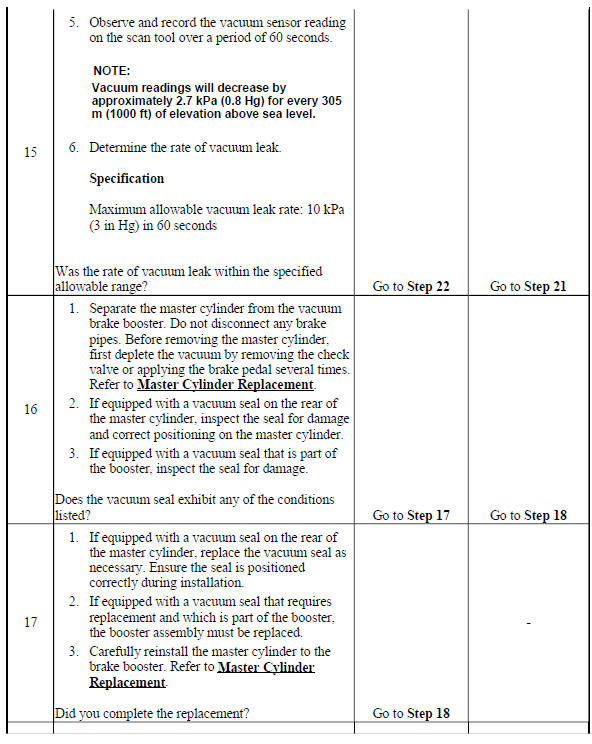

Brake Assist System Diagnosis

Brake Assist System Diagnosis

Brake Assist System Diagnosis

Brake Assist System Diagnosis

Brake Assist System Diagnosis

Brake Assist System Diagnosis

Brake Assist System Diagnosis
