Chevrolet Trax: Brake system external leak inspection

WARNING: Refer to Brake Fluid Irritant Warning .

CAUTION: Refer to Brake Fluid Effects on Paint and Electrical Components Caution

  1. In order to inspect for external brake fluid leaks, first inspect the fluid level in the master cylinder.

While a slight brake fluid level drop can be considered a normal condition due to brake lining wear, a very low level may indicate a brake fluid leak in the hydraulic system.

  1. If the fluid level is abnormally low, adjust the brake fluid level. Refer to Master Cylinder Reservoir Filling.
  2. Start the engine and allow it to idle.
  3. Apply constant, moderate foot pressure to the brake pedal.

If the brake pedal gradually falls away while under foot pressure, there may be a brake fluid leak.

  1. Turn the ignition OFF.
  2. Visually inspect the following brake system components for brake fluid leaks, excessive corrosion, and damage. Give particular attention to all brake pipe and flexible hose connections to ensure that there are not any slight brake fluid leaks - even though the brake pedal may feel firm and hold steady:
  • Master cylinder brake pipe fittings
  • All brake pipe connections
  • Brake pipes
  • Brake hoses and connections
  • Brake calipers and/or wheel cylinders
  1. While slight dampness around the master cylinder reservoir can be considered acceptable, brake fluid leaking from any of the brake system components requires immediate attention. If any of these components exhibit signs of brake fluid leakage, repair or replace those components. After the repair or replacement, reinspect the hydraulic brake system to assure proper function.

BRAKE SYSTEM INTERNAL LEAK TEST

WARNING: Refer to Brake Fluid Irritant Warning .

CAUTION: Refer to Brake Fluid Effects on Paint and Electrical Components Caution

  1. Start the engine and allow it to idle.
  2. Apply light, steady pressure to the brake pedal. Observe both the brake pedal feel and travel.
  3. Release the brakes and turn the ignition OFF.
  4. If the brake pedal apply felt spongy, but the brake pedal travel was not excessive, perform the following steps:

  1. Inspect the brake system for external leaks. Refer to Brake System External Leak Inspection.
  2. Pressure bleed the brake system in order to purge any air that may be trapped in the system. Refer to Hydraulic Brake System Bleeding (Manual), Hydraulic Brake System Bleeding (Pressure).

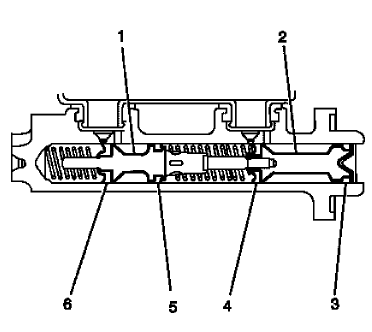

Fig. 5: Master Cylinder Inspection Points
Fig. 5: Master Cylinder Inspection Points

  1. If the brake pedal apply did not feel spongy, but the brake pedal travel was excessive, perform the following steps:
  1. Loosen the master cylinder-to-vacuum brake booster retaining nuts.
  2. Carefully pull the master cylinder away from the vacuum brake booster just enough to inspect the mounting surface of the master cylinder.
  3. Inspect the master cylinder mounting surface at the primary piston (2) for brake fluid leaks.
  1. If the master cylinder exhibits any leakage around the primary piston (2), then the primary piston primary seal (4) and/or secondary seal (3) is leaking and the master cylinder requires overhaul or replacement.
  2. If the master cylinder primary piston (2) does not exhibit any leakage, pressure bleed the brake system.

    Refer to Hydraulic Brake System Bleeding (Manual), Hydraulic Brake System Bleeding (Pressure).

  3. If the brake pedal apply did not feel spongy, and the brake pedal travel was initially steady and not excessive, but then gradually fell, then the master cylinder requires overhaul or replacement due to an internal leak past the secondary piston (1) from the secondary piston primary seal (6) or secondary seal (5).
  4. If the brake pedal apply did not feel spongy, and the brake pedal travel was initially steady and not excessive, then fell slightly, then became steady again, then the brake pressure modulator valve (BPMV) may be leaking internally, and may require replacement.
