Chevrolet Trax: Windshield Wiper/Washer

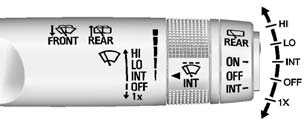

The windshield wiper/washer lever is located on the right side of the steering column.
Move the lever to one of the following positions:
HI: Use for fast wipes.
LO: Use for slow wipes.

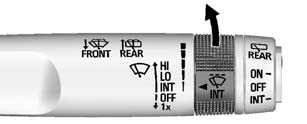

INT: Move the lever up to INT for
intermittent wipes, then turn the
INT band up for more frequent
wipes or down for less frequent
wipes.
OFF: Use to turn the wipers off.
1X: For a single wipe, briefly move the wiper lever down. For several wipes, hold the wiper lever down.
: Pull the windshield wiper lever
toward you to spray windshield
washer fluid and activate the wipers.
Rear Window Wiper/Washer
The rear wiper/washer controls are on the end of the windshield wiper lever.
ON: Press the upper portion of the button for continuous rear window wipes.
OFF: The rear wiper turns off when the button is returned to the middle position.
INT (Intermittent Rear Wipes): Press the lower portion of the button to set a delay between wipes.
= REAR (Rear Washer): Push
the windshield wiper lever forward
to spray washer fluid on the rear
window. The lever returns to its
starting position when released.
See Windshield Wiper/Washer and Rear Window Wiper/ Washer
