Chevrolet Trax: Climate Controls

Chevrolet Trax (2013-2022) Owner's Manual / In Brief / Initial Drive Information / Climate Controls

If equipped with these climate control systems, the heating, cooling, and ventilation can be controlled for the vehicle.

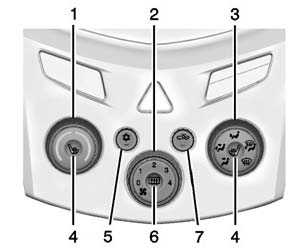

Climate Control System with Heater and Air Conditioning
Climate Control System with Heater and Air Conditioning

  1. Temperature Control
  2. Fan Control
  3. Air Delivery Mode Control
  4. Driver and Passenger Heated Seats
  5. Air Conditioning
  6. Rear Window Defogger
  7. Recirculation

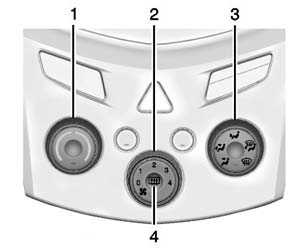

Climate Control System with Heater Only
Climate Control System with Heater Only

  1. Temperature Control
  2. Fan Control
  3. Air Delivery Mode Control
  4. Rear Window Defogger

See Climate Control Systems
