Chevrolet Trax: Routine inspection checksheet

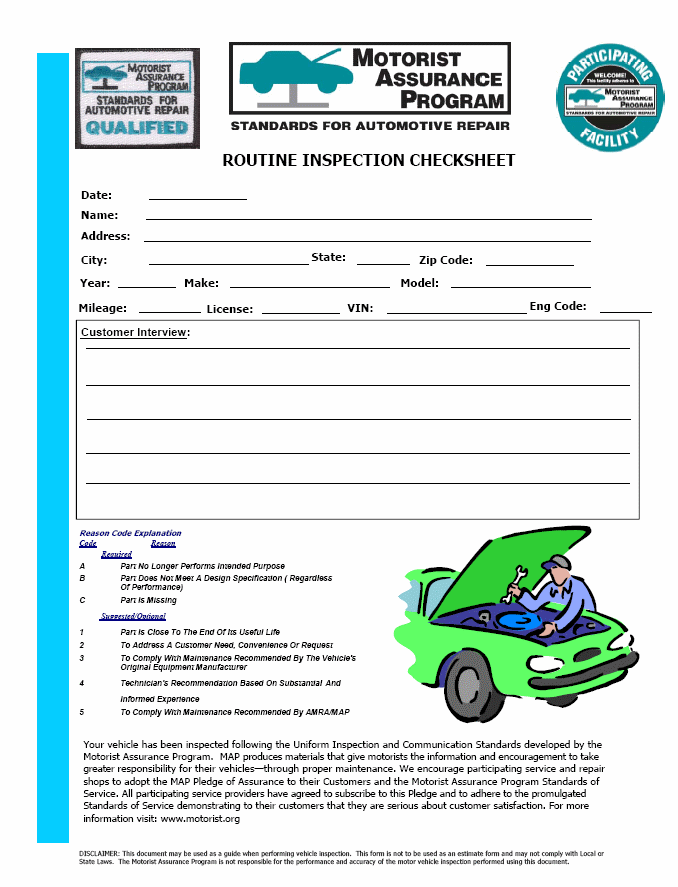

Fig. 10: Routine Inspection Checksheet (1 Of 2)
Fig. 10: Routine Inspection Checksheet (1 Of 2)

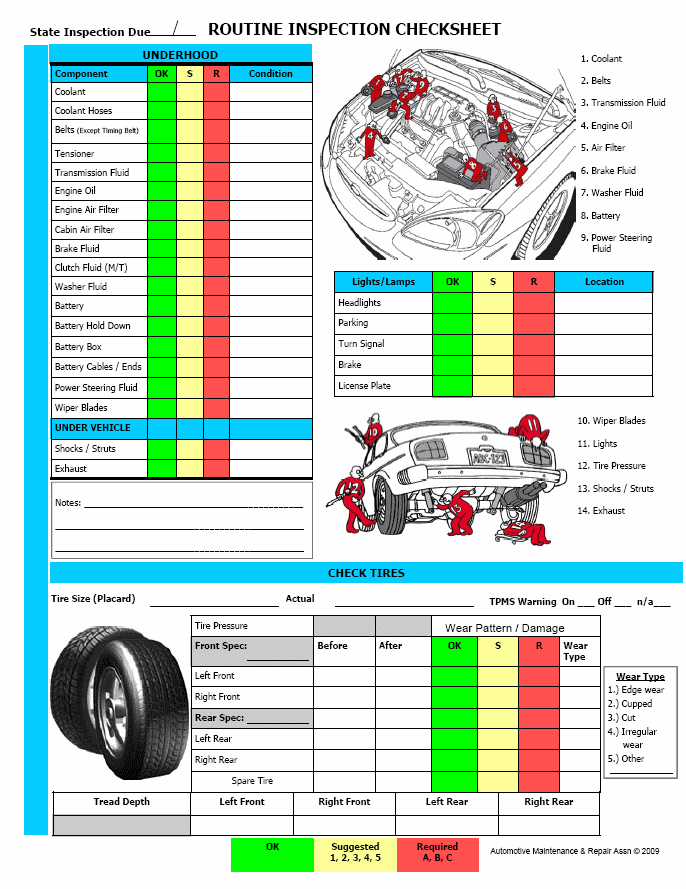

Fig. 11: Routine Inspection Checksheet (2 Of 2)
Fig. 11: Routine Inspection Checksheet (2 Of 2)

ROUTINE INSPECTION - UICS

BRAKE SYSTEMS

NOTE: Some states may have specifications that differ from OEM. Check your local/state regulations. Where state or local laws are stricter, they take precedence over these guidelines.

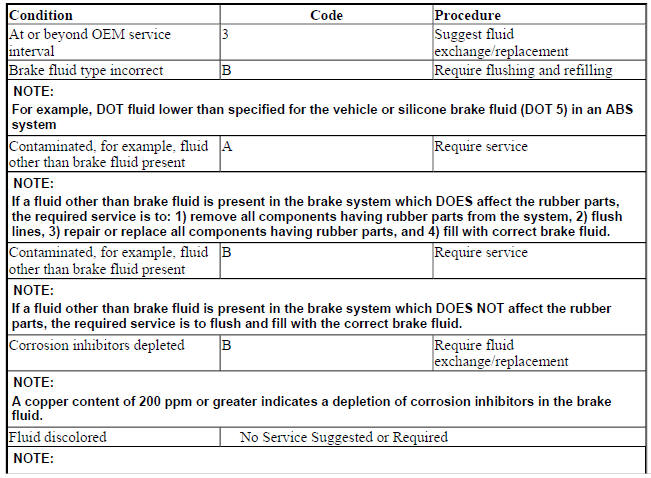

BRAKE FLUID

NOTE: Most manufacturers prohibit the use of DOT 5 brake fluid in a system equipped with ABS. DOT 3, DOT 4, and DOT 5.1 brake fluids are clear or light amber in color. DOT 5 brake fluid is violet in color. Correct fluid type is normally stamped on the master cylinder cover.

NOTE: Fluid Flush - a process using a sufficient volume of fluid to help remove contaminants and replacing the contaminated fluid with new fluid of the same type and specification. At times a chemical may be used to enhance removal.

NOTE: Fluid Exchange/Replace - draining (evacuating) old fluid and replacing it with new fluid of the correct type and specification.

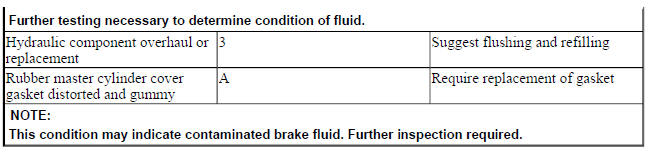

ROUTINE INSPECTION - UICS

ROUTINE INSPECTION - UICS

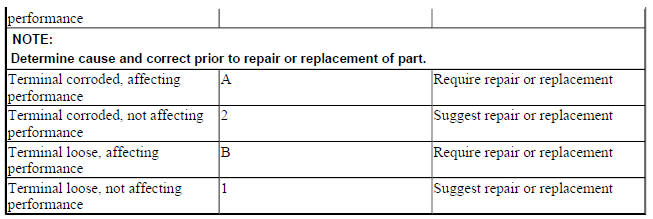

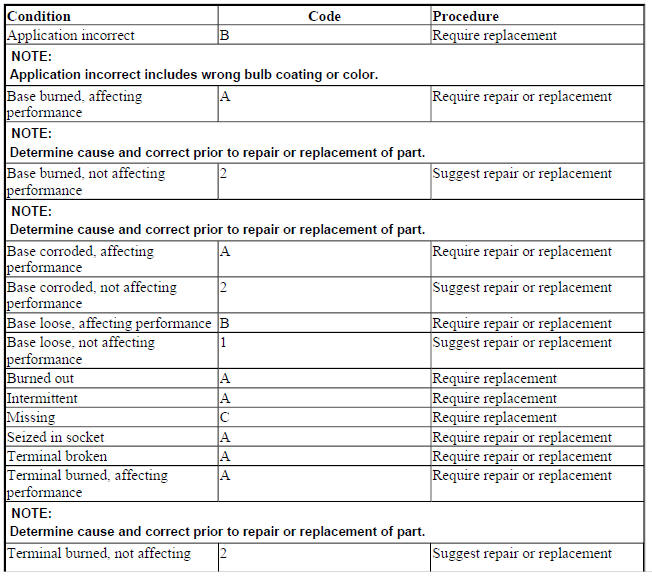

BULBS AND LEDS

NOTE: Does not include soldered-in components.

BULBS AND LEDS

BULBS AND LEDS

HOSES

HOSES

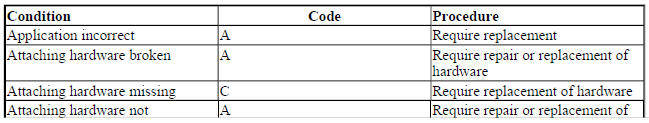

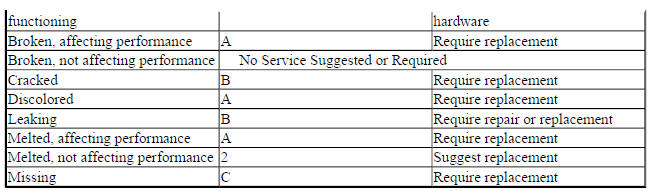

LENSES

LENSES

LENSES

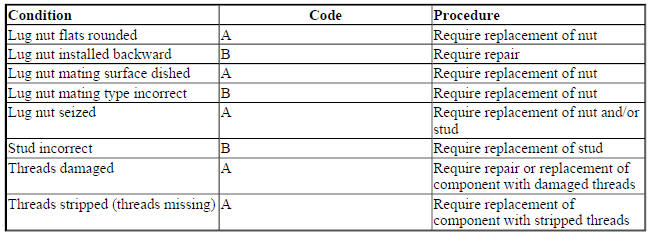

LUG NUT

LUG NUT

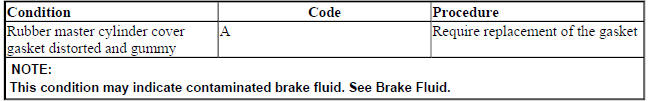

MASTER CYLINDER COVER GASKET

MASTER CYLINDER COVER GASKET

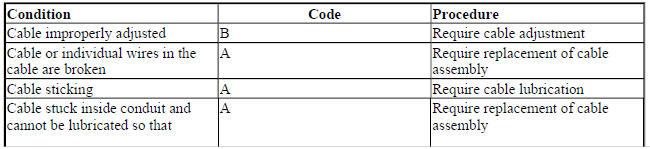

PARKING BRAKE CABLE

PARKING BRAKE CABLE

PARKING BRAKE CABLE

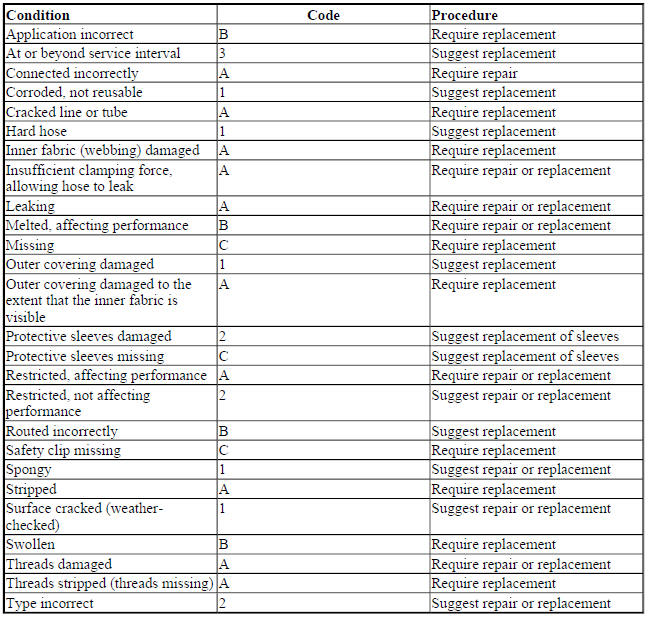

VACUUM HOSES

VACUUM HOSES

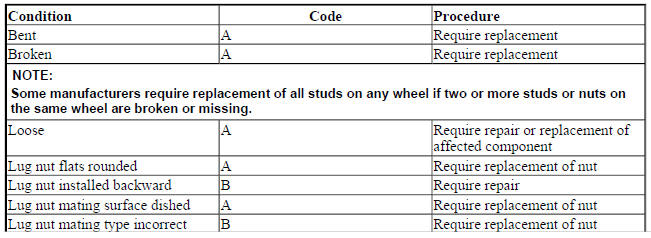

WHEEL ATTACHMENT HARDWARE

NOTE: For conditions noted below, also check condition of wheel stud holes. Proper lug nut torque is essential. Follow manufacturer's torque specifications and tightening sequence. DO NOT lubricate threads unless specified by the vehicle manufacturer.

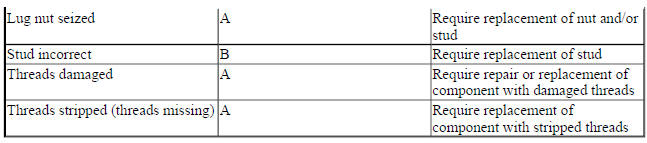

WHEEL ATTACHMENT HARDWARE

WHEEL ATTACHMENT HARDWARE

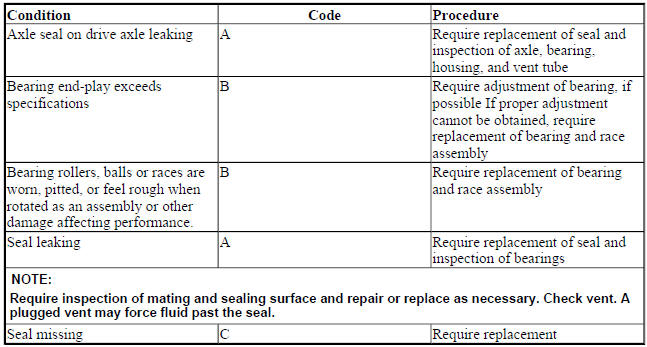

WHEEL BEARINGS, RACES AND SEALS

NOTE: When replacing or repacking wheel bearings, grease seal replacement is required. You are not required to replace these components in axle sets.

Determine the need to replace based upon the individual component conditions.

WHEEL BEARINGS, RACES AND SEALS

DRIVETRAIN AND TRANSMISSION

NOTE: When a procedure states that a required or suggested repair or replacement is recommended, the basis for the recommendation MUST be explained to the customer. If the customer asks whether there are alternatives to the recommendation, generally acceptable repair/replacement options must be explained, whether performed or not by the shop.

NOTE: Whenever transmission or drive-train service is performed that affects the suspension alignment, for example, removing the engine cradle, it is required that the alignment be checked and corrected if necessary.

NOTE: The conditions listed for the components included in this section assume that the problem has been isolated to the specific component through proper testing.

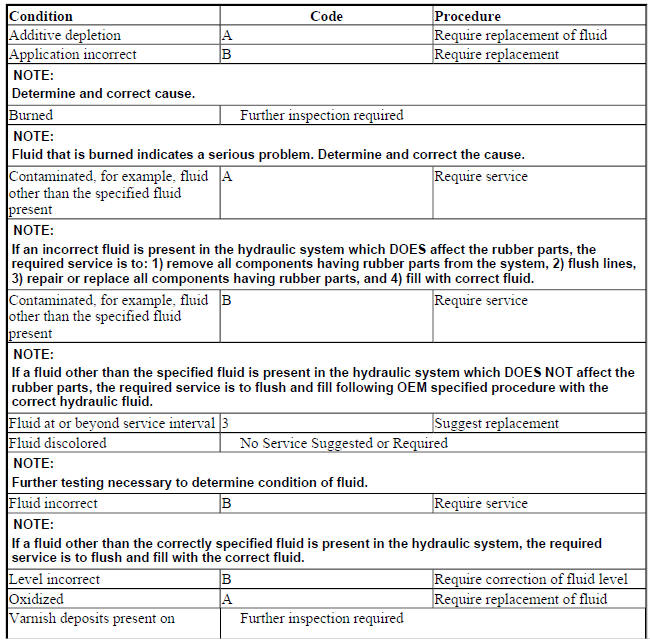

AUTOMATIC TRANSMISSION FLUID

AUTOMATIC TRANSMISSION FLUID

AUTOMATIC TRANSMISSION FLUID

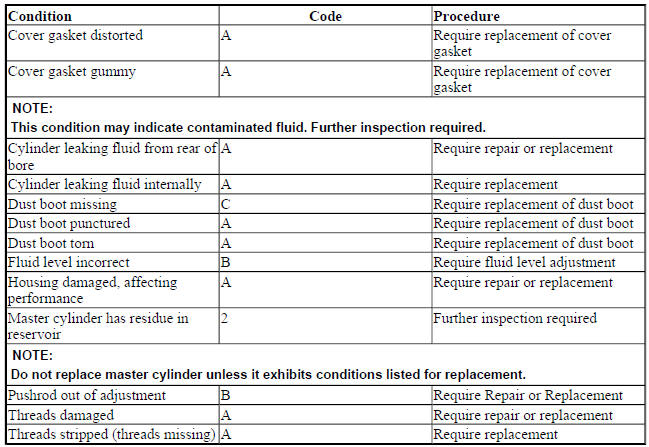

CLUTCH MASTER CYLINDERS

CLUTCH MASTER CYLINDERS

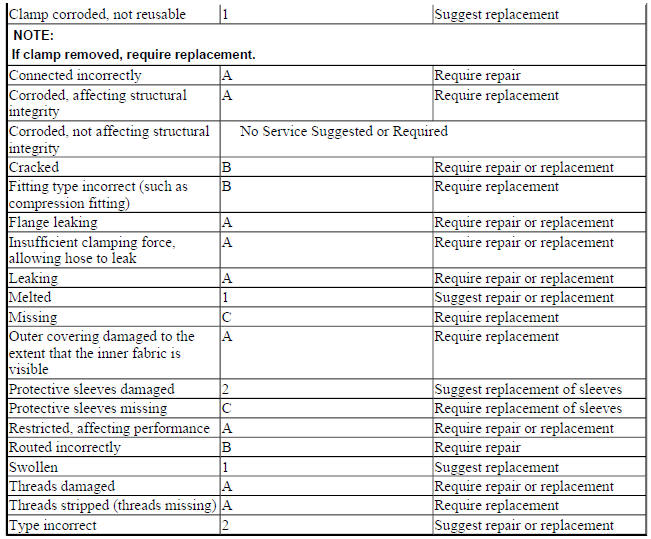

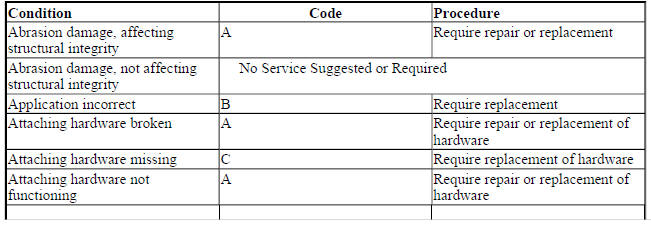

COOLER LINES

COOLER LINES

COOLER LINES

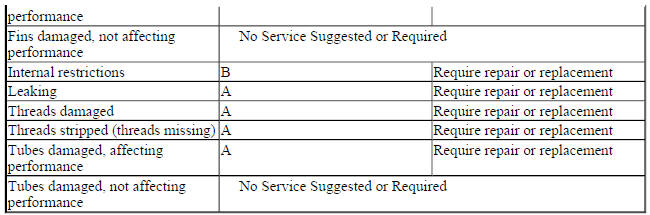

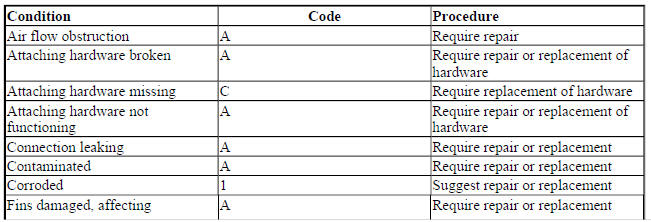

COOLERS

COOLERS

COOLERS

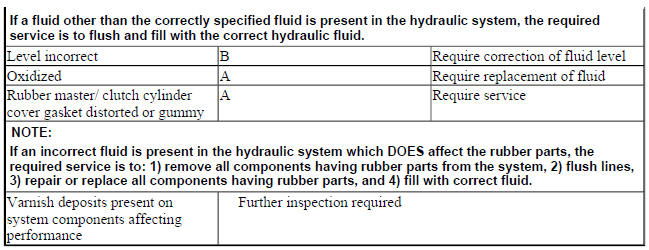

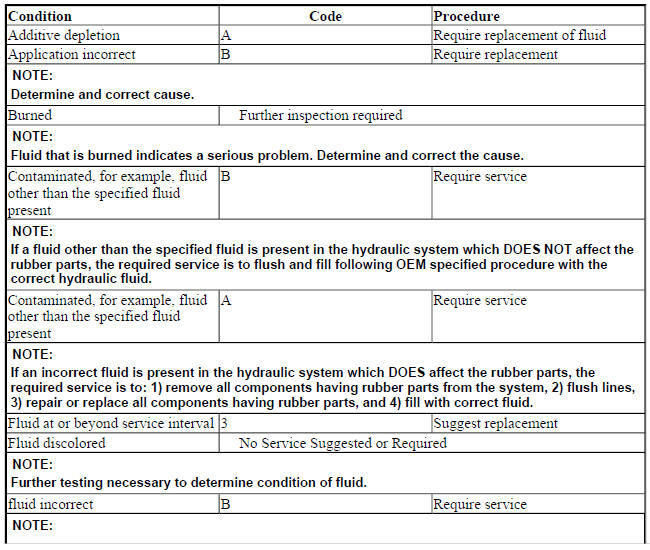

DIFFERENTIAL FLUID

DIFFERENTIAL FLUID

DIFFERENTIAL FLUID

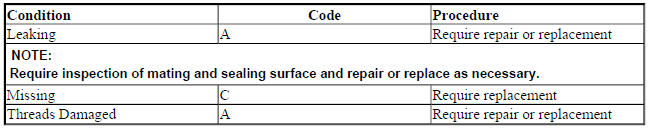

DRAIN PLUGS AND GASKETS

DRAIN PLUGS AND GASKETS

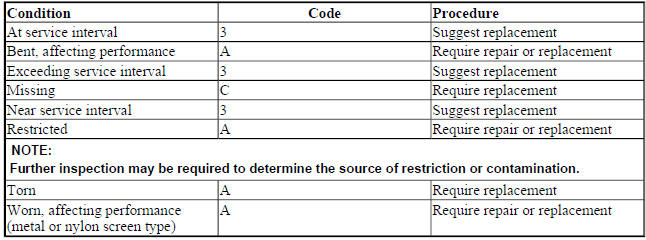

FILTERS AND SCREENS

FILTERS AND SCREENS

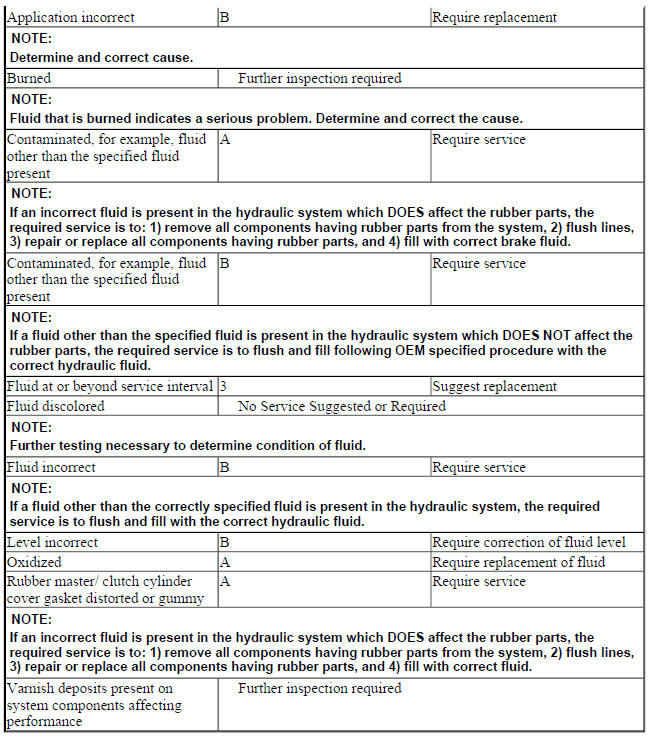

FLUIDS AND LUBRICANTS

FLUIDS AND LUBRICANTS

FLUIDS AND LUBRICANTS

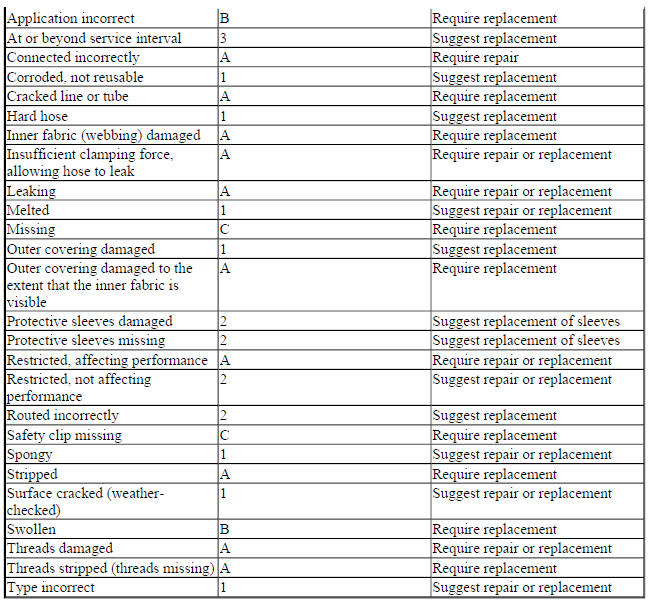

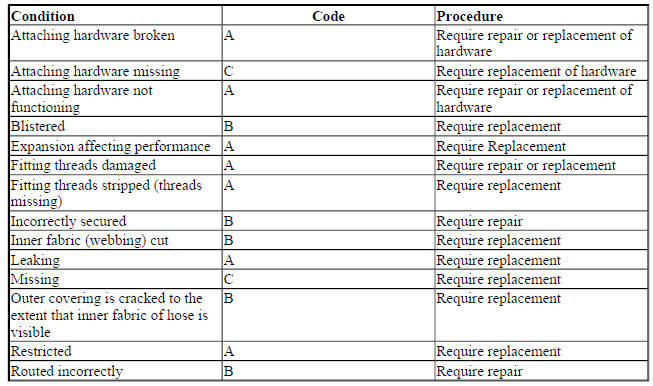

HOSES, LINES, AND TUBES

HOSES, LINES, AND TUBES

HOSES, LINES, AND TUBES

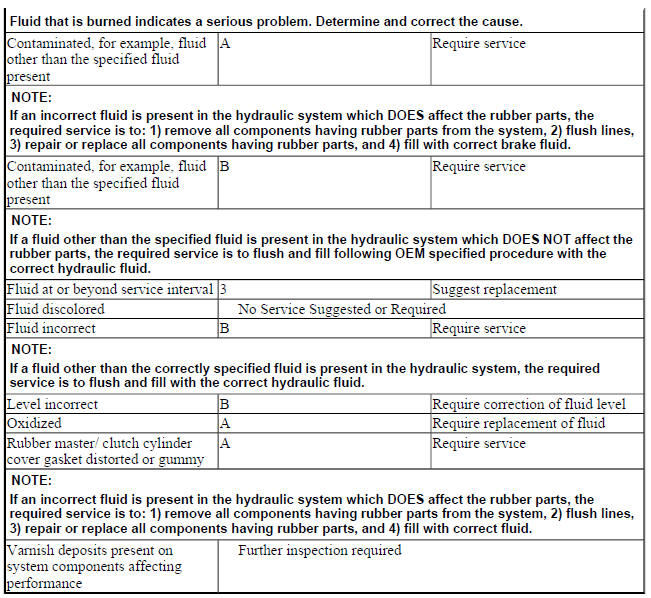

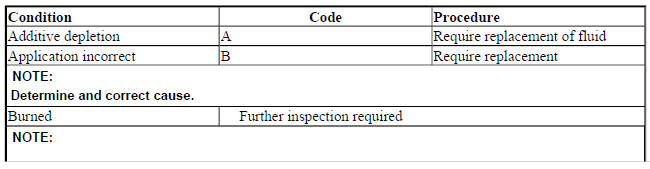

HYDRAULIC FLUID

HYDRAULIC FLUID

HYDRAULIC FLUID

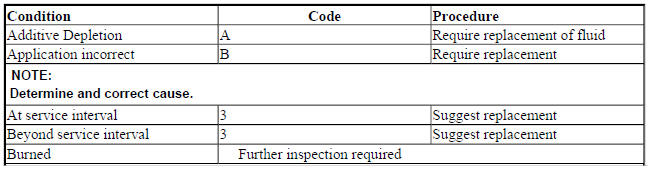

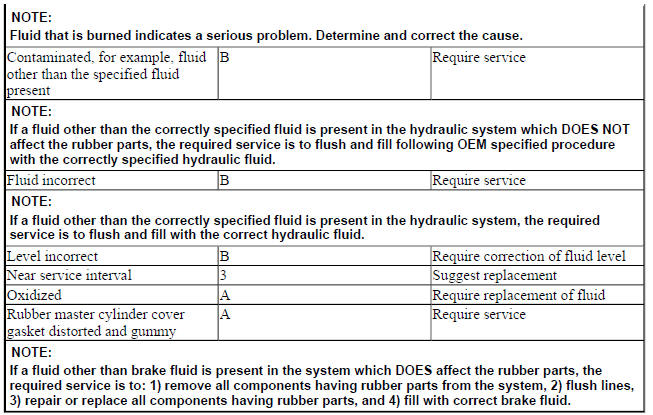

LUBRICANTS

LUBRICANTS

LUBRICANTS

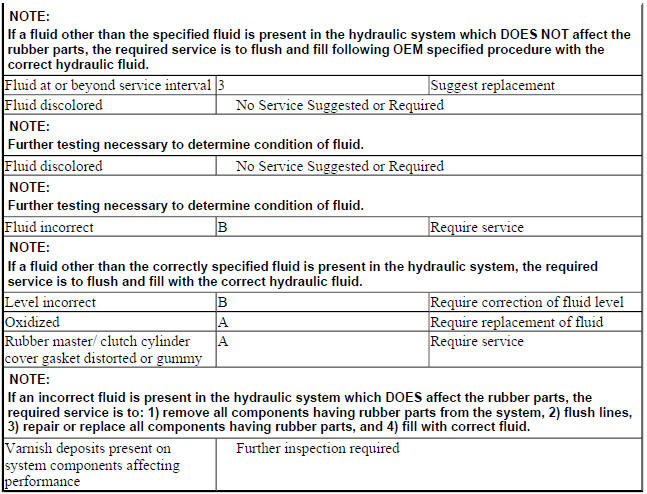

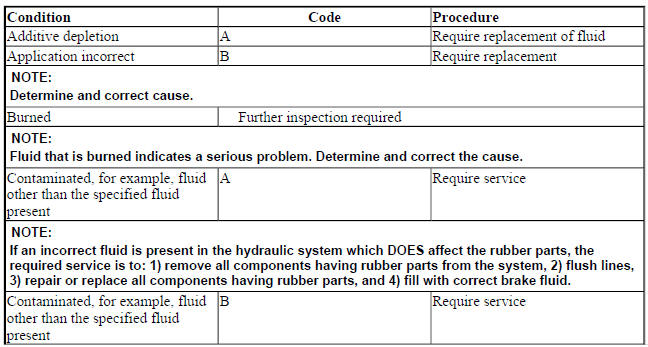

MANUAL TRANSMISSION FLUID

MANUAL TRANSMISSION FLUID

MANUAL TRANSMISSION FLUID

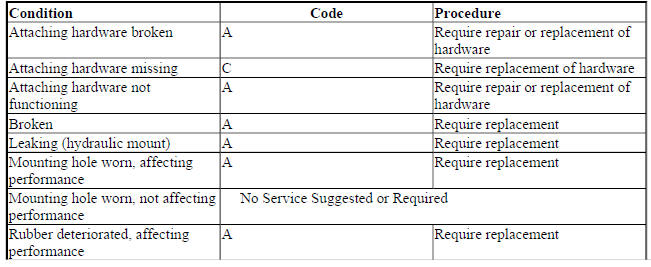

MOUNTS (ENGINE, TRANSAXLE AND TRANSMISSION)

MOUNTS (ENGINE, TRANSAXLE AND TRANSMISSION)

MOUNTS (ENGINE, TRANSAXLE AND TRANSMISSION)

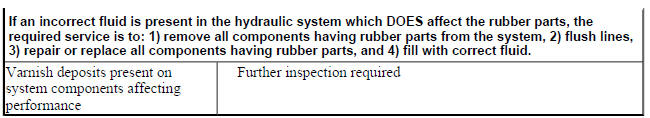

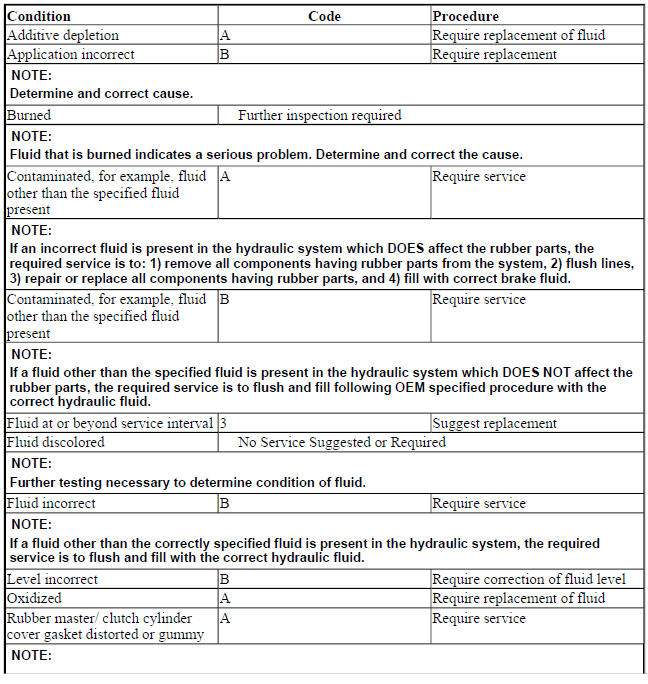

TRANSFER CASE FLUID

TRANSFER CASE FLUID

TRANSFER CASE FLUID

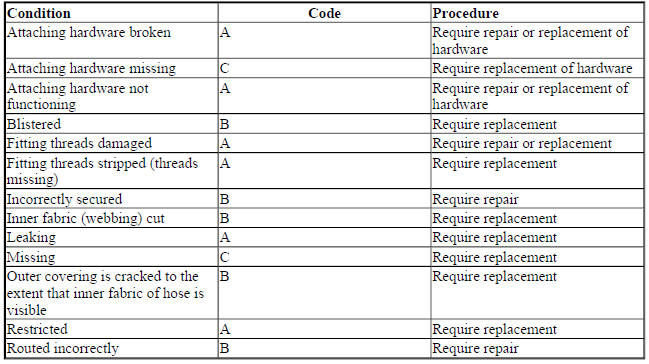

VACUUM HOSES

VACUUM HOSES
