Chevrolet Trax: Electrical systems

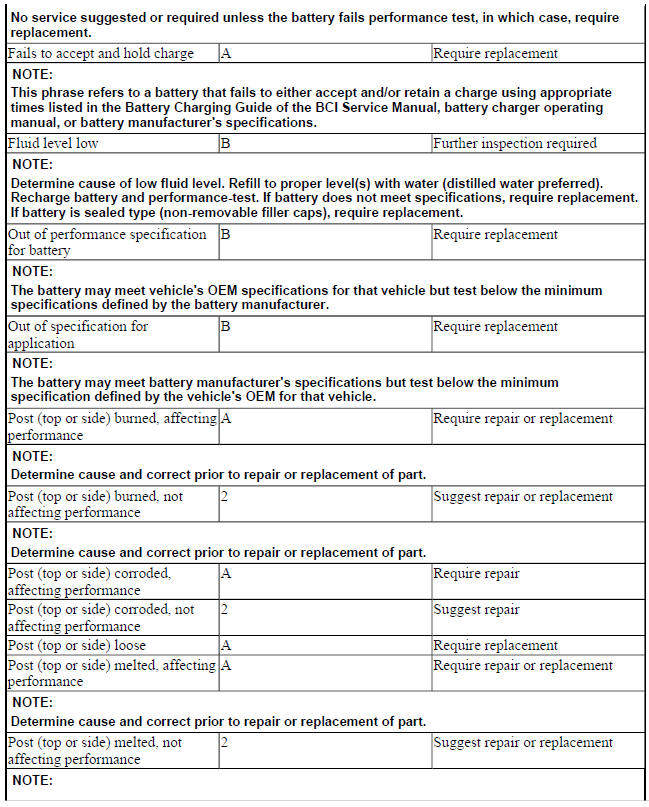

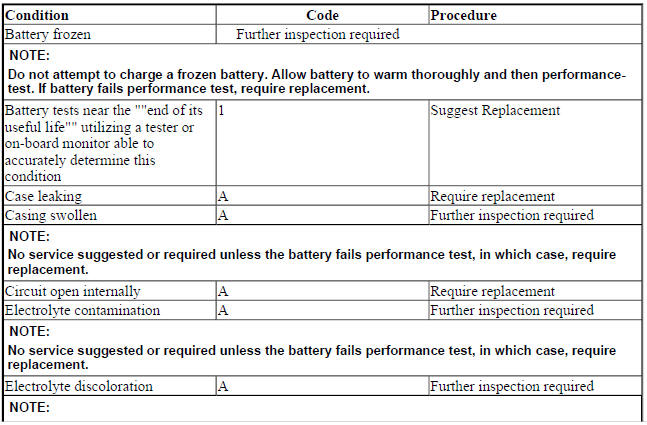

BATTERIES

NOTE: Proper operation of any electrical system or component can be affected by battery condition. The battery(ies) must meet or exceed minimum specification for vehicle as equipped and test to that specific battery's CCA.

Definition of Terms

Battery Performance Testing - Testing that determines whether or not a battery meets both vehicle OEM and battery manufacturer's specifications.

Cold Cranking Amp (CCA) Rating - The number of amperes a new, fully charged battery at 0º F ( -17.8º C) can deliver for 30 seconds and maintain at least a voltage of 1.2 volts per cell (7.2 volts for a 12-volt battery).

Cranking Amps (CA) - The number of amperes a new, fully charged battery, typically at 32º F (0º C) can deliver for 30 seconds and maintain at least a voltage of 1.2 volts per cell (7.2 volts for a 12volt battery).

OEM Cranking Amps - The minimum CCA required by the original vehicle manufacturer for a specific vehicle.

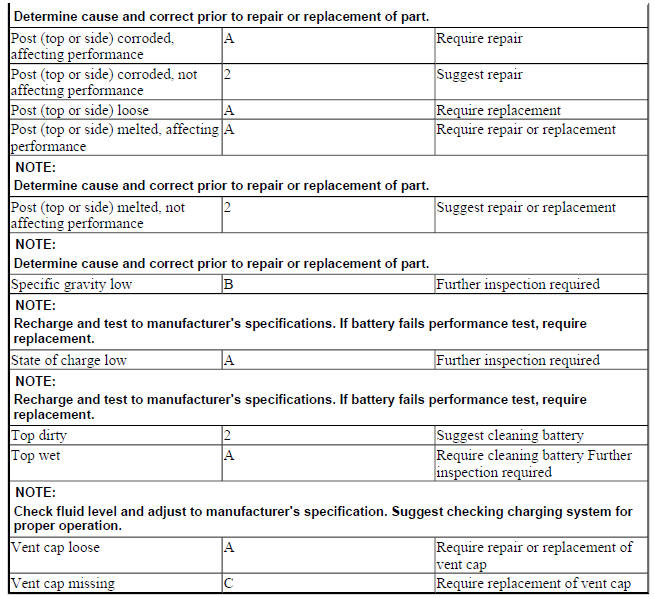

BATTERIES

BATTERIES

BATTERIES

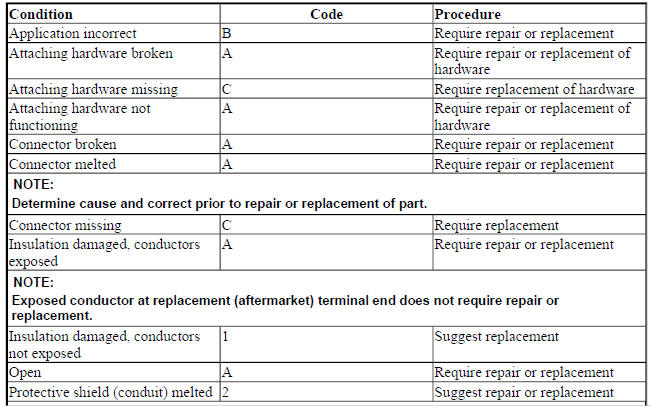

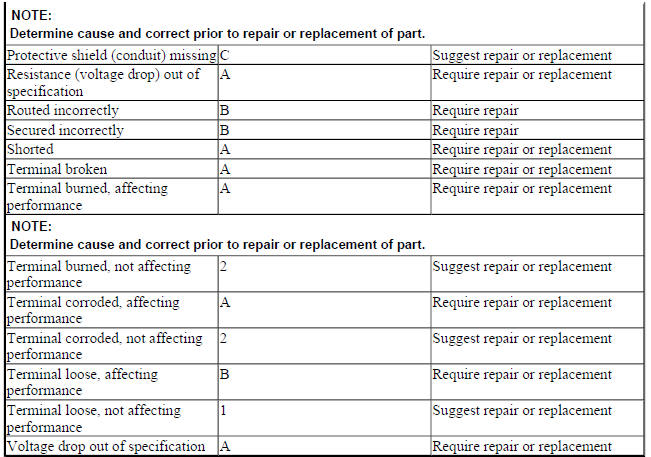

BATTERY CABLES

BATTERY CABLES

BATTERY CABLES

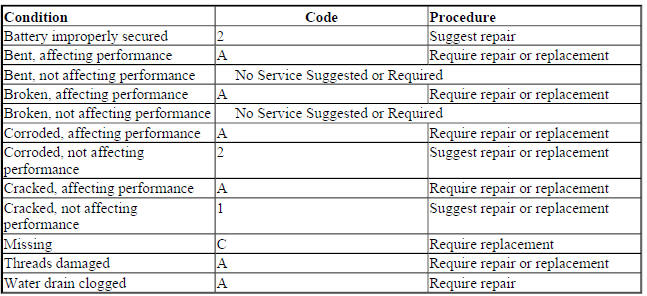

BATTERY TRAYS AND HOLD DOWN HARDWARE

BATTERY TRAYS AND HOLD DOWN HARDWARE

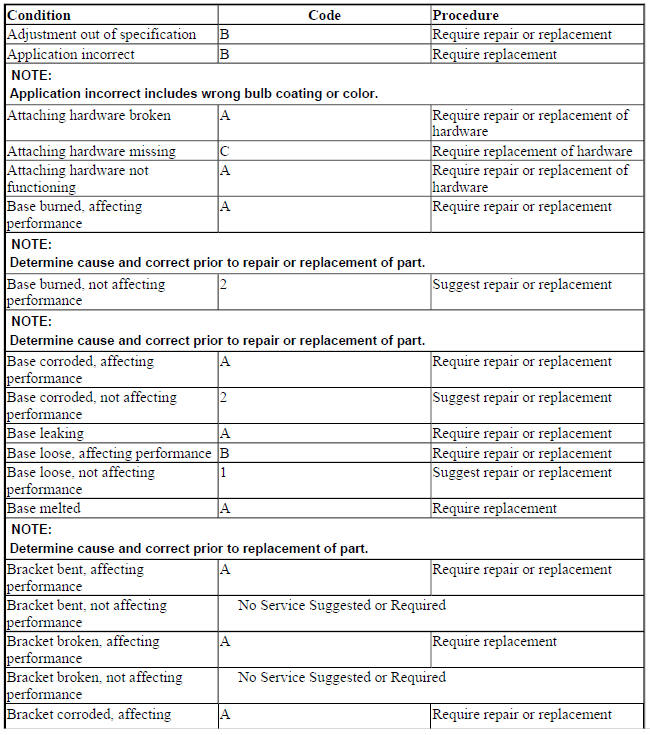

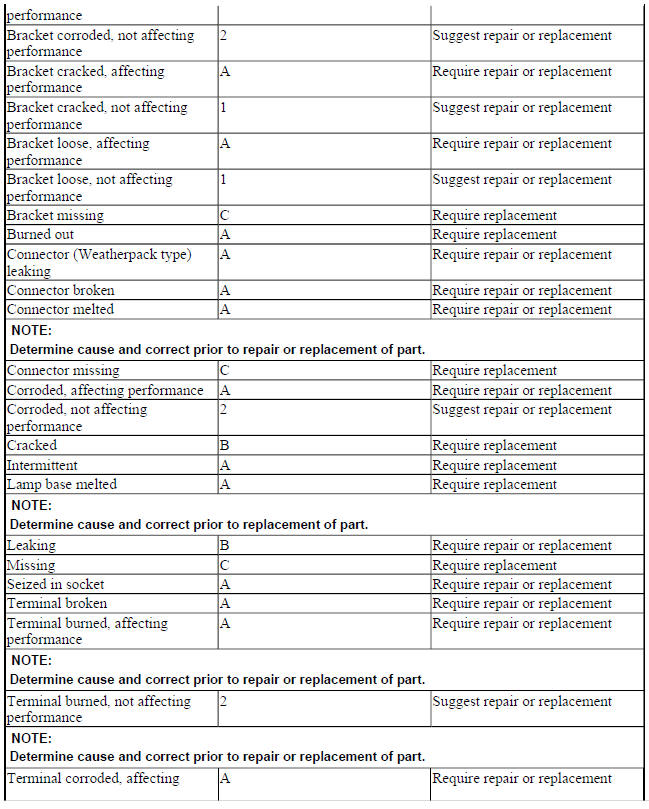

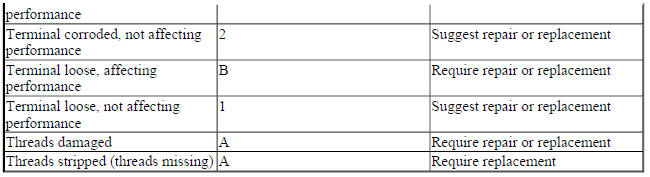

BULBS, SEALED BEAMS AND LEDS

NOTE: Does not include soldered-in components.

BULBS, SEALED BEAMS AND LEDS

BULBS, SEALED BEAMS AND LEDS

BULBS, SEALED BEAMS AND LEDS

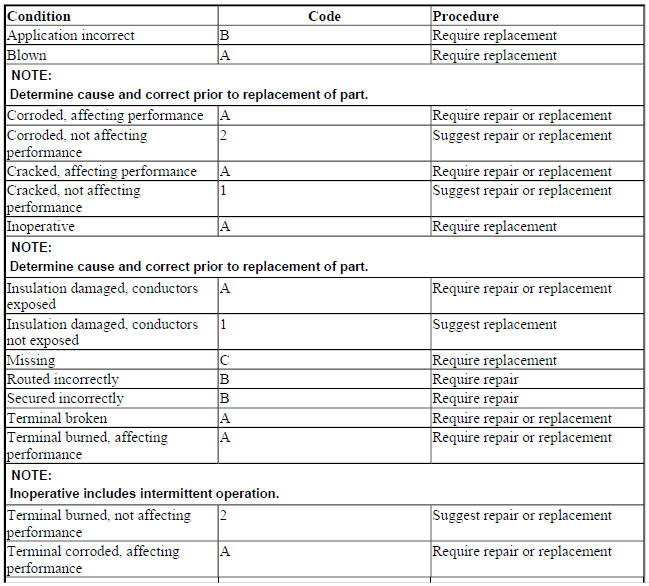

FUSES, FUSIBLE LINKS AND CIRCUIT BREAKERS

FUSES, FUSIBLE LINKS AND CIRCUIT BREAKERS

FUSES, FUSIBLE LINKS AND CIRCUIT BREAKERS

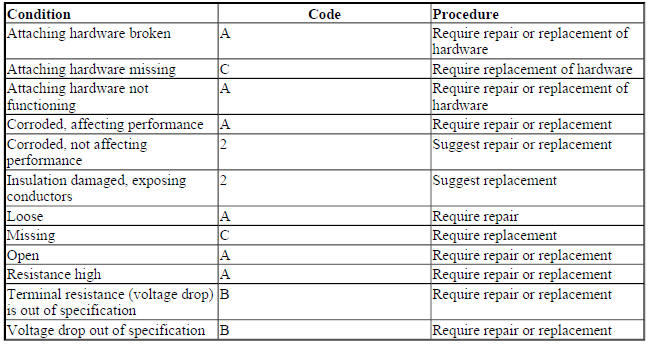

GROUND CABLES AND STRAPS

GROUND CABLES AND STRAPS

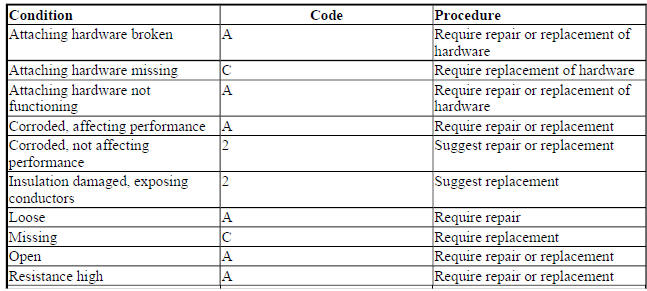

GROUND STRAPS

GROUND STRAPS

GROUND STRAPS

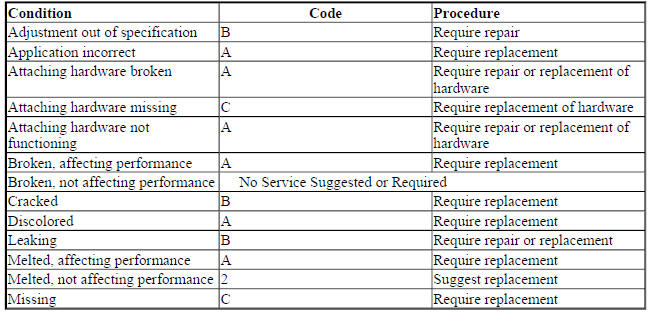

LENSES

LENSES

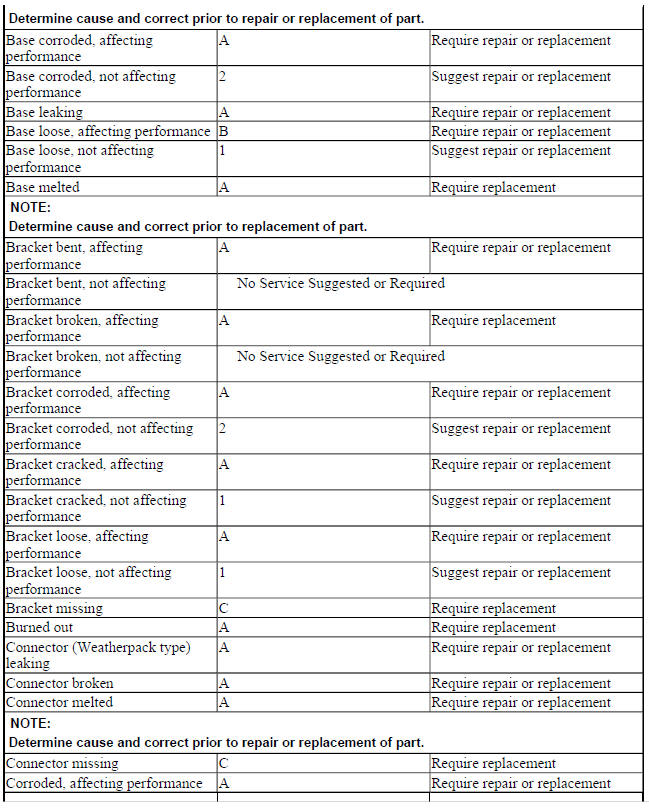

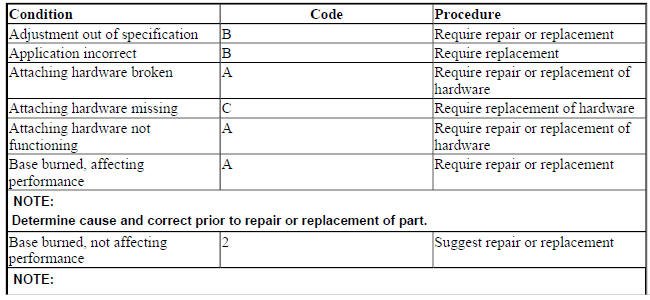

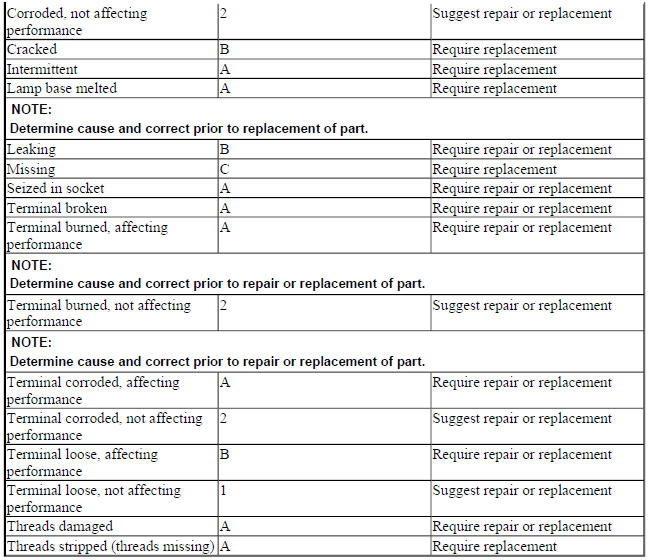

SEALED BEAMS

NOTE: Does not include soldered-in components.

SEALED BEAMS

SEALED BEAMS

SEALED BEAMS

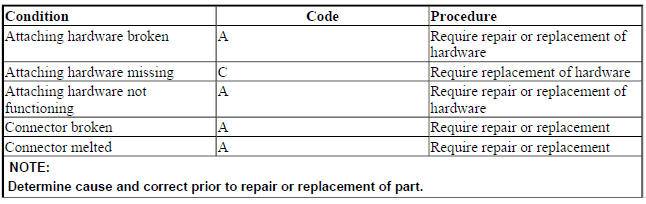

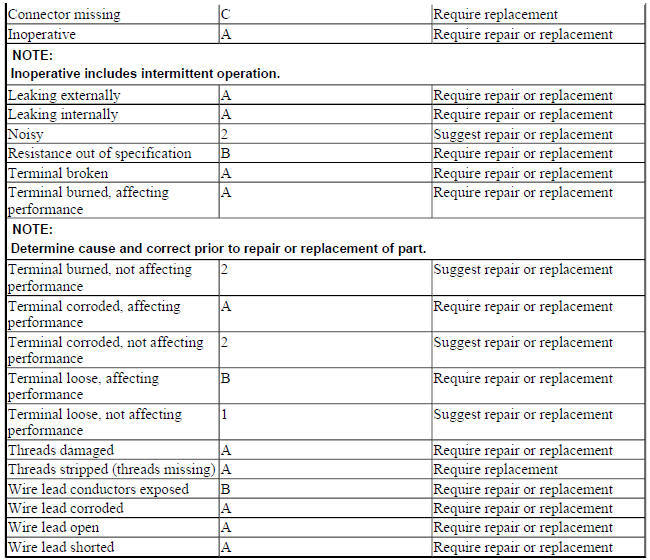

WASHER PUMPS

WASHER PUMPS

WASHER PUMPS

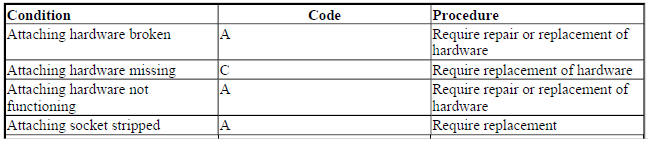

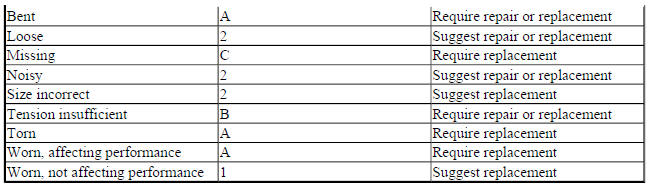

WIPER ARMS AND BLADES

NOTE: Windshield coatings or waxes can cause blades to not function as intended.

Clean surface before making final judgment about blade replacement.

WIPER ARMS AND BLADES

WIPER ARMS AND BLADES

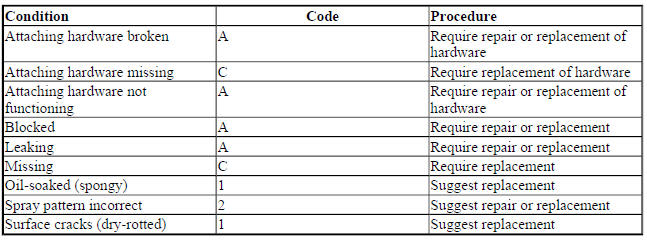

WIPER HOSES AND NOZZLES

WIPER HOSES AND NOZZLES

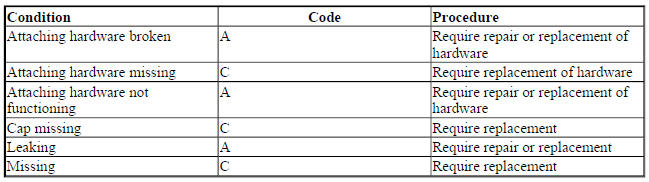

WIPER PUMP RESERVOIRS

WIPER PUMP RESERVOIRS

ENGINE PERFORMANCE AND MAINTENANCE

NOTE: CHEMICAL ENGINE DECARBONIZATION is a process utilizing chemicals to remove soft and semi-hardened gum, varnish, resin and carbon deposits from the air/fuel delivery systems and combustion chambers of gasoline internal combustion engines, providing benefits that include improved fuel economy, performance and driveability and reduced emissions. This process is performed to remove deposits preferably prior to deposit accumulation and hardening which may require costly mechanical deposit removal or component replacement.

NOTE: SUGGEST Chemical Engine Decarbonization service every 15,000 miles or 12 months.

NOTE: CONTAMINATED OIL SYSTEM SERVICE is an event based process (beyond that of a normal oil and filter change) performed to remove coolant, water or fuel contamination. Contamination increases oil's oxidation rate and has been shown to result in increased engine wear and reduced oil flow. CAUTION: Some OEM's (including GM and Honda) have issued Technical Service Bulletins advising that Chemical Crankcase Flushing may damage some engine components and that such damage will not be covered by the manufacturer's new car warranty.

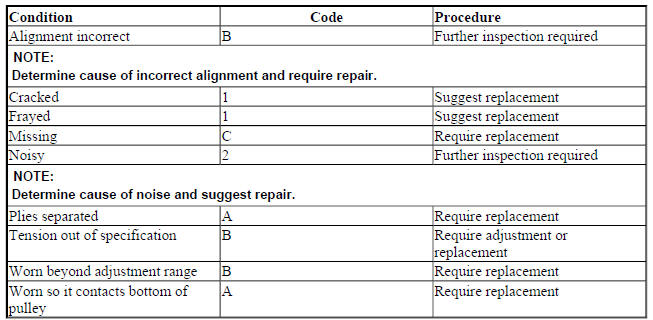

ACCESSORY BELTS

ACCESSORY BELTS

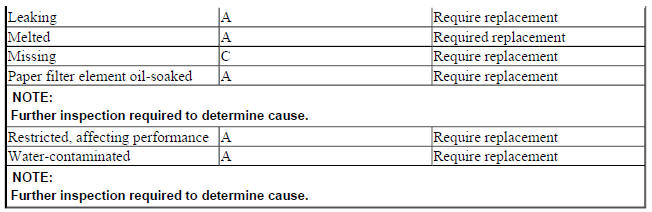

AIR FILTER ELEMENTS

AIR FILTER ELEMENTS

AIR FILTER ELEMENTS

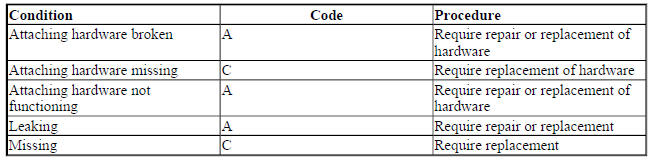

AIR FILTER GASKETS

AIR FILTER GASKETS

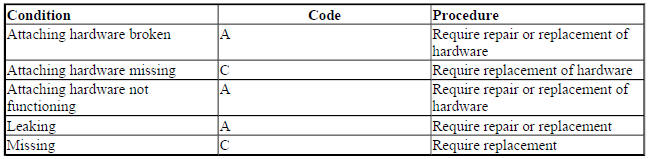

AIR FILTER HOUSINGS AND GASKETS

AIR FILTER HOUSINGS AND GASKETS

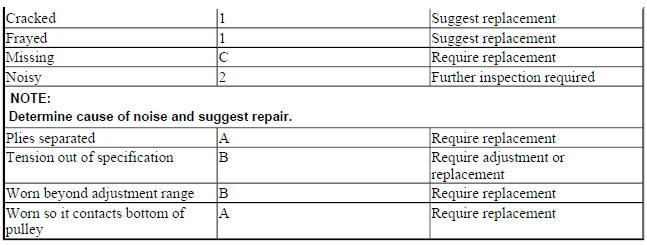

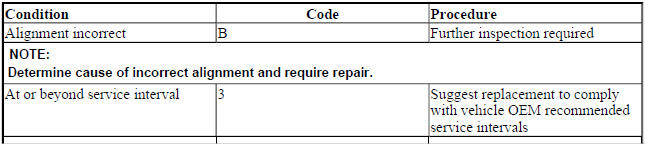

AIR PUMP BELTS

AIR PUMP BELTS

AIR PUMP BELTS

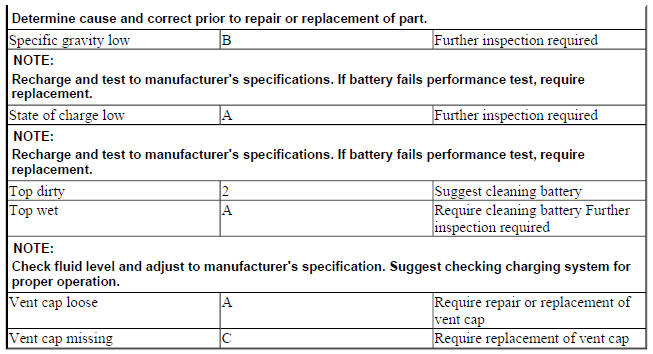

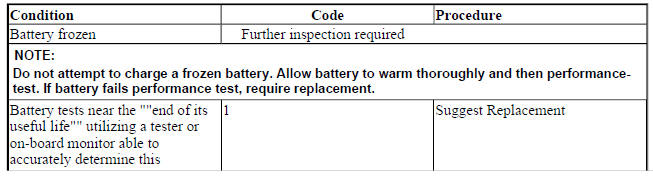

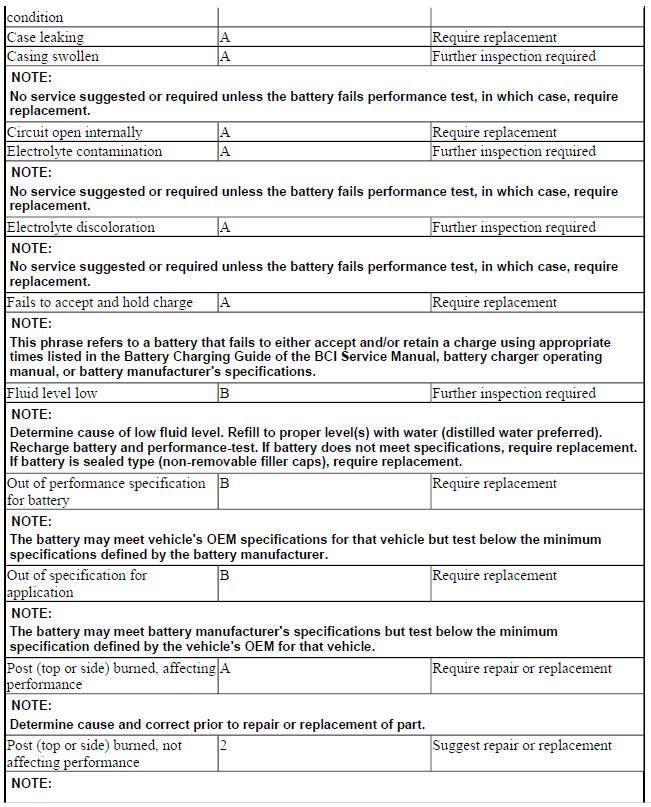

BATTERIES

NOTE: Proper operation of any electrical system or component can be affected by battery condition. The battery(ies) must meet or exceed minimum specification for vehicle as equipped and test to that specific battery's CCA.

Definition of Terms

Battery Performance Testing - Testing that determines whether or not a battery meets both vehicle OEM and battery manufacturer's specifications.

Cold Cranking Amp (CCA) Rating - The number of amperes a new, fully charged battery at 0º F ( -17.8º C) can deliver for 30 seconds and maintain at least a voltage of 1.2 volts per cell (7.2 volts for a 12-volt battery).

Cranking Amps (CA) - The number of amperes a new, fully charged battery, typically at 32º F (0º C) can deliver for 30 seconds and maintain at least a voltage of 1.2 volts per cell (7.2 volts for a 12volt battery).

OEM Cranking Amps - The minimum CCA required by the original vehicle manufacturer for a specific vehicle.

BATTERIES

BATTERIES

BATTERIES

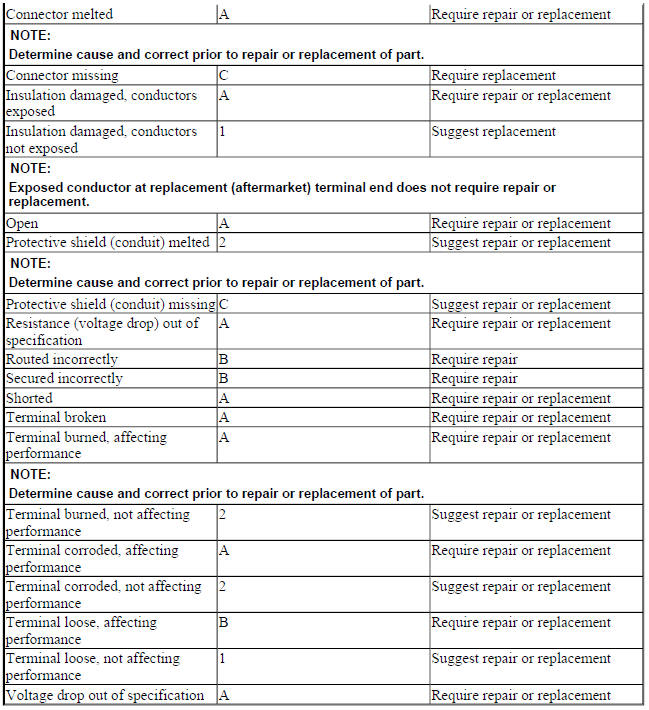

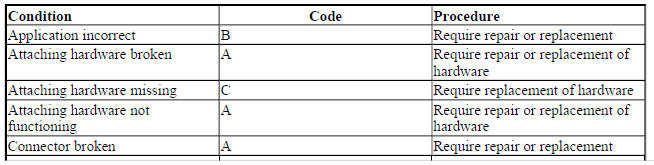

BATTERY CONNECTORS

BATTERY CONNECTORS

BATTERY CONNECTORS

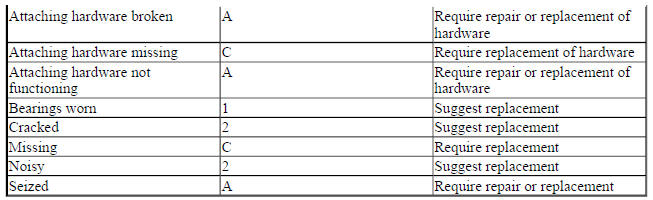

BELT IDLER ASSEMBLIES (ACCESSORY AND CAM BELTS)

BELT IDLER ASSEMBLIES (ACCESSORY AND CAM BELTS)

BELT IDLER ASSEMBLIES (ACCESSORY AND CAM BELTS)

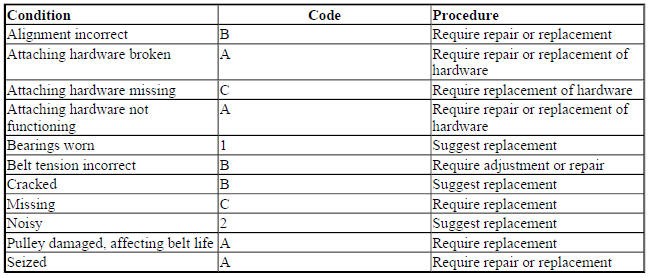

BELT TENSIONERS (ACCESSORY AND CAM BELT)

BELT TENSIONERS (ACCESSORY AND CAM BELT)

CHEMICAL ENGINE DECARBONIZATION

NOTE: Chemical engine decarbonization is a process utilizing chemicals to remove soft and semi-hardened gum, varnish, resin and carbon deposits from the air/fuel delivery systems and combustion chambers of gasoline internal combustion engines, providing benefits that include improved fuel economy, performance and driveability and reduced emissions. This process is performed to remove deposits preferably prior to deposit accumulation and hardening which may require costly mechanical deposit removal or component replacement.

NOTE: SUGGEST Chemical Engine Decarbonization service every 15,000 miles or 12 months.

COMBUSTION CHAMBER CLEANING

NOTE: See CHEMICAL ENGINE DECARBONIZATION.

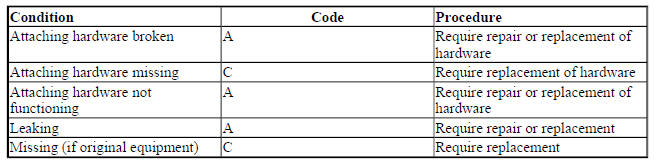

COOLANT RECOVERY TANKS

COOLANT RECOVERY TANKS

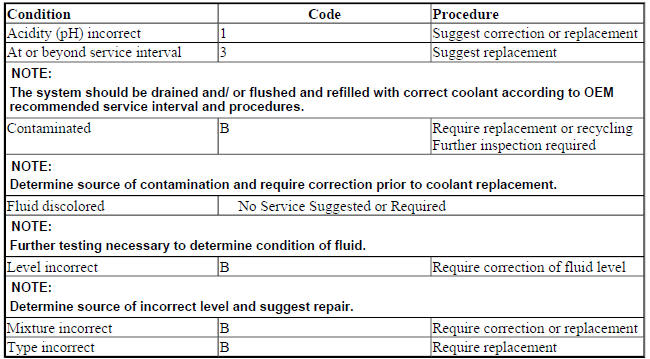

COOLANT

COOLANT

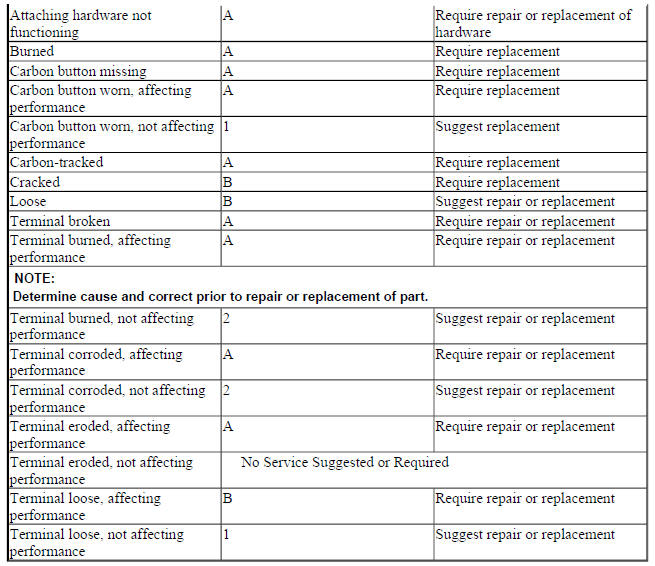

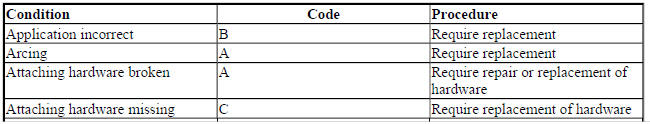

DISTRIBUTOR CAPS

DISTRIBUTOR CAPS

DISTRIBUTOR CAPS

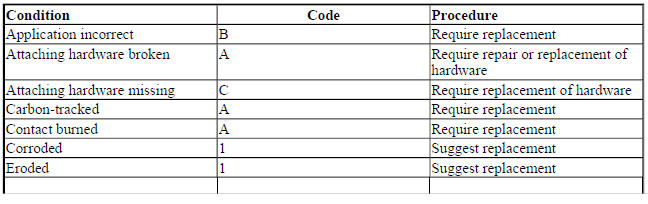

DISTRIBUTOR ROTORS

DISTRIBUTOR ROTORS

DISTRIBUTOR ROTORS

ENGINE COOLING SYSTEMS

NOTE: Overheating, poor engine performance, and insufficient cabin heat can be affected by, but are not limited to, all of the components in the engine cooling system.

ENGINE DECARBONIZATION

NOTE: See CHEMICAL ENGINE DECARBONIZATION.

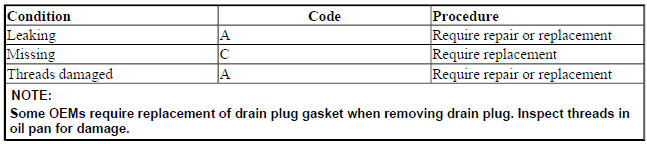

ENGINE OIL DRAIN PLUGS AND GASKETS

ENGINE OIL DRAIN PLUGS AND GASKETS

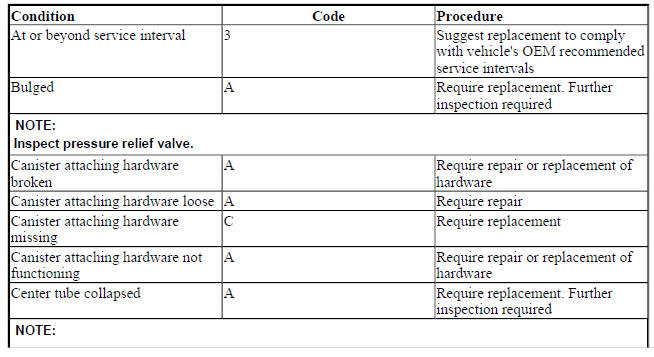

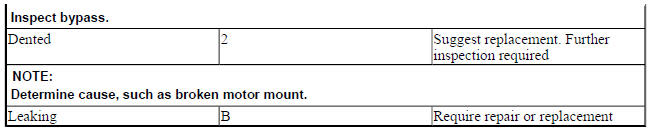

ENGINE OIL FILTERS AND CANISTERS

ENGINE OIL FILTERS AND CANISTERS

ENGINE OIL FILTERS AND CANISTERS

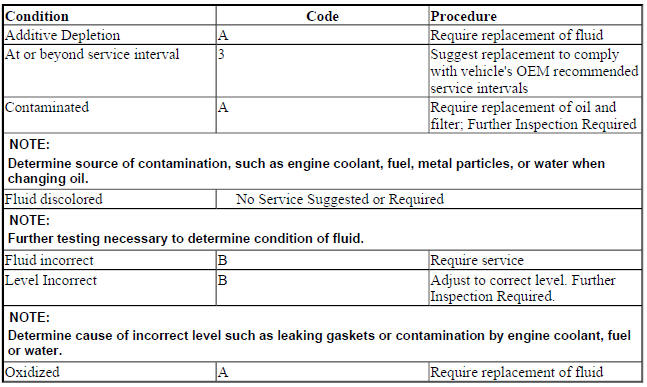

ENGINE OIL

ENGINE OIL

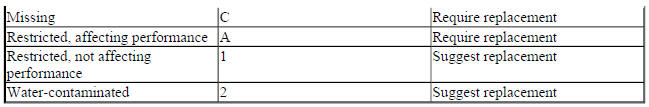

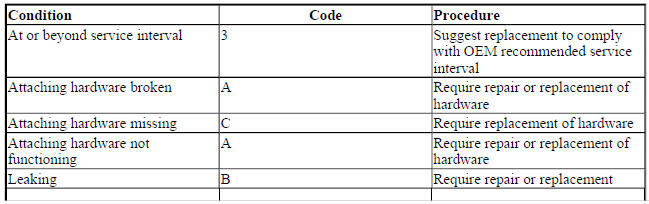

FUEL FILTERS

FUEL FILTERS

FUEL FILTERS

FUEL INJECTOR CLEANING

NOTE: See CHEMICAL ENGINE DECARBONIZATION.

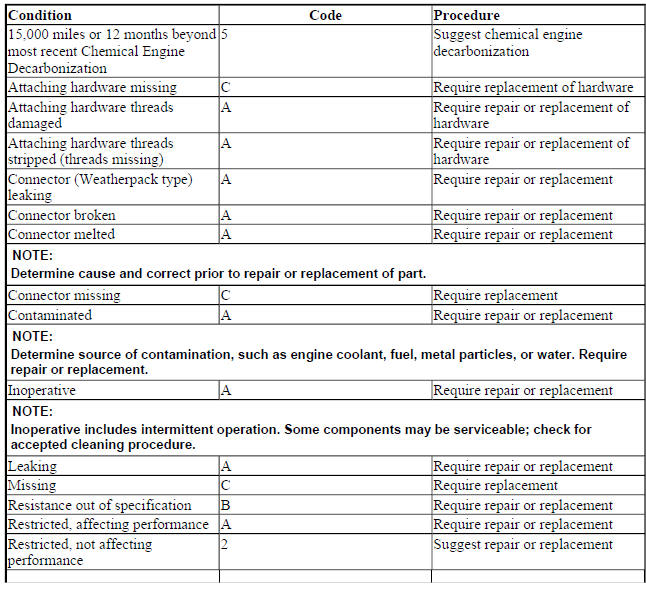

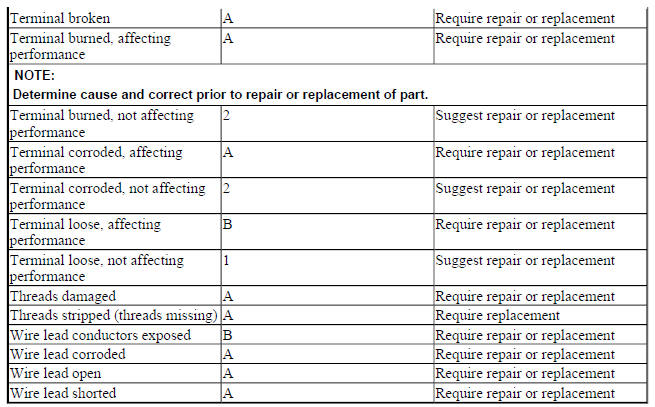

FUEL INJECTORS

FUEL INJECTORS

FUEL INJECTORS

FUEL SYSTEM CLEANING SERVICE

NOTE: See CHEMICAL ENGINE DECARBONIZATION.

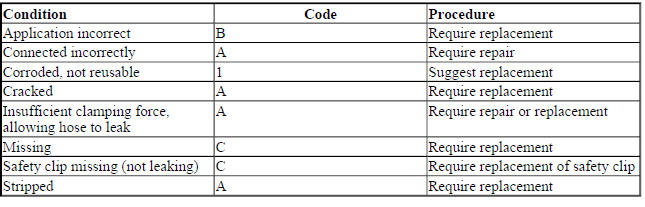

HOSE CLAMPS

HOSE CLAMPS

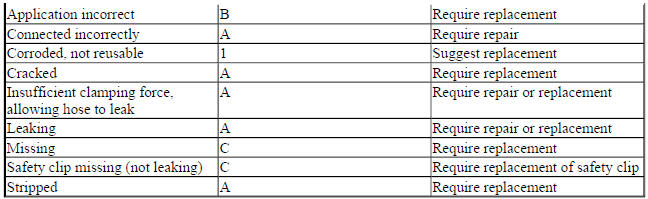

HOSE CONNECTORS

HOSE CONNECTORS

HOSE CONNECTORS

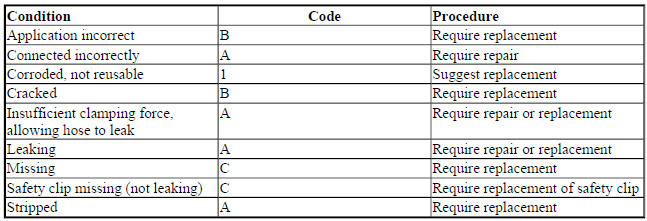

HOSE COUPLERS

HOSE COUPLERS

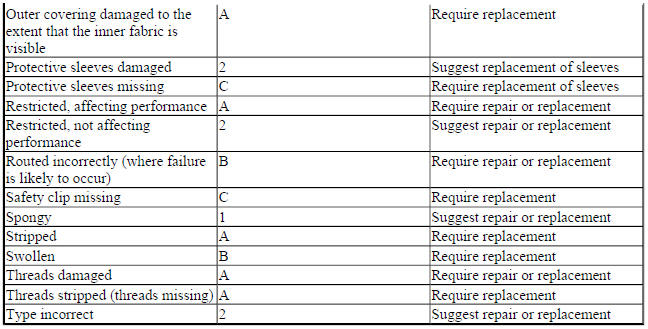

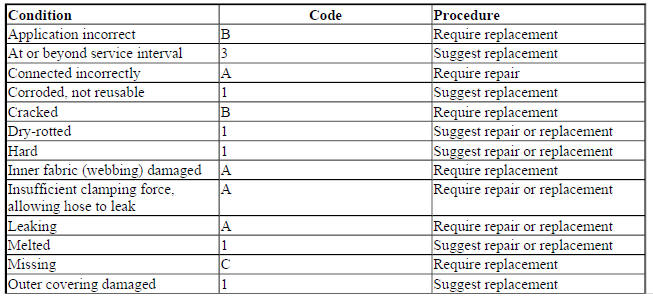

HOSES AND TUBES (FUEL LINES, RADIATOR, VACUUM, BY-PASS, HEATER, RECOVERY TANK AND OIL COOLERS)

HOSES AND TUBES (FUEL LINES, RADIATOR, VACUUM, BY-PASS, HEATER, RECOVERY TANK AND OIL COOLERS)

HOSES AND TUBES (FUEL LINES, RADIATOR, VACUUM, BY-PASS, HEATER, RECOVERY TANK AND OIL COOLERS)

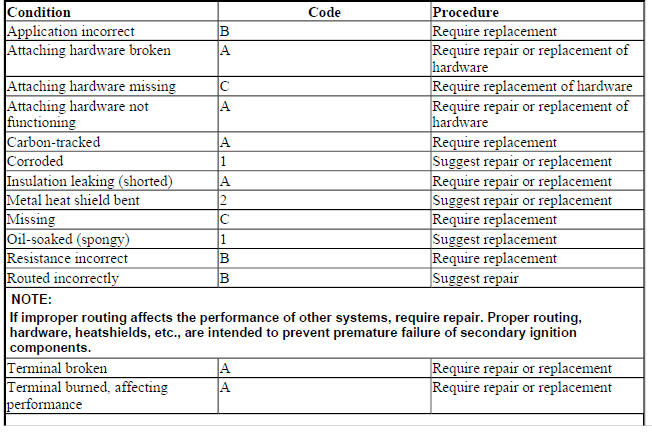

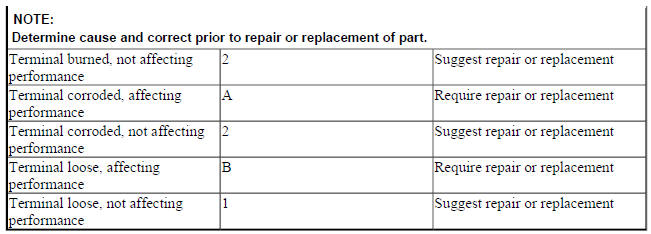

IGNITION WIRES (SECONDARY)

IGNITION WIRES (SECONDARY)

IGNITION WIRES (SECONDARY)

INTAKE CLEANING

NOTE: See CHEMICAL ENGINE DECARBONIZATION.

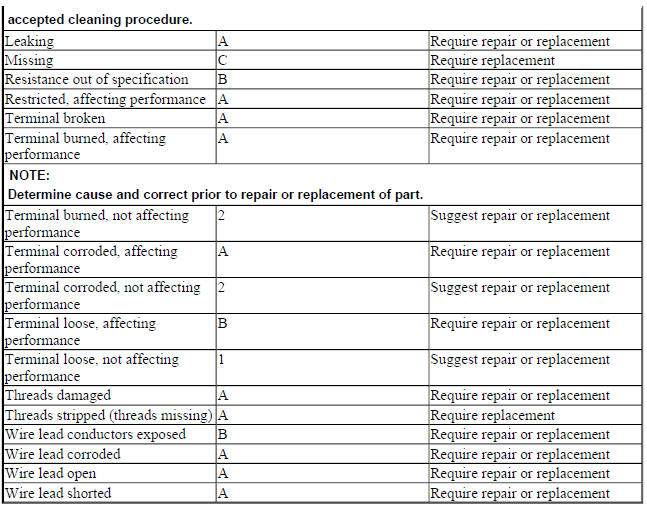

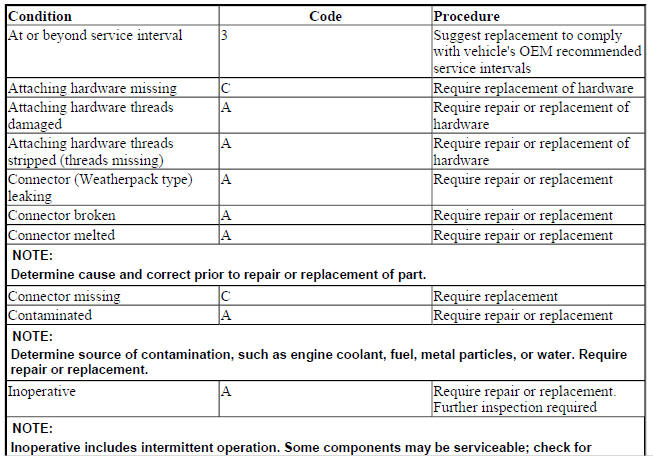

O2 SENSORS

O2 SENSORS

O2 SENSORS

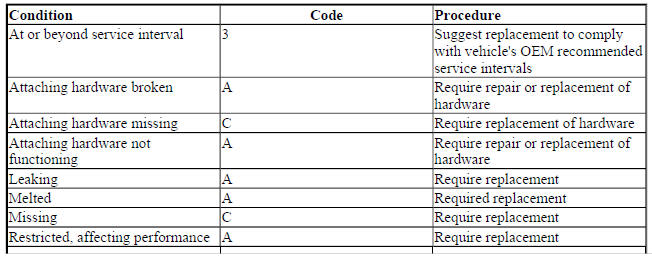

PCV BREATHER ELEMENTS

PCV BREATHER ELEMENTS

PCV BREATHER ELEMENTS

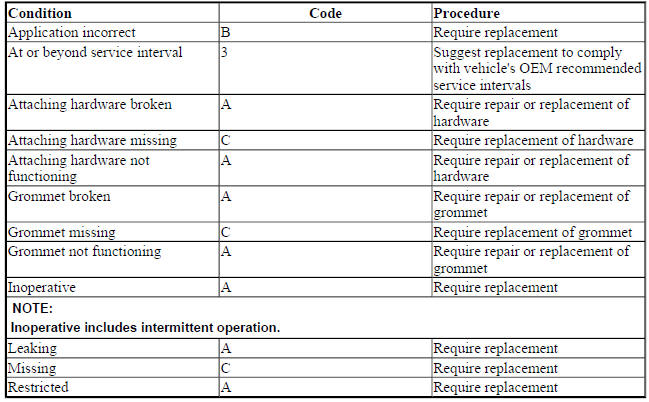

PCV VALVES

PCV VALVES

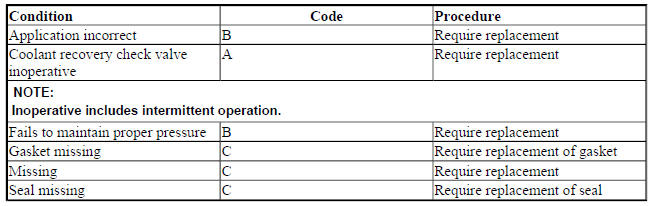

RADIATOR CAPS AND PRESSURIZED EXPANSION TANK CAPS

RADIATOR CAPS AND PRESSURIZED EXPANSION TANK CAPS

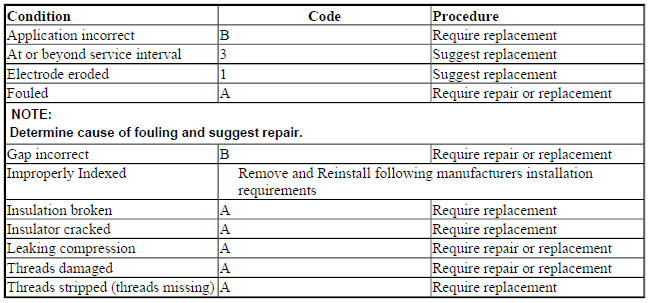

SPARK PLUGS

NOTE: You are not required to replace spark plugs in sets. However, you may suggest replacement of the other plugs for preventive maintenance.

SPARK PLUGS

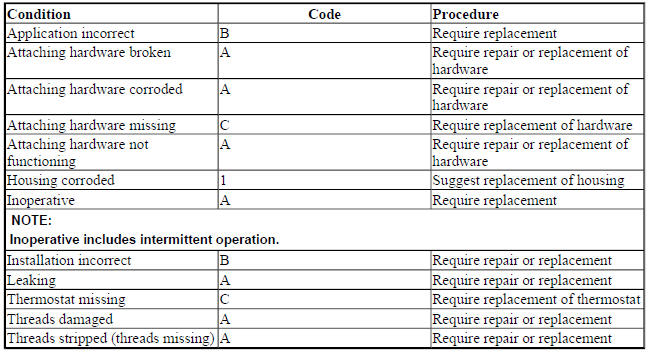

THERMOSTATS AND HOUSINGS

THERMOSTATS AND HOUSINGS

THROTTLE BODY CLEANING

NOTE: See CHEMICAL ENGINE DECARBONIZATION.

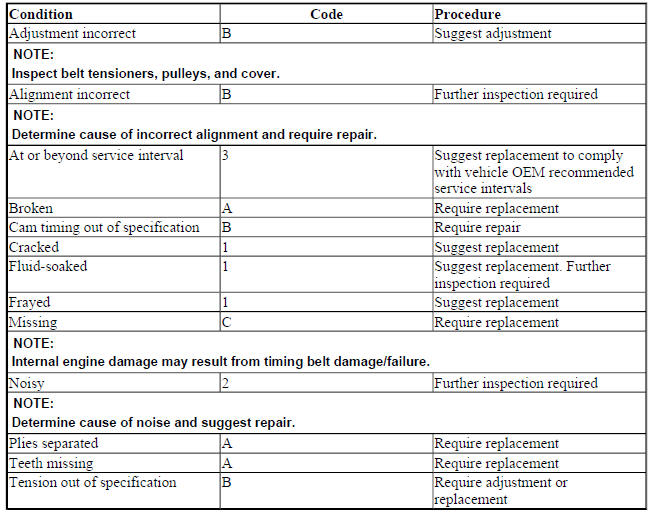

TIMING BELTS

TIMING BELTS

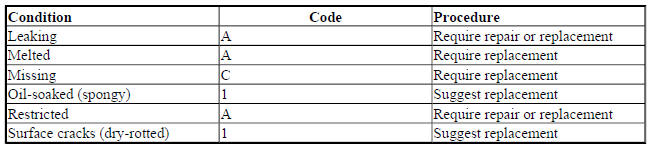

VACUUM HOSES, TUBES AND CONNECTIONS (NON-METALLIC)

VACUUM HOSES, TUBES AND CONNECTIONS (NON-METALLIC)

EXHAUST SYSTEMS

WARNING: Federal EPA rules prohibit altering an exhaust system in any way that defeats the emission reduction components of a vehicle. Be sure to review and adhere to EPA policy on removing and replacing catalytic converters. Where state or local laws are stricter, they take precedence over these guidelines.

NOTE: Some exhaust systems are of a welded design. It is not required that the entire system be replaced. Determine the need to replace individual components based on conditions of component.

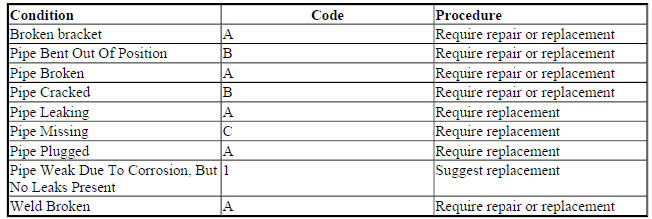

EXHAUST AND TAIL PIPES

EXHAUST AND TAIL PIPES
