Chevrolet Trax: Reclining Seatbacks

Warning

If either seatback is not locked, it could move forward in a sudden stop or crash. That could cause injury to the person sitting there.

Always push and pull on the seatbacks to be sure they are locked.

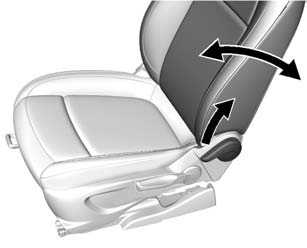

Manual Seat Shown, Power Seat Similar
Manual Seat Shown, Power Seat Similar

To recline the seatback:

  1. Lift the lever.

    If necessary, move the safety belt out of the way to access the lever.

  2.  Move the seatback to the desired position, then release the lever to lock the seatback in place.
  3. Push and pull on the seatback to make sure it is locked.

To return the seatback to an upright position:

  1. Lift the lever fully without applying pressure to the seatback, and the seatback returns to the upright position.
  2. Push and pull on the seatback to make sure it is locked.

Warning

Sitting in a reclined position when the vehicle is in motion can be dangerous. Even when buckled up, the safety belts cannot do their job.

The shoulder belt will not be against your body. Instead, it will be in front of you. In a crash, you could go into it, receiving neck or other injuries.

The lap belt could go up over your abdomen. The belt forces would be there, not at your pelvic bones. This could cause serious internal injuries.

For proper protection when the vehicle is in motion, have the seatback upright. Then sit well back in the seat and wear the safety belt properly.

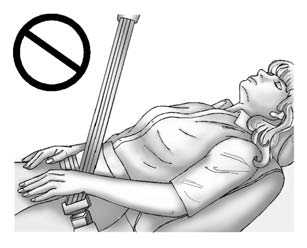

Reclining Seatbacks

Do not have a seatback reclined if the vehicle is moving.

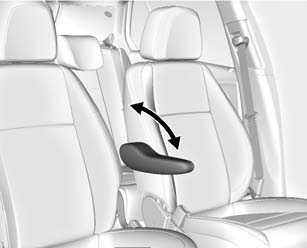

Front Seat Armrest

Front Seat Armrest

There may be an armrest on the inboard side of the driver seat. To raise or lower the armrest, push up or pull down on the armrest.
