Chevrolet Trax: Rear seat back cushion panel replacement

Chevrolet Trax (2013-2022) Workshop Manual / Accessories & Equipment / Seat Hardware, Trim, and Upholstery / Seat Hardware, Trim, and Upholstery - Repair instructions / Rear seat back cushion panel replacement

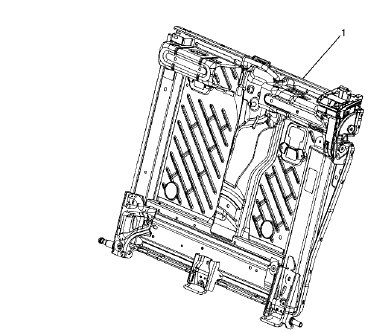

Fig. 37: Rear Seat Back Cushion Panel
Fig. 37: Rear Seat Back Cushion Panel

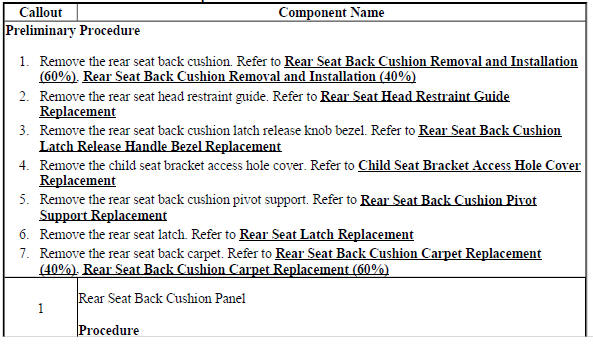

Rear Seat Back Cushion Panel Replacement

Rear Seat Back Cushion Panel Replacement

Rear Seat Back Cushion Panel Replacement

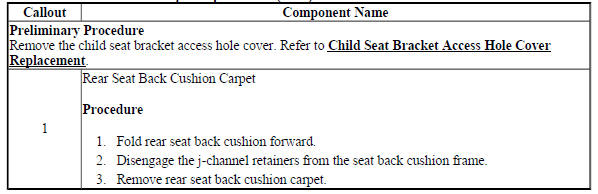

REAR SEAT BACK CUSHION CARPET REPLACEMENT (40%)

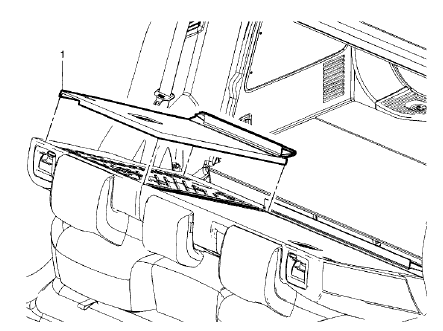

Fig. 38: Rear Seat Back Cushion Carpet (40%)
Fig. 38: Rear Seat Back Cushion Carpet (40%)

Rear Seat Back Cushion Carpet Replacement (40%)

Rear Seat Back Cushion Carpet Replacement (40%)

REAR SEAT BACK CUSHION CARPET REPLACEMENT (60%)

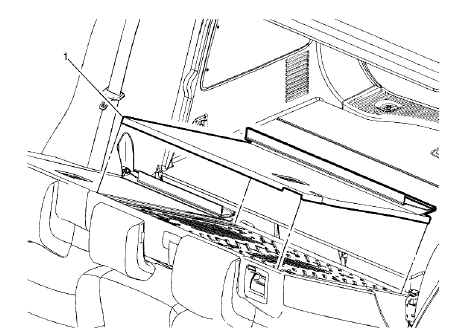

Fig. 39: Rear Seat Back Cushion Carpet (60%)
Fig. 39: Rear Seat Back Cushion Carpet (60%)

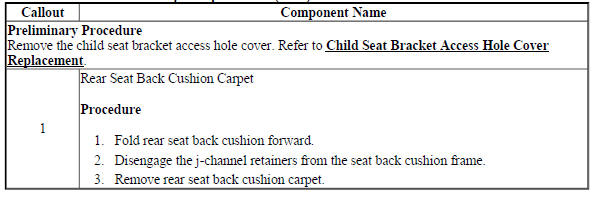

Rear Seat Back Cushion Carpet Replacement (60%)

Rear Seat Back Cushion Carpet Replacement (60%)

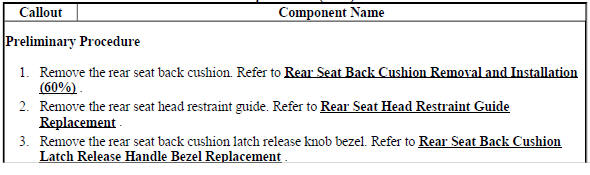

REAR SEAT BACK CUSHION COVER AND PAD REPLACEMENT (40%)

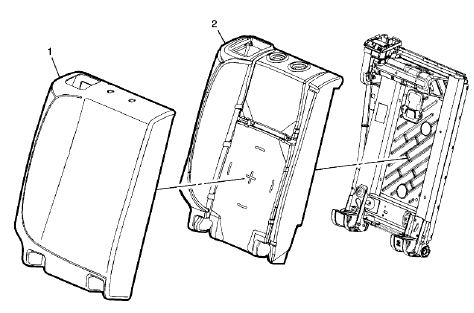

Fig. 40: Rear Seat Back Cushion Cover And Pad (40%)
Fig. 40: Rear Seat Back Cushion Cover And Pad (40%)

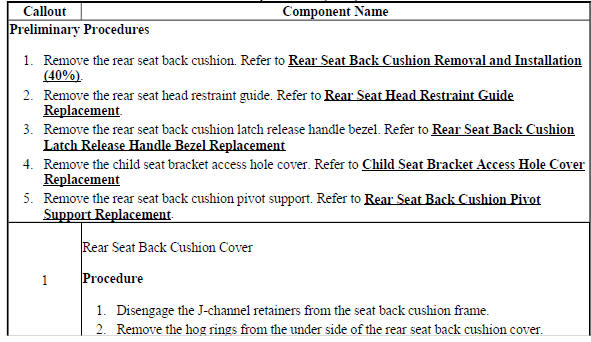

Rear Seat Back Cushion Cover and Pad Replacement (40%)

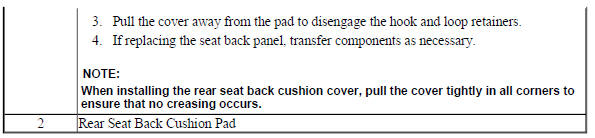

Rear Seat Back Cushion Cover and Pad Replacement (40%)

Rear Seat Back Cushion Cover and Pad Replacement (40%)

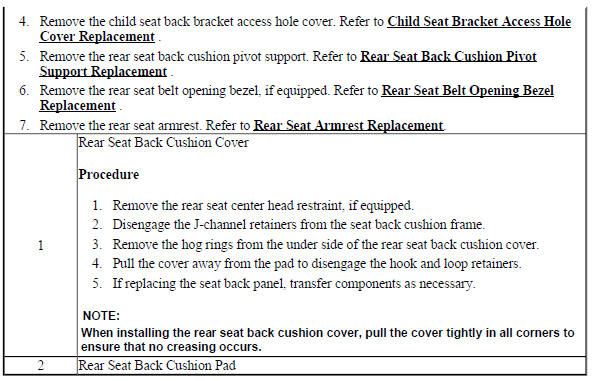

REAR SEAT BACK CUSHION COVER AND PAD REPLACEMENT (60%)

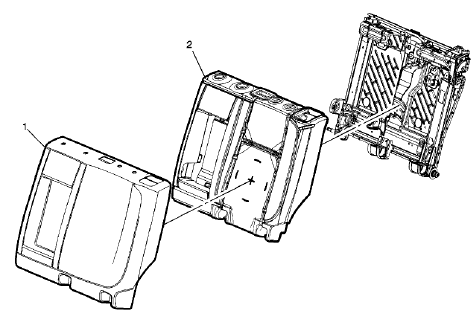

Fig. 41: Rear Seat Back Cushion Cover And Pad (60%)
Fig. 41: Rear Seat Back Cushion Cover And Pad (60%)

Rear Seat Back Cushion Cover and Pad Replacement (60%)

Rear Seat Back Cushion Cover and Pad Replacement (60%)

Rear Seat Back Cushion Cover and Pad Replacement (60%)

REAR SEAT BACK CUSHION HINGE REPLACEMENT

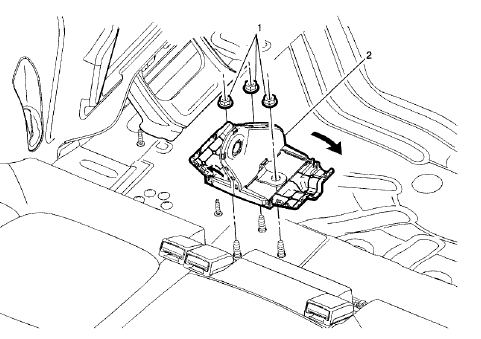

Fig. 42: Rear Seat Back Cushion Hinge
Fig. 42: Rear Seat Back Cushion Hinge

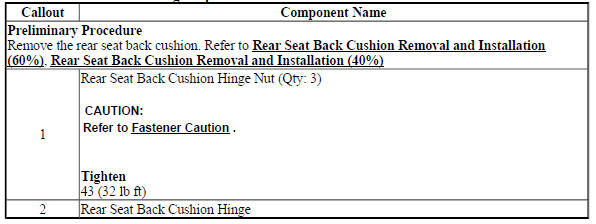

Rear Seat Back Cushion Hinge Replacement

Rear Seat Back Cushion Hinge Replacement

REAR SEAT BACK CUSHION LATCH RELEASE HANDLE BEZEL REPLACEMENT

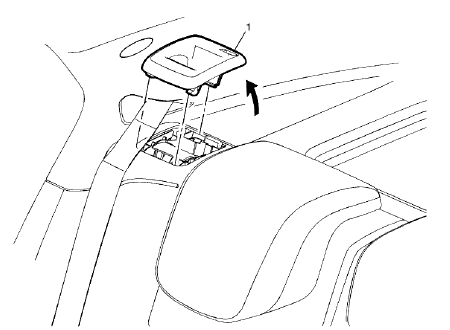

Fig. 43: Rear Seat Back Cushion Latch Release Handle Bezel
Fig. 43: Rear Seat Back Cushion Latch Release Handle Bezel

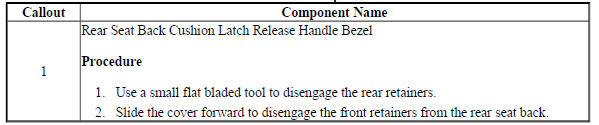

Rear Seat Back Cushion Latch Release Handle Bezel Replacement

Rear Seat Back Cushion Latch Release Handle Bezel Replacement
