Chevrolet Trax: Lap-Shoulder Belt (U.S. and Canada)

All seating positions in the vehicle have a lap-shoulder belt.

The following instructions explain how to wear a lap-shoulder belt properly.

  1. Adjust the seat, if the seat is adjustable, so you can sit up straight. To see how, see "Seats" in the Index.

Lap-Shoulder Belt (U.S. and Canada)

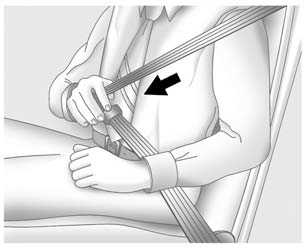

  1. Pick up the latch plate and pull the belt across you. Do not let it get twisted.

The lap-shoulder belt may lock if you pull the belt across you very quickly. If this happens, let the belt go back slightly to unlock it.

Then pull the belt across you more slowly.

If the shoulder portion of a passenger belt is pulled out all the way, the child restraint locking feature may be engaged.

If this happens, let the belt go back all the way and start again.

The rear center safety belt can only be withdrawn from the retractor if the seatback is in the upright locked position.

Lap-Shoulder Belt (U.S. and Canada)

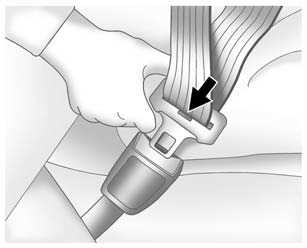

  1. Push the latch plate into the buckle until it clicks.
  2. Pull up on the latch plate to make sure it is secure. If the belt is not long enough, see Safety Belt Extender

Position the release button on the buckle so that the safety belt could be quickly unbuckled if necessary.

  1. If equipped with a shoulder belt height adjuster, move it to the height that is right for you. See "Shoulder Belt Height Adjuster" later in this section for instructions on use and important safety information.

Lap-Shoulder Belt (U.S. and Canada)

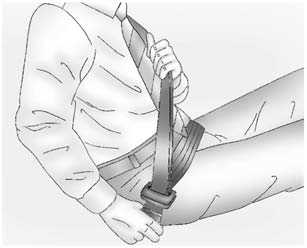

  1. To make the lap part tight, pull up on the shoulder belt.

    It may be necessary to pull the stitching on the safety belt through the latch plate to fully tighten the lap belt on smaller occupants.

Lap-Shoulder Belt (U.S. and Canada)

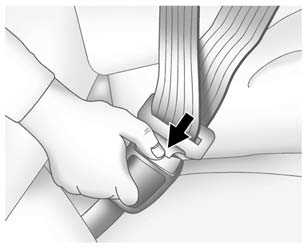

To unlatch the belt, push the button on the buckle. The belt should return to its stowed position. Slide the latch plate up the safety belt webbing when the safety belt is not in use.

Before a door is closed, be sure the safety belt is out of the way. If a door is slammed against a safety belt, damage can occur to both the safety belt and the vehicle.
