Chevrolet Trax: Rear disc brake pads replacement

Removal Procedure

WARNING: Refer to Brake Dust Warning .

  1. Inspect the fluid level in the brake master cylinder reservoir.
  2. If the brake fluid level is midway between the maximum-full point and the minimum allowable level, no brake fluid needs to be removed before proceeding.
  3. If the brake fluid level is higher than midway between the maximum-full point and the minimum allowable level, remove brake fluid to the midway point before proceeding.
  4. Raise and support the vehicle. Refer to Lifting and Jacking the Vehicle .
  5. Remove the tire and wheel assembly. Refer to Tire and Wheel Removal and Installation .

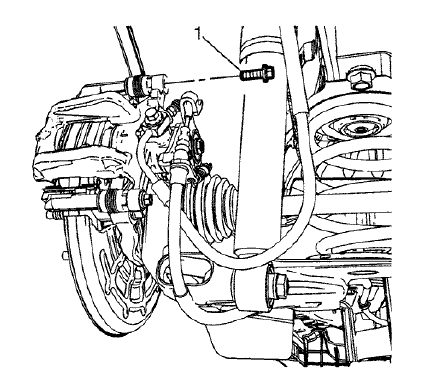

Fig. 18: Caliper Guide Pin Bolts
Fig. 18: Caliper Guide Pin Bolts

NOTE:

  • DO NOT use any air tools to remove or install the guide pin bolts. Use hand tools ONLY.
  • Install an open end wrench to hold the caliper guide pin in line with the brake caliper while removing or installing the caliper guide pin bolt. DO NOT allow the open end wrench to come in contact with the brake caliper. Allowing the open end wrench to come in contact with the brake caliper will cause a pulsation when the brakes are applied.
  1. Using a backup wrench to hold the brake caliper guide pin stationary, remove the upper brake caliper guide pin bolt (1).

CAUTION: Support the brake caliper with heavy mechanic wire, or equivalent, whenever it is separated from its mount and the hydraulic flexible brake hose is still connected. Failure to support the caliper in this manner will cause the flexible brake hose to bear the weight of the caliper, which may cause damage to the brake hose and in turn may cause a brake fluid leak.

  1. Rotate the brake caliper downward and support with heavy mechanics wire.

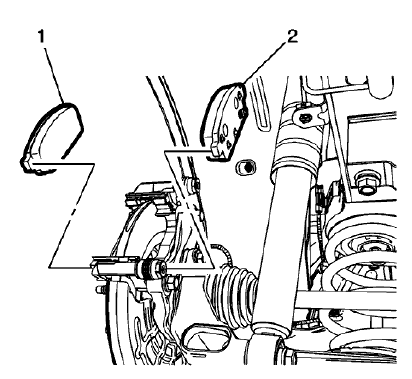

Fig. 19: Disc Brake Pads
Fig. 19: Disc Brake Pads

  1. Remove the outer brake pad (1).

NOTE: The inner brake pad is equipped with the wear sensor.

  1. Remove the inner brake pad (2).

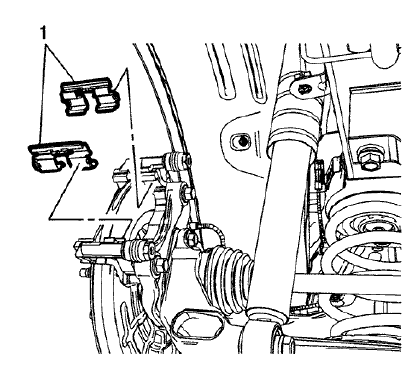

Fig. 20: Lower Brake Pad Springs
Fig. 20: Lower Brake Pad Springs

  1. Remove the upper and lower brake pad springs (1).

Installation Procedure

  1. Thoroughly clean the contact surfaces of the brake caliper bracket of any corrosion or debris.

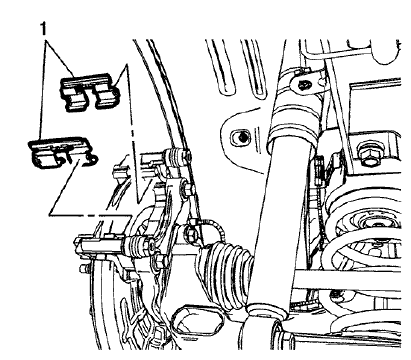

Fig. 21: Lower Brake Pad Springs
Fig. 21: Lower Brake Pad Springs

NOTE: If installing new brake pads, install new brake pad springs.

  1. Install the upper and lower brake pad springs (1).

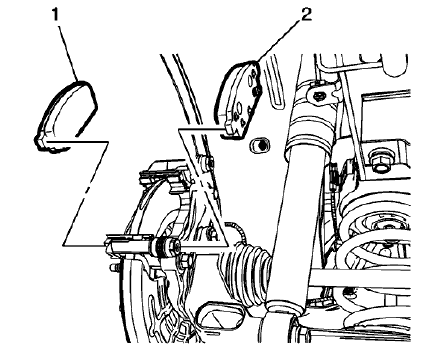

Fig. 22: Disc Brake Pads
Fig. 22: Disc Brake Pads

  1. Install the outer brake pad (1).

NOTE: The inner brake pad is equipped with the wear sensor.

  1. Install the inner brake pad (2).
  2. Using an appropriate brake caliper piston spanner tool, slowly rotate the brake caliper piston clockwise while applying inward pressure to the brake caliper piston until the piston is fully seated in the brake caliper housing.
  3. Ensure the notches in the brake caliper piston align correctly with the pins on the inner disc brake pad.
  4. Position the brake caliper over the brake pads and to the caliper bracket.

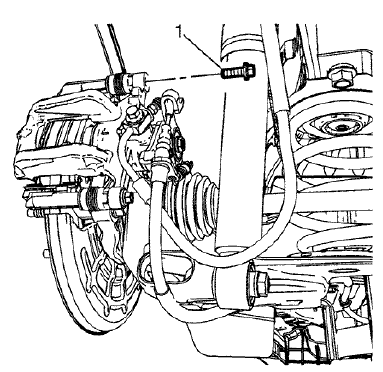

Fig. 23: Caliper Guide Pin Bolts
Fig. 23: Caliper Guide Pin Bolts

CAUTION: Refer to Fastener Caution .

  1. Using a backup wrench to hold the brake caliper guide pin stationary, install the upper brake caliper guide pin bolt (1) and tighten to 28 N.m (21 lb ft).
  2. Install the tire and wheel assembly. Refer to Tire and Wheel Removal and Installation .
  3. With the engine OFF, gradually apply the brake pedal to approximately 2/3 of its travel distance.
  4. Slowly release the brake pedal.
  5. Wait 15 seconds, then repeat steps 8-9 until a firm brake pedal is obtained. This will properly seat the brake caliper piston and brake pads.
  6. Fill the master cylinder reservoir. Refer to Master Cylinder Reservoir Filling .
  7. Burnish the brake pads and rotors. Refer to Brake Pad and Rotor Burnishing.
