Chevrolet Trax: Brake pad and rotor burnishing

WARNING: Road test a vehicle under safe conditions and while obeying all traffic laws. Do not attempt any maneuvers that could jeopardize vehicle control.

Failure to adhere to these precautions could lead to serious personal injury and vehicle damage.

Burnishing the brake pads and brake rotors is necessary in order to ensure that the braking surface are properly prepared after service has been performed on the disc brake system.

This procedure should be performed whenever the disc brake rotors have been refinished or replaced, and/or whenever the brake pads have been replaced.

  1. Select a smooth road with little or no traffic.
  2. Accelerate the vehicle to 48 km/h (30 mph).

NOTE: Use care to avoid overheating the brakes while performing this step as it may adversely affect the heating characteristics of the NEW brake pad material.

  1. Using moderate pressure, apply the brakes to bring the vehicle to a stop. Do not allow the brakes to lock.
  2. Repeat steps 2 and 3 until approximately 20 stops have been completed. Allow sufficient cooling periods between stops in order to properly burnish the brake pads and rotors.

FRONT BRAKE CALIPER REPLACEMENT

Removal Procedure

WARNING: Refer to Brake Dust Warning .

WARNING: Refer to Brake Fluid Irritant Warning .

  1. Raise and support the vehicle. Refer to Lifting and Jacking the Vehicle .
  2. Remove the tire and wheel assembly. Refer to Tire and Wheel Removal and Installation .

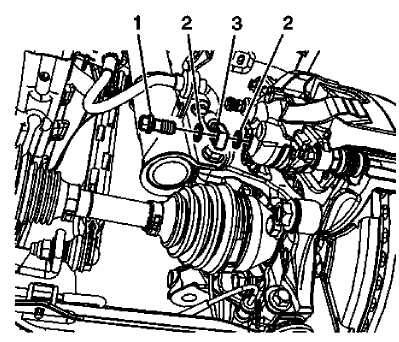

Fig. 24: Brake Hose Fitting And Bolt
Fig. 24: Brake Hose Fitting And Bolt

  1. Remove the brake hose fitting bolt (1).

NOTE: Do not reuse the brake hose fitting gaskets.

  1. Remove and discard the brake hose fitting gaskets (2) from the brake hose fitting (3).
  2. Cap the brake hose fitting to prevent brake fluid loss and contamination.

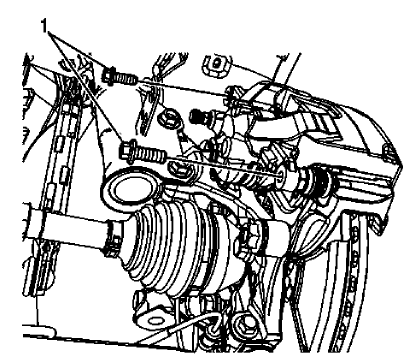

Fig. 25: Brake Caliper Guide Pin Bolts
Fig. 25: Brake Caliper Guide Pin Bolts

NOTE:

  • DO NOT use any air tools to remove or install the guide pin bolts. Use hand tools ONLY.
  • Install an open end wrench to hold the caliper guide pin in line with the brake caliper while removing or installing the caliper guide pin bolt. DO NOT allow the open end wrench to come in contact with the brake caliper. Allowing the open end wrench to come in contact with the brake caliper will cause a pulsation when the brakes are applied.
  1. Using a backup wrench to hold the brake caliper guide pin stationary, remove the brake caliper guide pin bolts (1).
  2. Remove the brake caliper.

Installation Procedure

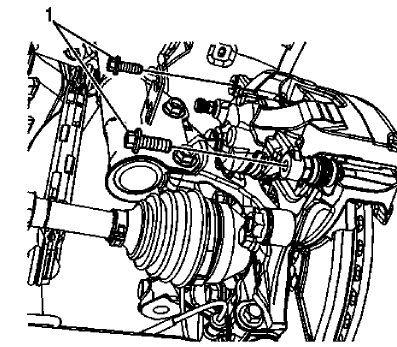

Fig. 26: Brake Caliper Guide Pin Bolts
Fig. 26: Brake Caliper Guide Pin Bolts

  1. Position the brake caliper over the brake pads and to the caliper bracket.

CAUTION: Refer to Fastener Caution .

  1. Using a backup wrench to hold the brake caliper guide pin stationary, install the brake caliper guide pin bolts (1) and tighten to 28 N.m (21 lb ft).

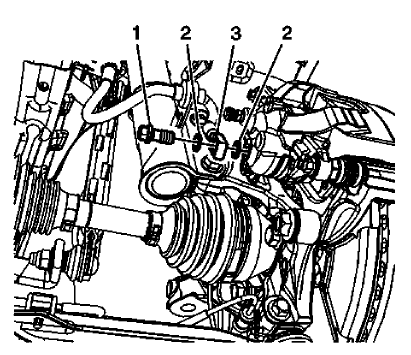

Fig. 27: Brake Hose Fitting And Bolt
Fig. 27: Brake Hose Fitting And Bolt

NOTE: Install new brake hose fitting gaskets.

  1. Assemble the brake hose fitting bolt (1) and the 2 new brake hose fitting gaskets (2) to the brake hose fitting (3).
  2. Install the brake hose assembly and tighten the brake hose fitting bolt to 40 N.m (30 lb ft).
  3. Bleed the hydraulic brake system. Refer to Hydraulic Brake System Bleeding (Manual) , Hydraulic Brake System Bleeding (Pressure) .
  4. Install the tire and wheel assembly. Refer to Tire and Wheel Removal and Installation .
