Chevrolet Trax: Rear brake rear pipe replacement

Removal Procedure

WARNING: Refer to Brake Dust Warning .

WARNING: Refer to Brake Fluid Irritant Warning

  1. Raise and support the vehicle. Refer to Lifting and Jacking the Vehicle .
  2. Remove the tire and wheel assembly. Refer to Tire and Wheel Removal and Installation

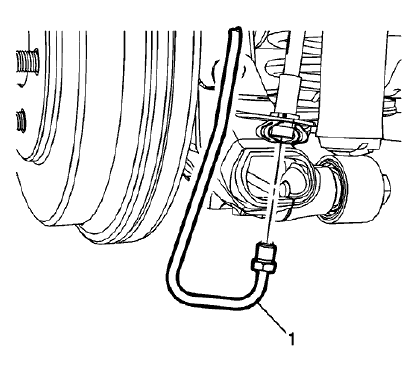

Fig. 148: Rear Brake Rear Pipe Fitting And Rear Brake Hose
Fig. 148: Rear Brake Rear Pipe Fitting And Rear Brake Hose

  1. Disconnect the rear brake rear pipe fitting (1) from the rear brake hose.
  2. Cap the brake hose fitting to prevent brake fluid loss and contamination.

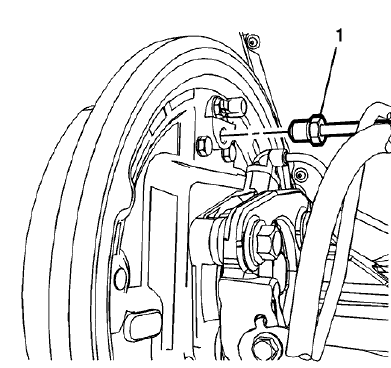

Fig. 149: Rear Brake Rear Pipe Fitting And Rear Brake Cylinder
Fig. 149: Rear Brake Rear Pipe Fitting And Rear Brake Cylinder

  1. Disconnect the rear brake rear pipe fitting (1) from the rear brake cylinder.
  2. Remove the rear brake rear pipe from the vehicle.

Installation Procedure

  1. Install the rear brake rear pipe to the vehicle.

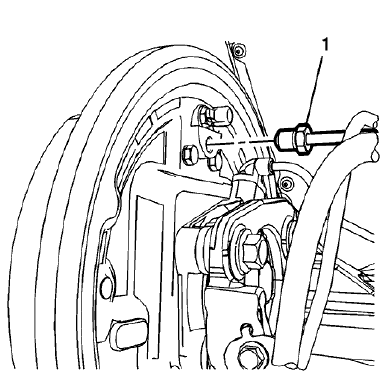

Fig. 150: Rear Brake Rear Pipe Fitting And Rear Brake Cylinder
Fig. 150: Rear Brake Rear Pipe Fitting And Rear Brake Cylinder

CAUTION: Refer to Fastener Caution .

  1. Install the rear brake rear pipe fitting (1) to the rear brake cylinder and tighten the fitting to 18 (13 lb ft).

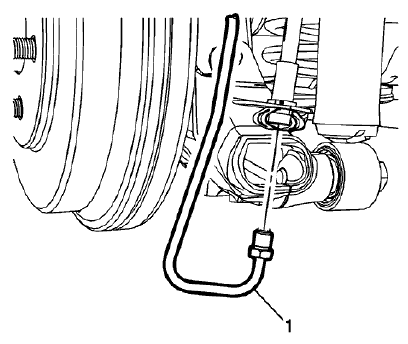

Fig. 151: Rear Brake Rear Pipe Fitting And Rear Brake Hose
Fig. 151: Rear Brake Rear Pipe Fitting And Rear Brake Hose

  1. Install the rear brake rear pipe fitting (1) to the rear brake hose and tighten the fitting to 18 (13 lb ft).
  2. Bleed the hydraulic brake system. Refer to Hydraulic Brake System Bleeding (Manual), Hydraulic Brake System Bleeding (Pressure).
  3. Install the tire and wheel assembly. Refer to Tire and Wheel Removal and Installation
