Chevrolet Trax: Rear brake intermediate pipe replacement (right)
Removal Procedure
WARNING: Refer to Brake Fluid Irritant Warning .
- Remove the battery. Refer to Battery Replacement .
.gif)

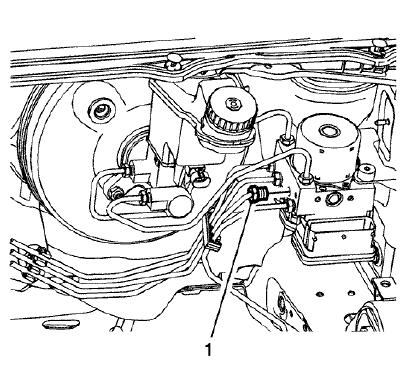

Fig. 128: Brake Pressure Modulator Valve (BPMV) And Rear Intermediate Pipe
Fitting
- Disconnect the right rear intermediate pipe fitting (1) from the brake
pressure modulator valve (BPMV).
- Plug the BPMV outlet port to prevent brake fluid loss and contamination.
.gif)

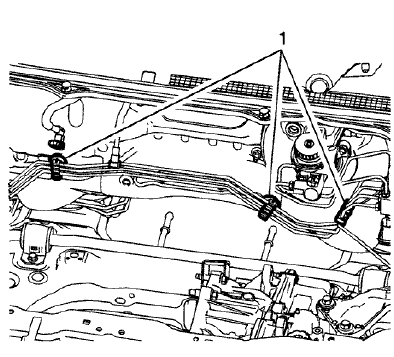

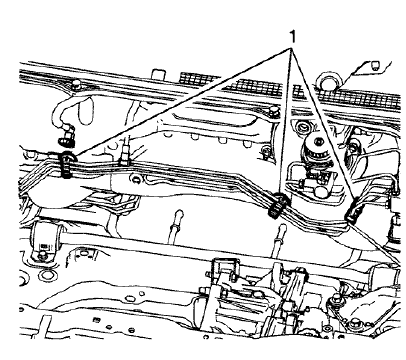

Fig. 129: Front Brake Pipe Retaining Clips
- Release the right rear intermediate pipe from the retaining clips (1).
- Raise and support the vehicle. Refer to Lifting and Jacking the Vehicle
.
.gif)

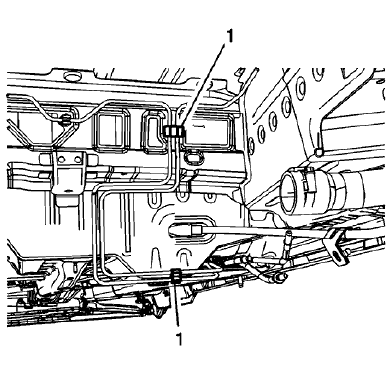

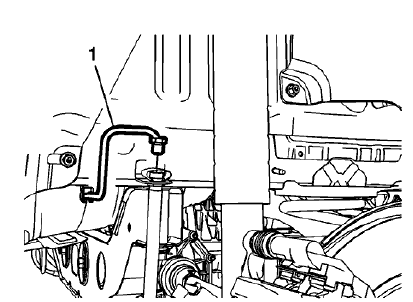

Fig. 130: Rear Intermediate Pipe And Retaining Clip
- Release the right rear intermediate pipe from the retaining clip (1).
.gif)

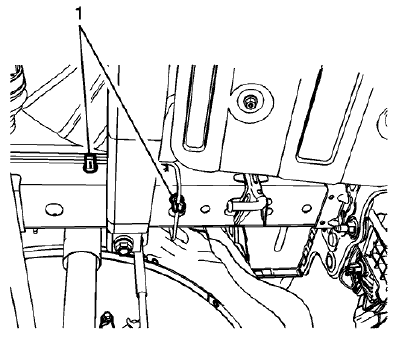

Fig. 131: Rear Intermediate Pipe
- Release the right rear intermediate pipe from the front floor retaining
clips (1).
.gif)

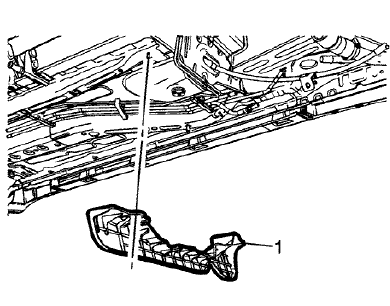

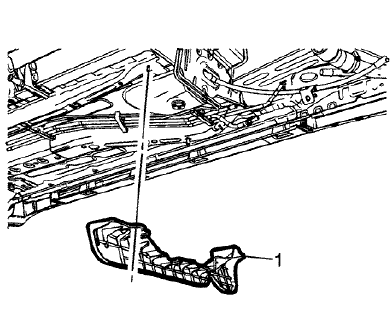

Fig. 132: Underbody Cross Sill Shield
- Remove the 2 nuts and the underbody cross sill shield (1).
- Remove the fuel tank. Refer to Fuel Tank Replacement (AWD) .
.gif)

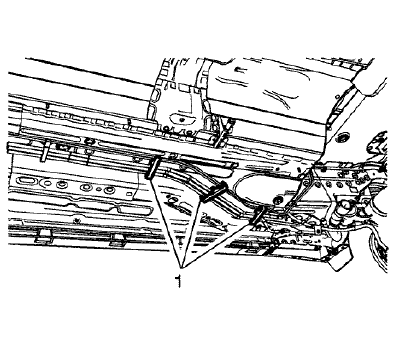

Fig. 133: Rear Floor Retaining Clips
- Release the right rear intermediate pipe from the rear floor retaining
clips (1).
.gif)
Fig. 134: Left Rear Intermediate Pipe
- Release the right rear intermediate pipe from the retaining clips (1).
.gif)

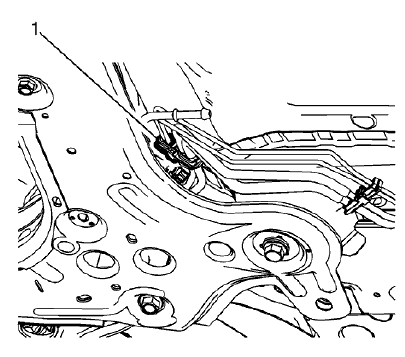

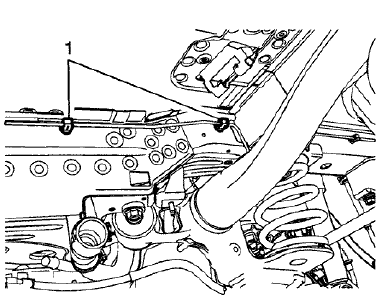

Fig. 135: Right Rear Intermediate Pipe And Right Rail
- Release the right rear intermediate pipe from the right rail retaining
clips (1).

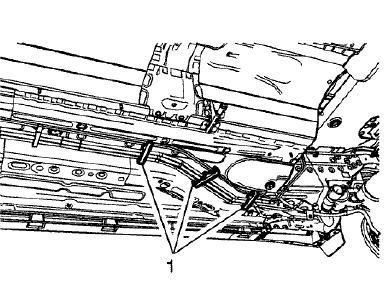

.gif)

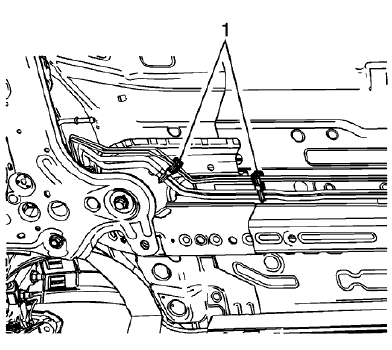

Fig. 136: Right Rear Rail Retaining Clips
- Release the right rear intermediate pipe from the right rear rail
retaining clips (1).

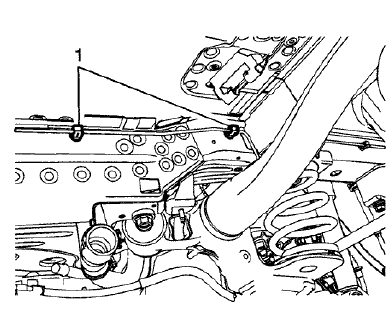

.gif)

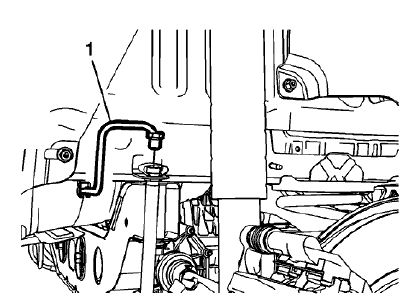

Fig. 137: Right Rear Intermediate Pipe Fitting
- Disconnect the right rear intermediate pipe fitting (1) from the rear
brake hose fitting.
- Cap the brake hose fitting to prevent brake fluid loss and contamination.
- Remove the right rear intermediate pipe from the vehicle.
Installation Procedure
- Install the right rear intermediate pipe to the vehicle.
- Position, but do not secure, the right rear intermediate pipe to the
retaining clips.
.gif)
Fig. 138: Right Rear Intermediate Pipe Fitting
CAUTION: Refer to Fastener Caution .
- Install the right rear intermediate pipe fitting (1) to the rear brake
hose fitting and tighten the fitting to 18
(13 lb ft).
.gif)

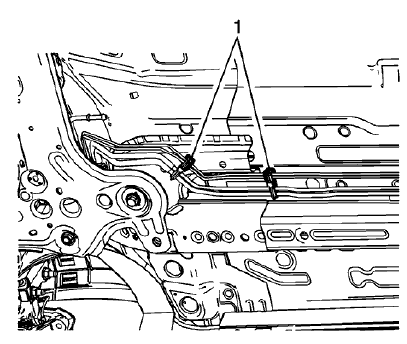

Fig. 139: Right Rear Rail Retaining Clips
- Secure the right rear intermediate pipe to the right rear rail retaining
clips (1).
.gif)

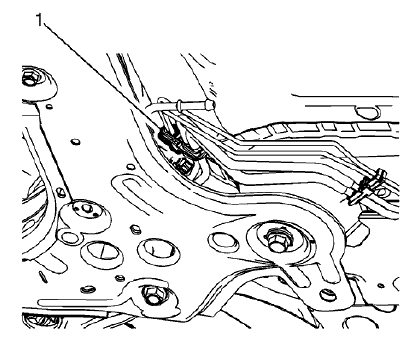

Fig. 140: Right Rear Intermediate Pipe And Right Rail
- Secure the right rear intermediate pipe to the right rail retaining
clips (1).
.gif)
Fig. 141: Left Rear Intermediate Pipe
- Secure the right rear intermediate pipe to the retaining clips (1).
.gif)
Fig. 142: Rear Floor Retaining Clips
- Secure the right rear intermediate pipe to the rear floor retaining
clips (1).
- Install the fuel tank. Refer to Fuel Tank Replacement (AWD) .
.gif)
Fig. 143: Underbody Cross Sill Shield
- Install the underbody cross sill shield (1) and the 2 nuts.
.gif)

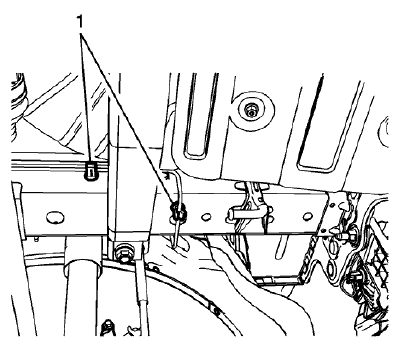

Fig. 144: Rear Intermediate Pipe
- Secure the right rear intermediate pipe to the front floor retaining
clips (1).
.gif)

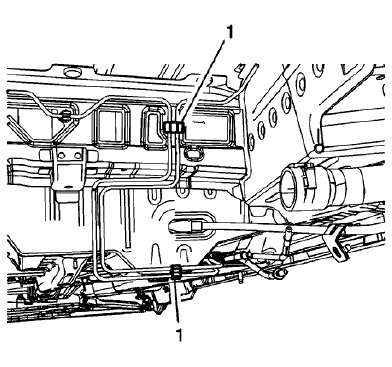

Fig. 145: Rear Intermediate Pipe And Retaining Clip
- Secure the right rear intermediate pipe to the retaining clip (1).
.gif)
Fig. 146: Front Brake Pipe Retaining Clips
- Secure the right rear intermediate pipe to the retaining clips (1).
.gif)

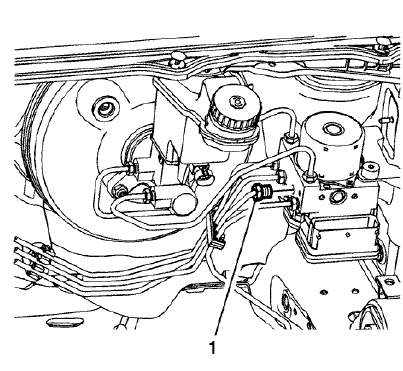

Fig. 147: Brake Pressure Modulator Valve (BPMV) And Rear Intermediate Pipe
Fitting
- Connect the right rear intermediate pipe fitting (1) to the BPMV and
tighten the fitting to 18 (13 lb ft).
- Install the battery. Refer to Battery Replacement .
- Bleed the hydraulic brake system. Refer to Hydraulic Brake System
Bleeding (Manual), Hydraulic
Brake System Bleeding (Pressure).
