Chevrolet Trax: Parking brake rear cable replacement (disc brake) - Removal Procedure

Chevrolet Trax (2013-2022) Workshop Manual / Brakes / Park Brake / Repair instructions / Parking brake rear cable replacement (disc brake) - Removal Procedure

Removal Procedure

  1. Remove the front floor console. Refer to Front Floor Console Replacement (Encore) , Front Floor Console Replacement (Trax) .
  2. Ensure that the parking brake lever is in the fully released position.

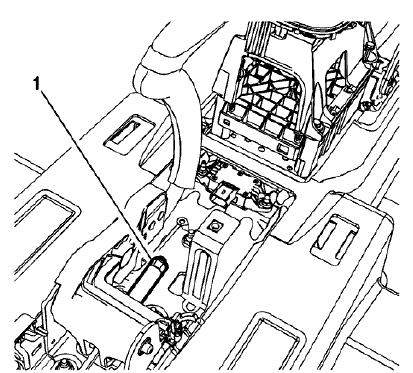

Fig. 24: Front Cable Threaded Rod Nut
Fig. 24: Front Cable Threaded Rod Nut

  1. Using ONLY HAND TOOLS, loosen the adjusting nut (1) to the end of the front park brake cable threaded rod.
  2. Remove the rear seat cushion. Refer to Rear Seat Cushion Removal and Installation .
  3. Position the rear floor carpet forward to access the parking brake cable pass through grommets.

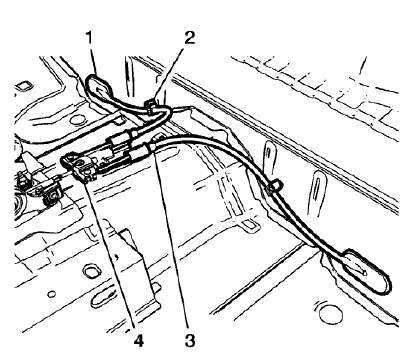

Fig. 25: Parking Brake Cable Components
Fig. 25: Parking Brake Cable Components

  1. Release the parking brake cable pass through grommets (1).
  2. Release the parking brake cable routing clips (2).
  3. Release the parking brake cable collars (3) from the floor tunnel bracket.
  4. Disconnect the park brake lever cable from the equalizer (4).
  5. Raise and support the vehicle. Refer to Lifting and Jacking the Vehicle .

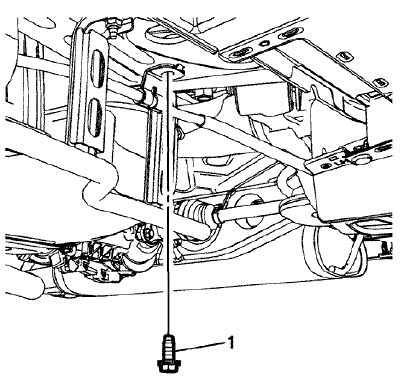

Fig. 26: Left Parking Brake Cable Bracket Bolt
Fig. 26: Left Parking Brake Cable Bracket Bolt

  1. Remove the front left parking brake cable bracket bolt (1).

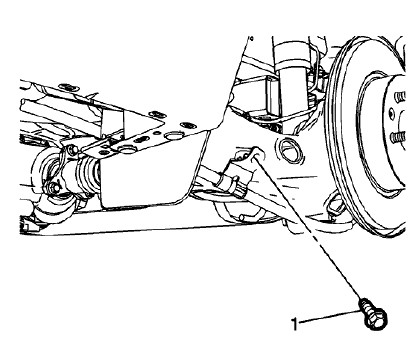

Fig. 27: Rear Left Parking Brake Cable Bracket Bolt
Fig. 27: Rear Left Parking Brake Cable Bracket Bolt

  1. Remove the rear left parking brake cable bracket bolt (1).

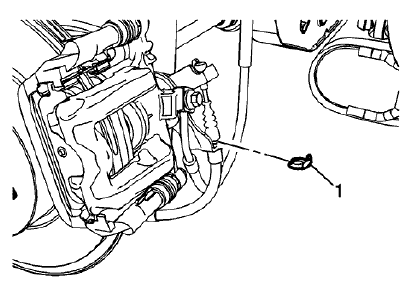

Fig. 28: Parking Brake Cable Retainer
Fig. 28: Parking Brake Cable Retainer

  1. Remove the parking brake cable retainer (1).

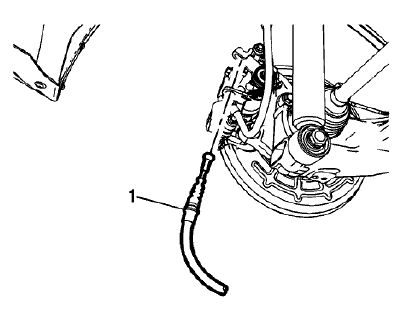

Fig. 29: Left Parking Brake Cable
Fig. 29: Left Parking Brake Cable

  1. Disconnect the left parking brake cable (1) from the parking brake actuator lever.

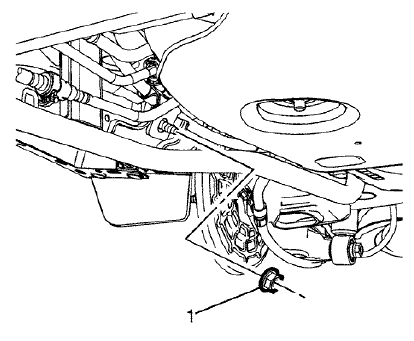

Fig. 30: Front Right Parking Brake Cable Bracket Nut
Fig. 30: Front Right Parking Brake Cable Bracket Nut

  1. Remove the front right parking brake cable bracket nut (1).

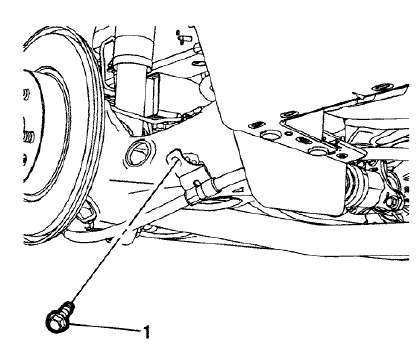

Fig. 31: Cable Bracket Bolt
Fig. 31: Cable Bracket Bolt

  1. Remove the rear right parking brake cable bracket bolt (1).

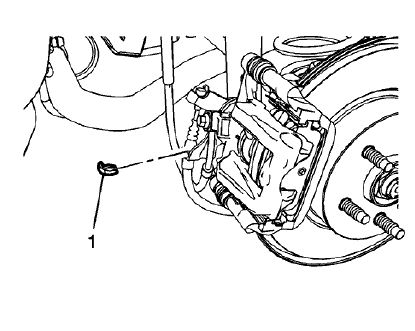

Fig. 32: Parking Brake Cable Retainer
Fig. 32: Parking Brake Cable Retainer

  1. Remove the parking brake cable retainer (1).

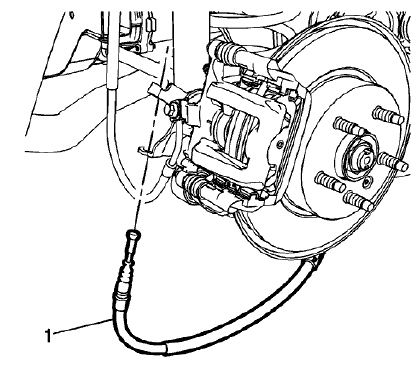

Fig. 33: Right Parking Brake Cable
Fig. 33: Right Parking Brake Cable

  1. Disconnect the right parking brake cable (1) from the parking brake actuator lever.
  2. Feed the parking brake cable through the vehicle body.
  3. Lower the vehicle and remove the parking brake cable and equalizer assembly from inside the vehicle.
