Chevrolet Trax: Parking brake rear cable replacement (disc brake) - Installation Procedure

Chevrolet Trax (2013-2022) Workshop Manual / Brakes / Park Brake / Repair instructions / Parking brake rear cable replacement (disc brake) - Installation Procedure

Installation Procedure

  1. From inside the vehicle, feed the parking brake cable ends through the vehicle body.

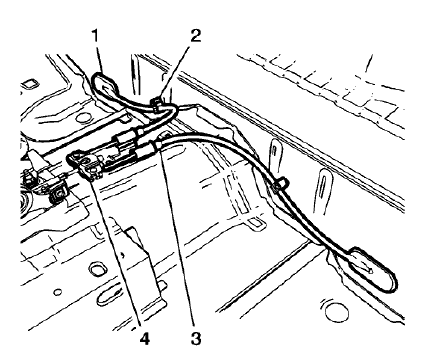

Fig. 34: Parking Brake Cable Components
Fig. 34: Parking Brake Cable Components

  1. Install the parking brake cable pass through grommets (1).
  2. Install the parking brake cable routing clips (2).
  3. Install the parking brake cable collars (3) to the floor tunnel bracket.
  4. Connect the park brake lever cable to the park brake cable equalizer (4).
  5. Reposition the rear floor carpet.
  6. Install the rear seat cushion. Refer to Rear Seat Cushion Removal and Installation .
  7. Raise and support the vehicle. Refer to Lifting and Jacking the Vehicle .

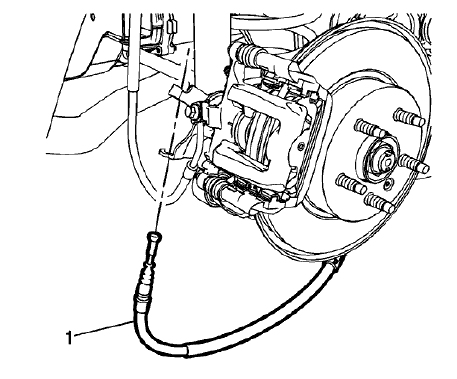

Fig. 35: Right Parking Brake Cable
Fig. 35: Right Parking Brake Cable

  1. Connect the right parking brake cable (1) to the parking brake actuator lever.

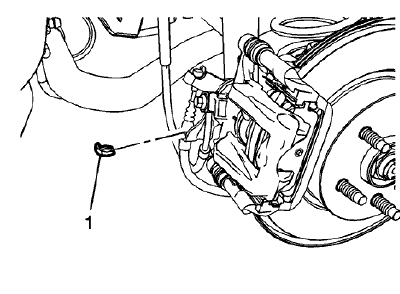

Fig. 36: Parking Brake Cable Retainer
Fig. 36: Parking Brake Cable Retainer

  1. Install the parking brake cable retainer (1).

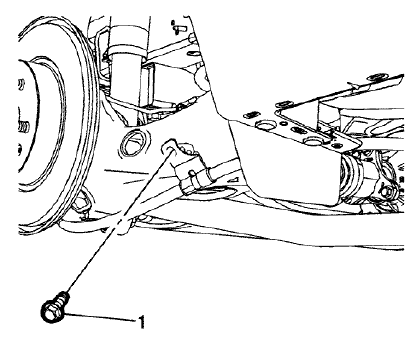

Fig. 37: Cable Bracket Bolt
Fig. 37: Cable Bracket Bolt

CAUTION: Refer to Fastener Caution .

  1. Install the rear right parking brake cable bracket bolt (1) and tighten to 22 (16 lb ft).

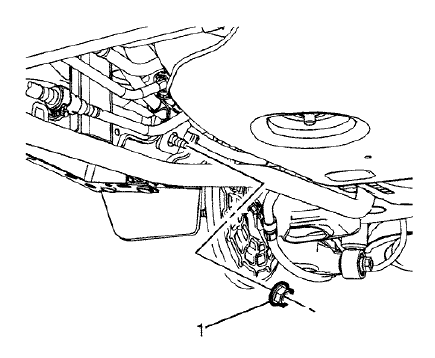

Fig. 38: Front Right Parking Brake Cable Bracket Nut
Fig. 38: Front Right Parking Brake Cable Bracket Nut

  1. Install the front right parking brake cable bracket nut (1) and tighten to 22 (16 lb ft).

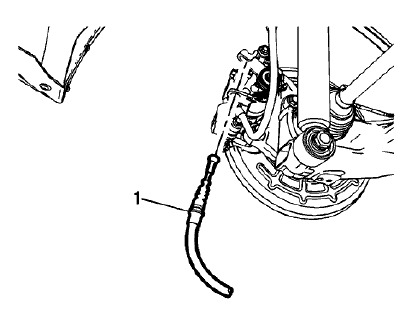

Fig. 39: Left Parking Brake Cable
Fig. 39: Left Parking Brake Cable

  1. Connect the left parking brake cable (1) to the parking brake actuator lever.

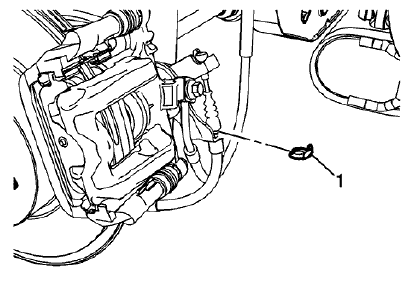

Fig. 40: Parking Brake Cable Retainer
Fig. 40: Parking Brake Cable Retainer

  1. Install the parking brake cable retainer (1).

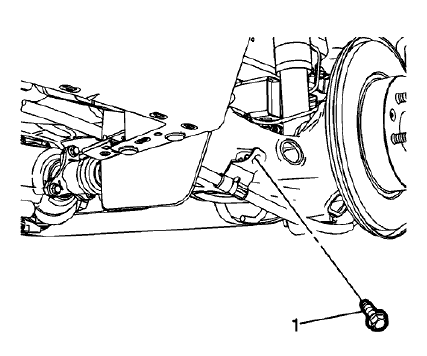

Fig. 41: Rear Left Parking Brake Cable Bracket Bolt
Fig. 41: Rear Left Parking Brake Cable Bracket Bolt

  1. Install the rear left parking brake cable bracket bolt (1) and tighten to 22 (16 lb ft).

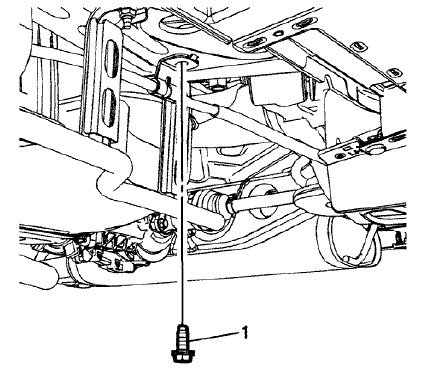

Fig. 42: Left Parking Brake Cable Bracket Bolt
Fig. 42: Left Parking Brake Cable Bracket Bolt

  1. Install the front left parking brake cable bracket bolt (1) and tighten to 22 (16 lb ft).
  2. Lower the vehicle.

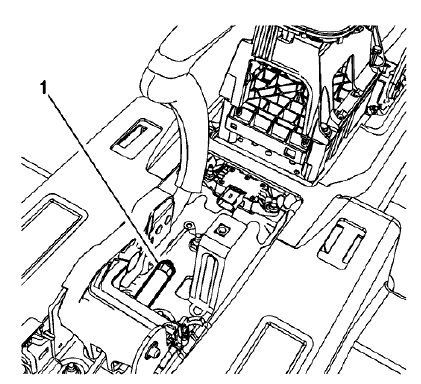

Fig. 43: Front Cable Threaded Rod Nut
Fig. 43: Front Cable Threaded Rod Nut

  1. Using ONLY HAND TOOLS, loosely install the adjusting nut (1) to the front park brake cable threaded rod.
  2. Adjust the parking brake. Refer to Parking Brake Adjustment (Disc Brake).
  3. Install the front floor console. Refer to Front Floor Console Replacement (Encore) , Front Floor Console Replacement (Trax) .
