Chevrolet Trax: Rear brake intermediate pipe replacement (left)
Removal Procedure
WARNING: Refer to Brake Fluid Irritant Warning .
- Remove the battery. Refer to Battery Replacement
.gif)

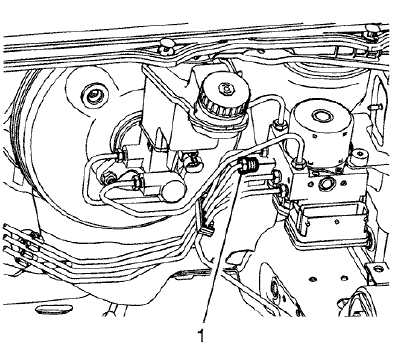

Fig. 106: Left Rear Intermediate Pipe Fitting
- Disconnect the left rear intermediate pipe fitting (1) from the brake
pressure modulator valve (BPMV).
- Plug the BPMV outlet port to prevent brake fluid loss and contamination
.gif)

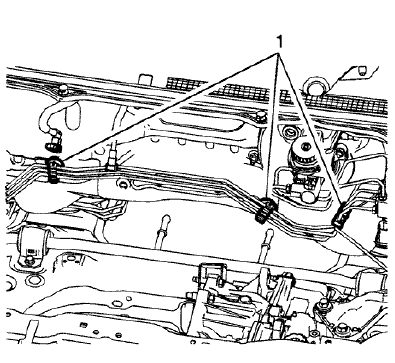

Fig. 107: Front Brake Pipe Retaining Clips
- Release the left rear intermediate pipe from the retaining clips (1).
- Raise and support the vehicle. Refer to Lifting and Jacking the Vehicle
.
.gif)

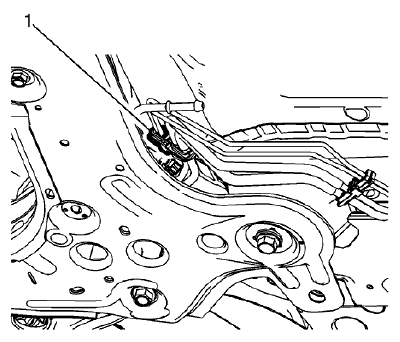

Fig. 108: Rear Intermediate Pipe And Retaining Clip
- Release the left rear intermediate pipe from the retaining clip (1).
.gif)

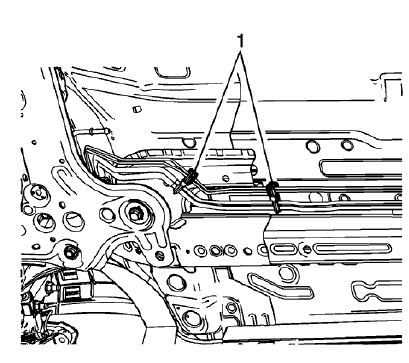

Fig. 109: Rear Intermediate Pipe
- Release the left rear intermediate pipe from the front floor retaining
clips (1).
.gif)

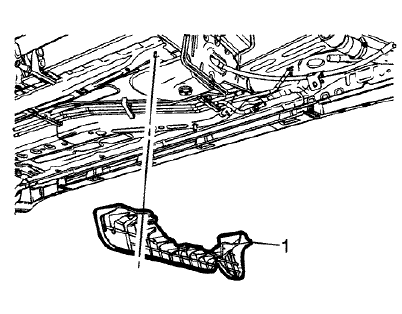

Fig. 110: Underbody Cross Sill Shield
- Remove the 2 nuts and the underbody cross sill shield (1).
- Remove the fuel tank. Refer to Fuel Tank Replacement (AWD) .
.gif)

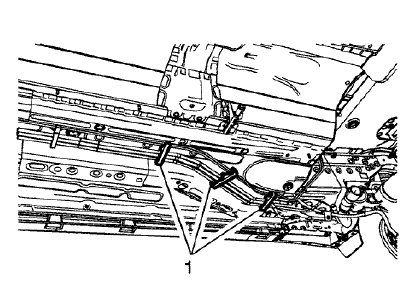

Fig. 111: Rear Floor Retaining Clips
- Release the left rear intermediate pipe from the rear floor retaining
clips (1).
.gif)

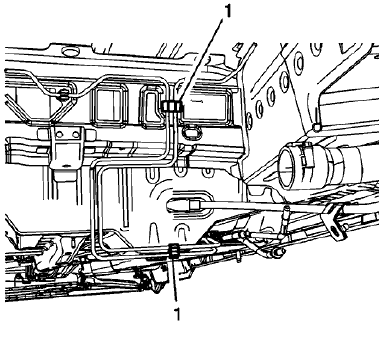

Fig. 112: Left Rear Intermediate Pipe
- Release the left rear intermediate pipe from the retaining clips (1).
.gif)

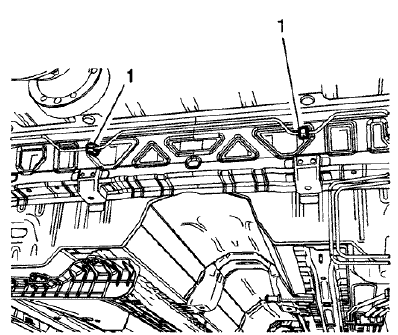

Fig. 113: Left Rear Intermediate Pipe And Cross Vehicle Retaining Clips
- Release the left rear intermediate pipe from the cross vehicle retaining
clips (1).
.gif)

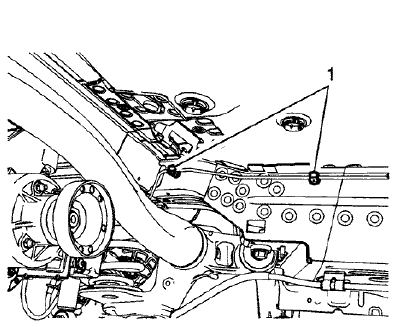

Fig. 114: Rear Intermediate Pipe And Left Rail Retaining Clips
- Release the left rear intermediate pipe from the left rail retaining
clips (1).
.gif)

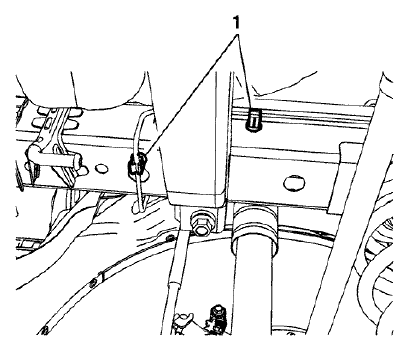

Fig. 115: Left Rear Rail Retaining Clips
- Release the left rear intermediate pipe from the left rear rail
retaining clips (1).
.gif)

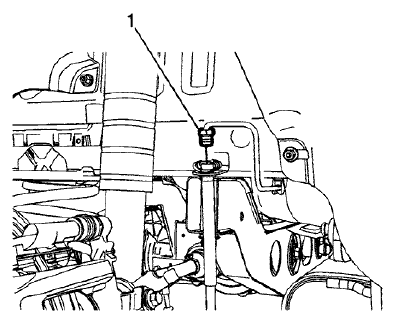

Fig. 116: Left Rear Intermediate Pipe Fitting
- Disconnect the left rear intermediate pipe fitting (1) from the rear
brake hose fitting.
- Cap the brake hose fitting to prevent brake fluid loss and contamination.
- Remove the left rear intermediate pipe from the vehicle.
Installation Procedure
- Install the left rear intermediate pipe from the vehicle.
- Position, but do not secure, the left rear intermediate pipe to the
retaining clips.
.gif)

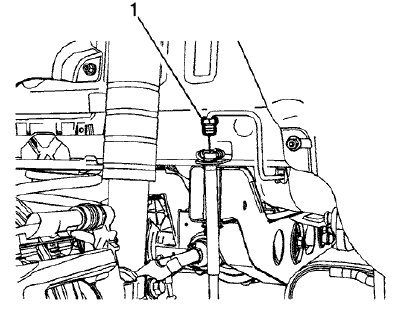

Fig. 117: Left Rear Intermediate Pipe Fitting
CAUTION: Refer to Fastener Caution .
- Install the left rear intermediate pipe fitting (1) to the rear brake
hose fitting and tighten the fitting to 18
(13 lb ft).
.gif)

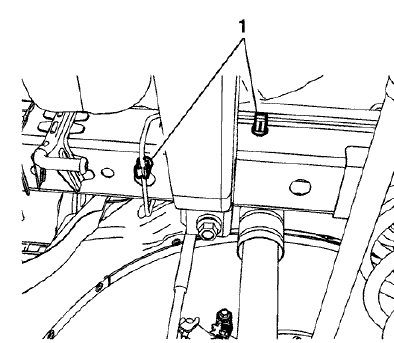

Fig. 118: Left Rear Rail Retaining Clips
- Secure the left rear intermediate pipe to the left rear rail retaining
clips (1).
.gif)

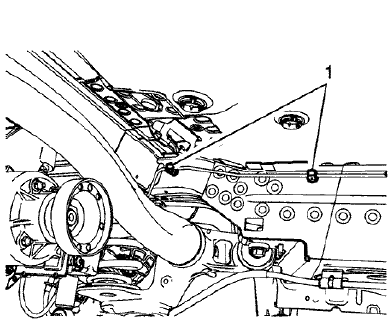

Fig. 119: Rear Intermediate Pipe And Left Rail Retaining Clips
- Secure the left rear intermediate pipe to the left rail retaining clips
(1).
.gif)

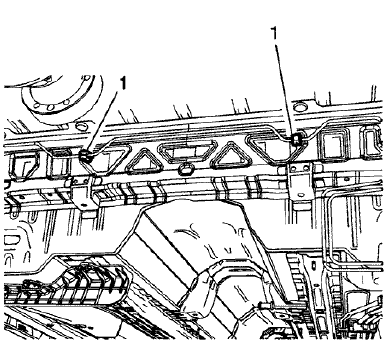

Fig. 120: Left Rear Intermediate Pipe And Cross Vehicle Retaining Clips
- Secure the left rear intermediate pipe to the cross vehicle retaining
clips (1).
.gif)

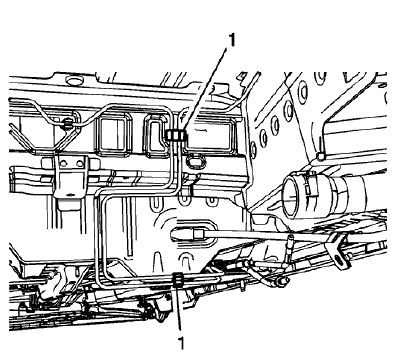

Fig. 121: Left Rear Intermediate Pipe
- Secure the left rear intermediate pipe to the retaining clips (1).
.gif)

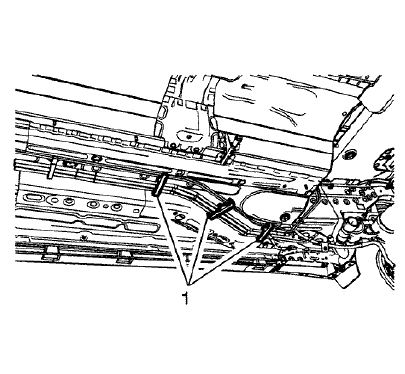

Fig. 122: Rear Floor Retaining Clips
- Secure the left rear intermediate pipe to the rear floor retaining clips
(1).
- Install the fuel tank. Refer to Fuel Tank Replacement (AWD)
.gif)

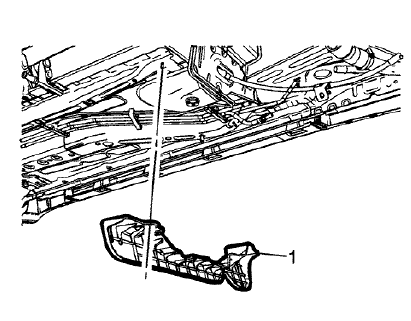

Fig. 123: Underbody Cross Sill Shield
- Install the underbody cross sill shield (1) and the 2 nuts.
.gif)

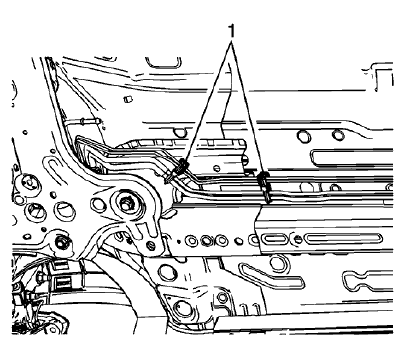

Fig. 124: Rear Intermediate Pipe
- Secure the left rear intermediate pipe to the front floor retaining
clips (1).
.gif)

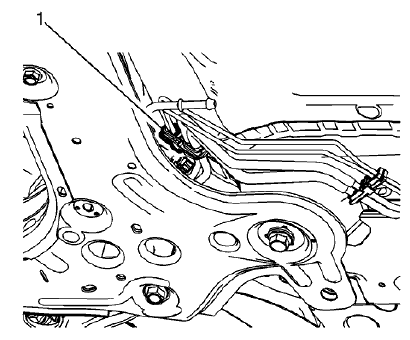

Fig. 125: Rear Intermediate Pipe And Retaining Clip
- Secure the left rear intermediate pipe to the retaining clip (1).
.gif)

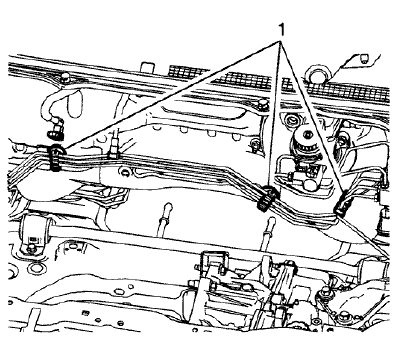

Fig. 126: Front Brake Pipe Retaining Clips
- Secure the left rear intermediate pipe to the retaining clips (1).
.gif)

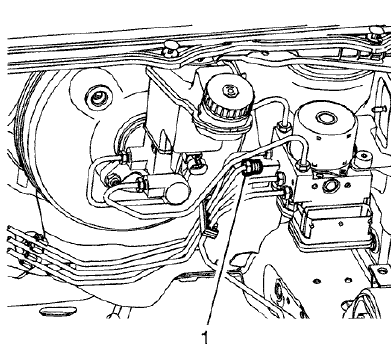

Fig. 127: Left Rear Intermediate Pipe Fitting
- Connect the left rear intermediate pipe fitting (1) to the BPMV and
tighten the fitting to 18 (13 lb ft).
- Install the battery. Refer to Battery Replacement .
- Bleed the hydraulic brake system. Refer to Hydraulic Brake System
Bleeding (Manual), Hydraulic
Brake System Bleeding (Pressure).
