Chevrolet Trax: Rear brake cylinder replacement
Removal Procedure
WARNING: Refer to Brake Dust Warning .
WARNING: Refer to Brake Fluid Irritant Warning .
- Raise and support the vehicle. Refer to Lifting and Jacking the Vehicle
.
- Remove the tire and wheel assembly. Refer to Tire and Wheel Removal and
Installation .
- Remove the brake drum. Refer to Brake Drum Replacement.
- Remove the drum brake adjusting hardware. Refer to Drum Brake Adjusting
Hardware Replacement.
- Clean the area surrounding the rear brake cylinder of dirt and debris.

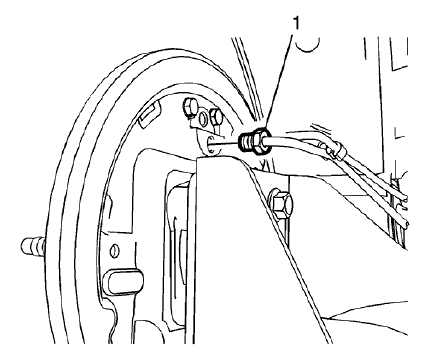

Fig. 46: Brake Pipe Fitting
- Disconnect the brake pipe fitting (1).
- Cap the brake pipe fitting to prevent brake fluid loss and contamination.

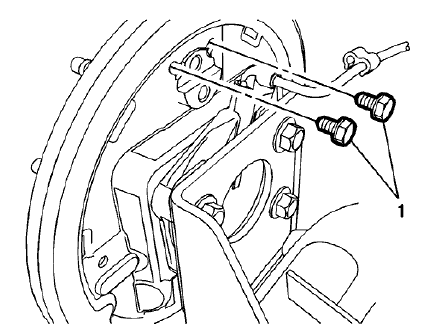

Fig. 47: Rear Brake Cylinder Bolts
- Remove the rear brake cylinder bolts (1).

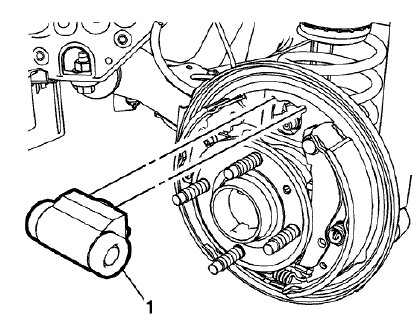

Fig. 48: Rear Brake Cylinder
- Spread the top of the brake shoes slightly and remove the rear brake
cylinder (1).
Installation Procedure

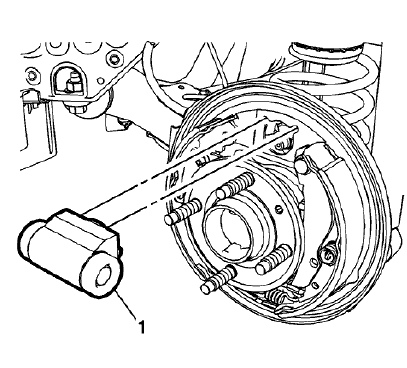

Fig. 49: Rear Brake Cylinder
- Spread the top of the brake shoes slightly and install the rear brake
cylinder (1).

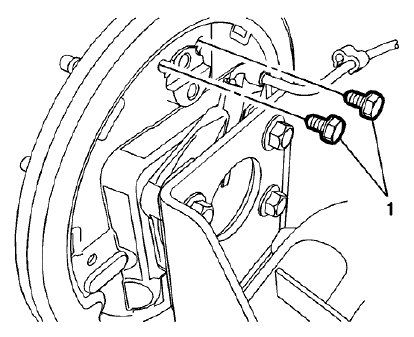

Fig. 50: Rear Brake Cylinder Bolts
CAUTION: Refer to Fastener Caution .
- Install the rear brake cylinder bolts (1) and tighten to 10 (89 lb in).

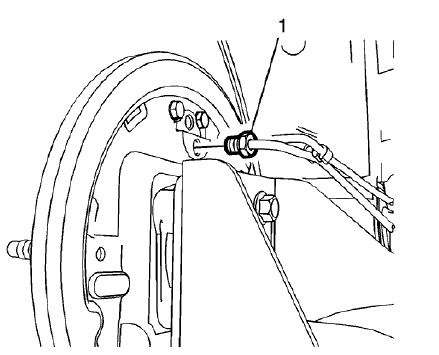

Fig. 51: Brake Pipe Fitting
- Connect the brake pipe fitting (1) and tighten to 18 (13 lb ft).
- Install the drum brake adjusting hardware. Refer to Drum Brake Adjusting
Hardware Replacement.
- Adjust the drum brakes. Refer to Drum Brake Adjustment.
- Install the brake drum. Refer to Brake Drum Replacement.
- Install the tire and wheel assembly. Refer to Tire and Wheel Removal and
Installation .
- Bleed the hydraulic brake system. Refer to Hydraulic Brake System
Bleeding (Manual) , Hydraulic
Brake System Bleeding (Pressure) .
