Chevrolet Trax: Rear brake cylinder overhaul
Disassembly Procedure
WARNING: Refer to Brake Dust Warning .
WARNING: Refer to Brake Fluid Irritant Warning .
- Raise and support the vehicle. Refer to Lifting and Jacking the Vehicle
.
- Remove the rear brake cylinder. Refer to Rear Brake Cylinder Replacement.

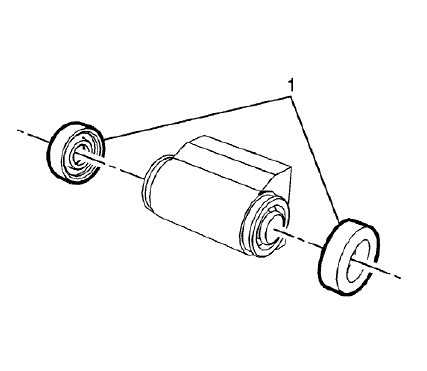

Fig. 52: Brake Cylinder Dust Seals
- Remove and discard the brake cylinder dust seals (1).

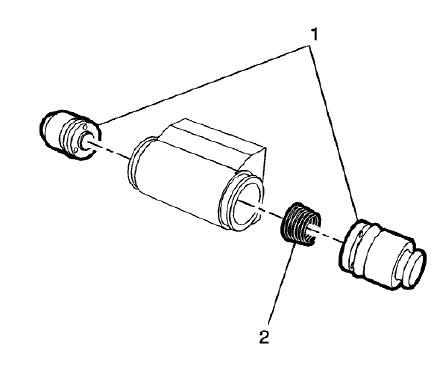

Fig. 53: Brake Cylinder Pistons And Spring
- Remove the brake cylinder pistons (1) and spring (2).
- Remove and discard the brake cylinder piston seals.
- Inspect the brake cylinder bore for excessive corrosion, scoring, nicks,
and pitting.
- If the brake cylinder bore exhibits the above conditions, the brake
cylinder assembly requires
replacement.
- Remove light corrosion in the cylinder bore with a fine crocus cloth.
- Thoroughly clean the brake cylinder and pistons with denatured alcohol
and dry with filtered, nonlubricated
compressed air.
Assembly Procedure
- Lightly lubricate the new piston seals and brake cylinder bore with GM
approved brake fluid from a
clean, sealed, brake fluid container.
- Assemble the new piston seals with the lip of the seals facing
inward to the brake cylinder pistons

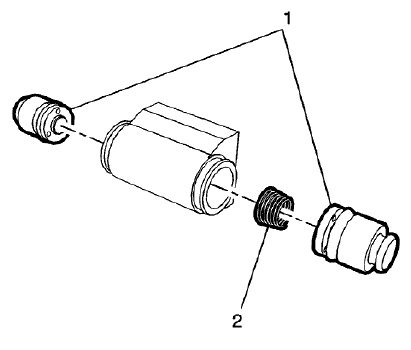

Fig. 54: Brake Cylinder Pistons And Spring
- Install the brake cylinder pistons (1) and spring (2) into the brake
cylinder bore.

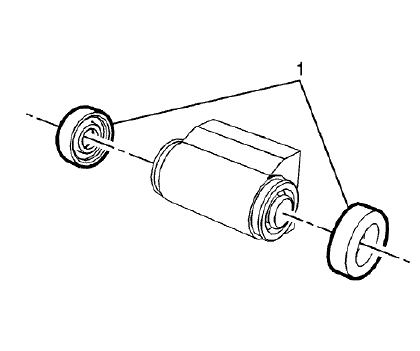

Fig. 55: Brake Cylinder Dust Seals
NOTE: Do not lubricate the brake cylinder dust seals.
- Install the new brake cylinder dust seals (1).
- Install the rear brake cylinder. Refer to Rear Brake Cylinder
Replacement.
- Bleed the hydraulic brake system. Refer to Hydraulic Brake System
Bleeding (Manual) , Hydraulic
Brake System Bleeding (Pressure) .
