Chevrolet Trax: Fuel filler door release malfunction (NO8)
Diagnostic Instructions
- Perform the Diagnostic System Check - Vehicle prior to using this
diagnostic procedure.
- Review Strategy Based Diagnosis for an overview of the diagnostic
approach.
- Diagnostic Procedure Instructions provides an overview of each
diagnostic category.

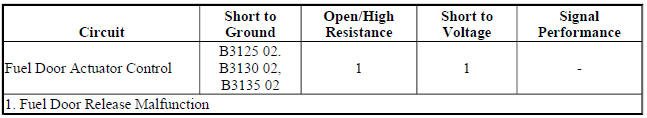

Diagnostic Fault Information
Circuit/System Description
The locking and unlocking of the fuel door is a function of the power door
lock system. The fuel door lock
actuator shares the circuit with the door latch unlock control circuit. The body
control module (BCM), upon
receipt of a lock switch lock or unlock signal, will switch the appropriate door
latch, as well as a fuel door lock
actuator control circuits to B+ voltage. The opposing side of the door latch and
fuel door lock actuator control
circuit is pulled to ground by the BCM through the other the door latch control
circuits, along with the fuel door
lock actuator, will lock or unlock as commanded.
Reference Information
Schematic Reference
Door Lock/Indicator Schematics (Encore), Door Lock/Indicator Schematics (Trax)
Connector End View Reference
WIRING SYSTEMS AND POWER MANAGEMENT - COMPONENT CONNECTOR END VIEWS -
INDEX - ENCORE WIRING SYSTEMS AND POWER MANAGEMENT - COMPONENT
CONNECTOR END VIEWS - INDEX - TRAX
Description and Operation
Fuel Fill Door Description and Operation (NO8 Only)
Electrical Information Reference
- Circuit Testing
- Connector Repairs
- Testing for Intermittent Conditions and Poor Connections
- Wiring Repairs
Scan Tool Reference
- Control Module References for scan tool information
- Circuit/System Verification
- Ignition ON.
- Verify the M97 Fuel Door Lock Actuator does not release the fuel filler
door when commanding the All
Doors Lock/Unlock to Lock with a scan tool.
- If the M97 Fuel Door Lock Actuator releases the fuel filler door
Refer to Circuit/System Testing.
- If the M97 Fuel Door Lock Actuator does not release the fuel filler
door
- Verify the M97 Fuel Door Lock Actuator releases the fuel filler door
when commanding the All Doors
Lock/Unlock to Unlock with a scan tool.
- If the M97 Fuel Door Lock Actuator does not release the fuel filler
door
Refer to Circuit/System Testing.
- If the M97 Fuel Door Lock Actuator releases the fuel filler door
- All OK.
Circuit/System Testing
- Ignition OFF, disconnect the harness connector at the M97 Fuel Door Lock
Actuator.
- Connect a test lamp between control circuit terminal 1 and control
circuit terminal 2, ignition ON.
- Verify the test lamp turns ON when commanding the All Doors Lock/Unlock
with a scan tool.
If the test lamp remains OFF during either of the commands
- Ignition OFF, remove the test lamp, disconnect the harness connector at
the K9 Body Control
Module.
- Test for infinite resistance between each control circuit and ground.
- If less than infinite resistance, repair the short to ground on the
circuit.
- If infinite resistance, replace the K9 Body Control Module.
- Test for less than 2 ohms in each control circuit end to end.
- If 2 ohms or greater, repair the open/high resistance in the circuit.
- If less than 2 ohms, replace the K9 Body Control Module.
- If the test lamp turns ON during each of the commands
- Test or replace the M97 Fuel Door Lock Actuator.
Component Testing
Fuel Door Latch
- Ignition OFF, disconnect the harness connector at the M97 Fuel Door Lock
Actuator.
- Install a 25 A fused jumper wire between one of the control terminals
and 12 V. Momentarily install a
jumper wire between the other control terminal and ground. Reverse the
jumper wires at least two times,
the M97 Fuel Door Lock Actuator should perform the LOCK and UNLOCK function.
- If the actuator does not perform the LOCK and UNLOCK function
Replace the M97 Fuel Door Lock Actuator.
- If the actuator performs the LOCK and UNLOCK function
- All OK
Repair Instructions
Perform the Diagnostic Repair Verification after completing the repair.
- Fuel Tank Filler Door Latch Housing Replacement (Encore) , Fuel Tank
Filler Door Latch Housing
Replacement (Trax)
- Control Module References for BCM replacement, programming and setup
