Chevrolet Trax: Air distributor case replacement

Chevrolet Trax (2013-2022) Workshop Manual / HVAC & Restraints / Heating, Ventilation, and Air Conditioning / Repair instructions / Air distributor case replacement

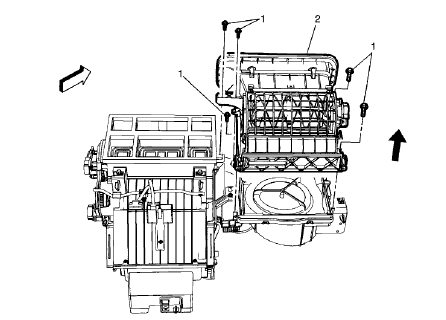

Fig. 75: Air Distributor Case
Fig. 75: Air Distributor Case

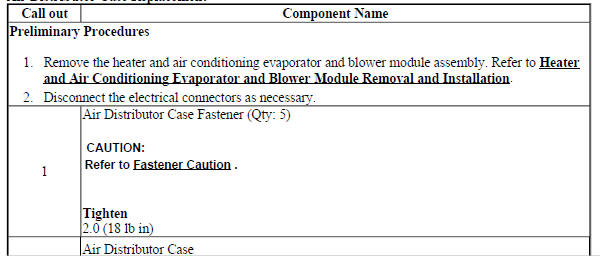

Air Distributor Case Replacement

Air Distributor Case Replacement

Air Distributor Case Replacement

INSTRUMENT PANEL OUTER AIR OUTLET REPLACEMENT (TRAX)

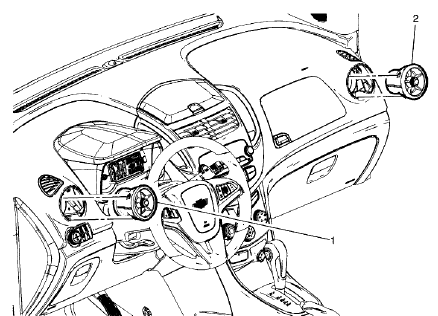

Fig. 76: Instrument Panel Outer Air Outlet
Fig. 76: Instrument Panel Outer Air Outlet

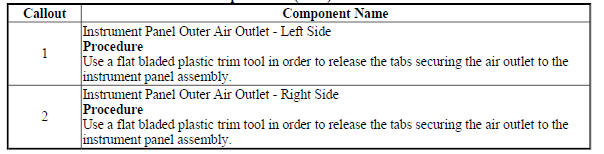

Instrument Panel Outer Air Outlet Replacement (Trax)

Instrument Panel Outer Air Outlet Replacement (Trax)

INSTRUMENT PANEL OUTER AIR OUTLET REPLACEMENT (ENCORE)

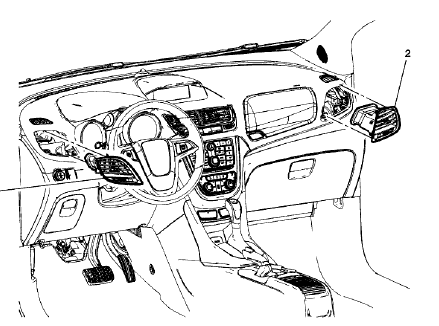

Fig. 77: Instrument Panel Outer Air Outlet
Fig. 77: Instrument Panel Outer Air Outlet

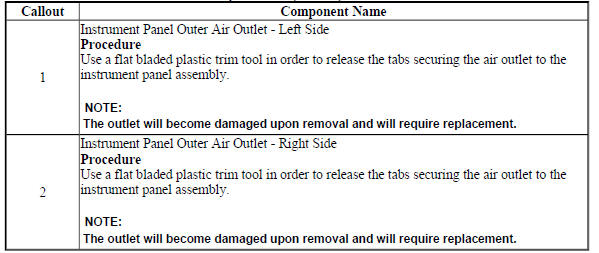

Instrument Panel Outer Air Outlet Replacement (Encore)

Instrument Panel Outer Air Outlet Replacement (Encore)

INSTRUMENT PANEL CENTER AIR OUTLET REPLACEMENT (TRAX)

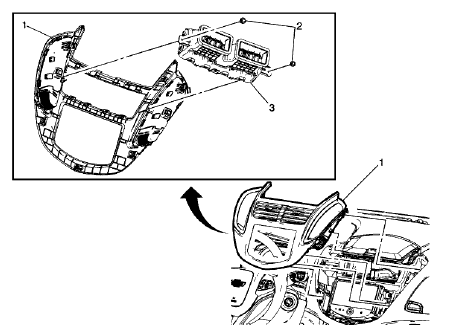

Fig. 78: Instrument Panel Center Air Outlet
Fig. 78: Instrument Panel Center Air Outlet

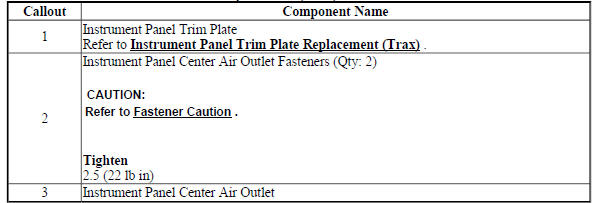

Instrument Panel Center Air Outlet Replacement (Trax)

Instrument Panel Center Air Outlet Replacement (Trax)

INSTRUMENT PANEL CENTER AIR OUTLET REPLACEMENT (ENCORE)

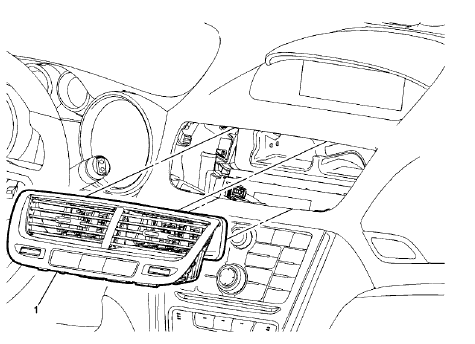

Fig. 79: Instrument Panel Center Air Outlet
Fig. 79: Instrument Panel Center Air Outlet

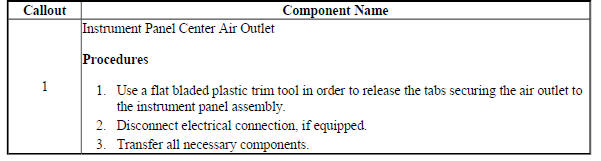

Instrument Panel Center Air Outlet Replacement (Encore)

Instrument Panel Center Air Outlet Replacement (Encore)

FLOOR FRONT AIR OUTLET DUCT REPLACEMENT - RIGHT SIDE

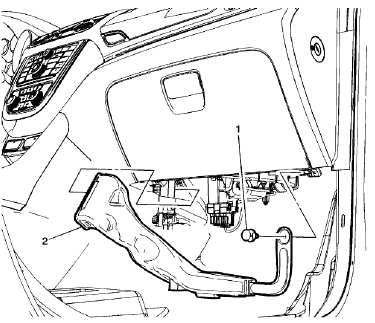

Fig. 80: Floor Front Air Outlet Duct - Right Side
Fig. 80: Floor Front Air Outlet Duct - Right Side

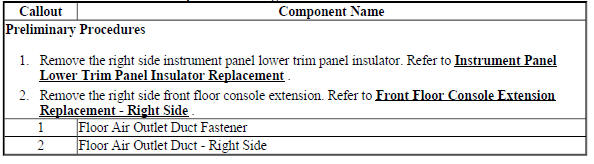

Floor Front Air Outlet Duct Replacement - Right Side

Floor Front Air Outlet Duct Replacement - Right Side

FLOOR FRONT AIR OUTLET DUCT REPLACEMENT - LEFT SIDE (ENCORE)

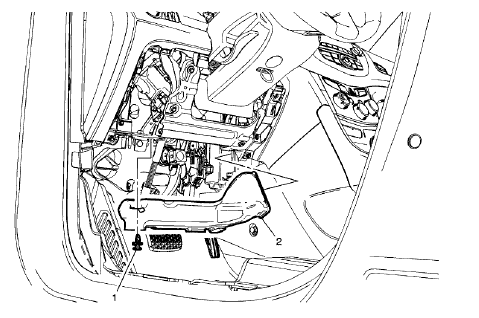

Fig. 81: Floor Front Air Outlet Duct - Left Side (Encore)
Fig. 81: Floor Front Air Outlet Duct - Left Side (Encore)

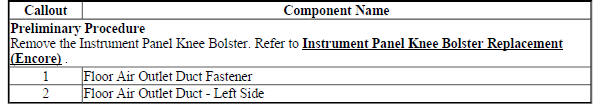

Floor Front Air Outlet Duct Replacement - Left Side (Encore)

Floor Front Air Outlet Duct Replacement - Left Side (Encore)

FLOOR FRONT AIR OUTLET DUCT REPLACEMENT - LEFT SIDE (TRAX)

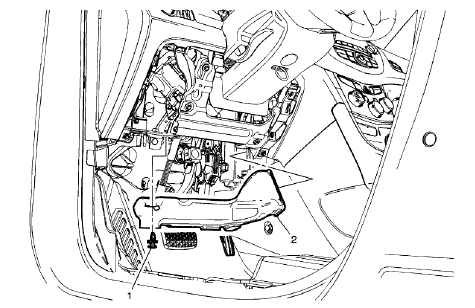

Fig. 82: Floor Front Air Outlet Duct - Left Side (Trax)
Fig. 82: Floor Front Air Outlet Duct - Left Side (Trax)

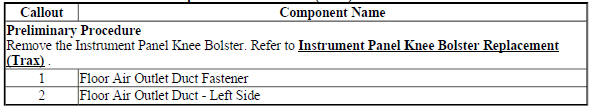

Floor Front Air Outlet Duct Replacement - Left Side (Trax)

Floor Front Air Outlet Duct Replacement - Left Side (Trax)

INSTRUMENT PANEL OUTER AIR OUTLET DUCT REPLACEMENT (TRAX)

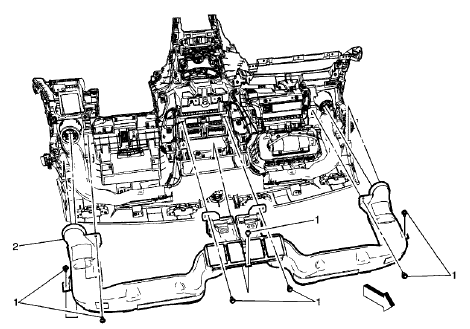

Fig. 83: Instrument Panel Outer Air Outlet Duct (Trax)
Fig. 83: Instrument Panel Outer Air Outlet Duct (Trax)

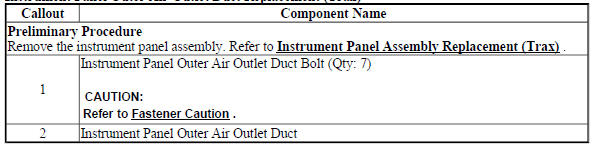

Instrument Panel Outer Air Outlet Duct Replacement (Trax)

Instrument Panel Outer Air Outlet Duct Replacement (Trax)

WINDSHIELD DEFROSTER OUTLET DUCT REPLACEMENT

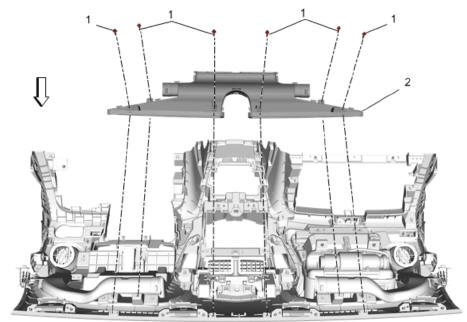

Fig. 84: Windshield Defroster Outlet Duct
Fig. 84: Windshield Defroster Outlet Duct

Windshield Defroster Outlet Duct Replacement

Windshield Defroster Outlet Duct Replacement

Windshield Defroster Outlet Duct Replacement
