Chevrolet Trax: Power vacuum brake booster replacement
Removal Procedure
- With the engine OFF, apply and release the brake pedal several times
until the pedal becomes firm to
deplete the power vacuum brake booster vacuum reserve.
- Remove the battery tray. Refer to Battery Tray Replacement .
- Disconnect the power vacuum brake booster vacuum sensor electrical
connector, if equipped.

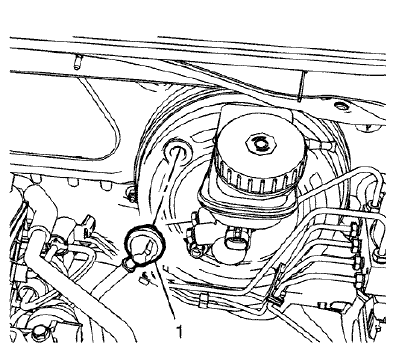

Fig. 165: Power Brake Booster Vacuum Check Valve
- Remove the power brake booster vacuum check valve (1) from the power
vacuum brake booster.
- Remove the driver side instrument panel knee bolster. Refer to
Instrument Panel Knee Bolster
Replacement (Encore) , Instrument Panel Knee Bolster Replacement (Trax) .

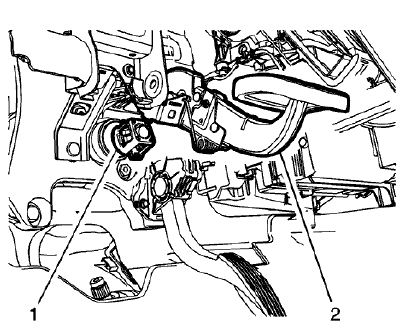

Fig. 166: Brake Booster Pushrod And Brake Pedal
- Compress the tabs on the top and bottom of the brake booster pushrod
retainer (1) and lift the brake pedal
(2) rearward to disconnect the brake pedal from the power brake booster
pushrod.
- Inspect the brake booster pushrod retainer for damage and replace, if
necessary.
- Remove the master cylinder. Refer to Master Cylinder Replacement.

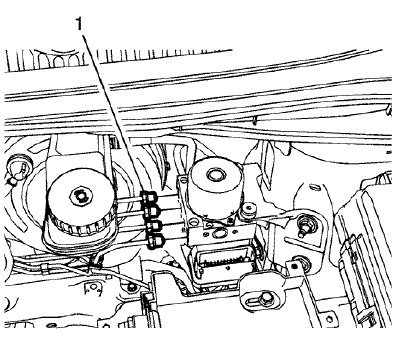

Fig. 167: Front And Rear Brake Pipe Fittings
- If equipped with antilock brakes, disconnect the front and rear brake
pipe fittings (1) from the brake
pressure modulator valve (BPMV). Refer to Brake Pressure Modulator Valve
Replacement .

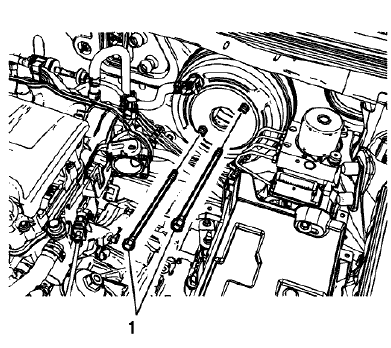

Fig. 168: Power Vacuum Brake Booster And Bolts
- Completely loosen the power vacuum brake booster bolts (1).
- Remove the power vacuum brake booster.
- Inspect the power vacuum brake booster gasket for damage and replace, if
necessary.
Installation Procedure
- Install the power vacuum brake booster gasket, if removed.

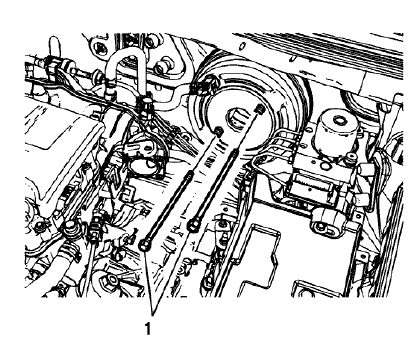

Fig. 169: Power Vacuum Brake Booster And Bolts
- Install the power vacuum brake booster and bolts.
CAUTION: Refer to Fastener Caution .
NOTE: Do not over tighten the power vacuum brake booster bolts. If
the power
vacuum brake booster bolts are over tightened, the brake pedal may
remain applied after a high pressure brake pedal application.
- Install the power vacuum brake booster bolts (1) and tighten to 19 N.m
(14 lb ft).

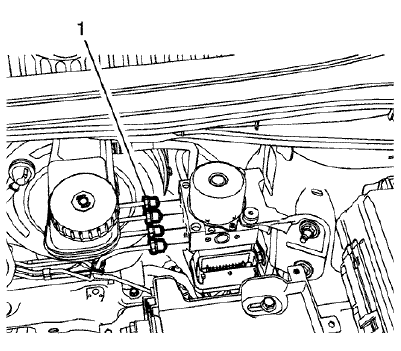

Fig. 170: Front And Rear Brake Pipe Fittings
- If equipped with antilock brakes, connect the front and rear brake pipe
fittings (1) to the BPMV. Refer to
Brake Pressure Modulator Valve Replacement .
- Install the master cylinder. Refer to Master Cylinder Replacement.

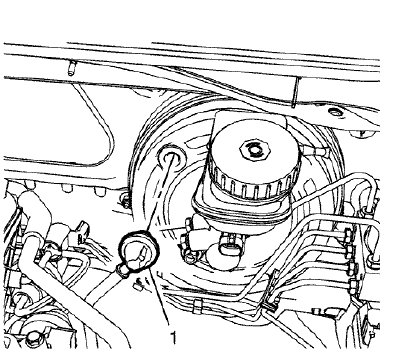

Fig. 171: Power Brake Booster Vacuum Check Valve
- Install the power brake booster vacuum check valve (1) to the power
vacuum brake booster.
- Connect the power vacuum brake booster vacuum sensor electrical
connector, if equipped.

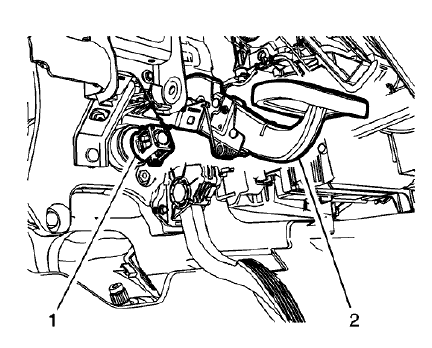

Fig. 172: Brake Booster Pushrod And Brake Pedal
- Install the power brake booster pushrod retainer (1) to the power brake
booster pushrod, if removed.
NOTE: Ensure the power vacuum brake booster pushrod retainer is
fully seated
in the brake pedal arm.
- Position the brake pedal (2) to the power brake booster pushrod retainer
and firmly seat the brake pedal to
the retainer.
- Install the driver side instrument panel knee bolster. Refer to
Instrument Panel Knee Bolster
Replacement (Encore) , Instrument Panel Knee Bolster Replacement (Trax) .
- Install the battery tray. Refer to Battery Tray Replacement .
