Chevrolet Trax: Object detection description and operation (side blind zone alert, UFT)

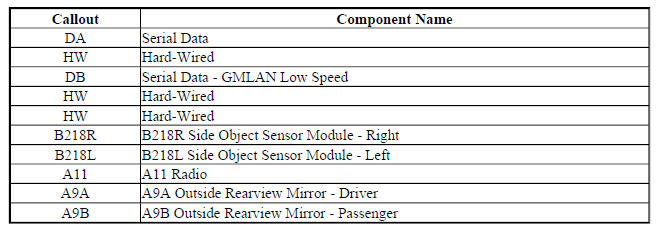

Side Blind Alert Block Diagram

Fig. 20: Side Blind Alert Block Diagram

The side blind zone alert system is a feature that utilizes two side object sensor modules to provide enhanced customer convenience by sensing and reporting to the driver that an object is present in one of the driver's side blind zones. This is communicated to the driver by illuminating an icon on the left or right side view mirror, depending on what side of the vehicle the object is detected. This lane change assist system is radar based system in which the sensors transmit and receives energy that is reflected from external objects and used to determine if that object is an object of interest. Although this system is intended to help drivers avoid lane change crashes, it does not replace driver vision and therefore should be considered a lane change aid.

Side Blind Zone Alert System Components

The side blind zone alert system is made up of the following components:

• Left side object sensor module
• Right side object sensor module
• Driver outside rearview mirror
• Passenger outside rearview mirror

Side Object Sensor Modules

The side object sensor modules are located on each side of the vehicle behind the rear fascia and are not directly visible from outside the vehicle. The sensors use radar to determine the presence of objects nearby. The left side object sensor is the master that communicates on serial data. There is a private communication network between the left and right sensors. The scan tool is able to communicate only with the left sensor.

When an object is detected in the left side blind zone, the side object sensor module sends a message to the right sensor through serial data. The right sensor then supplies voltage to illuminate the visual indicator on the left side outside rear view mirror. When an object is detected in the right side blind zone, the right side object sensor will supply a voltage to illuminate the visual indicator on the right side outside rear view mirror. Each sensor is supplied B+ and ground.

Outside Rearview Mirrors

The outside rearview mirrors contain an icon that is backlit with high intensity, amber-colored LED's located on the mirror surface. The display brightness adapts to day/night conditions. The side blind zone alert indicator icon in the left or right outside rearview mirror is illuminated if the left or right side object sensor module detects a vehicle in the side blind zone to inform the driver that there is a vehicle driving in the blind zone.

Side Blind Zone Alert Operation

The side blind zone alert system shall detect and report "objects of interest" on either side of the vehicle, within a specified "blind spot" zone. The system is designed to alert the driver, with a visual display placed on the side view mirror, to the presence of objects of interest that may not be visible in the inside rearview mirror and outside rear view mirrors. Although this system is intended to help drivers avoid lane change crashes, it does not replace driver vision and therefore should be considered a lane change aid. Even with the side blind zone alert system, the driver must check carefully for objects outside of the reporting zone before changing lanes. In the event that the system senses a malfunction through its diagnostic routines, the system will be disabled and the driver will be visually notified.

When the vehicle is started, both outside mirror displays will briefly come on to indicate that the system is operating. The warning symbols will vary brightness based on the ambient light conditions. Side blind zone alert is active when the vehicle is out of park or the parking brake is off on manual transmission vehicles. When the system detects a vehicle in the side blind zone while driving forward, an amber warning symbol will light up in the appropriate outside mirror. This indicates that it may be unsafe to change lanes. If the driver then activates the turn signal, the amber warning symbol starts flashing as an extra warning not to change lanes.

The system is designed to detect objects of interest as small as a 125cc motorcycle with rider. The detection zone starts at the outside rearview mirror and extends out to 3.5 m (11 ft) at the back corner of the vehicle and 5m (16 ft) behind the vehicle at a height of 0.5 m (1.5 ft) to 2.0 m (6 ft) above the ground. The side blind zone system does not detect stationary objects such as guardrails, posts, curbs, walls, berms, bridges, or parked vehicles.

If the vehicle is towing a trailer or has an object such as a bicycle rack attached to the rear of the vehicle, the side blind zone system may not function properly and the indicators may illuminate intermittently or remain illuminated all the time. The driver information center may display "SIDE DETECTION SYSTEM UNAVAILABLE".

Foul weather may affect the operation of the side blind zone system. Occasional missed alerts can occur under normal circumstances and will increase in wet conditions. The number of missed alerts will increase with increased rainfall or road spray. Heavy rainfall, as well as mud, dirt, snow, ice, or slush build-up on the rear fascia, can completely disable the system. The warning symbols will vary brightness based on the ambient light conditions.

Side Blind Zone Alert Driver Information Center Messages

SIDE BLIND ZONE ALERT OFF

This message indicates that the system has been disabled through the driver information center. Refer to the vehicle owners manual for instructions on how to set personalization options on the driver information center.

SERVICE SIDE DETECTION SYSTEM

This message indicates that the system requires service. When the message is displayed, the indicators may remain illuminated at all times, notifying the driver that the side blind zone system should not be relied upon when changing lanes. Check vehicle for DTCs to determine the cause of this notification.

SIDE DETECTION SYSTEM UNAVAILABLE

This message indicates that the system has been temporarily disabled because the sensor is blocked or can otherwise not accurately detect vehicles or objects. Verify there is no damage to rear fascia or there are any bumper stickers that may interfere with the radar signals. Ask the customer if any of the following circumstances were present when the system became unavailable: towing a trailer, having a bike rack attached, mud, dirt, snow, ice, or slush build-up on the rear fascia, heavy rainfall, or excessive road spray.
